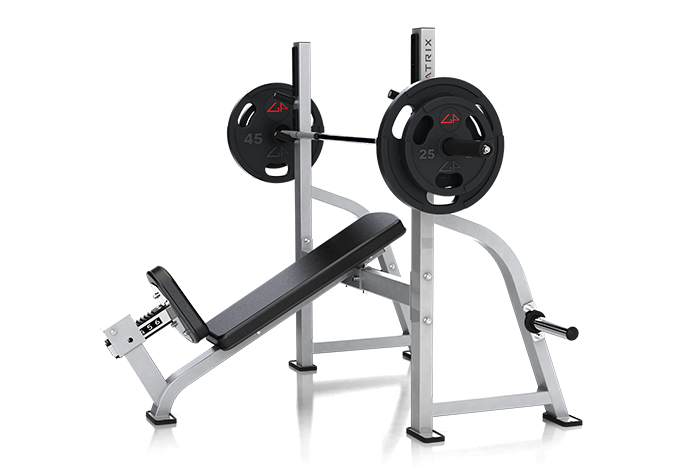

Matrix Commercial - G1-FW164 - 2010

Repair Parts for Matrix Commercial G1-FW164 FW164

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G1-FW164

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
J 701366 004416-AB J05 Screw;FH;M5X0.8PX20L;;PH;;CHM;; No Model Compatibility List $1.79 / Each

2
Z 701522 004555-AB Z05 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701660 004696-AB B17 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701898 004926-AC C10 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
Z 701914 004943-00 Z02 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 702085 005117-AB Z10 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
B 703872 018876-C B11 Plastic Pad;FW40 No Model Compatibility List $9.10 / Each

9,12,13,14
Z 704007 020098-AD Z03 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $9.10 / Each

2
Z 704027 020115-AE Z04 Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T No Model Compatibility List $9.28 / Each

2
Z 704039 020126-DB Z30 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
Z 704206 020479-A Z01 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 705362 048949-DA C18 Cover;PVC;GM153 No Model Compatibility List $3.35 / Each

9
B 705367 048970-BA B15 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 705389 049043-AA B16 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
C 705417 049112-B C22 Screw;Stopper;GM153 No Model Compatibility List $1.66 / Each

2
J 705423 049130-AA J06 Cover;Square Tube;50X50 ;GM153 No Model Compatibility List $1.66 / Each

9,3
C 705464 049255-B C21 Screw;;M6;;;;CHM;;STOPPER No Model Compatibility List $1.66 / Each

2
Z 705467 049258-AB Z09 Screw;SH;M10X1.5PX100L;;HS;;CHM; No Model Compatibility List $3.35 / Each

2
C 705479 049278-CB C23 Screw;;;;;20CRMO;CHM;;SP No Model Compatibility List $11.54 / Each

2
C 705492 049298-B C06 Spring;;;SWP;ZNC;LEFT;GM153 No Model Compatibility List $3.35 / Each

2
C 705493 049299-B C17 Spring;;;SWP;ZNC;RIGHT;GM153 No Model Compatibility List $3.35 / Each

2
J 705518 049871-B J03 Wave Board;GM151 No Model Compatibility List $9.41 / Each

4,5,6
J 705519 049872-C J04 back board;GM151 No Model Compatibility List $8.42 / Each

4,5,6
C 705554 050391-A C19 Pin;Spring;5X16L;OXIDIZE; No Model Compatibility List $3.35 / Each

2,12,13,14
C 705701 055205-AB C08 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 706157 059631-B V04 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
V 706162 059653-B V12 Indication Decal;Seat Pad;GM162-KM No Model Compatibility List $8.42 / Each

7,3,12,13,14
V 706163 059654-B V09 Decal;Back Pad Adjustable;GM151 No Model Compatibility List $8.42 / Each

7,3,4,5,6,12,13,14
B 706451 062380-AA B10 Rubber Pad;FW160 No Model Compatibility List $37.52 / Each

12,13,14
N 707786 1000095214 Not Shown Hard Ware Kit Set;FW164B-KM No Model Compatibility List $197.44 / Each

1
707898 1000096760 C12 Grip;20#;GM151B-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		11
B 708657 1000104684 B18 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
V 709155 1000110518 V11 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
709179 1000110753 Not Shown Manual;Assembly;FW164D-KM No Model Compatibility List $15.47 / Each

3
709180 1000110757 V05 Product Bar Code Sticker;FW164D-KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
709642 1000201827 1 Frame Set;Right;FW164D-KM;-;-; No Model Compatibility List $569.14 / Each

3
709643 1000201828 2 Frame Set;Left;FW164D-KM;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
709644 1000201829 3 Seat Frame Set;SA;-;FW164D-KM;-;-; No Model Compatibility List $337.30 / Each

3,12,13,14
5 709645 1000201830 5 Pad Frame Set;SA;-;FW164D-KM;-;-; No Model Compatibility List $109.23 / Each

3,12,13,14
A 709646 1000201831 AG1 Connecting Frame Set;SA;-;FW164D-KM;- No Model Compatibility List $256.72 / Each

3
6 709647 1000201832 6 Seat Adjustment Frame Set;SA;-;FW164D-KM;-;-; No Model Compatibility List $287.14 / Each

3,12,13,14
Storage Horn Cover;#48;PVC;FW161 725975 078726 B10 Storage Horn Cover;#48;PVC;FW161 No Model Compatibility List $1.66 / Each

9
Storage Horn;CR Plate 726170 080575 AB4 Storage Horn;CR Plate No Model Compatibility List $186.55 / Each

3
Storage Horn Rubber Ring;Rubber;FW161 726258 081064 B11 Storage Horn Rubber Ring;Rubber;FW161 No Model Compatibility List $23.19 / Each

1
Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $2.00 / Each

2
Rubber Sleeve;PU Cannula;PU;FW163B-KM 728590 095451 B21 Rubber Sleeve;PU Cannula;PU;FW163B-KM No Model Compatibility List $20.12 / Each

3
729118 Part of Kit 1 AB1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AB2 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AC1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AH2 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AJ1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J13 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
