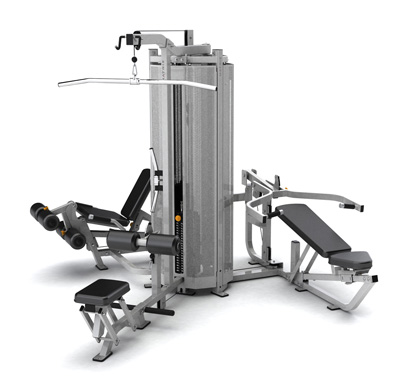

Matrix Commercial - G1-MG30 - 2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000592-B 700182 000592-B D21 Foam Grip;31.8x5.0x140L No Model Compatibility List $10.36 / Each

11
000845-F 700275 000845-F T29 Sleeve;60x60;Delrin;GM19 No Model Compatibility List $2.80 / Each

3
000925-B 700307 000925-B I05 End Cap;M38.1x3.0T No Model Compatibility List $1.38 / Each

9
001402-A 700448 001402-A H18 End Cap;Round No Model Compatibility List $1.38 / Each

9
001407-A 700452 001407-A B18 End-Cover;Square Tube;GM03 No Model Compatibility List $1.28 / Each

9,3
001510-B 700494 001510-B K08 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001523-E 700519 001523-E C46 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001585-F 700548 001585-F F28 Rubber Stop No Model Compatibility List $1.38 / Each

1
004077-A2 701159 004077-A2 F14 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004118-00 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004126-A 701187 004126-A C47 Dry Bearing;Flange;LEF-1015 LFF-1015 No Model Compatibility List $2.58 / Each

8
004518-00 701465 004518-00 Z22 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
004533-AD 701491 004533-AD Z26 Screw;SH;M8X1.25PX65L;;HS;;CHM;;BP No Model Compatibility List $2.58 / Each

2
004536-00 701498 004536-00 Z58 Screw;Hex Socket;Round;M8X1.25PX15L No Model Compatibility List $3.08 / Each

2
004541-AC 701506 004541-AC Z25 Screw;Hex Socket;Round;M8x1.25Px45L;Chromed No Model Compatibility List $2.80 / Each

7,2,12,13,14
004555-AB 701522 004555-AB Z12 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004556-AB 701524 004556-AB Z72 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.38 / Each

2
004627-00 701605 004627-00 T36 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $1.54 / Each

2
004696-AB 701660 004696-AB B16 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004714-AC 701682 004714-AC G25 Screw;Hex Socket;BH;M6x1.0Px15L;Cr No Model Compatibility List $1.28 / Each

2
004842-00 701820 004842-00 Z59 Set Screw;M6x1.0Px8L(Bed) No Model Compatibility List $1.38 / Each

2
004853-AC 701834 004853-AC H17 Set Screw;M6X1.0PX5L;Chrome No Model Compatibility List $1.38 / Each

7,2,12,13,14
004855-A 701835 004855-A H61 Set Screw;M6X1.0PX4L(Chromed) No Model Compatibility List $8.50 / Each

7,2,12,13,14
004926-AC 701898 004926-AC Z28 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $1.54 / Each

2
004943-00 701914 004943-00 Z04 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004945-00 701916 004945-00 H44 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005007-00 701968 005007-00 Z70 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005017-00 701981 005017-00 Z75 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005019-00 701983 005019-00 G26 Washer;Lock;SW6 6.1X10.0X1.2T No Model Compatibility List $1.54 / Each

2
005130-00 702098 005130-00 Z27 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 Z71 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005144-AC 702117 005144-AC Z60 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005152-A 702126 005152-A T32 Washer;Flat;6.4x11x1.6T;Black Zinc No Model Compatibility List $1.54 / Each

2,4,5,6
005191-00 702155 005191-00 H20 Washer;Teflon;20.2X30X1T No Model Compatibility List $2.80 / Each

2
005847-A 702308 005847-A K10 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
009339-C 702702 009339-C H13 Fix Ring;Round Pad;GM03 No Model Compatibility List $10.86 / Each

12,13,14
009372-E 702722 009372-E E05 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
013422-ZG2 702966 013422-ZG2 C34 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
019118-AA 703897 019118-AA H14 Cover;Round Pad;Left;GM03 No Model Compatibility List $2.58 / Each

9,12,13,14
019119-AA 703898 019119-AA H15 Cover;Round Pad;Right;GM03 No Model Compatibility List $2.80 / Each

9,12,13,14
019151-AA 703901 019151-AA K11 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
020090-00 704001 020090-00 Z20 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $3.08 / Each

7,2,12,13,14
020098-AD 704007 020098-AD Z02 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $7.00 / Each

2
020115-AE 704027 020115-AE Z11 Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T No Model Compatibility List $7.14 / Each

2
020126-C 704038 020126-C Z73 Screw;Set;M8X1.25PX20L;;;;CHM;;BP;STOP No Model Compatibility List $1.28 / Each

2
020127-AC 704043 020127-AC C45 Screw;SH;M8X1.25PX12L;;HS;;CHM;; No Model Compatibility List $1.38 / Each

2
020464-A 704191 020464-A G27 Washer;Flat;6.0X12.0X1.0T;;CHM; No Model Compatibility List $1.28 / Each

2
020478-AC 704204 020478-AC Z03 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
020643-A 704223 020643-A H16 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.38 / Each

4,5,6
022231-A 704284 022231-A T35 Pad Frame Stabilizer No Model Compatibility List $1.38 / Each

3,12,13,14
022395-B 704316 022395-B F23 Sleeve;Axle;20X40MM No Model Compatibility List $2.80 / Each

8,3
022402-B 704321 022402-B T17 End Cap;Rear Determination No Model Compatibility List $1.28 / Each

9
028632-AE 704998 028632-AE Z14 Screw;SH;M10X1.5PX45L-12L ;;HS;;CHM;;P-T No Model Compatibility List $2.58 / Each

2
029160-AA 705014 029160-AA F22 End Cap;Handlebar No Model Compatibility List $1.38 / Each

9,11
029963-A 705025 029963-A V20 Sticker;Warning No Model Compatibility List $1.28 / Each

1
048946-BA 705359 048946-BA Z56 Disc;Plastic Interior No Model Compatibility List $2.80 / Each

9
048947-BA 705360 048947-BA Z55 Disc;Plastic Exterior No Model Compatibility List $2.80 / Each

9
049043-AA 705389 049043-AA B15 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $2.58 / Each

9,3
049044-AA 705390 049044-AA D07 Cap;30x60x3.0t;GM154 No Model Compatibility List $1.38 / Each

9
049145-AA 705428 049145-AA T30 Sleeve;Rubber No Model Compatibility List $6.48 / Each

3
049152-A 705432 049152-A C18 Swing Arm Stop;Rubber No Model Compatibility List $6.48 / Each

3
049249-00 705459 049249-00 Z08 Screw;SH;M10X1.5PX65L;;HS;;CHM;; No Model Compatibility List $2.58 / Each

2
049253-AA 705462 049253-AA T31 Screw;SH;M6X1.0PX10L;;HS;;ZN;; No Model Compatibility List $1.28 / Each

2
049256-AB 705465 049256-AB Z13 Screw;Hex Socket;Round;M10x1.5Px20L;Cr; No Model Compatibility List $1.38 / Each

2
049258-00 705466 049258-00 Z16 Screw;SH;M10X1.5PX100L;;HS;;CHM; No Model Compatibility List $1.28 / Each

2
050250-A 705533 050250-A H12 Sleeve;Round Pad;60X4.0TX170L;GM152 No Model Compatibility List $2.58 / Each

3,12,13,14
050304-B 705540 050304-B H07 Adjustment Axle;Back Pad ;45#;GM152 No Model Compatibility List $6.48 / Each

8,4,5,6,12,13,14
050314-A 705542 050314-A F24 Axle;20X130MM No Model Compatibility List $12.98 / Each

8
050411-B 705559 050411-B Z18 Spacer 15x21.5 CHM No Model Compatibility List $7.00 / Each

2,3,4,5,6
050412-A 705560 050412-A Z19 Fix Sleeve;Rope;15x19.5L;Zn Plate;GM88 No Model Compatibility List $1.28 / Each

3
050468-A 705562 050468-A H56 Bushing;Brass No Model Compatibility List $2.80 / Each

8
055342-A 705721 055342-A E10 Lat Bar;Aluminum No Model Compatibility List $225.34 / Each

1
059630-A 706156 059630-A K05 ADJ Rod;Weight Plate;SS41;20Aperture;GM1 No Model Compatibility List $68.26 / Each

3
059631-B 706157 059631-B V19 Warning Sticker;GM162-KM No Model Compatibility List $7.00 / Each

1
059632-A 706158 059632-A V05 Decal;Weight Stack;GM162 No Model Compatibility List $18.18 / Each

7,3,4,5,6
059634-AA 706161 059634-AA K12 Rubber Pad;GM155 No Model Compatibility List $6.48 / Each

12,13,14
059670-AA 706164 059670-AA K02 Weight Plate;10P;Black;GM153 No Model Compatibility List $54.58 / Each

3,4,5,6
061531-AA 706373 061531-AA B17 Leveler;Foot Pad;FW151 No Model Compatibility List $11.20 / Each

9,3,12,13,14
062381-AA 706452 062381-AA Z57 Cap;Square Tube;FW162 No Model Compatibility List $2.72 / Each

9,3
062450-B 706462 062450-B Z74 Screw;Shoulder;10XM8X24L;Chromed No Model Compatibility List $7.00 / Each

7,2,12,13,14
062626-AA 706480 062626-AA B20 Cap;Hole Plug;FW158 No Model Compatibility List $1.28 / Each

9
063070-A 706532 063070-A G24 Hook Snap No Model Compatibility List $7.00 / Each

1
063236-A 706539 063236-A F13 Screw;SH;M8X1.25PX22L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
065793-BA 706812 065793-BA H32 Pull Pin Set;leg Pad;FW165 No Model Compatibility List $6.48 / Each

12,13,14
065988-A 706831 065988-A V04 Decal; Adjustable;FW165 No Model Compatibility List $6.48 / Each

7,3
067941-C 706986 067941-C H19 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.38 / Each

9
1000096613 707886 1000096613 F03 Steel Rope;GM167 No Model Compatibility List $98.40 / Each

1
1000096713 707890 1000096713 F05 Steel Rope;Press Rope Hand;Extrawork;44; No Model Compatibility List $114.74 / Each

1
1000096714 707891 1000096714 F10 Steel Rope;4.8x4325mm LOOS;GM167 No Model Compatibility List $97.46 / Each

1
1000096715 707892 1000096715 F11 Extrawork;Steel Rope;Press The End;GM167 No Model Compatibility List $83.22 / Each

9
708099 1000099693 H09 Pull Pin Set;Orange Knob No Model Compatibility List $56.86 / Each

12,13,14
1000104684 708657 1000104684 B10 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $2.58 / Each

1
1000104689 708661 1000104689 Z21 Screw;RND;M10x1.5Px115L;HS;G8.8;CHM No Model Compatibility List $6.48 / Each

2
1000104726 708689 1000104726 Z69 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $1.54 / Each

2
1000105038 708710 1000105038 D13 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $2.80 / Each

2,12,13,14
1000105039 708711 1000105039 K06 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $2.72 / Each

2,12,13,14
1000106270 708855 1000106270 AF1 Pulley Frame Set;Painting No Model Compatibility List $62.60 / Each

8,3
1000110518 709155 1000110518 V21 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $6.48 / Each

1
1000110525 709156 1000110525 Not Shown Manual;Assembly;GM167D-KM No Model Compatibility List $13.42 / Each

3
1000110527 709157 1000110527 V01 Instruction Sticker;A;English;GM167D-KM No Model Compatibility List $51.16 / Each

1
1000110528 709158 1000110528 V02 Instruction Sticker;B;English;GM167D-KM No Model Compatibility List $51.16 / Each

1
1000110529 709159 1000110529 V03 Instruction Sticker;C;English;GM167D-KM No Model Compatibility List $51.16 / Each

1
709615 1000201728 AB1 Main Frame Set ;Painting;GM167 No Model Compatibility List $775.56 / Each

3
1000201730 709616 1000201730 AG5 Connecting Frame Tube Set;U;GM167 No Model Compatibility List $56.42 / Each

3
709660 1000201922 AG1 Upper Frame Connecting Tube Set 1;U;Painting;A GM No Model Compatibility List $177.50 / Each

3
709661 1000201923 AG2 Upper Frame Connecting Tube Set 2;U;Painting;B GM No Model Compatibility List $190.22 / Each

3
709662 1000201924 AG3 Lower Frame Connecting Tube Set 1;D;Painting;A No Model Compatibility List $59.16 / Each

3
709663 1000201925 AB7 Frame Support Tube Set 1;Painting;GM1 No Model Compatibility List $205.38 / Each

3
1000201926 709664 1000201926 AG4 Lower Frame Connecting Tube Set 2;D;Painting;B No Model Compatibility List $55.74 / Each

3
1000201927 709665 1000201927 AB2 Supt Base Set;Weight Plate;Painting;GM15 No Model Compatibility List $64.72 / Each

3
709666 1000201928 AC6 Press Frame Set 1;Base;Painting;GM167 No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000201929 709667 1000201929 AC3 Press Frame Set 2;Painting;GM1 No Model Compatibility List $175.38 / Each

3
709668 1000201930 AC4 Seat Welding Set;Painting;GM167 No Model Compatibility List $194.98 / Each

12,13,14
709669 1000201931 AC5 Base Welding Set; Leg Stretch ;Painti No Model Compatibility List $159.36 / Each

3
1000201932 709670 1000201932 T16 Adjust Tube;Painting;GM167-KM No Model Compatibility List $54.18 / Each

3
1000201933 709671 1000201933 13 Grip Frame Set;Painting;GM167 No Model Compatibility List $85.08 / Each

3,11
709672 1000201934 14 Press Arm Set;Painting;GM167 No Model Compatibility List $129.98 / Each

3
709673 1000201935 AG6 Frame Support Tube Set 2;ConTube;high Pull;GM167 No Model Compatibility List $148.08 / Each

3
1000201936 709674 1000201936 AG7 Connecting Frame Tube Welding Set;D;GM167 No Model Compatibility List $89.74 / Each

3
1000201937 709675 1000201937 AG8 Connecting Frame Tube Welding Set 2;U;GM167 No Model Compatibility List $131.76 / Each

3
1000201938 709676 1000201938 19 Top Weight Plate Set, Includes Bayonet;10LBS;GM153 No Model Compatibility List $207.18 / Each

3
1000201940 709677 1000201940 21 Guide Rod Stop Set;SA;;GM167D-KM;SERVICE PARTS;;; No Model Compatibility List $165.52 / Each

3
1000201941 709678 1000201941 AH4 Leg Pad Adjustment Frame Set;Welding;Painting Set;Leg Pad; No Model Compatibility List $118.18 / Each

3,12,13,14
1000201942 709679 1000201942 AH5 Fix Axle;Welding Set;Painting;Leg Pad;GM No Model Compatibility List $114.60 / Each

8,12,13,14
1000201943 709680 1000201943 AH6 Fix Tube;Welding Painting Set;Leg Pad;GM No Model Compatibility List $87.90 / Each

3,12,13,14
709681 1000201944 AH7 Adjustment Tube;Welding Set;Cr Plate;Back Pad;G No Model Compatibility List $224.70 / Each

3,4,5,6,12,13,14
1000201945 709682 1000201945 AH1 ThighPad Adjustment Frame;Stretch;Painting;GM152 No Model Compatibility List $959.54 / Each

3,12,13,14
1000201947 709683 1000201947 AN1 Lower Frame Pull Tube;Welding Set;Painting;GM1 No Model Compatibility List $201.06 / Each

3
1000201948 709684 1000201948 AT1 Press BackPad Frame Set;Welding Set;Painting;Back Pad;G No Model Compatibility List $214.34 / Each

3,4,5,6,12,13,14
1000201949 709685 1000201949 AT2 Press SeatPad Adjustment Frame Set;Welding Set;Painting;Seat Pad;G No Model Compatibility List $265.94 / Each

3,12,13,14
1000201950 709686 1000201950 39 LegPad Tube Set;Welding Set;Painting;GM167 No Model Compatibility List $372.22 / Each

3,12,13,14
1000201951 709687 1000201951 AT8 Support Tube Set;Welding Set;Painting;Back Pad; No Model Compatibility List $376.96 / Each

3,4,5,6,12,13,14
1000201952 709688 1000201952 AF2 BackPad ROM Frame Welding Set;Cam;GM167 No Model Compatibility List $406.46 / Each

3,4,5,6,12,13,14
1000202200 709707 1000202200 H30 Pad Adjustment Handle;Cr Plate;Back Pad;GM167 No Model Compatibility List $513.20 / Each

3,4,5,6,12,13,14,11
1000202201 709708 1000202201 H53 ADJ Plate;Back Pad;GM167 No Model Compatibility List $513.66 / Each

3,4,5,6,12,13,14
1000202202 709709 1000202202 H29 Pad Adjustment Handle;Back Pad;GM167 No Model Compatibility List $504.90 / Each

4,5,6,12,13,14,11
1000202203 709710 1000202203 AT3 Fix Tube;Welding Set;Seat Pad;GM167 No Model Compatibility List $166.22 / Each

3,12,13,14
1000202204 709711 1000202204 35 Arm Tube Set;Welding Set;Seat Pad;GM167 No Model Compatibility List $265.86 / Each

3,12,13,14
1000202206 709712 1000202206 AT9 Press SeatPad Frame Set;Welding Set;Seat Pad;Painting;G No Model Compatibility List $316.64 / Each

3,12,13,14
1000206196 710034 1000206196 Q02 Cover;F;Painting;B;GM167 No Model Compatibility List $498.88 / Each

9
710035 1000206197 Q03 Cover;F;Painting;C;GM167 No Model Compatibility List $498.74 / Each

9
710036 1000206198 Q01 Cover;F ;Painting;A;GM167 No Model Compatibility List $450.46 / Each

9
1000210900 710551 1000210900 AT5 Fix Tube Set;Welding Set;Painting;Back Pad;G No Model Compatibility List $130.38 / Each

3,4,5,6,12,13,14
1000212618 710720 1000212618 K07 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
1000372591 720426 1000372591 K07 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
1000380094 721052 1000380094 F19 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $19.16 / Each

2
070554 725360 070554 F20 Grip;AL;Market;MS153 No Model Compatibility List $98.26 / Each

11
070969 725410 070969 Z07 Screw;SH;M10X1.5PX105L;;HS;;CHM;; No Model Compatibility List $24.08 / Each

2
070970 725411 070970 Z01 Screw;SH;M10X1.5PX80L;;HS;;CHM;; No Model Compatibility List $86.38 / Each

2
073572 725583 073572 F17 Pulley; 90mm No Model Compatibility List $34.06 / Each

8
073573 725584 073573 F21 Pulley; 115mm No Model Compatibility List $32.44 / Each

8
080870 726234 080870 T34 Clamp;External C-Shaped;Black; No Model Compatibility List $2.58 / Each

4,5,6
082721 726547 082721 C44 ADJ Fix Plate;Leg Pad;GM167 No Model Compatibility List $10.30 / Each

3,12,13,14
082732 726548 082732 D09 Swivel Axle;GM167 No Model Compatibility List $6.48 / Each

8
082747 726551 082747 K03 Guide Rail;Cr Plate;GM167 No Model Compatibility List $68.88 / Each

9,3
082749 726552 082749 K04 Guide Rail;Cr Plate;GM167 No Model Compatibility List $14.26 / Each

9,3
082776 726553 082776 T33 Hook L ;GM167 No Model Compatibility List $6.48 / Each

1
082840 726555 082840 I04 Foam;GM167 No Model Compatibility List $7.48 / Each

1
082847 726556 082847 F06 Cam Cover;GM167 No Model Compatibility List $61.00 / Each

9
082861 726557 082861 KIT Hardware Pack No Model Compatibility List $297.72 / Each

4,5,6
082865 726558 082865 D12 Sleeve;GM167 No Model Compatibility List $16.84 / Each

3
082872 726561 082872 Z17 Axle;GM167 No Model Compatibility List $7.64 / Each

8
083064 726578 083064 Z68 Fix Plate;GM167 No Model Compatibility List $48.50 / Each

3
726628 083706 B13 Foam#GM167 No Model Compatibility List $1.24 / Each

1
084665 726764 084665 Z10 Screw;SH;M10X1.5PX140L;;HS;;CHM;; No Model Compatibility List $6.48 / Each

2
084666 726765 084666 Z04 Screw;SH;M10X1.5PX160L;;HS;;CHM;; No Model Compatibility List $6.48 / Each

2
084667 726766 084667 Z08 Screw;SH;M10X1.5PX175L;;HS;;CHM;; No Model Compatibility List $7.00 / Each

2
086254 726963 086254 Z05 Ring;Q235;GM167 No Model Compatibility List $6.48 / Each

1
727000 086611 V06 Series no. Decal;GM167 No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
086613 727001 086613 V08 Decal; Adjustable;GM167 No Model Compatibility List $2.58 / Each

7,3
086616 727002 086616 Z09 Screw;SH;M12X1.75PX152L;;HS;;CHM;; No Model Compatibility List $7.00 / Each

2
095167 728517 095167 E09 Foam;Elastomer;BL;31.8x5.0tx170L;GM167K No Model Compatibility List $2.80 / Each

1
095286 728549 095286 Z06 Space Ring;Q235;GM167-KM No Model Compatibility List $7.48 / Each

4,5,6
728977 N/A 20 Console Mast,Old version (4 holes on front) No Model Compatibility List $0.00 / Each
Out Of Stock
7
729125 Part of Kit 13 AE1 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729127 Part of Kit 14 AD1 Crank Pin Sleeve;Aluminum Casting;EP525- No Model Compatibility List $0.00 / Each
Out Of Stock
8,3,12,13,14
729137 Part of Kit 19 K01 Crank Sleeve;Pedal Arm;-;-;ADC12; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3,4,5,6
729141 Part of Kit 21 K09 Axle;Transmission;42CRMO;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
8
729161 Part of Kit 35 AT4 Plastic Cover;Quick Key;ABS/PA746;137C/ No Model Compatibility List $0.00 / Each
Out Of Stock
9
729164 Part of Kit 39 AI1 LegPad Tube Set;Welding Set;Painting;GM167 No Model Compatibility List $0.00 / Each
Out Of Stock
3,12,13,14
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
View Drawing
