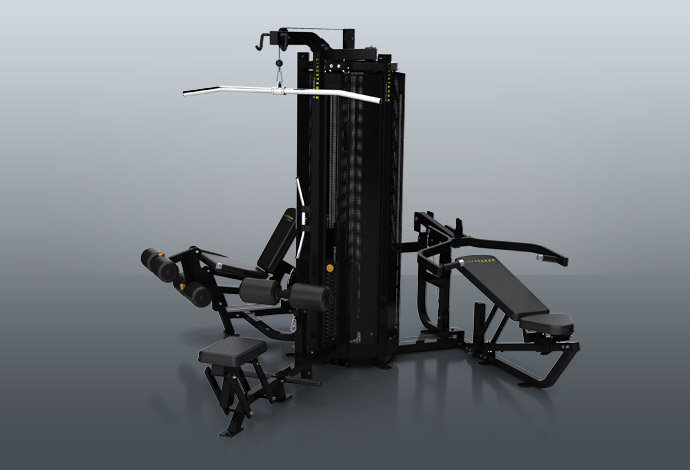

Matrix Commercial - G1-MG30LS - 30-Jan-10

Repair Parts for Matrix Commercial G1-MG30LS G1-MG30LS,3-Stack Multi-Gym

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: G1-MG30LS

Version: 30-Jan-10

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Foam Grip;31.8x5.0x140L 700182 000592-B D21 Foam Grip;31.8x5.0x140L No Model Compatibility List $13.47 / Each

11
Sleeve;60x60;Delrin;GM19 700275 000845-F T29 Sleeve;60x60;Delrin;GM19 No Model Compatibility List $3.64 / Each

3
End Cap;M38.1x3.0T 700307 000925-B B08 End Cap;M38.1x3.0T No Model Compatibility List $1.79 / Each

9
End Cap;Round 700448 001402-A Q06 End Cap;Round No Model Compatibility List $1.79 / Each

9
End-Cover;Square Tube;GM03 700452 001407-A B09 End-Cover;Square Tube;GM03 No Model Compatibility List $1.66 / Each

9,3
Grommet;Guide Rod 700494 001510-B K08 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Rubber Stop;CAM 700519 001523-E G39 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Rubber Stop 700548 001585-F F28 Rubber Stop No Model Compatibility List $1.79 / Each

1
Ball Bearing;6004ZZ;20X42X12T;;SKF;;; 701159 004077-A2 E17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
Bearing;Dry;Flange;LEF-2015 LFF-2015 701183 004118-00 T06 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
Dry Bearing;Flange;LEF-1015 LFF-1015 701187 004126-A C47 Dry Bearing;Flange;LEF-1015 LFF-1015 No Model Compatibility List $3.35 / Each

8
Screw;SH;M10X1.5PX75L;;HS;;CHM;; 701465 004518-00 J53 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
Screw;SH;M8X1.25PX65L;;HS;;CHM;;BP 701491 004533-AD Z26 Screw;SH;M8X1.25PX65L;;HS;;CHM;;BP No Model Compatibility List $3.35 / Each

2
701499 004536-AC Z58 Screw;SH;M8X1.25PX15L;;HS;;CHM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Screw;Hex Socket;Round;M8x1.25Px45L;Chromed 701506 004541-AC E13 Screw;Hex Socket;Round;M8x1.25Px45L;Chromed No Model Compatibility List $3.64 / Each

7,2,12,13,14
Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A 701522 004555-AB H65 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr; 701524 004556-AB Z35 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

2
Screw;Phillip;BH;Tapped;5x12L 701605 004627-00 N40 Screw;Phillip;BH;Tapped;5x12L No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Screw;Hex Socket;BH;M6x1.0Px15L;Cr 701682 004714-AC G25 Screw;Hex Socket;BH;M6x1.0Px15L;Cr No Model Compatibility List $1.66 / Each

2
Set Screw;M6x1.0Px8L(Bed) 701820 004842-00 Z07 Set Screw;M6x1.0Px8L(Bed) No Model Compatibility List $1.79 / Each

2
Set Screw;M6X1.0PX5L;Chrome 701834 004853-AC H17 Set Screw;M6X1.0PX5L;Chrome No Model Compatibility List $1.79 / Each

7,2,12,13,14
Set Screw;M6X1.0PX4L(Chromed) 701835 004855-A E15 Set Screw;M6X1.0PX4L(Chromed) No Model Compatibility List $11.05 / Each

7,2,12,13,14
Nut;Self Locking;M8x1.25P;Cr;Nylon Insert 701898 004926-AC C26 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
Nut;Nylon;M10x1.5P;Cr Plate; 701914 004943-00 F18 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Nut;Nylon;M12x1.75P;Chromed 701916 004945-00 C23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Spring;12.2x21.5x3.0t 701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Washer;Spring;SW10 10.2X18.4X2.5T;Chromed 701981 005017-00 B41 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Washer;Lock;SW6 6.1X10.0X1.2T 701983 005019-00 U14 Washer;Lock;SW6 6.1X10.0X1.2T No Model Compatibility List $2.00 / Each

2
Washer;Flat;8.4x15.5x1.6T;Chromed 702098 005130-00 Z33 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Flat;13x26x2.5T;Chromed 702102 005132-00 Z03 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Flat;10.2X35.0X2.0T;Chromed 702117 005144-AC Z02 Washer;Flat;10.2X35.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Flat;6.4x11x1.6T;Black Zinc 702126 005152-A T32 Washer;Flat;6.4x11x1.6T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Teflon;20.2X30X1T 702155 005191-00 H20 Washer;Teflon;20.2X30X1T No Model Compatibility List $3.64 / Each

2
Lanyard;Weight Selection Pin 702308 005847-A K08 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
Fix Ring;Round Pad;GM03 702702 009339-C T12 Fix Ring;Round Pad;GM03 No Model Compatibility List $14.12 / Each

12,13,14
Cap;Grip;GM02 702722 009372-E E14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
Adjust Pin Assembly;ROM;Yellow 702966 013422-ZG2 G24 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
Cover;Round Pad;Left;GM03 703897 019118-AA T13 Cover;Round Pad;Left;GM03 No Model Compatibility List $3.35 / Each

9,12,13,14
Cover;Round Pad;Right;GM03 703898 019119-AA T14 Cover;Round Pad;Right;GM03 No Model Compatibility List $3.64 / Each

9,12,13,14
Rubber Bumper;Weight Stack 703901 019151-AA K17 Rubber Bumper;Weight Stack No Model Compatibility List $3.64 / Each

3,4,5,6
Screw;Hex Socket;Round;M10x1.25Px20L;Chromed 704001 020090-00 G38 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
Screw;Hex Socket;Round;M10x1.5Px70L;Cr; 704007 020098-AD Z02 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $9.10 / Each

2
Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T 704027 020115-AE Z01 Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T No Model Compatibility List $9.28 / Each

2
Screw;Seat Stopper;M8x1.25Px20L 704039 020126-DB Z30 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
Screw;SH;M8X1.25PX12L;;HS;;CHM;; 704043 020127-AC C45 Screw;SH;M8X1.25PX12L;;HS;;CHM;; No Model Compatibility List $1.79 / Each

2
Washer;Flat;6.0X12.0X1.0T;;CHM; 704191 020464-A G27 Washer;Flat;6.0X12.0X1.0T;;CHM; No Model Compatibility List $1.66 / Each

2
Washer;Flat;10.2X20.0X2.0T;Chromed 704204 020478-AC Z03 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Clamp;External C-Shaped;S-50;BED; 704223 020643-A T15 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.79 / Each

4,5,6
Pad Frame Stabilizer 704284 022231-A C13 Pad Frame Stabilizer No Model Compatibility List $1.79 / Each

3,12,13,14
Sleeve;Axle;20X40MM 704316 022395-B D50 Sleeve;Axle;20X40MM No Model Compatibility List $3.64 / Each

8,3
End Cap;Rear Determination 704321 022402-B T17 End Cap;Rear Determination No Model Compatibility List $1.66 / Each

9
Screw;SH;M10X1.5PX45L-12L ;;HS;;CHM;;P-T 704998 028632-AE Z14 Screw;SH;M10X1.5PX45L-12L ;;HS;;CHM;;P-T No Model Compatibility List $3.35 / Each

2
End Cap;Handlebar 705014 029160-AA T15 End Cap;Handlebar No Model Compatibility List $1.79 / Each

9,11
Sticker;Warning 705025 029963-A V20 Sticker;Warning No Model Compatibility List $1.66 / Each

1
Disc;Plastic Interior 705359 048946-BA Z56 Disc;Plastic Interior No Model Compatibility List $3.64 / Each

9
Disc;Plastic Exterior 705360 048947-BA Z55 Disc;Plastic Exterior No Model Compatibility List $3.64 / Each

9
Cap;S50.0x75.0;2.0t.3.0t tube 705389 049043-AA C26 Cap;S50.0x75.0;2.0t.3.0t tube No Model Compatibility List $3.35 / Each

9,3
Cap;30x60x3.0t;GM154 705390 049044-AA T05 Cap;30x60x3.0t;GM154 No Model Compatibility List $1.79 / Each

9
Sleeve;Rubber 705428 049145-AA T30 Sleeve;Rubber No Model Compatibility List $8.42 / Each

3
Swing Arm Stop;Rubber 705432 049152-A C18 Swing Arm Stop;Rubber No Model Compatibility List $8.42 / Each

3
Screw;SH;M10X1.5PX65L;;HS;;CHM;; 705459 049249-00 Z07 Screw;SH;M10X1.5PX65L;;HS;;CHM;; No Model Compatibility List $3.35 / Each

2
Screw;SH;M6X1.0PX10L;;HS;;ZN;; 705462 049253-AA Z04 Screw;SH;M6X1.0PX10L;;HS;;ZN;; No Model Compatibility List $1.66 / Each

2
Screw;Hex Socket;Round;M10x1.5Px20L;Cr; 705465 049256-AB Z03 Screw;Hex Socket;Round;M10x1.5Px20L;Cr; No Model Compatibility List $1.79 / Each

2
Screw;SH;M10X1.5PX100L;;HS;;CHM; 705466 049258-00 Z07 Screw;SH;M10X1.5PX100L;;HS;;CHM; No Model Compatibility List $1.66 / Each

2
Sleeve;Round Pad;60X4.0TX170L;GM152 705533 050250-A T11 Sleeve;Round Pad;60X4.0TX170L;GM152 No Model Compatibility List $3.35 / Each

3,12,13,14
Adjustment Axle;Back Pad ;45#;GM152 705540 050304-B H07 Adjustment Axle;Back Pad ;45#;GM152 No Model Compatibility List $8.42 / Each

8,4,5,6,12,13,14
Axle;20X130MM 705542 050314-A F24 Axle;20X130MM No Model Compatibility List $16.87 / Each

8
Spacer 15x21.5 CHM 705559 050411-B Z18 Spacer 15x21.5 CHM No Model Compatibility List $9.10 / Each

2,3,4,5,6
Fix Sleeve;Rope;15x19.5L;Zn Plate;GM88 705560 050412-A Z19 Fix Sleeve;Rope;15x19.5L;Zn Plate;GM88 No Model Compatibility List $1.66 / Each

3
Bushing;Brass 705562 050468-A H56 Bushing;Brass No Model Compatibility List $3.64 / Each

8
Lat Bar;Aluminum 705721 055342-A E10 Lat Bar;Aluminum No Model Compatibility List $292.94 / Each

1
Stopper Block;GM152 705960 057016-A K09 Stopper Block;GM152 No Model Compatibility List $3.35 / Each

1
ADJ Rod;Weight Plate;SS41;20Aperture;GM1 706156 059630-A K05 ADJ Rod;Weight Plate;SS41;20Aperture;GM1 No Model Compatibility List $88.74 / Each

3
Warning Sticker;GM162-KM 706157 059631-B V02 Warning Sticker;GM162-KM No Model Compatibility List $9.10 / Each

1
Decal;Weight Stack;GM162 706158 059632-A V05 Decal;Weight Stack;GM162 No Model Compatibility List $23.63 / Each

7,3,4,5,6
Rubber Pad;GM155 706161 059634-AA K12 Rubber Pad;GM155 No Model Compatibility List $8.42 / Each

12,13,14
Weight Plate;10P;Black;GM153 706164 059670-AA K02 Weight Plate;10P;Black;GM153 No Model Compatibility List $70.95 / Each

3,4,5,6
Leveler;Foot Pad;FW151 706373 061531-AA B06 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
Cap;Square Tube;FW162 706452 062381-AA M04 Cap;Square Tube;FW162 No Model Compatibility List $3.54 / Each

9,3
Screw;Shoulder;10XM8X24L;Chromed 706462 062450-B Z24 Screw;Shoulder;10XM8X24L;Chromed No Model Compatibility List $9.10 / Each

7,2,12,13,14
Cap;Hole Plug;FW158 706480 062626-AA D08 Cap;Hole Plug;FW158 No Model Compatibility List $1.66 / Each

9
Hook Snap 706532 063070-A G24 Hook Snap No Model Compatibility List $9.10 / Each

1
Screw;SH;M8X1.25PX22L;;HS;;CHM;; 706539 063236-A F13 Screw;SH;M8X1.25PX22L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
Pull Pin Set;leg Pad;FW165 706812 065793-BA T16 Pull Pin Set;leg Pad;FW165 No Model Compatibility List $8.42 / Each

12,13,14
Decal; Adjustable;FW165 706831 065988-A V09 Decal; Adjustable;FW165 No Model Compatibility List $8.42 / Each

7,3
Cap;25x50x3.0T;GM20 706986 067941-C H12 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
Steel Rope;GM167 707886 1000096613 F03 Steel Rope;GM167 No Model Compatibility List $127.92 / Each

1
Steel Rope;Press Rope Hand;Extrawork;44; 707890 1000096713 F05 Steel Rope;Press Rope Hand;Extrawork;44; No Model Compatibility List $149.16 / Each

1
Steel Rope;4.8x4325mm LOOS;GM167 707891 1000096714 F10 Steel Rope;4.8x4325mm LOOS;GM167 No Model Compatibility List $126.70 / Each

1

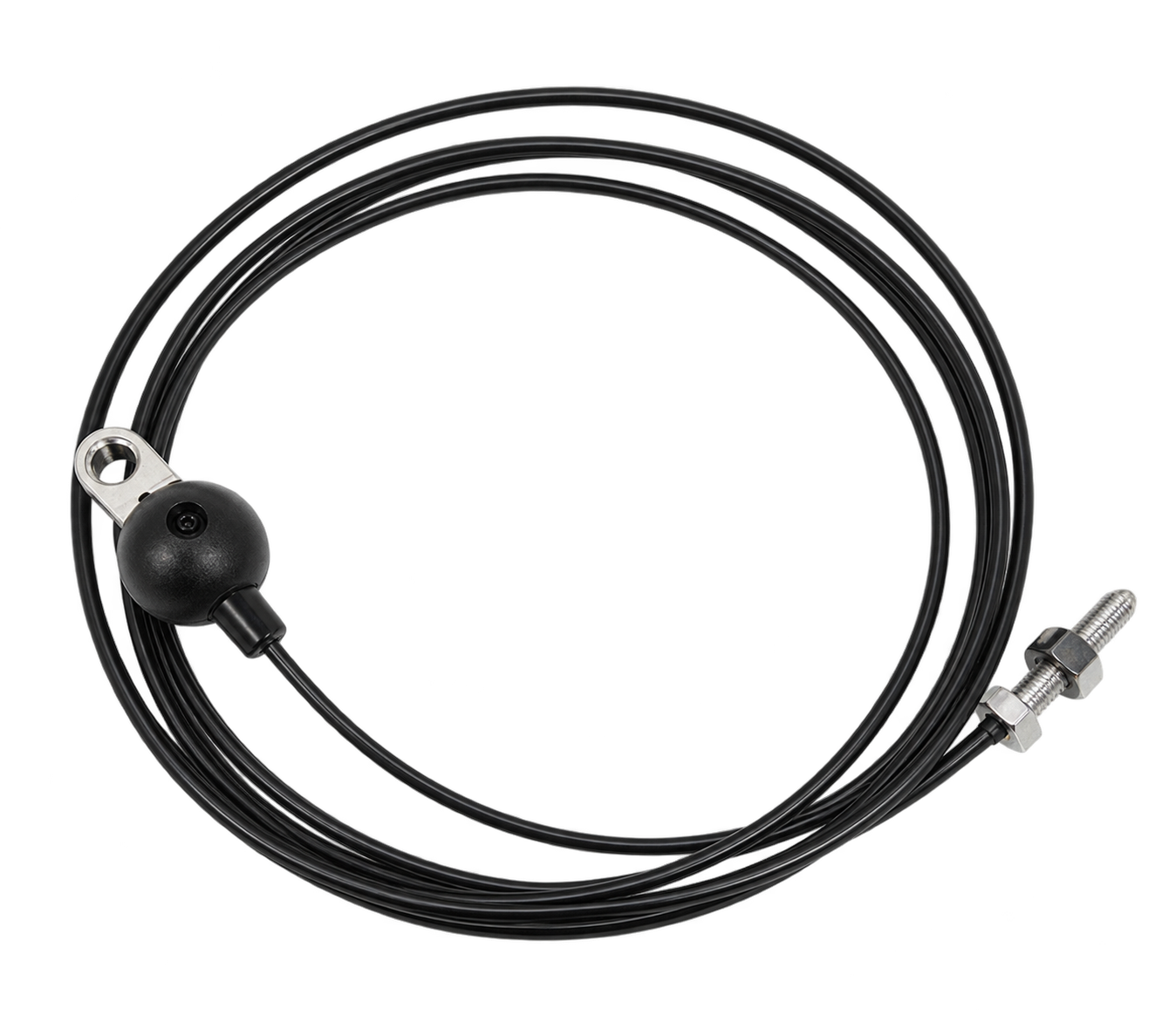

Extrawork;Steel Rope;Press The End;GM167 707892 1000096715 F11 Extrawork;Steel Rope;Press The End;GM167 No Model Compatibility List $108.19 / Each

9
RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Screw;RND;M10x1.5Px115L;HS;G8.8;CHM 708661 1000104689 Z21 Screw;RND;M10x1.5Px115L;HS;G8.8;CHM No Model Compatibility List $8.42 / Each

2
Washer;WW;20.7x29.1x0.3t;65Mn;BAN 708689 1000104726 Z69 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
Pin;Spring;5x30L;OXIDIZE 708710 1000105038 H09 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
Pin;Spring;10X70;OXIDIZE 708711 1000105039 K06 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
Sticker;LOGO;PVC;FW151D-KM 709155 1000110518 V01 Sticker;LOGO;PVC;FW151D-KM No Model Compatibility List $8.42 / Each

1
Manual;Assembly;GM167D-KM 709156 1000110525 Not Shown Manual;Assembly;GM167D-KM No Model Compatibility List $17.45 / Each

3
Instruction Sticker;A;English;GM167D-KM 709157 1000110527 V01 Instruction Sticker;A;English;GM167D-KM No Model Compatibility List $66.51 / Each

1
Instruction Sticker;B;English;GM167D-KM 709158 1000110528 V02 Instruction Sticker;B;English;GM167D-KM No Model Compatibility List $66.51 / Each

1
Instruction Sticker;C;English;GM167D-KM 709159 1000110529 V03 Instruction Sticker;C;English;GM167D-KM No Model Compatibility List $66.51 / Each

1
Top Weight Plate Set, Includes Bayonet;10LBS;GM153 709676 1000201938 19 Top Weight Plate Set, Includes Bayonet;10LBS;GM153 No Model Compatibility List $269.33 / Each

3
710531 1000210877 AB7 Upright Frame Set 2;Welding;Painting;GM1 No Model Compatibility List $457.52 / Each

3
Connect TubeWelding Set;U;Painting;A GM 710532 1000210878 AG1 Connect TubeWelding Set;U;Painting;A GM No Model Compatibility List $157.79 / Each

3
Connect Tube Welding Set;U;Painting;B; 710533 1000210879 AG2 Connect Tube Welding Set;U;Painting;B; No Model Compatibility List $123.21 / Each

3
710534 1000210880 AG3 Connect Tube Welding Set;D;Painting;A No Model Compatibility List $215.62 / Each

3
710535 1000210881 AC3 Supt Tube Set;Base Welding Set;Painting;GM1 No Model Compatibility List $530.79 / Each

3
710536 1000210882 AC4 Seat Welding Set;Painting;GM167 No Model Compatibility List $579.15 / Each

12,13,14
710537 1000210883 AC5 Base Welding Set; Leg Stretch ;Painti No Model Compatibility List $649.71 / Each

3
Leg Curl Arm Frame Set;LYING LEG CURL;GM167D-KM; SERVI 710538 1000210885 13 Leg Curl Arm Frame Set;LYING LEG CURL;GM167D-KM; SERVI No Model Compatibility List $161.36 / Each

3
710539 1000210886 14 Chest Press Arm Frame Set;;GM167D-KM; SERVICE PARTS;;; No Model Compatibility List $528.29 / Each

3
710540 1000210888 AG6 Upright Frame Set 3;Welding;Painting;GM167 No Model Compatibility List $273.86 / Each

3
Con Tube Welding Set;D;GM167 710541 1000210889 AG7 Con Tube Welding Set;D;GM167 No Model Compatibility List $99.22 / Each

3
Con Tube Welding Set;U;GM167 710542 1000210890 AG8 Con Tube Welding Set;U;GM167 No Model Compatibility List $149.66 / Each

3
Fix Axle;Welding Set;Painting;Leg Pad;GM 710543 1000210892 AH5 Fix Axle;Welding Set;Painting;Leg Pad;GM No Model Compatibility List $78.21 / Each

8,12,13,14
ADJ Tube Set;Cr Plate;Back Pad;GM167 710544 1000210893 H30 ADJ Tube Set;Cr Plate;Back Pad;GM167 No Model Compatibility List $128.13 / Each

3,4,5,6,12,13,14
ADJ Plate;Back Pad;Painting;GM167 710545 1000210894 H53 ADJ Plate;Back Pad;Painting;GM167 No Model Compatibility List $63.93 / Each

3,4,5,6,12,13,14
710546 1000210895 29 Lat Pull Leg Pad Frame Set;GM167D-KM;SERVICE PARTS;;; No Model Compatibility List $161.23 / Each

3,12,13,14
Fix Tube;Welding Set;Painting;Back Pad;G 710547 1000210896 AT1 Fix Tube;Welding Set;Painting;Back Pad;G No Model Compatibility List $214.29 / Each

3,4,5,6,12,13,14
Fix Tube;Welding Set;Painting;Seat Pad;G 710548 1000210897 AT2 Fix Tube;Welding Set;Painting;Seat Pad;G No Model Compatibility List $186.24 / Each

3,12,13,14
710549 1000210898 35 Leg Extension Arm Frame Set;SA;SEAT PAD,A;GM167-KM; No Model Compatibility List $342.13 / Each

3,12,13,14
710550 1000210899 34 Lat Pull Seat Pad Frame Set;GM167D-KM; SERVICE PAR No Model Compatibility List $287.98 / Each

3,12,13,14
Fix Tube Set;Welding Set;Painting;Back Pad;G 710551 1000210900 AT5 Fix Tube Set;Welding Set;Painting;Back Pad;G No Model Compatibility List $169.49 / Each

3,4,5,6,12,13,14
Supt Tube;Welding Set;Painting;Back Pad; 710552 1000210901 AT8 Supt Tube;Welding Set;Painting;Back Pad; No Model Compatibility List $180.60 / Each

3,4,5,6,12,13,14
Fix Tube;Welding Set;Seat Pad;Painting;G 710553 1000210902 AT9 Fix Tube;Welding Set;Seat Pad;Painting;G No Model Compatibility List $115.08 / Each

3,12,13,14
Pedal Tube;Welding Set;Painting;GM167 710554 1000210903 AI1 Pedal Tube;Welding Set;Painting;GM167 No Model Compatibility List $138.55 / Each

8,9,3
Chest Press Swivel Frame Set;;GM167D-KM; SERVICE PARTS;;; 710555 1000210904 40 Chest Press Swivel Frame Set;;GM167D-KM; SERVICE PARTS;;; No Model Compatibility List $389.43 / Each

3
710610 1000211304 AB1 Upright Frame Set;Welding ;Painting;GM167 No Model Compatibility List $988.70 / Each

3
710611 1000211305 AG4 Connect Tube Welding Set;D;Painting B;GM167 No Model Compatibility List $208.44 / Each

3
Supt Base Set;Weight Plate;Painting;GM15 710612 1000211306 AB2 Supt Base Set;Weight Plate;Painting;GM15 No Model Compatibility List $61.75 / Each

3
710613 1000211307 AC6 Welding Set;Base;Painting;GM167 No Model Compatibility List $306.38 / Each

3
Adjust Tube;Painting;GM167-KM 710614 1000211308 T16 Adjust Tube;Painting;GM167-KM No Model Compatibility List $78.21 / Each

3
ADJ Frame Set;Welding;Painting Set;Leg Pad; 710615 1000211309 AH4 ADJ Frame Set;Welding;Painting Set;Leg Pad; No Model Compatibility List $132.94 / Each

3,12,13,14
Fix Tube;Welding Painting Set;Leg Pad;GM 710616 1000211310 AH6 Fix Tube;Welding Painting Set;Leg Pad;GM No Model Compatibility List $184.47 / Each

3,12,13,14
710617 1000211311 AH7 ADJ Tube;Welding Set;Cr Plate;Back Pad;G No Model Compatibility List $372.40 / Each

3,4,5,6,12,13,14
ADJ Tube Set;Back Pad;Painting;GM167 710618 1000211312 H29 ADJ Tube Set;Back Pad;Painting;GM167 No Model Compatibility List $75.53 / Each

3,4,5,6,12,13,14
710619 1000211313 AN1 Lower Pull Tube;Welding Set;Painting;GM1 No Model Compatibility List $464.39 / Each

3
Cover;F;Painting;B;GM167 710710 1000212605 Q02 Cover;F;Painting;B;GM167 No Model Compatibility List $668.30 / Each

9
Cover;F;Painting;C;GM167 710711 1000212606 Q03 Cover;F;Painting;C;GM167 No Model Compatibility List $641.11 / Each

9
710713 1000212608 AF1 Pulley Frame;Welding Set;Painting No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3
Adjust set;Semi-Assy;;Service;;GM30C;; 710720 1000212618 K07 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
Cover;F ;Painting;A;GM167 710831 1000214361 Q01 Cover;F ;Painting;A;GM167 No Model Compatibility List $582.92 / Each

9
Adjustable Pin;Weight Plate;;42CrMo;Chro 720426 1000372591 K15 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Karabiner Spring Snap;;9(45mmx90mm);Sta 721052 1000380094 F10 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
Grip;AL;Market;MS153 725360 070554 F20 Grip;AL;Market;MS153 No Model Compatibility List $127.74 / Each

11
Screw;SH;M10X1.5PX105L;;HS;;CHM;; 725410 070969 Z07 Screw;SH;M10X1.5PX105L;;HS;;CHM;; No Model Compatibility List $31.30 / Each

2
Screw;SH;M10X1.5PX80L;;HS;;CHM;; 725411 070970 Z01 Screw;SH;M10X1.5PX80L;;HS;;CHM;; No Model Compatibility List $112.29 / Each

2
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Clamp;External C-Shaped;Black; 726234 080870 T34 Clamp;External C-Shaped;Black; No Model Compatibility List $3.35 / Each

4,5,6
ADJ Fix Plate;Leg Pad;GM167 726547 082721 C44 ADJ Fix Plate;Leg Pad;GM167 No Model Compatibility List $13.39 / Each

3,12,13,14
Swivel Axle;GM167 726548 082732 D09 Swivel Axle;GM167 No Model Compatibility List $8.42 / Each

8
Guide Rail;Cr Plate;GM167 726551 082747 K03 Guide Rail;Cr Plate;GM167 No Model Compatibility List $89.54 / Each
Out Of Stock 		9,3
Guide Rail;Cr Plate;GM167 726552 082749 K04 Guide Rail;Cr Plate;GM167 No Model Compatibility List $18.54 / Each

9,3
Hook L ;GM167 726553 082776 T33 Hook L ;GM167 No Model Compatibility List $8.42 / Each

1
Foam;GM167 726555 082840 I04 Foam;GM167 No Model Compatibility List $9.72 / Each

1
Cam Cover;GM167 726556 082847 F06 Cam Cover;GM167 No Model Compatibility List $79.30 / Each

9
Hardware Pack 726557 082861 KIT Hardware Pack No Model Compatibility List $387.04 / Each

4,5,6
Sleeve;GM167 726558 082865 D12 Sleeve;GM167 No Model Compatibility List $21.89 / Each

3
Axle;GM167 726561 082872 Z17 Axle;GM167 No Model Compatibility List $9.93 / Each

8
Fix Plate;GM167 726578 083064 Z68 Fix Plate;GM167 No Model Compatibility List $63.05 / Each

3
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Screw;SH;M10X1.5PX140L;;HS;;CHM;; 726764 084665 Z10 Screw;SH;M10X1.5PX140L;;HS;;CHM;; No Model Compatibility List $8.42 / Each

2
Screw;SH;M10X1.5PX160L;;HS;;CHM;; 726765 084666 Z04 Screw;SH;M10X1.5PX160L;;HS;;CHM;; No Model Compatibility List $8.42 / Each

2
Screw;SH;M10X1.5PX175L;;HS;;CHM;; 726766 084667 Z08 Screw;SH;M10X1.5PX175L;;HS;;CHM;; No Model Compatibility List $9.10 / Each

2
Ring;Q235;GM167 726963 086254 Z05 Ring;Q235;GM167 No Model Compatibility List $8.42 / Each

1
727000 086611 V06 Series no. Decal;GM167 No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
Decal; Adjustable;GM167 727001 086613 V08 Decal; Adjustable;GM167 No Model Compatibility List $3.35 / Each

7,3
Screw;SH;M12X1.75PX152L;;HS;;CHM;; 727002 086616 Z09 Screw;SH;M12X1.75PX152L;;HS;;CHM;; No Model Compatibility List $9.10 / Each

2
Foam;Elastomer;BL;31.8x5.0tx170L;GM167K 728517 095167 E09 Foam;Elastomer;BL;31.8x5.0tx170L;GM167K No Model Compatibility List $3.64 / Each

1
Space Ring;Q235;GM167-KM 728549 095286 Z06 Space Ring;Q235;GM167-KM No Model Compatibility List $9.72 / Each

4,5,6
729125 Part of Kit 13 AH1 Link Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729127 Part of Kit 14 E08 Crank Pin Sleeve;Aluminum Casting;EP525- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,3,12,13,14
729151 Part of Kit 29 N71 Pulse Sensor Plastic No Model Compatibility List $0.00 / Each
Out Of Stock 		9,12,13,14
729160 Part of Kit 34 L04 Painting;Decorate Plate;Cover;B; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
729161 Part of Kit 35 N30 Plastic Cover;Quick Key;ABS/PA746;137C/ No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729169 Part of Kit 40 AJ4 Crank;BL;A5X-03;US;EP79 No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
