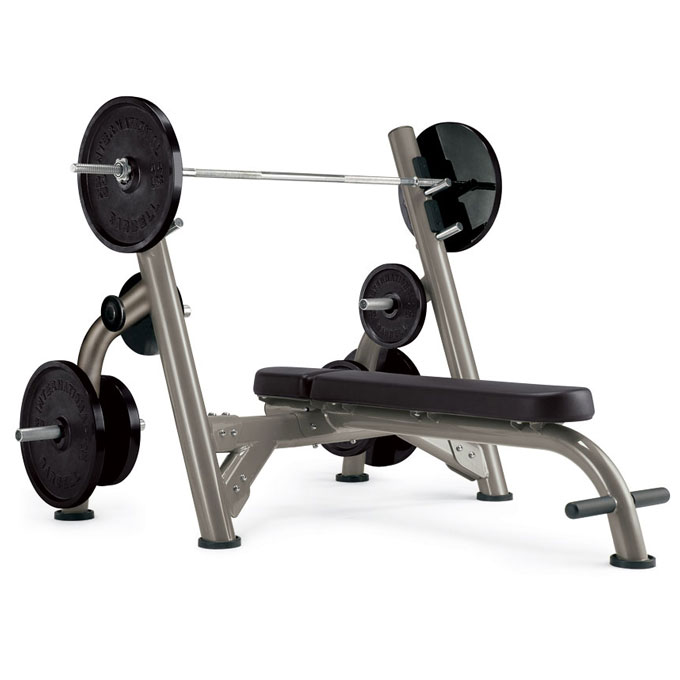

Matrix Commercial - G2-FW13P - 2005
Repair Parts for Matrix Commercial G2-FW13P G2FW13
Brand: Matrix Commercial
Category: Benches/Racks
Type: Strength Systems
Model Name: G2-FW13P
Version: 2005
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700140 | 000509-E | B10 | Foot Pad;Rubber;89mm | No | Model Compatibility List | $9.10 / Each |
||
 |
700146 | 000515-A | E14 | Foot pad;Rubber;100;FW10 | No | Model Compatibility List | $9.10 / Each |
||
 |
700226 | 000737-D | B07 | Foam;Foot pad | No | Model Compatibility List | $9.10 / Each |
||
 |
700232 | 000751-C | E16 | Elastomer;;;Rubber;;;;FW10 | No | Model Compatibility List | $9.10 / Each |
||
 |
700307 | 000925-B | B08 | End Cap;M38.1x3.0T | No | Model Compatibility List | $1.79 / Each |
||
 |
700447 | 001401-A | B11 | End Cap;76.2 | No | Model Compatibility List | $3.64 / Each |
||
 |
700451 | 001406-A | E10 | End Cover;89 | No | Model Compatibility List | $1.79 / Each |
||
 |
701522 | 004555-AB | Z10 | Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A | No | Model Compatibility List | $4.00 / Each |
||
 |
701537 | 004567-AB | E15 | Screw;Sink Hex Socket;M8x1.25Px25L | No | Model Compatibility List | $3.64 / Each |
||
 |
701760 | 004780-AC | Z06 | Screw;Umbrella Hex Scoket;M10x1.5Px25L | No | Model Compatibility List | $4.00 / Each |
||
 |
701836 | 004855-AC | E17 | Set Screw;M6X1.0PX4L | No | Model Compatibility List | $1.79 / Each |
||
 |
701914 | 004943-00 | Z07 | Nut;Nylon;M10x1.5P;Cr Plate; | No | Model Compatibility List | $2.00 / Each |
||
 |
701939 | 004975-00 | E11 | Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) | No | Model Compatibility List | $1.90 / Each |
||
 |
701968 | 005007-00 | E20 | Washer;Spring;12.2x21.5x3.0t | No | Model Compatibility List | $2.00 / Each |
||
 |
701981 | 005017-00 | Z09 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
 |
702102 | 005132-00 | E19 | Washer;Flat;13x26x2.5T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
702367 | 006554-C | V01 | Decal;Weight | No | Model Compatibility List | $3.35 / Each |
||
 |
702531 | 008523-B | Z13 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
 |
704030 | 020119-A | E18 | Screw;Hex Socket;Round;M12x1.75Px25L;Adh | No | Model Compatibility List | $1.79 / Each |
||
 |
704037 | 020125-A | Z14 | Screw;Hex Socket;Round;M10x1.5Px120L;Chromed | No | Model Compatibility List | $10.35 / Each |
||
 |
704104 | 020254-AB | E12 | Screw;Hex Socket;Flat;M8x1.25Px30L;Adher | No | Model Compatibility List | $3.35 / Each |
||
| 704194 | 020465-abB | Z08 | Flat Washer, 6.2 x 12 x 1.0T | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
705996 | 058045-A | not shown | Hardware Pack | No | Model Compatibility List | $41.78 / Each |
||
| 706030 | 058204-AA | AB1 | Painting;Frame Set;;;;;;FW13;FW13-AB1; | No | Model Compatibility List | $628.68 / Each |
|||
| 706032 | 058207-AA | AE1 | Painting;SupportFrameSet;R;PFW13-G2;;;;F | No | Model Compatibility List | $1057.19 / Each |
|||
| 706033 | 058208-AA | AE2 | Painting;SupportFrameSet;L;PFW13-G2;;;;F | No | Model Compatibility List | $1057.19 / Each |
|||
| 706148 | 059576-A | not shown | Manual;Assembly;;;FW13-V40A | No | Model Compatibility List | $16.64 / Each |
|||
 |
706974 | 067756-B | V03 | Sticker;Weight;Blank;FW13 | No | Model Compatibility List | $3.35 / Each |
||
 |
706977 | 067769-AA | E24 | Storage Horn Set;FW13;Cr Plate | No | Model Compatibility List | $97.66 / Each |
||
 |
707222 | 1000091269 | AG1 | Connecting Tube Set | No | Model Compatibility List | $610.22 / Each |
||
 |
709137 | 1000110295 | E13 | Weight Storage Horn | No | Model Compatibility List | $93.89 / Each |
||
 |
712128 | 1000226826 | E22 | Elastomer;Plastic;; | No | Model Compatibility List | $70.77 / Each |
||
 |
712129 | 1000226827 | E09 | Elastomer;Plastic;; | No | Model Compatibility List | $43.71 / Each |
||
 |
712143 | 1000226886 | E23 | Hanging Rod;U;FW13;45# | No | Model Compatibility List | $37.78 / Each |
||
| 713615 | 1000305763 | E08 | Hanging Rod;;Up;45#;FW13-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 729261 | See Pad Matrix | J02 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
|
|
|||||||||
