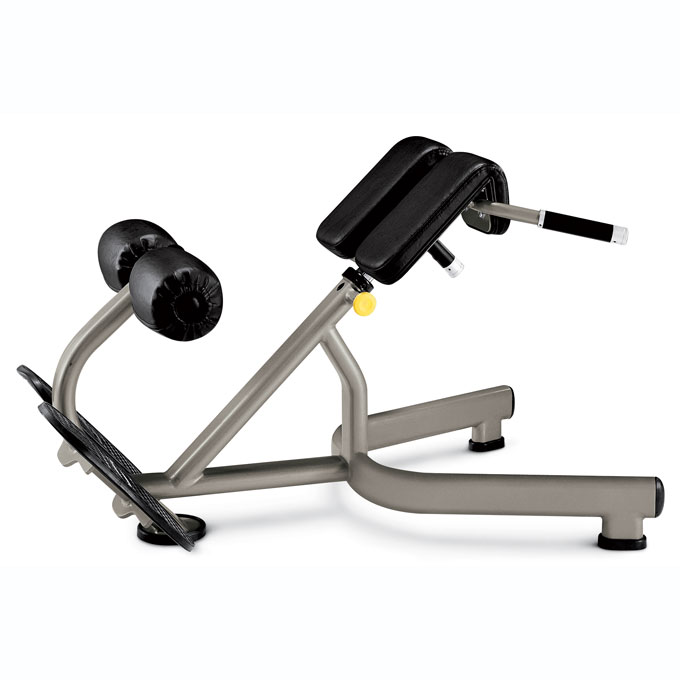

Matrix Commercial - G2-FW52P - 2005

Repair Parts for Matrix Commercial G2-FW52P G2FW52

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G2-FW52P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700145 000514-C B22 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

9,3,12,13,14
B 700146 000515-A B23 Foot pad;Rubber;100;FW10 No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700155 000528-BA B21 Foot pad;Rubber;BL;MS53 No Model Compatibility List $39.42 / Each

9,3,12,13,14
D 700177 000586-F D04 Foam Grip;25.4x5.0x75L No Model Compatibility List $3.35 / Each

11
Q 700448 001402-A Q01 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700459 001419-4B Q03 Square Tube End-Cover; 25x50x3.0t No Model Compatibility List $1.66 / Each

9,3
Q 700461 001422-BA Q02 End Cover;Ellipse;40x80x3.0t;MS20 No Model Compatibility List $3.64 / Each

9
D 701611 004629-AC D09 SCREW;BH;Diam.5X18L;SM;PH;;;;BP;POT No Model Compatibility List $0.81 / Each

2
B 701654 004693-AD B24 Screw;Flat Hex Socket;M8x1.25Px15L No Model Compatibility List $1.66 / Each

2
B 701657 004694-AC B25 Screw;Hex Socket;Flat;M8x1.25Px10L No Model Compatibility List $1.66 / Each

2
Z 701760 004780-AC Z05 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
I 701836 004855-AC I07 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701981 005017-00 Z08 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
B 702098 005130-00 B29 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
V 702318 005990-E V06 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702411 006656-A V01 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
B 702505 008234-C B27 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
I 702711 009356-B I08 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
I 702721 009371-E I06 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
I 703879 018940-A I05 Foam;Grip;24X5.0tx150L No Model Compatibility List $8.42 / Each

11
D 703899 019121-C D08 End Cap;Adjustable Tube No Model Compatibility List $3.64 / Each

9,3
B 704041 020127-A B28 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
D 704199 020473-A D10 Washer;Flat;5.0X10.0X2.0T No Model Compatibility List $1.66 / Each

2
V 704232 020699-A V02 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704254 021614-A V05 Decal;Adjustic;With Glue;FW52 No Model Compatibility List $9.10 / Each

7,3
704261 021848-A not shown Assembly Manual No Model Compatibility List $16.43 / Each

3

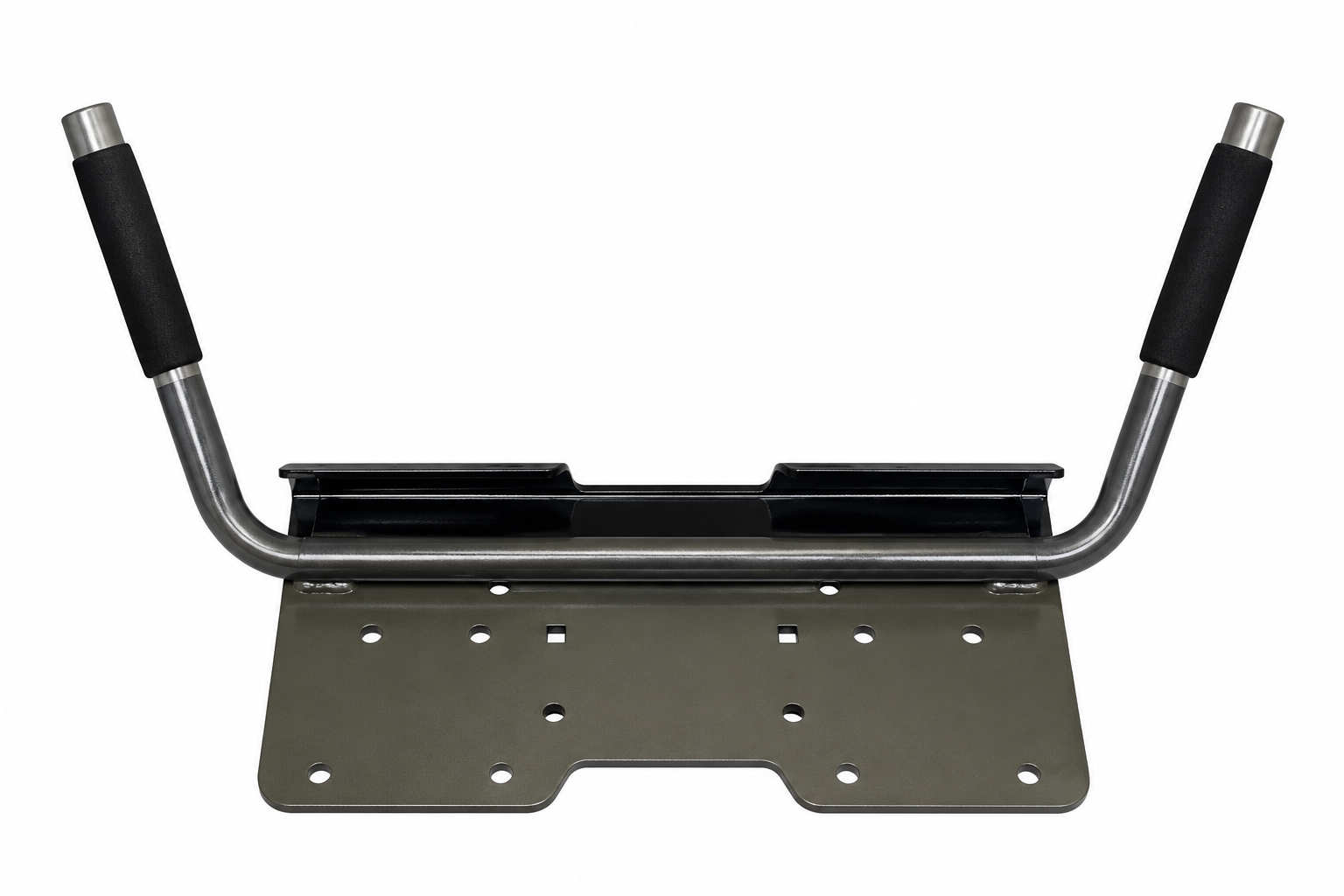

704413 024077-Z AI1 HANDLEBAR SET - FW52 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
n 704659 024637-A not shown Hardware Pack No Model Compatibility List $87.62 / Each

4,5,6
704846 025564-B AB1 Frame Set - FW52-G2 No Model Compatibility List $1.30 / Each

3
B 707066 1000090006 B26 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
B 707976 1000097267 B35 Sleeve;Seat Tube No Model Compatibility List $9.10 / Each

3,12,13,14
B 708815 1000106129 B34 Adjustment Pin Assembly;Seat;Yellow Knob No Model Compatibility List $54.73 / Each

3,12,13,14
Adjustable Tube Set 726788 084827 AD1 Adjustable Tube Set No Model Compatibility List $319.51 / Each

3
729261 See Pad Matrix B20 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
