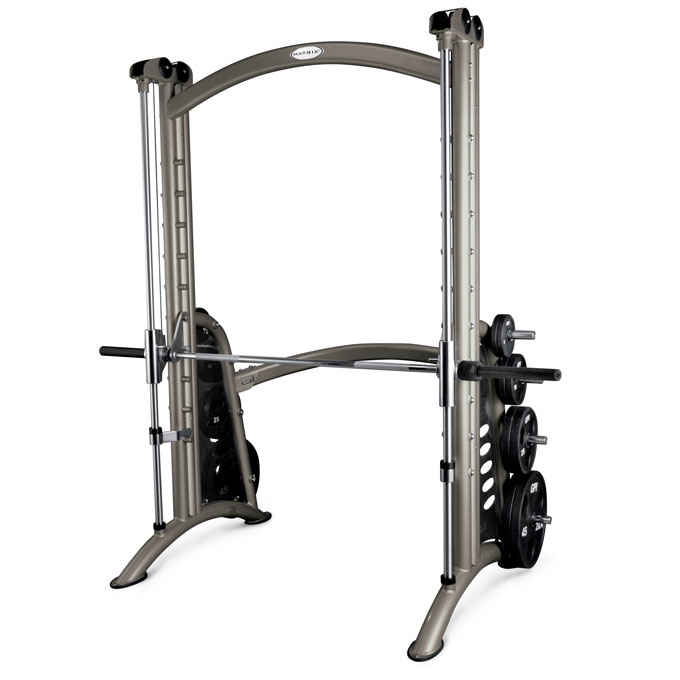

Matrix Commercial - G2-FW62P - 2005

Repair Parts for Matrix Commercial G2-FW62P G2FW62

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G2-FW62P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700147 000516-B B21 Foot pad;Tube;;Rubber;;;;FW62 No Model Compatibility List $14.79 / Each

9,3,12,13,14
B 700232 000751-C B17 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
N 700235 000754-CA N10 Elastomer;Rubber;BL;FW62 No Model Compatibility List $9.10 / Each

1
N 700253 000783-AA N11 Stopper Pad;Rubber;FW62 No Model Compatibility List $1.66 / Each

12,13,14
B 700277 000847-CA B42 Bushing;Nylon No Model Compatibility List $8.81 / Each

8
B 700496 001512-C B22 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
B 700518 001522-B B48 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
B 700680 001783-DA B18 Accent Board;Right No Model Compatibility List $140.24 / Each

4,5,6
B 700682 001784-CA B45 Accent Board;Left No Model Compatibility List $140.24 / Each

4,5,6
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
M 701162 004079-A3 M11 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
N 701188 004127-A N07 Bearing;Dry;LFF-3020;;;;;; No Model Compatibility List $9.10 / Each

8
Z 701408 004462-00 Z24 Screw;Round;Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701521 004554-A Z13 Screw;Round;Hex Socket;M12x1.75Px25L;Chromed No Model Compatibility List $3.69 / Each

7,2,12,13,14
Z 701522 004555-AB Z31 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
Z 701553 004581-AC Z26 Screw;Sink Hex Socket;M6x1.0Px15L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701661 004697-AD B43 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
Z 701693 004720-AC Z16 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Z 701799 004814-AB Z20 Screw;Umbrella Hex Socket;M10x1.5Px100L No Model Compatibility List $18.23 / Each

2
Z 701901 004929-00 Z30 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701914 004943-00 Z23 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
Z 701968 005007-00 Z11 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z22 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702098 005130-00 Z15 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z12 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
M 702199 005253-A M15 Washer;Swivel No Model Compatibility List $3.35 / Each

2
M 702230 005355-00 M09 C-Clip;Internal;R-55 Yes Model Compatibility List $3.64 / Each

2
M 702231 005356-00 M13 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

2
M 702242 005367-00 M14 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
V 702318 005990-E V02 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
n 702367 006554-C not shown Decal;Weight No Model Compatibility List $3.35 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
Z 702531 008523-B Z33 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702548 008593-D B23 Cover;Aluminum;Cover Board;Anodzing;;FW62 No Model Compatibility List $118.27 / Each

9
B 702728 009381-A B16 Weight Plate Hanging Rod;Storage Horn;38.1x250 No Model Compatibility List $34.68 / Each

3
B 702730 009383-D B26 Support Rod;Hook;;S45C;;Cr Plate;;;FW62 No Model Compatibility List $16.12 / Each

3
B 702734 009387-G B34 Guide Rail No Model Compatibility List $566.02 / Each

9
B 702737 009390-C B31 Snug Base;Guide Rail, SS41 No Model Compatibility List $27.38 / Each

9,3
B 702738 009391-C B32 Belt Fixing Ring No Model Compatibility List $8.42 / Each

15
A 702936 013395-Z AM4 Left Sliding Sleeve No Model Compatibility List $1.30 / Each

3
A 702937 013396-Z AN2 Left Weight Rod Stopper No Model Compatibility List $197.94 / Each

3
702938 013398-Z AM1 Right Sliding Sleeve No Model Compatibility List $1.30 / Each

3
A 702939 013399-Z AN1 Right Weight Rod Stopper No Model Compatibility List $197.94 / Each

3
n 703456 014757-A not shown Hardware Pack No Model Compatibility List $321.33 / Each

4,5,6
703696 015815-A AN3 Smith Bar [FW62] MX / G2 No Model Compatibility List $817.88 / Each
Out Of Stock 		1
B 703704 015824-AA B24 Balance Block;FW62 No Model Compatibility List $231.89 / Each

1
Z 703742 015954-AA Z25 Aluminum Cover Board Connecting Plate, MS50-Q07 No Model Compatibility List $27.38 / Each

9,3
A 703801 016997-B AM5 Weight Rod Connecting Sleeve;FW62 No Model Compatibility List $363.61 / Each

3
Z 704037 020125-A Z19 Screw;Hex Socket;Round;M10x1.5Px120L;Chromed No Model Compatibility List $10.35 / Each

7,2,12,13,14
Z 704193 020465-AB Z21 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V12 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
N 704302 022373-C N12 Stopper Sleeve, STK41 [FW62] No Model Compatibility List $40.14 / Each

3
704835 025551-AA AB1 Right Main Frame Smith Machine FW62-G2 No Model Compatibility List $2.60 / Each

3,4,5,6
704836 025552-AA AB2 Left Main Frame Smith MAchine FW62 No Model Compatibility List $2.60 / Each

3,4,5,6
B 705029 031484-B B33 Stopper Plate No Model Compatibility List $14.20 / Each

3
B 705030 031487-A B35 Stopper, Frame No Model Compatibility List $9.10 / Each

3
705083 035773-B not shown Assembly Manual No Model Compatibility List $16.64 / Each

3
A 707598 1000093586 AG1 Upper Connecting Tube No Model Compatibility List $555.26 / Each

3
B 707895 1000096718 B25 Steel Cable;2330L No Model Compatibility List $91.10 / Each

4,5,6
A 707948 1000097214 AG2 Connecting Tube;Rear Support No Model Compatibility List $898.72 / Each

3
M 716149 1000333566 M10 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $250.04 / Each

8
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
