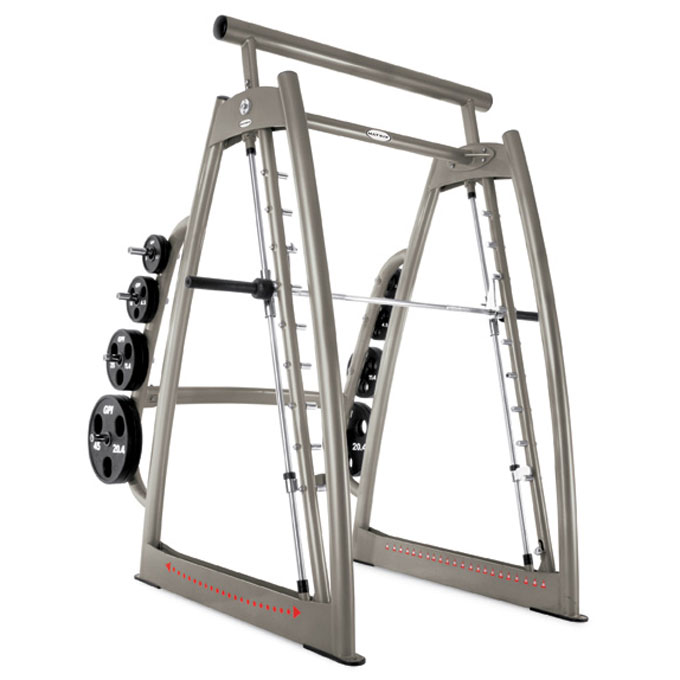

Matrix Commercial - G2-FW63P - 2005

Repair Parts for Matrix Commercial G2-FW63P G2FW63

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G2-FW63P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
F 700006 000009-BA F11 Transport Wheel No Model Compatibility List $16.12 / Each

8
K 700117 000442-DA K03 Cover;110mm;Black;FW63 No Model Compatibility List $3.35 / Each

9,4,5,6
B 700156 000530-AA B11 Leveler;Rubber No Model Compatibility List $19.68 / Each

3
B 700232 000751-C B17 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
N 700235 000754-CA N24 Elastomer;Rubber;BL;FW62 No Model Compatibility List $9.10 / Each

1
N 700253 000783-AA N20 Stopper Pad;Rubber;FW62 No Model Compatibility List $1.66 / Each

12,13,14
B 700451 001406-A B10 End Cover;89 No Model Compatibility List $1.79 / Each

9
B 700528 001531-AA B19 Stopper Bolt;Back Pad No Model Compatibility List $3.64 / Each

2,4,5,6,12,13,14
700684 001790-BA N05 Weight Storage Horn Retainer, ABS No Model Compatibility List $3.35 / Each

3
F 701153 004071-00 F37 Bearing;Ball;608ZZ;TPI No Model Compatibility List $9.10 / Each

8
F 701161 004078-A3 F27 Ball Bearing;6005ZZ(25x47x12t);SKF No Model Compatibility List $18.95 / Each

8
F 701182 004116-00 F28 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
N 701188 004127-A N06 Bearing;Dry;LFF-3020;;;;;; No Model Compatibility List $9.10 / Each

8
701409 004462-AB F19 Screw Round Hex Socket, M6 x 1.0P x 15L Chromed No Model Compatibility List $0.00 / Each
Out Of Stock 		7,2,12,13,14
Z 701430 004479-00 Z25 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
F 701496 004535-AC F20 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
B 701520 004553-AB B21 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
N 701521 004554-A N16 Screw;Round;Hex Socket;M12x1.75Px25L;Chromed No Model Compatibility List $3.69 / Each

7,2,12,13,14
Z 701522 004555-AB Z31 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701670 004703-AF B18 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
F 701679 004713-AE F34 Screw;Umbrella Hex Socket;M6X1.0PX10L No Model Compatibility List $1.79 / Each

2
H 701708 004727-AC H09 Screw;Umbrella Hex Scoket;M8x1.25Px30L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701798 004812-A Z08 Screw;Hex Socket;BH;M6x1.0Px20L;Adhere No Model Compatibility List $2.00 / Each

2
B 701939 004975-00 B20 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
F 701963 005004-AE F33 Washer;Spring;SW6 6.1x12.2x1.5t;Chromed No Model Compatibility List $1.85 / Each

7,2,12,13,14
Z 701968 005007-00 Z05 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701970 005009-AB Z27 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z23 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Z 702041 005071-AB Z28 Washer,Flat;M6.5x13Px1.0T;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 702098 005130-00 Z26 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 702102 005132-00 Z06 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
F 702126 005152-A F32 Washer;Flat;6.4x11x1.6T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
N 702200 005254-ZA N21 Washer;Swivel Axle;30x25x6T No Model Compatibility List $3.35 / Each

2,8
M 702231 005356-00 M11 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

2
F 702244 005369-00 F26 C-Clip;External;S-8 No Model Compatibility List $1.66 / Each

2
V 702318 005990-E V02 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702369 006555-B V03 Decal;Weight No Model Compatibility List $3.35 / Each

7,3
V 702405 006646-A V15 Decal;Outside Indicating;FW63 No Model Compatibility List $3.35 / Each

7,3
Z 702531 008523-B Z30 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
G 702549 008594-E G05 Fix Base;Swivel Axle;S45C Chromed No Model Compatibility List $30.11 / Each

7,8,3,12,13,14
F 702659 009257-C F18 Bearing Housing;Chromed No Model Compatibility List $86.79 / Each

7,8,12,13,14
F 702660 009258-D F36 Sleeve;Stopper;STK41 No Model Compatibility List $51.22 / Each

3
H 702726 009379-B H05 Adjustable Fixing Plate, SS41 [FW63] No Model Compatibility List $3.35 / Each

3
F 702727 009380-C F30 Location Fixing Sleeve, SS41 [FW63] No Model Compatibility List $39.96 / Each

3
B 702728 009381-A B16 Weight Plate Hanging Rod;Storage Horn;38.1x250 No Model Compatibility List $34.68 / Each

3
F 702729 009382-E F14 Main Swivel Axle, S45C [FW63] No Model Compatibility List $21.89 / Each

8
F 702733 009386-B F09 Hanging Hook Support Shaft, S45C [FW63] No Model Compatibility List $16.43 / Each

3
N 702735 009388-C NOT SHOWN Guide Rod No Model Compatibility List $452.76 / Each

3
F 702736 009389-E F31 Bushing;Guide Rod;S45C No Model Compatibility List $17.34 / Each

8,3
F 702737 009390-C F08 Snug Base;Guide Rail, SS41 No Model Compatibility List $27.38 / Each

9,3
F 702739 009392-J F29 Adjustment Axle;Position;;S45C;;Cr Plate;;;FW63 No Model Compatibility List $109.51 / Each

8,3
A 702940 013400-Z AM1 Sliding Sleeve, Left Assembly No Model Compatibility List $1.30 / Each

3
A 702941 013401-Z AN1 Rod, Weight Stopper, Left, Assembly No Model Compatibility List $151.29 / Each

3
A 702942 013402-Z AM2 Sliding Sleeve, Right Assembly No Model Compatibility List $1.30 / Each

3
A 702943 013403-Z AN2 Rod, Weight Stopper, Right, Assembly No Model Compatibility List $151.29 / Each

3
A 703697 015818-AA AH1 Limiter, Adjustable Travel Assembly No Model Compatibility List $104.13 / Each

3,4,5,6
K 703705 015825-AA K08 Counterbalance Weight Plate(Black) No Model Compatibility List $69.37 / Each

3,4,5,6
F 703739 015949-EA F12 Axle, Adjustable Grip, S45C (Chromed) No Model Compatibility List $44.51 / Each

7,8,12,13,14,11
Z 704020 020109-A Z07 Screw;Hex Socket;Round;M12x1.75Px35L;Chromed No Model Compatibility List $8.42 / Each

7,2,12,13,14
F 704030 020119-A F24 Screw;Hex Socket;Round;M12x1.75Px25L;Adh No Model Compatibility List $1.79 / Each

2
Z 704206 020479-A Z22 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 704286 022241-D B05 Bracket;Upper Left No Model Compatibility List $34.27 / Each

2,3,4,5,6
A 704317 022398-E AN3 Washer;Swivel Axle;SS41; No Model Compatibility List $4.06 / Each

2,8
V 704415 024082-Z V07 Decal;Adjustable Location No Model Compatibility List $15.42 / Each

7,3
A 704417 024084-ZG2 AK1 Counter Weight Tube Set No Model Compatibility List $1046.45 / Each

3
G 704832 025548-AA G08 Connecting Plate Frame Polarized Titanium No Model Compatibility List $219.73 / Each

3
704837 025553-AA AB1 RIGHT FRAME SET(POLARIZED TITANIUM) No Model Compatibility List $3.90 / Each

3
704838 025554-AA AB2 LEFT FRAME SET(POLARIZED TITANIUM) No Model Compatibility List $3.90 / Each

3
A 704865 025608-B AG1 UPPER CONNECTING TUBE SET(POLARIZED TITANIUM) No Model Compatibility List $748.12 / Each

3
704871 025625-B AH5 Adjustment Angle Rod Set;Left No Model Compatibility List $82.65 / Each

3
A 704872 025626-B AH6 Adjustment Angle Rod Set;Right No Model Compatibility List $82.65 / Each

3
705058 033376-AA AK2 Weight Storage Horn Set;Chromed No Model Compatibility List $176.23 / Each

7,3,12,13,14
Z 705321 040837-A Z29 Washer;Spring;SW6 6.5x13.0x1.0t Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
H 708046 1000098483 H12 Extrawork;Incremental Weight Plate Hook; No Model Compatibility List $35.52 / Each

3
A 708707 1000105013 AG2 LOWER CONNECTING TUBE SET(POLARIZED TITANIUM) No Model Compatibility List $253.50 / Each

3
708758 1000105451 AF1 RIGHT SWIVEL ARM SET No Model Compatibility List $1.30 / Each

3
708759 1000105452 AF2 LEFT SWIVEL ARM SET No Model Compatibility List $1.30 / Each

3
M 716149 1000333566 M05 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $250.04 / Each

8
