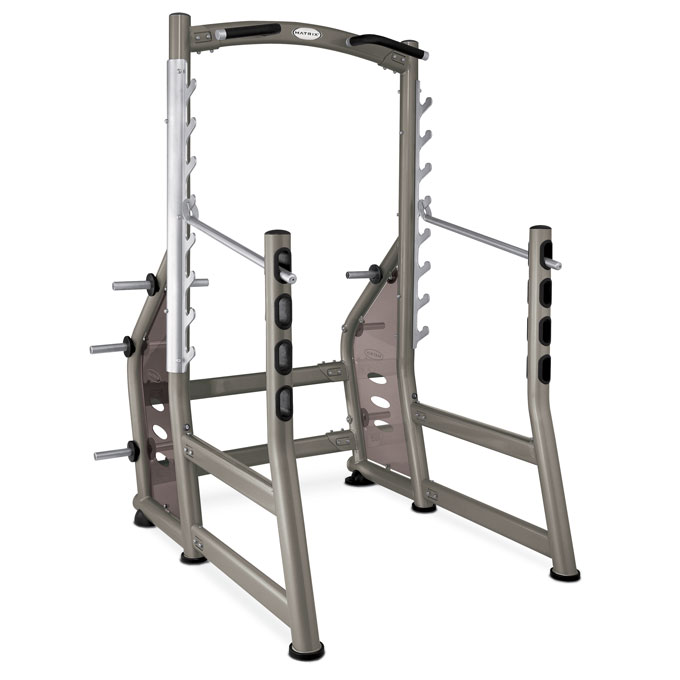

Matrix Commercial - G2-FW73P - 2005

Repair Parts for Matrix Commercial G2-FW73P G2FW73

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G2-FW73P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
E 700146 000515-A E13 Foot pad;Rubber;100;FW10 No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700154 000524-A B32 Foot pad;Screw Set Leveler;Rubber;FW11 No Model Compatibility List $38.32 / Each

2,9,3,12,13,14
I 700196 000616-A I12 FOAM GRIP, M31.8X5.0TX425L No Model Compatibility List $22.57 / Each

11
B 700232 000751-C B21 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
E 700451 001406-A E12 End Cover;89 No Model Compatibility List $1.79 / Each

9
B 700525 001528-B B35 Stopper Bolt;Pedal Arm;Rubber No Model Compatibility List $1.79 / Each

2,8,9,3
I 701522 004555-AB I07 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
E 701661 004697-AD E14 Screw;Flat Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
E 701790 004805-AB E08 Screw;Umbrella Hex Scoket;M10x1.5Px65L No Model Compatibility List $9.10 / Each

2
B 701801 004815-AB B22 Screw;Umbrella Hex Scoket;M10x1.5Px115L No Model Compatibility List $8.42 / Each

2
B 701815 004836-00 B31 Set Screw;M8X1.25PX8L No Model Compatibility List $1.66 / Each

2
I 701836 004855-AC I14 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
B 701841 004859-00 B26 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
B 701901 004929-00 B28 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701914 004943-00 B25 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B38 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
B 701968 005007-00 B40 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
B 701981 005017-00 B24 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
B 702010 005046-AC B27 Washer;Flat;8.4x15.5x2.0t;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702102 005132-00 B30 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 702318 005990-E V13 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702367 006554-C V02 Decal;Weight No Model Compatibility List $3.35 / Each

7,3
I 702531 008523-B I10 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
I 702722 009372-E I05 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
B 702728 009381-A B18 Weight Plate Hanging Rod;Storage Horn;38.1x250 No Model Compatibility List $34.68 / Each

3
E 703904 019169-B E16 Supporting Cover;Rubber No Model Compatibility List $11.18 / Each

9,3
B 704030 020119-A B29 Screw;Hex Socket;Round;M12x1.75Px25L;Adh No Model Compatibility List $1.79 / Each

2
B 704193 020465-AB B23a Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 704277 022208-C B16 Weight Storage Hook;Left No Model Compatibility List $680.24 / Each

3
B 704278 022214-C B19 Accent Board;Left No Model Compatibility List $238.97 / Each

4,5,6
B 704279 022215-C B37 Accent Board;Right No Model Compatibility List $238.97 / Each

4,5,6
E 704287 022242-B E07 Board No Model Compatibility List $94.72 / Each

1
704418 024087-ZG2 AI1 Handlebar Set No Model Compatibility List $578.68 / Each

11
n 704651 024627-A not shown Hardware Pack No Model Compatibility List $324.48 / Each

4,5,6
704839 025555-AA AB1 RIGHT FRAME FW73G2(POLARIZED TITANIUM) No Model Compatibility List $1.30 / Each

3
704840 025556-AA AB2 LEFT FRAME FW73G2(POLARIZED TITANIUM) No Model Compatibility List $1.30 / Each

3
704856 025583-AA AE1 SUPPORT FRAME FW73G2(POLARIZED TITANIUM) No Model Compatibility List $815.46 / Each

3
B 704880 025645-A B15 Weight Storage Hook;Right;Chromed No Model Compatibility List $542.59 / Each

7,3,12,13,14
A 704886 025663-AA AE2 Stopper Mast Welding Set No Model Compatibility List $473.54 / Each

1
705057 033347-AA AG1 Connecting Tube Set No Model Compatibility List $338.78 / Each

3
705644 053218-A not shown Assembly Manual - FW73-US(ENGLISH) No Model Compatibility List $16.64 / Each

3
E 706950 067457-AB E19 SCREW, UMBRELLA,M6X0.8PX10L No Model Compatibility List $1.66 / Each

2
B 709137 1000110295 B17 Weight Storage Horn No Model Compatibility List $93.89 / Each

3
712946 1000231630 Not Shown Support Seat Set;-;Rear;painting;FW72KM- No Model Compatibility List $344.94 / Each

3,12,13,14
