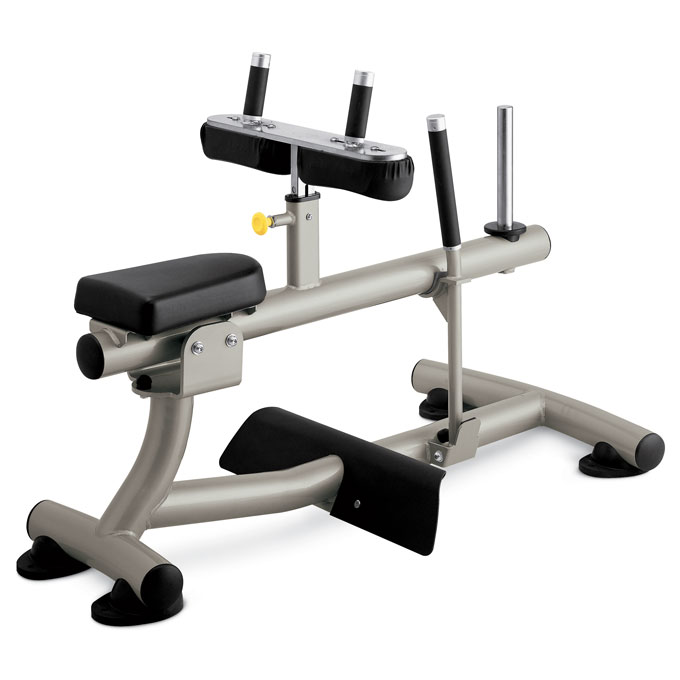

Matrix Commercial - G2-FW77P - 2005

Repair Parts for Matrix Commercial G2-FW77P G2FW77

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G2-FW77P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700154 000524-A B13 Foot pad;Screw Set Leveler;Rubber;FW11 No Model Compatibility List $38.32 / Each

2,9,3,12,13,14
H 700199 000627-CA H13 Foam;Black;31.8x5.0tx340L No Model Compatibility List $29.30 / Each

4,5,6
J 700200 000628-AA J08 Foam;C,31.8x5.0tx150L No Model Compatibility List $10.95 / Each

1
D 700232 000751-C D18 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
D 700451 001406-A D13 End Cover;89 No Model Compatibility List $1.79 / Each

9
B 700520 001525-B B15 Rubber Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
B 700524 001527-G B18 Stopper Bolt;Back Pad;GM07 No Model Compatibility List $3.35 / Each

2,4,5,6,12,13,14
B 700528 001531-AA B24 Stopper Bolt;Back Pad No Model Compatibility List $3.64 / Each

2,4,5,6,12,13,14
H 701183 004118-00 H09 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
H 701503 004539-AB H24 Screw;Hex Socket;Round;M8X1.25PX25L No Model Compatibility List $3.64 / Each

2
H 701520 004553-AB H21 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
H 701537 004567-AB H17 Screw;Sink Hex Socket;M8x1.25Px25L No Model Compatibility List $3.64 / Each

2
D 701760 004780-AC D24 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
H 701836 004855-AC H15 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
H 701898 004926-AC H20 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
B 701916 004945-00 B23 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701939 004975-00 B12 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
H 701964 005005-00 H25 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

2
D 701968 005007-00 D23 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
D 701978 005015-00 D34 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
B 702027 005059-00 B21 WASHER;Flat;12.5x19.0x1.0T;Black Zinc No Model Compatibility List $3.64 / Each

2,4,5,6
D 702098 005130-00 D30 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D22 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 702412 006657-D V13 Decal;Guide Rail;Aluminum D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $8.42 / Each

7,9,3
D 702505 008234-C D21 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
J 702710 009355-B J07 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
H 702722 009372-E H11 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
D 702965 013422-Z1G2 D27 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
D 704002 020092-AB D31 Screw;Hex Socket;Round;M8x1.25Px35L;Adhe No Model Compatibility List $3.35 / Each

2
B 704021 020109-AB B20 Screw;Hex Socket;Round;M12x1.75Px35L;Adh No Model Compatibility List $8.42 / Each

2
D 704036 020124-AB D20 Screw;Round Hex Socket;M12x1.75Px45L No Model Compatibility List $9.10 / Each

2
D 704039 020126-DB D19 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
D 704041 020127-A D32 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
B 704104 020254-AB B19 Screw;Hex Socket;Flat;M8x1.25Px30L;Adher No Model Compatibility List $3.35 / Each

2
J 704137 020304-AC J10 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
B 704176 020426-00 B25 Washer;Flat;8.2x30.0x1.5T No Model Compatibility List $2.00 / Each

2
H 704301 022372-C H10 Axle;Swivel ArmSupt Tube;SCM4;FW77 No Model Compatibility List $16.64 / Each

8,3
K 704656 024632-A KIT Hardware Pack No Model Compatibility List $109.51 / Each

4,5,6
A 704841 025557-B AB1 Painting;Frame Set;;PFW77G2;;;;FW77;FW77 No Model Compatibility List $1.30 / Each

3
A 704889 025673-B AD1 Painting;SwivelArmSet;;PFW77G2;;;;FW77;F No Model Compatibility List $837.46 / Each

3
H 704891 025679-AA H16 PEDAL(PAINT) FW77G2(POLARIZED TITANIUM) No Model Compatibility List $335.63 / Each

8,9
V 705026 030199-A V02 Sticker;Cushion Adjustment;;;;;;FW77;FW7 No Model Compatibility List $1.66 / Each

3
705116 037775-A KIT ASSEMBLY MANUAL;FW77KM;FW77KM-G2 EP67-US(ENGLISH) No Model Compatibility List $0.00 / Each
Out Of Stock 		3
D 707066 1000090006 D16 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
D 707977 1000097268 D15 Sleeve;Seat Tube No Model Compatibility List $9.75 / Each

3,12,13,14
H 709055 1000108777 H26 Washer;Flat;M8.2x16Px1.0T No Model Compatibility List $2.00 / Each

2
LEG PAD WELDING SET(PAINT) PFW77-1(CHAMPAGNE GOLD) 728875 098213 AJ1 LEG PAD WELDING SET(PAINT) PFW77-1(CHAMPAGNE GOLD) No Model Compatibility List $337.97 / Each

4,5,6,12,13,14
729261 See Pad Matrix - Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
