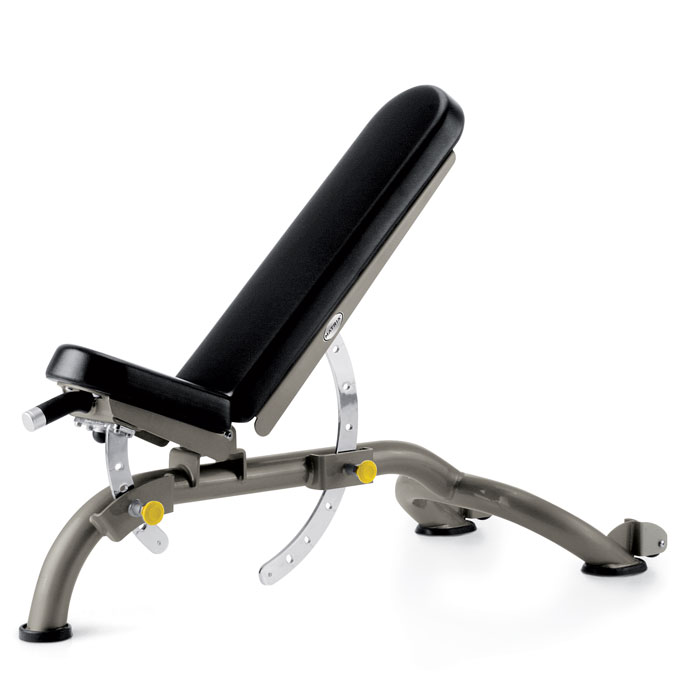

Matrix Commercial - G2-FW80P - 2005
Repair Parts for Matrix Commercial G2-FW80P G2FW80
Brand: Matrix Commercial
Category: Benches/Racks
Type: Strength Systems
Model Name: G2-FW80P
Version: 2005
Exploded Diagrams
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X-
Views
| Image | Catalog # | MPN | Part List Key | Quantity On Model | Part Description | Notes | Available Used | Model Compatibility List | New price |
|---|---|---|---|---|---|---|---|---|---|
 |
700012 | 000019-F | C16 | Wheel;Rubber | No | Model Compatibility List | $17.13 / Each |
||
 |
700140 | 000509-E | C20 | Foot Pad;Rubber;89mm | No | Model Compatibility List | $9.10 / Each |
||
 |
700166 | 000554-A | C21 | Foot pad;Rubber | No | Model Compatibility List | $14.46 / Each |
||
 |
700230 | 000747-C | C24 | Foam Grip;31.8x5.0tx105L | No | Model Compatibility List | $1.66 / Each |
||
 |
700519 | 001523-E | J25 | Rubber Stop;CAM | No | Model Compatibility List | $3.64 / Each |
||
 |
700528 | 001531-AA | J27 | Stopper Bolt;Back Pad | No | Model Compatibility List | $3.64 / Each |
||
 |
701154 | 004072-A2 | C17 | Ball Bearing;Flywheel;6002ZZ | No | Model Compatibility List | $11.60 / Each |
||
 |
701183 | 004118-00 | C28 | Bearing;Dry;Flange;LEF-2015 LFF-2015 | No | Model Compatibility List | $3.64 / Each |
||
 |
701668 | 004702-00 | C22 | Screw;Flat Hex Socket;M8x1.25Px20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701760 | 004780-AC | J19 | Screw;Umbrella Hex Scoket;M10x1.5Px25L | No | Model Compatibility List | $4.00 / Each |
||
 |
701761 | 004781-00 | J20 | Screw;Hex Socket;BH;M8x1.25Px25L;Adhere; | No | Model Compatibility List | $9.10 / Each |
||
 |
701836 | 004855-AC | J29 | Set Screw;M6X1.0PX4L | No | Model Compatibility List | $1.79 / Each |
||
 |
701841 | 004859-00 | J30 | Screw;Umbrella Hex Scoket;M8x1.25Px20L | No | Model Compatibility List | $2.00 / Each |
||
 |
701970 | 005009-AB | J23 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
||
 |
701981 | 005017-00 | C27 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
 |
702010 | 005046-AC | J22 | Washer;Flat;8.4x15.5x2.0t;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
702109 | 005138-A | C26 | Washer;Flat;10.2x25x1.5T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
702236 | 005361-00 | C18 | C-Clip;External;S-15 | No | Model Compatibility List | $2.00 / Each |
||
 |
702411 | 006656-A | V11 | Decal;Serial Number;Aluminum | No | Model Compatibility List | $1.66 / Each |
||
 |
702412 | 006657-D | V02 | Decal;Guide Rail;Aluminum D/C, NO REPL: Part will show as orderable until stock is depleted. | No | Model Compatibility List | $8.42 / Each |
||
 |
702617 | 009012-C | C15 | Axle;Roller | No | Model Compatibility List | $8.87 / Each |
||
 |
702722 | 009372-E | J28 | Cap;Grip;GM02 | No | Model Compatibility List | $13.36 / Each |
||
 |
702966 | 013422-ZG2 | B02 | Adjust Pin Assembly;ROM;Yellow | No | Model Compatibility List | $36.48 / Each |
||
 |
703457 | 014758-A | not shown | Hardware Pack | No | Model Compatibility List | $74.54 / Each |
||
 |
704016 | 020105-AC | C25 | Screw;Hex Socket;Round;M10x1.5Px15L;Adhe | No | Model Compatibility List | $2.57 / Each |
||
 |
704041 | 020127-A | J21 | Screw;Hex Socket;Round;M8X1.25PX12L | No | Model Compatibility List | $1.79 / Each |
||
| 704230 | 020669-A | V12 | NAIL, 1/8"X12.5L | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
704303 | 022374-C | C23 | Rotating Axle Center;(SCM-21);20X144L | No | Model Compatibility List | $14.46 / Each |
||
| 704868 | 025617-B | AC1 | Console Base Set, FW80G2;Pol Titan | No | Model Compatibility List | $1188.41 / Each |
|||
 |
704884 | 025661-AA | AJ3 | Seat Pad Adjustable Set;Chromed | No | Model Compatibility List | $260.23 / Each |
||
 |
704885 | 025662-AA | AJ4 | Back Pad Adjustable Set;Chromed | No | Model Compatibility List | $410.64 / Each |
||
| 705084 | 035774-A | not shown | Assembly Manual | No | Model Compatibility List | $11.86 / Each |
|||
 |
725312 | 069801 | C29 | Screw, Flat Hex Socket, M8x1.25Px8L | No | Model Compatibility List | $1.79 / Each |
||
 |
726869 | 085734 | AJ1 | Seat Pad Frame Set | No | Model Compatibility List | $626.76 / Each |
||
 |
726871 | 085739 | AJ2 | Back Pad Frame Set | No | Model Compatibility List | $715.68 / Each |
||
| 729261 | See Pad Matrix | - | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
|
|
|||||||||
