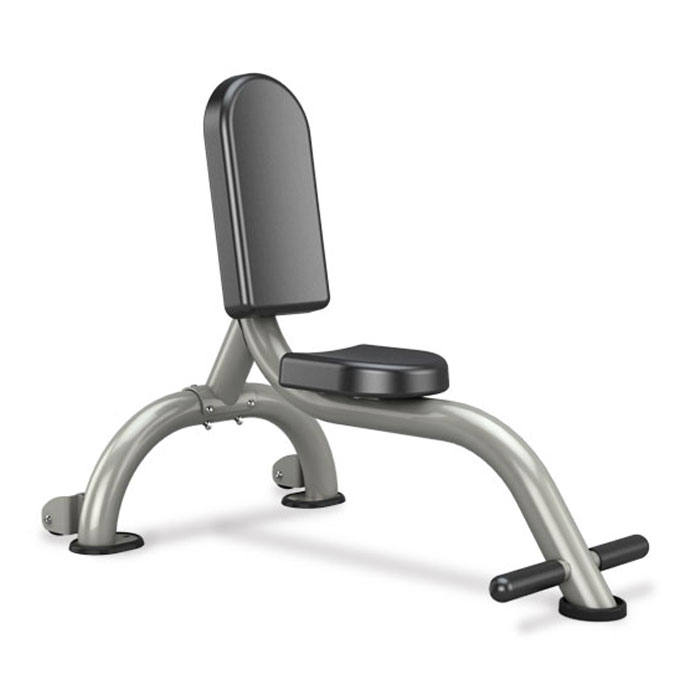

Matrix Commercial - G2-FW84P - 2005

Repair Parts for Matrix Commercial G2-FW84P G2FW84

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Info

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW84

Model Name: G2-FW84P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16820.0-base.pdf

Image	Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Notes	Available Used	Model Compatibility List	New price
	700146	000515-A	B10		Foot pad;Rubber;100;FW10		No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
	700166	000554-A	C05		Foot pad;Rubber		No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
	700226	000737-D	B32		Foam;Foot pad		No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
	700307	000925-B	B31		End Cap;M38.1x3.0T		No	Model Compatibility List	$1.79 / Each	9
	700447	001401-A	B11		End Cap;76.2		No	Model Compatibility List	$3.64 / Each	9
	701654	004693-AD	B33		Screw;Flat Hex Socket;M8x1.25Px15L		No	Model Compatibility List	$1.66 / Each	2
	701760	004780-AC	B12		Screw;Umbrella Hex Scoket;M10x1.5Px25L		No	Model Compatibility List	$4.00 / Each	2
	701795	004810-AC	C07		Screw;Umbrella Hex Scoket;M8x1.25Px90L		No	Model Compatibility List	$1.33 / Each	2
	701970	005009-AB	C09		Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating		No	Model Compatibility List	$2.00 / Each	2
	702098	005130-00	C08		Washer;Flat;8.4x15.5x1.6T;Chromed		No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
	702411	006656-A	V11		Decal;Serial Number;Aluminum		No	Model Compatibility List	$1.66 / Each	7,3
	704168	020393-AB	C10		Nut;AC;M8X1.25P;SS41;Chromed		No	Model Compatibility List	$2.00 / Each	7,2,4,5,6,12,13,14
	704232	020699-A	V12		Rivet;1/8X12.5L		No	Model Compatibility List	$1.79 / Each	1
	704436	024094-ZG2	AB1		MAIN FRAME SET FW84-G2 (POLARIZED TITANIUM)		No	Model Compatibility List	$719.13 / Each	3
	704653	024629-A	KIT		Hardware Pack		No	Model Compatibility List	$39.96 / Each	4,5,6
	704876	025635-AA	AC1		REAR SUPPORT TUBE FW84G2 POLARIZED TITANIUM		No	Model Compatibility List	$306.44 / Each	3
	705085	035776-A	KIT		Assembly Manual		No	Model Compatibility List	$11.86 / Each	3
	729261	See Pad Matrix	-		Elbow Pad;;PU;Black;;FW213-KM;		No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
