Matrix Commercial - G2-FW96P - 2005

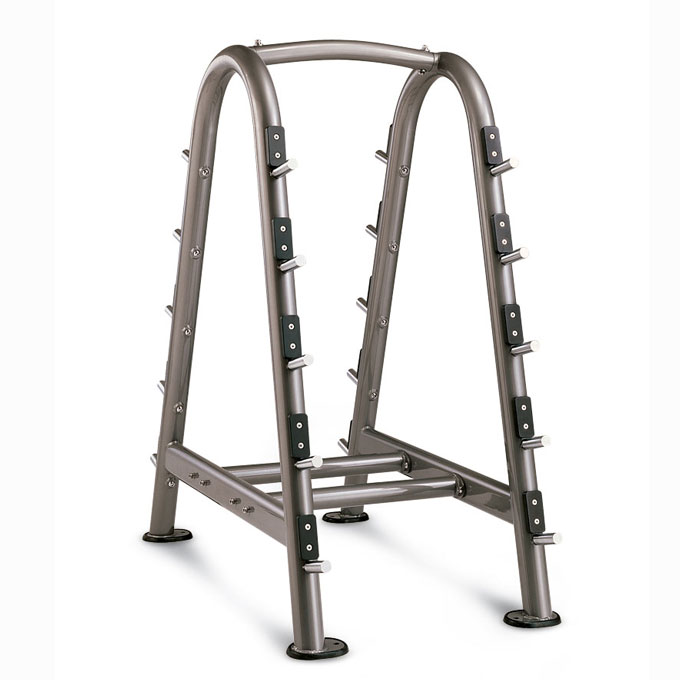

Repair Parts for Matrix Commercial G2-FW96P G2FW96

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Info

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW96

Model Name: G2-FW96P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16824.0-base.pdf

Image	Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Notes	Available Used	Model Compatibility List	New price
	700166	000554-A	B10		Foot pad;Rubber		No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
	701654	004693-AD	B15		Screw;Flat Hex Socket;M8x1.25Px15L		No	Model Compatibility List	$1.66 / Each	2
	701787	004801-Z	Z03		Screw;Hex Socket;BH;M10x1.5Px75L		No	Model Compatibility List	$3.35 / Each	2
	701914	004943-00	Z02		Nut;Nylon;M10x1.5P;Cr Plate;		No	Model Compatibility List	$2.00 / Each	2,3
	701939	004975-00	B13		Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)		No	Model Compatibility List	$1.90 / Each	2
	702318	005990-E	V05		Decal;Matrix Logo		No	Model Compatibility List	$18.77 / Each	7,3
	702411	006656-A	V03		Decal;Serial Number;Aluminum		No	Model Compatibility List	$1.66 / Each	7,3
	702531	008523-B	Z11		Washer;Arc;M10x28x10.5T;SS41		No	Model Compatibility List	$9.10 / Each	2
	704206	020479-A	Z01		Washer;Flat;10.2x22.0x2.0T;Chromed		No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
	704232	020699-A	V04		Rivet;1/8X12.5L		No	Model Compatibility List	$1.79 / Each	1
	705950	056844-A	not shown		Assembly Manual		No	Model Compatibility List	$16.64 / Each	3
	705998	058047-A	not shown		Hardware Pack		No	Model Compatibility List	$83.46 / Each	4,5,6
	706028	058197-AA	AB1		Frame Set - Left		No	Model Compatibility List	$1.30 / Each	3
	706029	058198-AA	AB2		Frame Set - Right		No	Model Compatibility List	$1.30 / Each	3
	707602	1000093600	AG1		Connecting Tube Set;Lower		No	Model Compatibility List	$325.60 / Each	3
	707604	1000093606	AG4		Connecting Tube Set;Upper		No	Model Compatibility List	$186.91 / Each	3
	712032	1000225334	B11		Hanging Rod;45#;Cr Plate;FW96		No	Model Compatibility List	$29.30 / Each	3
	712129	1000226827	B12		Elastomer;Plastic;;		No	Model Compatibility List	$43.71 / Each	9
	728949	991668-AC	B14		Screw;FH;M8X1.25PX30L;;HS;;CHM;;		No	Model Compatibility List	$3.64 / Each	2

View Drawing
