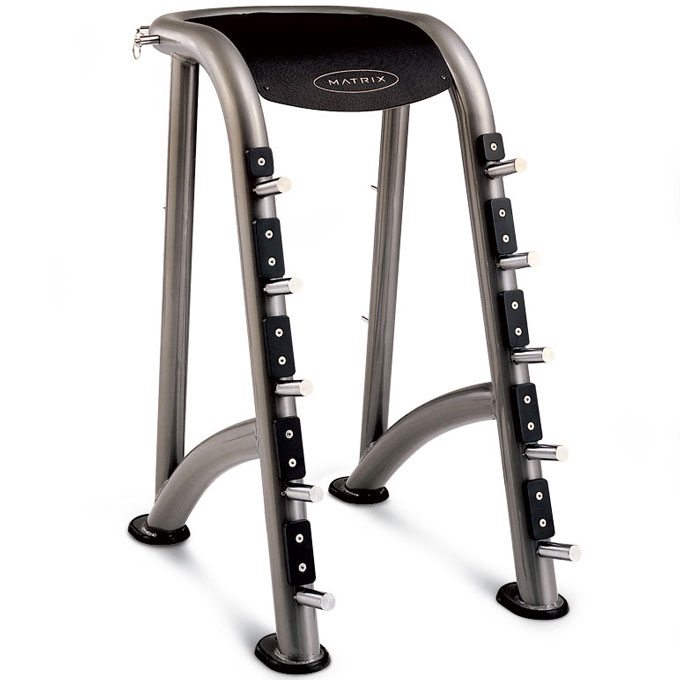

Matrix Commercial - G2-FW97P - 2005

Repair Parts for Matrix Commercial G2-FW97P G2FW97

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Info

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW97

Model Name: G2-FW97P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16825.0-base.pdf

Image	Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Notes	Available Used	Model Compatibility List	New price
	700166	000554-A	B13		Foot pad;Rubber		No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
	701537	004567-AB	B19		Screw;Sink Hex Socket;M8x1.25Px25L		No	Model Compatibility List	$3.64 / Each	2
	701654	004693-AD	B17		Screw;Flat Hex Socket;M8x1.25Px15L		No	Model Compatibility List	$1.66 / Each	2
	701683	004714-AD	B23		Screw;Hex Socket;BH;M6x1.0Px15L;Adhere		No	Model Compatibility List	$2.00 / Each	2
	701834	004853-AC	B30		Set Screw;M6X1.0PX5L;Chrome		No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
	701893	004925-00	B24		Nut;Nylon;M6x1.0P;Zinc		No	Model Compatibility List	$2.00 / Each	2
	701939	004975-00	B22		Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)		No	Model Compatibility List	$1.90 / Each	2
	702252	005380-A	B28		Hanging Ring		No	Model Compatibility List	$3.64 / Each	1
	702661	009259-B	B25		Connecting Rod;Hang Ring;;SS41;;;;;FW95		No	Model Compatibility List	$3.64 / Each	3
	702731	009384-B	B27		Support Rod;;;SS41;;;;;FW95		No	Model Compatibility List	$3.35 / Each	3
	702732	009385-B	B26		Support Rod;Hang Ring;;SS41;;;;;FW95		No	Model Compatibility List	$9.10 / Each	3
	705949	056843-A	KIT		Assembly Manual		No	Model Compatibility List	$16.64 / Each	3
	706027	058196-AA	AB1		Frame Set - FW97-AB1;;		No	Model Compatibility List	$0.00 / Each Out Of Stock	3
	706477	062620-AA	B16		Rubber Pad;Accent;FW95		No	Model Compatibility List	$58.40 / Each	4,5,6,12,13,14
	712032	1000225334	B09		Hanging Rod;45#;Cr Plate;FW96		No	Model Compatibility List	$29.30 / Each	3
	712129	1000226827	B10		Elastomer;Plastic;;		No	Model Compatibility List	$43.71 / Each	9
	725312	069801	C29		Screw, Flat Hex Socket, M8x1.25Px8L		No	Model Compatibility List	$1.79 / Each	2

View Drawing
