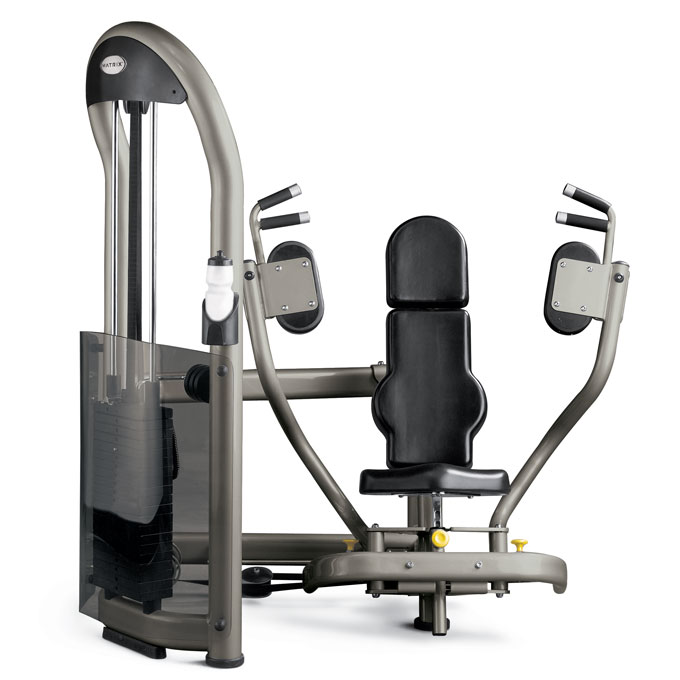

Matrix Commercial - G2-S12P - 2005

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000431-EB 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $256.18 / Each

9,4,5,6
000509-E 700140 000509-E C27 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D C28 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000542-C 700162 000542-C B13 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000581-C 700170 000581-C D21 Foam Grip;25.4x5tx86L No Model Compatibility List $1.88 / Each

11
000582-C 700171 000582-C D19 Foam Grip;25.4x5.0tx100L No Model Compatibility List $4.06 / Each

11
000791-B 700256 000791-B B18 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001402-A 700448 001402-A Q06 End Cap;Round No Model Compatibility List $1.38 / Each

9
001410-A 700454 001410-A Q08 End Cover;Elliptical;40x80 No Model Compatibility List $2.80 / Each

9
001508-E 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B F27 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001523-E 700519 001523-E F46 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001526-D 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9

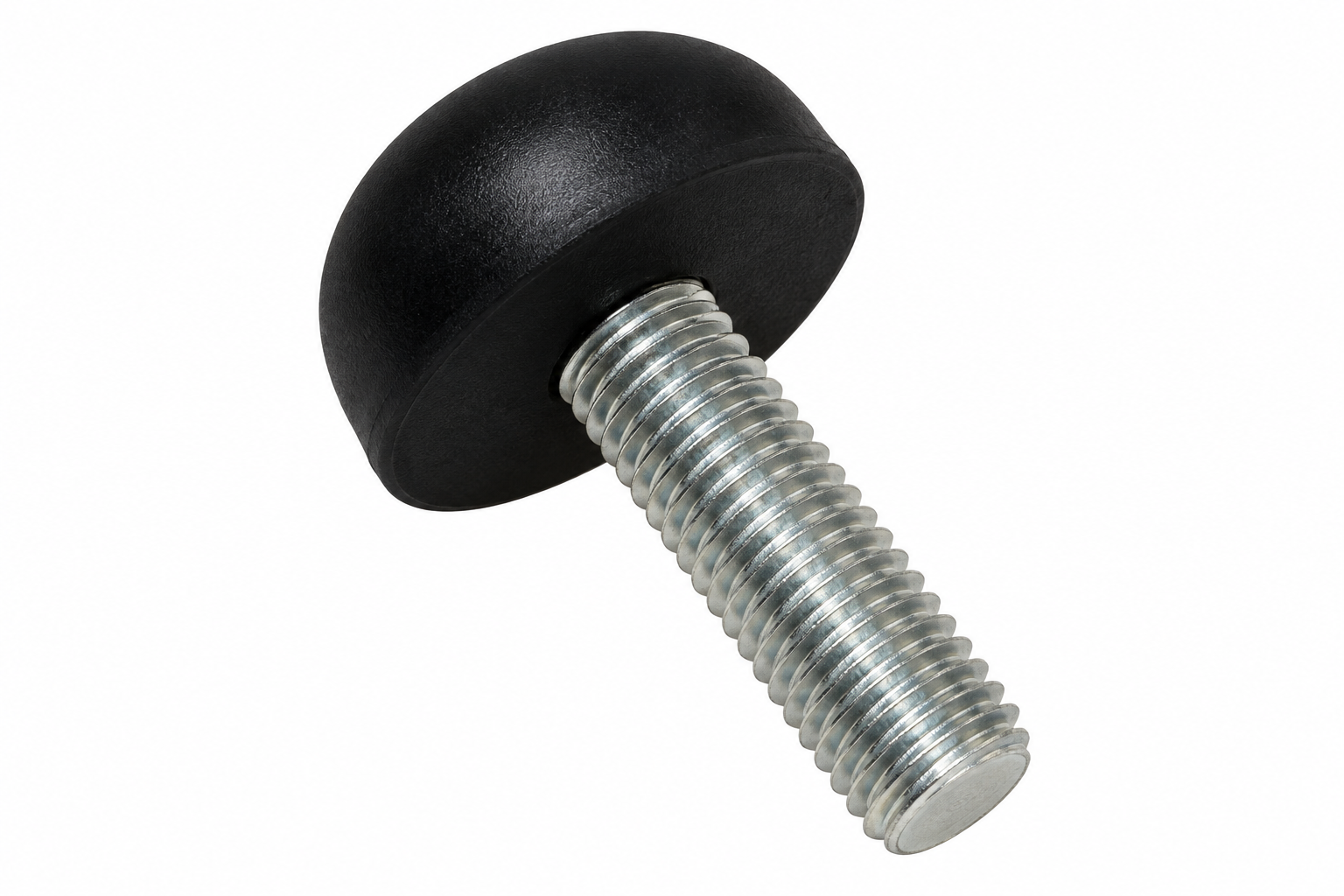

001527-E 700522 001527-E J14 Stopper Bolt;Back Pad;GM07 No Model Compatibility List $2.80 / Each

2,4,5,6,12,13,14
001528-B 700525 001528-B D31 Stopper Bolt;Pedal Arm;Rubber No Model Compatibility List $1.38 / Each

2,8,9,3
004077-A2 701159 004077-A2 F23 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004139-A 701192 004139-A F48 Bearing;Linear;SME20WW(THOMSON);;;DING X No Model Compatibility List $167.14 / Each

8
004482-AB 701436 004482-AB F22 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
004519-AE 701470 004519-AE F24 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $3.80 / Each

2
004534-AC 701493 004534-AC F25 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $1.68 / Each

2
004535-AC 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $2.80 / Each

2
004554-A 701521 004554-A D30 Screw;Round;Hex Socket;M12x1.75Px25L;Chromed No Model Compatibility List $2.84 / Each

7,2,12,13,14
004555-AB 701522 004555-AB G14 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004601-AC 701568 004601-AC B31 Screw;Hex;M5x0.8Px15L No Model Compatibility List $0.94 / Each

2
004702-00 701668 004702-00 C32 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004703-AF 701670 004703-AF D32 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2
004708-AD 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.38 / Each

2
004714-AD 701683 004714-AD C35 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $1.54 / Each

2
004720-AC 701693 004720-AC K17 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $3.08 / Each

2
004780-AC 701760 004780-AC G11 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $3.08 / Each

2
004855-AC 701836 004855-AC D25 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004859-00 701841 004859-00 L09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004943-00 701914 004943-00 F26 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004944-00 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
004975-00 701939 004975-00 B15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 D27 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005015-00 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 F30 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 C43 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-AB 702057 005084-AB F29 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.26 / Each

2
005132-00 702102 005132-00 D26 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005145-AC 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005181-A 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.24 / Each

2
005351-00 702226 005351-00 F47 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.38 / Each

4,5,6
005365-00 702240 005365-00 D33 C-Clip;External;S-20 No Model Compatibility List $1.38 / Each

2
005367-00 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005377-00 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005476-F 702284 005476-F D17 Twist Spring;Left;SWP;4.5x58.0x80.0Lx3 No Model Compatibility List $6.40 / Each

2
005477-F 702285 005477-F D18 Twist Spring;Right;SWP;4.5mm; No Model Compatibility List $6.40 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006614-B 702386 006614-B V09 Decal;Angle Adjustic;Left;GM06 No Model Compatibility List $2.88 / Each

7,3
006615-B 702387 006615-B V10 Decal;Angle Adjustic;Right;MX-S12;GM06 No Model Compatibility List $2.88 / Each

7,3
006620-D 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $21.22 / Each

7,3
006621-B 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $2.80 / Each

7,3,12,13,14
006650-B 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $2.42 / Each

7,3
006656-A 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.28 / Each

7,3
702428 006854-A not shown Assembly Manual No Model Compatibility List $9.12 / Each

3
008234-C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F20 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008522-C 702530 008522-C F21 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008523-B 702531 008523-B D36 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008548-C 702538 008548-C F18 Cam Cover;SUS304(electroplate);GM06-F18C No Model Compatibility List $105.92 / Each

9,3
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009279-G 702664 009279-G D16 Axle;Swivel Arm;SCM4;20X184L;GM06 No Model Compatibility List $12.46 / Each

8,3
009306-E 702682 009306-E C34 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $2.88 / Each

8,15
009324-H 702696 009324-H F19 Guide Rail;Slipping Sleeve;20X472L SUJ- No Model Compatibility List $52.02 / Each

9,3,12,13,14
009356-B 702711 009356-B D35 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009365-00 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $2.80 / Each

2,12,13,14
009371-E 702721 009371-E D24 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
009641-F 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $35.46 / Each

3
013414-Z1 702950 013414-Z1 F20 BELT FIXER SET-1 No Model Compatibility List $69.50 / Each

15
013420-ZG2-2 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $56.86 / Each

9
013422-Z1G2 702965 013422-Z1G2 B41 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $28.06 / Each

12,13,14
013422-ZG2 702966 013422-ZG2 B41 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
013439-ZLG2 703005 013439-ZLG2 AF2 LEFT TURNED-PLATE(PANTING) GM06-G2 No Model Compatibility List $402.24 / Each

3
013439-ZRG2 703010 013439-ZRG2 AF1 RIGHT TURNED-PLATE(PANTING) GM06-G2 No Model Compatibility List $402.24 / Each

3
703015 013440-ZLG2 AD2 LEFT ARM FRAME (PANTING) GM06-G2 No Model Compatibility List $483.92 / Each

3
013440-ZRG2 703020 013440-ZRG2 AD1 RIGHT ARM FRAME(PANTING) GM06-G2 No Model Compatibility List $483.92 / Each

3
703025 013441-ZG2 AB1 MAIN FRAME SET(POLARIZED TITANIUM) No Model Compatibility List $1.00 / Each

3
013444-ZG2 703037 013444-ZG2 AF3 Moving Pulley Frame Set(PANTING) GM06-G2 No Model Compatibility List $473.08 / Each

8,3
703038 013445-Z AJ2 Seat Post Frame No Model Compatibility List $260.06 / Each

3,12,13,14
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
014784-G 703463 014784-G AF5 Pulley Set;GM06 No Model Compatibility List $81.82 / Each

8
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
703684 015804-A C40 Security Tube;Painting;GM06 No Model Compatibility List $84.78 / Each

3
015805-AA 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $19.46 / Each

3,4,5,6
015942-AA 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3
019151-AA 703901 019151-AA G09 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
020115-AF 704028 020115-AF F45 Screw;Hex Socket;Round;M10x1.5Px95L No Model Compatibility List $6.94 / Each

2
020127-A 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.38 / Each

2
704134 020301-AB C44 Screw;Oval Hex Socket;M10X1.5PX55L;Chromed No Model Compatibility List $1.12 / Each

7,2,12,13,14
020410-A 704171 020410-A B22 Insert Nut;NLS7-580-5.7 No Model Compatibility List $7.02 / Each

2
020479-A 704206 020479-A C42 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
020699-A 704232 020699-A V14 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
704480 024108-ZG2 AC1 Base Frame Set No Model Compatibility List $1.00 / Each

3
024606-A 704645 024606-A not shown Hardware Pack No Model Compatibility List $230.34 / Each

4,5,6
025463-AD 704785 025463-AD AG1 UPPER CONNECTING TUBE No Model Compatibility List $465.90 / Each

3
704786 025464-AD AG2 LOWER CONNECTING TUBE No Model Compatibility List $465.90 / Each

3
035711-A 705079 035711-A F16 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
067544-A 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $1.54 / Each

2
069000-AA 707048 069000-AA AK1 Top Weight Plate Set No Model Compatibility List $176.82 / Each

3
707080 100009006 C49 SEAT TUBE BUSHING COVER No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3,12,13,14
1000097256 707965 1000097256 C31 Sleeve;Seat Tube No Model Compatibility List $10.96 / Each

3,12,13,14
1000210966 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $127.60 / Each

9
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
085973 726910 085973 V01 Illustration Decal;ENG;GM06 No Model Compatibility List $25.74 / Each

7,3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
