Matrix Commercial - G2-S20P - 2005

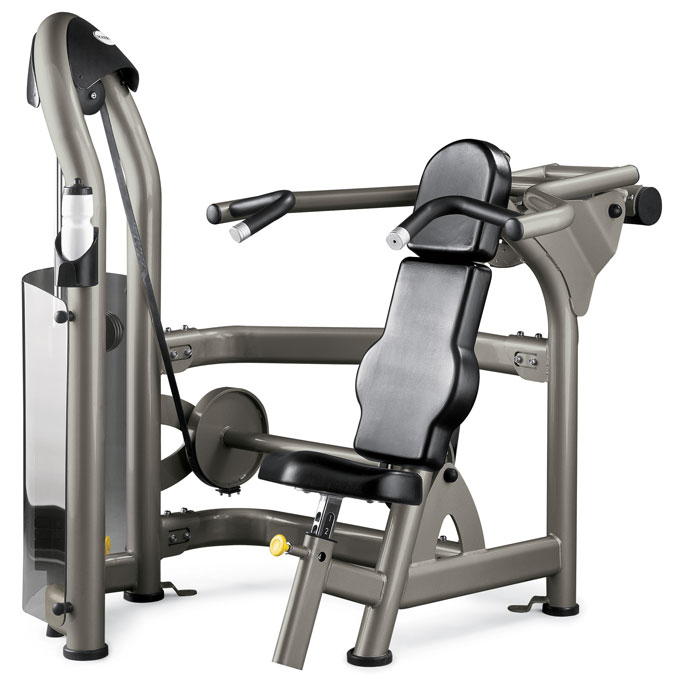

Repair Parts for Matrix Commercial G2-S20P G2GM11

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S20P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
C 700140 000509-E C26 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C27 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B14 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
D 700197 000619-A D10 Foam Grip;31.8x5.0tx353L No Model Compatibility List $8.55 / Each

11
B 700256 000791-B B18 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700447 001401-A Q10 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q04 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
C 700518 001522-B C28 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q11 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
J 700539 001564-AA J13 Sleeve;Seat Post Tube No Model Compatibility List $2.24 / Each

3,12,13,14
F 701159 004077-A2 F06 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
F 701470 004519-AE F12 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F13 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
B 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
F 701520 004553-AB F15 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
H 701521 004554-A H21 Screw;Round;Hex Socket;M12x1.75Px25L;Chromed No Model Compatibility List $3.69 / Each

7,2,12,13,14
G 701522 004555-AB G10 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
C 701668 004702-00 C30 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
G 701760 004780-AC G07 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701836 004855-AC D20 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F14 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701939 004975-00 B16 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701968 005007-00 D22 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
L 701980 005016-00 L13 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
G 701981 005017-00 G09 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
F 702057 005084-AB F17 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D21 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
H 702178 005220-00 H22 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $3.64 / Each

7,3,12,13,14
V 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $3.15 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702433 006859-A not shown Assembly Manual, MX-S20 No Model Compatibility List $11.86 / Each

3
C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F08 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
C 702531 008523-B C60 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
F 702650 009225-A F05 Axle;Cam;SCM4;20x878L;GM11 No Model Compatibility List $47.55 / Each

8
D 702687 009312-A D08 Swivel Axle;SCM4;20X214.6L;GM11 No Model Compatibility List $22.52 / Each

8
D 702691 009318-BB D17 Balance Plate;Painting;GM11 No Model Compatibility List $123.92 / Each

3
D 702710 009355-B D26 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
D 702722 009372-E D19 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
F 702950 013414-Z1 F03 BELT FIXER SET-1 No Model Compatibility List $90.35 / Each

15
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
C 702965 013422-Z1G2 C40 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
703166 013489-ZG2 AD1 Arm Frame Polarized Titanium No Model Compatibility List $1131.62 / Each

3
703171 013490-ZG2 AB1 Weight Stack Frame (Polarized Titanium), GM11-G2 No Model Compatibility List $1.30 / Each

3,4,5,6
A 703193 013499-Z AJ2 Seat Post Set No Model Compatibility List $232.05 / Each

12,13,14
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
L 703640 015771-A L05 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $25.30 / Each

3,4,5,6
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

8,3
D 703867 018864-AA D24 Cover;Axle No Model Compatibility List $3.41 / Each

8,9
C 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
C 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
B 704171 020410-A B24 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
G 704193 020465-AB G08 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
F 704315 022394-B F16 Sleeve;SS41;Chrome Plate No Model Compatibility List $16.87 / Each

7,3,12,13,14
D 704316 022395-B D16 Sleeve;Axle;20X40MM No Model Compatibility List $3.64 / Each

8,3
H 704319 022400-A H23 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
704491 024115-ZG2 AC1 Base Frame Set No Model Compatibility List $1.30 / Each

3
704496 024116-ZG2 AF1 Cam Frame (Polarized Titanium), GM11-G2 No Model Compatibility List $936.94 / Each

3
F 705079 035711-A F07 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707059 069024-AA AK1 Top Weight Plate Set No Model Compatibility List $229.87 / Each

3
C 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
A 707599 1000093594 AG1 Connecting Frame Set;Upper;Painting;PGM11-G2 No Model Compatibility List $425.78 / Each

3
A 707600 1000093595 AG2 Connecting Frame Set;Lower;Painting;PGM11-G2 No Model Compatibility List $430.46 / Each

3
C 707965 1000097256 C31 Sleeve;Seat Tube No Model Compatibility List $14.25 / Each

3,12,13,14
K 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Illustration Decal;ENG;GM11 726914 085978 V01 Illustration Decal;ENG;GM11 No Model Compatibility List $33.46 / Each

7,3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
