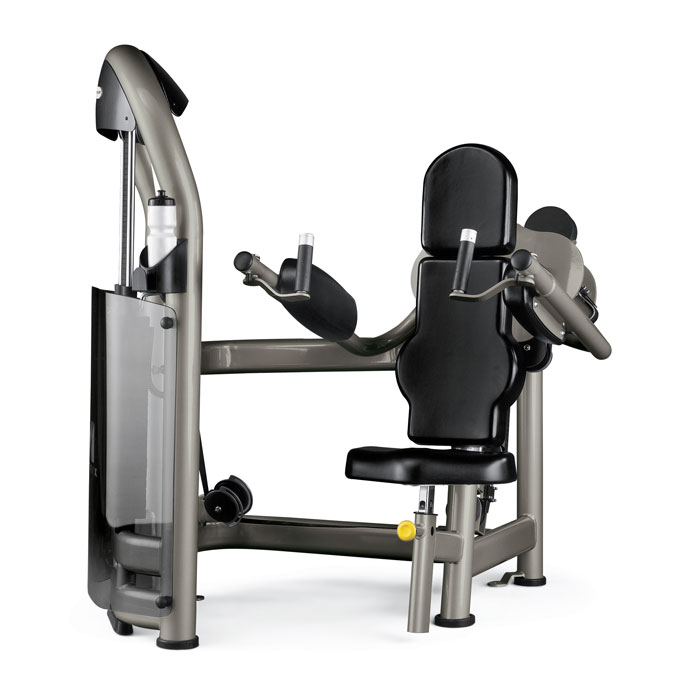

Matrix Commercial - G2-S21P - 2005

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000431-EB 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $256.18 / Each

9,4,5,6
000477-B 700128 000477-B D50 Cover;Axle;Rubber;GM02 No Model Compatibility List $1.28 / Each

8,9
000509-E 700140 000509-E C29 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D C30 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000542-C 700162 000542-C B14 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000584-B 700173 000584-B D24 Foam Grip;24x5.0tx98L; No Model Compatibility List $1.88 / Each

11
000791-B 700256 000791-B B19 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001402-A 700448 001402-A Q07 End Cap;Round No Model Compatibility List $1.38 / Each

9
001508-E 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B C39 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001526-D 700521 001526-D Q10 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
001564-AA 700539 001564-AA J13 Sleeve;Seat Post Tube No Model Compatibility List $1.72 / Each

3,12,13,14
001586-C 700549 001586-C D35 Sleeve;Stopper;PVC;BL;GM12 No Model Compatibility List $1.02 / Each

3
004077-A2 701159 004077-A2 D21 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004118-00 701183 004118-00 D25 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004139-A 701192 004139-A F51 Bearing;Linear;SME20WW(THOMSON);;;DING X No Model Compatibility List $167.14 / Each

8
004496-AC 701452 004496-AC F30 Screw;Hex Socket;Round;M10x1.5Px90L;Chromed No Model Compatibility List $2.24 / Each

7,2,12,13,14
004519-AE 701470 004519-AE F11 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $3.80 / Each

2
004534-AC 701493 004534-AC F12 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $1.68 / Each

2
004535-AC 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $2.80 / Each

2
004553-AB 701520 004553-AB D31 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $7.00 / Each

2
004555-AB 701522 004555-AB G15 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004601-AC 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $0.94 / Each

2
004702-00 701668 004702-00 C33 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004703-AF 701670 004703-AF B18 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2
004708-AD 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.38 / Each

2
004714-AD 701683 004714-AD F47 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $1.54 / Each

2
004720-AC 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $3.08 / Each

2
004780-AC 701760 004780-AC D30 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $3.08 / Each

2
004855-AC 701836 004855-AC D32 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004943-00 701914 004943-00 F09 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004944-00 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
004975-00 701939 004975-00 B16 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 D34 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005015-00 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 F16 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 C38 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-AB 702057 005084-AB F15 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.26 / Each

2
005130-00 702098 005130-00 L13 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D33 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005145-AC 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005181-A 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.24 / Each

2
005220-00 702178 005220-00 H22 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005351-00 702226 005351-00 F52 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.38 / Each

4,5,6
005367-00 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005377-00 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006620-D 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $21.22 / Each

7,3
006621-B 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $2.80 / Each

7,3,12,13,14
006650-B 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $2.42 / Each

7,3
006656-A 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.28 / Each

7,3
008234-C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F07 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008523-B 702531 008523-B G14 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009320-BB 702693 009320-BB D23 Weight-Increase Plate;Balance;;;;Paint;; PAINTING No Model Compatibility List $59.74 / Each

3
009329-E 702698 009329-E K09 Guide Rail;19X1140L;Cr Plate;GM12 No Model Compatibility List $91.50 / Each

9,3
009347-B 702706 009347-B D36 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $7.00 / Each

8,3
009350-J 702707 009350-J F10 Guide Rail;SUJ-2;GM12 No Model Compatibility List $35.18 / Each

9
009356-B 702711 009356-B D39 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009359-A 702715 009359-A D26 Washer;Grip;SS41 No Model Compatibility List $3.08 / Each

2,11
009365-00 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $2.80 / Each

2,12,13,14
009371-E 702721 009371-E D27 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
009641-F 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $35.46 / Each

3
013414-Z1 702950 013414-Z1 AF03 BELT FIXER SET-1 No Model Compatibility List $69.50 / Each

15
013420-ZG2-2 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $56.86 / Each

9
013422-Z1G2 702965 013422-Z1G2 C31 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $28.06 / Each

12,13,14
703176 013494-ZG2 AB1 Main Frame (Polarized Titanium), GM12-G2 No Model Compatibility List $1.00 / Each

3
013495-ZG2 703181 013495-ZG2 AD3 Handlebar Frame (Polarized Titanium), GM12-G2 No Model Compatibility List $280.42 / Each

3,11
703192 013498-ZG2 AF1 Slide Pulley Frame (Polarized Titanium), GM12-G2 No Model Compatibility List $268.08 / Each

8,3
013499-Z 703193 013499-Z AJ2 Seat Post Set No Model Compatibility List $178.50 / Each

12,13,14
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
014782-F 703461 014782-F AF5 Pulley Set;GM12 No Model Compatibility List $60.84 / Each

8
014784-G 703463 014784-G AF6 Pulley Set;GM06 No Model Compatibility List $81.82 / Each

8
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015805-AA 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $19.46 / Each

3,4,5,6
015942-AA 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3
018864-AA 703867 018864-AA D40 Cover;Axle No Model Compatibility List $2.62 / Each

8,9
020115-AF 704028 020115-AF F45 Screw;Hex Socket;Round;M10x1.5Px95L No Model Compatibility List $6.94 / Each

2
020126-DB 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2,12,13,14
020127-A 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.38 / Each

2
020410-A 704171 020410-A B23 Insert Nut;NLS7-580-5.7 No Model Compatibility List $7.02 / Each

2
020465-AB 704193 020465-AB C37 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A V14 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022382-A 704308 022382-A D22 Axle;Swivel Arm;20X157L SCM-21;GM12 No Model Compatibility List $19.26 / Each

8,3
022400-A 704319 022400-A H23 Spring Pin;5x30L No Model Compatibility List $2.80 / Each

2,12,13,14
022411-B 704325 022411-B F46 Axle;Slip-Stopper;SS41;10X59L;GM06 No Model Compatibility List $2.88 / Each

8
024117-ZLG2 704501 024117-ZLG2 AD1 Left Arm Frame (Polarized Titanium), GM12 No Model Compatibility List $608.64 / Each

3
024117-ZRG2 704506 024117-ZRG2 AD2 Right Arm Frame (Polarized Titanium), GM12-G2 No Model Compatibility List $608.64 / Each

3
704511 024118-ZG2 AC1 Base Frame (Polarized Titanium), GM12-G2 No Model Compatibility List $1.00 / Each

3
704788 025468-AD AG1 Upper Connecting Tube, GM12-G2 Polarized Titanium No Model Compatibility List $490.86 / Each

3
704789 025469-B AG2 Lower Connecting Tube, GM12-G2 Polarized Titanium No Model Compatibility List $504.34 / Each

3
035711-A 705079 035711-A F05 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
705097 035791-A not shown Assembly Manual No Model Compatibility List $9.12 / Each

3
067544-A 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $1.54 / Each

2
069001-AA 707049 069001-AA AK1 Top Weight Plate Set No Model Compatibility List $176.82 / Each

3
1000090006 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $2.80 / Each

9,3,12,13,14
1000097256 707965 1000097256 C32 Sleeve;Seat Tube No Model Compatibility List $10.96 / Each

3,12,13,14
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
