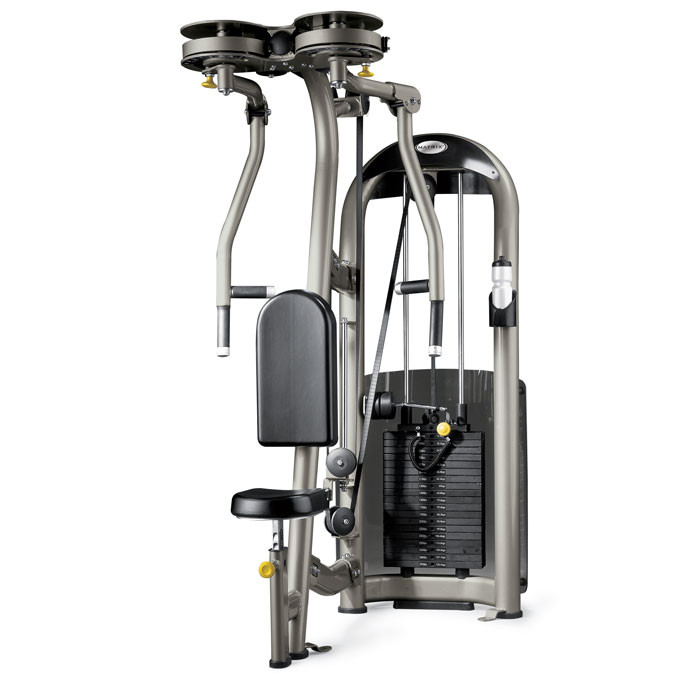

Matrix Commercial - G2-S22P - 2005

Repair Parts for Matrix Commercial G2-S22P G2GM15

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S22P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6

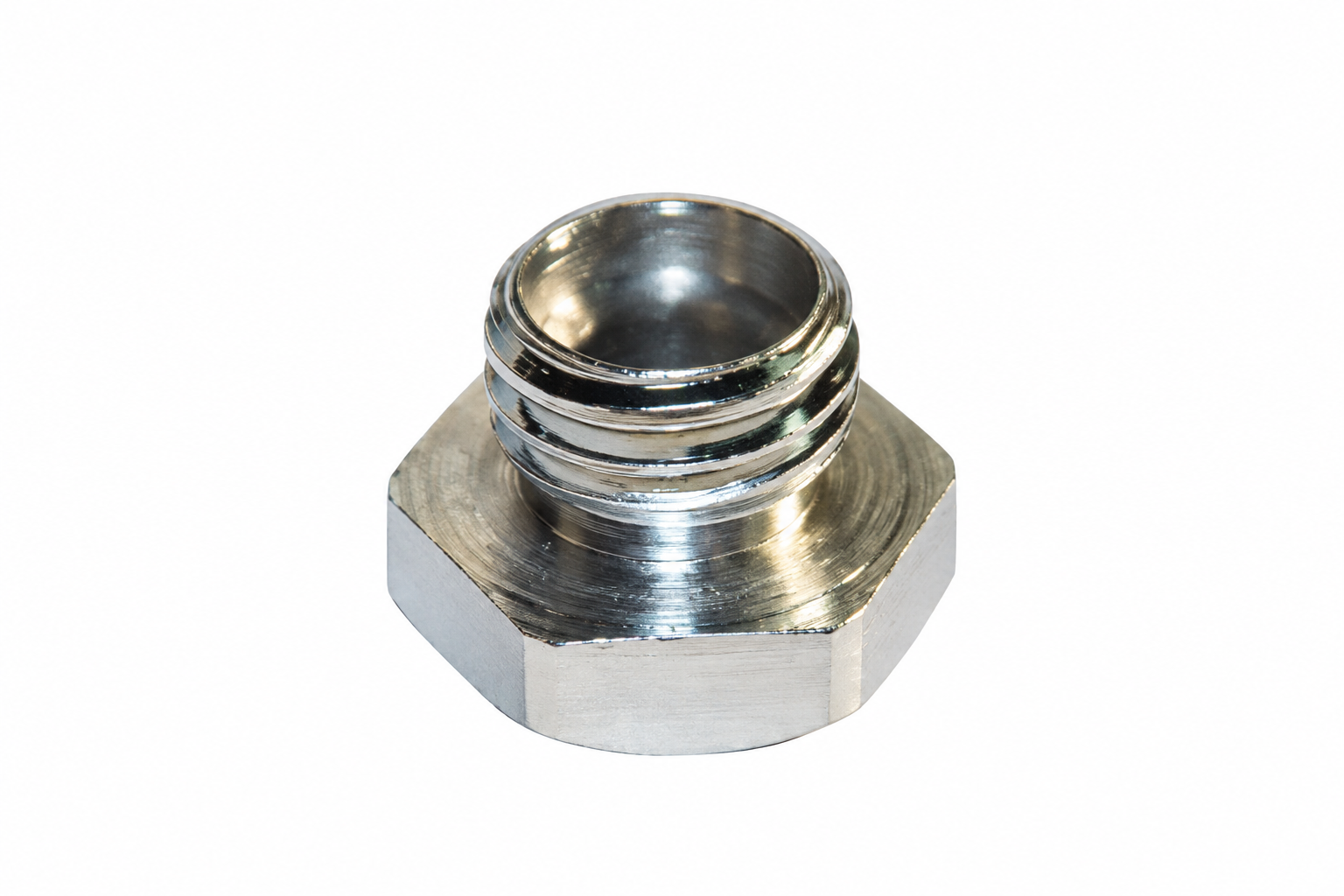

B 700122 000454-H B40 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $9.10 / Each

9,3
B 700140 000509-E B19 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700145 000514-C C21 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
D 700179 000589-C D19 Foam Grip;30.4x5.0tx105L; No Model Compatibility List $10.84 / Each

11
D 700180 000590-C D20 Foam Grip;30.4x5.0x110L No Model Compatibility List $10.84 / Each

11
B 700256 000791-B B17 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
F 700518 001522-B F09 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
F 700519 001523-E F22 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
D 700525 001528-B D31 Stopper Bolt;Pedal Arm;Rubber No Model Compatibility List $1.79 / Each

2,8,9,3
F 701159 004077-A2 F15 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
F 701436 004482-AB F14 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
F 701470 004519-AE F17 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F18 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
B 701496 004535-AC B18 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
D 701520 004553-AB D25 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
C 701522 004555-AB C33 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701568 004601-AC B34 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
D 701668 004702-00 D33 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
C 701760 004780-AC C29 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701836 004855-AC D18 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F19 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701968 005007-00 D27 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F21 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C31 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
B 701986 005024-A B27 Washer;Flat;5.2X16.0X1.0T;;BZN; No Model Compatibility List $1.66 / Each

2
F 702057 005084-AB F20 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D32 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B33 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B28 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
D 702177 005219-00 D22A Washer;Wavy;26.0x35.0x0.3T No Model Compatibility List $1.79 / Each

2,4,5,6
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $3.64 / Each

7,3,12,13,14
V 702394 006622-D V06 Decal;Angle Adjustic;Left;MX-S22;GM15 No Model Compatibility List $4.16 / Each

7,3
V 702395 006623-D V07 Decal;Angle Adjustic;Right;MX-S22;GM15 No Model Compatibility List $3.85 / Each

7,3
V 702407 006651-B V15 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F13 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
L 702530 008522-C L12 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
C 702531 008523-B C32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
F 702540 008550-C F11 Cover;Cam;SUS304;;Plate;;GM15 No Model Compatibility List $231.61 / Each

9,3
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
D 702606 008968-B D17 Sleeve;Inner Axle Sleeve No Model Compatibility List $8.22 / Each

8,3
B 702670 009288-K B38 Axle;Pin;Market;GM01 No Model Compatibility List $10.35 / Each

8,12,13,14
D 702689 009314-C D23 Swivel Axle;S45C;GM15B No Model Compatibility List $48.72 / Each

8
D 702710 009355-B D35 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
n 702950 013414-Z1 not shown BELT FIXER SET-1 No Model Compatibility List $90.35 / Each

15
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
B 702965 013422-Z1G2 B41 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
B 702966 013422-ZG2 B41 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
A 703223 013514-ZLBG2 AF1 Left Cam Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $554.06 / Each

3
A 703228 013514-ZRBG2 AF2 Right Cam Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $554.06 / Each

3
A 703233 013515-ZLBG2 AD3 Lower Left Arm Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $747.97 / Each

3
A 703238 013515-ZRBG2 AD4 Lower-Right Arm Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $747.97 / Each

3
A 703250 013519-Z AJ1 Vertical Seat Post;GM15 No Model Compatibility List $351.10 / Each

12,13,14
A 703459 014780-H AF3 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
X 704009 020099-00 X11 Screw;Hex Socket;Round;M10x1.5Px85L;Adhe No Model Compatibility List $3.95 / Each

2
C 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
C 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
B 704171 020410-A B24 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
C 704193 020465-AB C30 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V14 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704255 021778-A not shown Assembly Manual No Model Compatibility List $11.86 / Each

3
A 704540 024124-ZBG2 AC1 Base Frame (Polarized Titanium), GM15BG2 No Model Compatibility List $1.30 / Each

3
n 704647 024608-A not shown Hardware Pack No Model Compatibility List $137.59 / Each

4,5,6
A 704729 025430-B AC2 Cam Set Mounting Plate, G2S22, Polarized Titanium No Model Compatibility List $239.51 / Each

2,3
D 704895 025755-AA D24 Washer;Swivel Axle;Chromed No Model Compatibility List $20.18 / Each

7,2,8,12,13,14
F 705079 035711-A F08 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707047 068986-AA AK1 GM15G2 Top Weight Plate No Model Compatibility List $243.05 / Each

3
C 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
A 707605 1000093615 AG2 Connecting Frame Set;Lower No Model Compatibility List $608.82 / Each

3
C 707969 1000097260 C22 Sleeve;Seat Tube No Model Compatibility List $16.20 / Each

3,12,13,14
C 708552 1000103315 C19 Cam Frame Plate;Lower;Painting;GM15B No Model Compatibility List $290.37 / Each

3
K 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
D 721628 1000384824 D22 Axle, central;Swivel Arm;;45#;White Zinc No Model Compatibility List $18.23 / Each

8,3
A 722219 1000389176 AD1 pedal arm set;;left up;Polarized Titaniu No Model Compatibility List $152.07 / Each

8,9,3
A 722226 1000389358 AD2 pedal arm set;;right up;Polarized Titani No Model Compatibility List $152.07 / Each

8,9,3
B 722509 1000393222 B38 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

2
Cam Set;L;Painting;GM15B 725284 069196 AF1 Cam Set;L;Painting;GM15B No Model Compatibility List $336.28 / Each

1
Cam Set;R;Painting;GM15B 725285 069200 AF2 Cam Set;R;Painting;GM15B No Model Compatibility List $336.28 / Each

1
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
