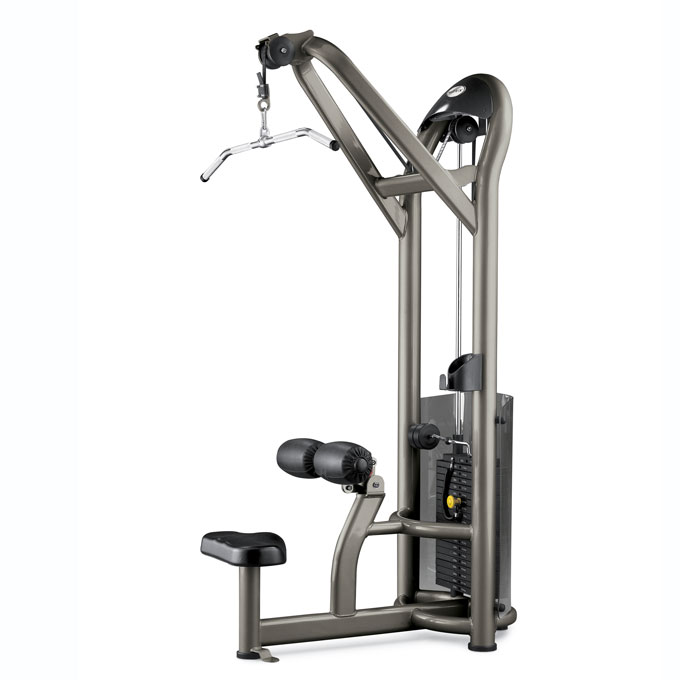

Matrix Commercial - G2-S30P - 2005

Repair Parts for Matrix Commercial G2-S30P G2GM01

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S30P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700139 000508-D B21 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B22 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C20 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
B 700256 000791-B B33 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700448 001402-A Q05 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
B 700519 001523-E B19 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
B 701430 004479-00 B29 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $2.00 / Each

2
F 701470 004519-AE F10 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F09 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
K 701496 004535-AC K20 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
H 701520 004553-AB H10 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
B 701568 004601-AC B36 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701668 004702-00 B23 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
K 701693 004720-AC K19 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
K 701727 004750-00 K17 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
B 701760 004780-AC B26 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
F 701798 004812-A F49 Screw;Hex Socket;BH;M6x1.0Px20L;Adhere No Model Compatibility List $2.00 / Each

2
F 701836 004855-AC F55 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F11 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701939 004975-00 B30 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
F 701963 005004-AE F51 Washer;Spring;SW6 6.1x12.2x1.5t;Chromed No Model Compatibility List $1.85 / Each

7,2,12,13,14
H 701968 005007-00 H12 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
L 701980 005016-00 L13 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 702040 005070-00 F50 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
F 702057 005084-AB F48 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
H 702102 005132-00 H11 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K12 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702370 006563-A V01 Decal;Operation Instruction No Model Compatibility List $15.00 / Each

7,3
V 702382 006610-B V02 Decal;Foot Pad Adjustable;GM01 No Model Compatibility List $3.35 / Each

7,9,3,12,13,14
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702423 006788-A not shown Assembly Manual No Model Compatibility List $11.86 / Each

3
F 702520 008448-D F12 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6

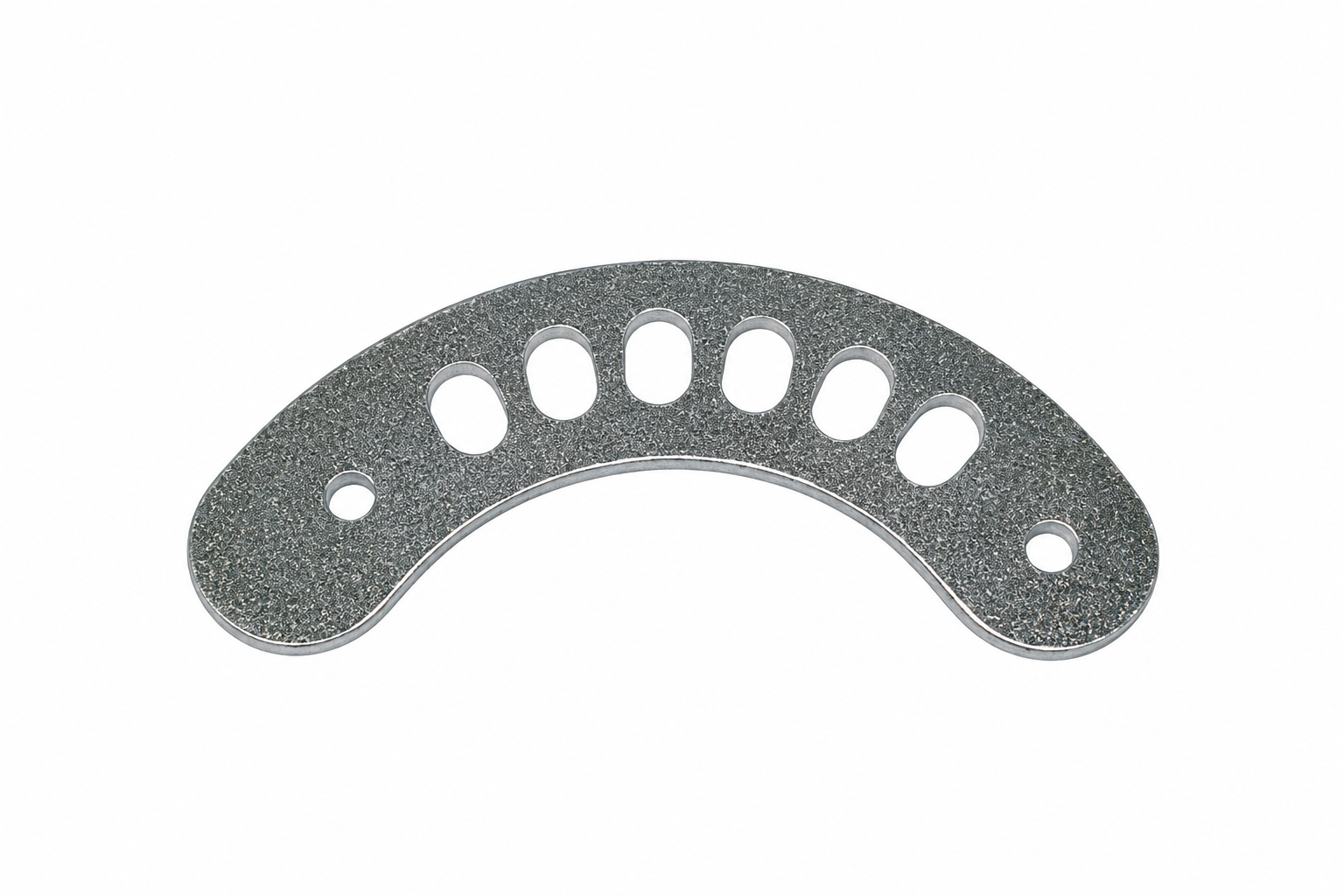

B 702536 008546-F B49 Leveler Adjustable Cover No Model Compatibility List $93.08 / Each

9,3
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
H 702671 009289-F H07 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
F 702711 009356-B F54 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
F 702721 009371-E F53 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
702725 009378-B F13 Pressing Rod;S45C No Model Compatibility List $6.29 / Each

3
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
B 702944 013411-Z1G2 B32 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
702949 013413-ZG2 AB1 Main Frame (Polarized Titanium), GM01-G2 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
n 702950 013414-Z1 not shown BELT FIXER SET-1 No Model Compatibility List $90.35 / Each

15
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703462 014783-G AF5 Pulley Set;GM01 No Model Compatibility List $112.68 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
A 703667 015793-A AF1 Belt Connecting Link Set No Model Compatibility List $23.63 / Each

15,3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
B 704171 020410-A B24 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
A 704445 024099-ZG2 AH1 Thigh Pad Assembly (Polarized Titanium), GM01-G2 No Model Compatibility List $231.71 / Each

3,12,13,14
n 704646 024607-A not shown Hardware Pack No Model Compatibility List $149.86 / Each

4,5,6
F 705011 029145-AA F56 Foam;25.4x5.0tx476L No Model Compatibility List $25.30 / Each

1
F 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
B 706954 067544-A B45 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707051 069003-AA AK1 Top Weight Plate Set No Model Compatibility List $303.58 / Each

3
B 708099 1000099693 B32 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
F 708676 1000104707 F52 Screw;Hex Socket;Round;M8x1.5Px125L;Adh No Model Compatibility List $3.35 / Each

2
K 710557 1000210965 K09 Guide Rail;19x1890L No Model Compatibility List $262.03 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
F 721052 1000380094 F07 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
Handlebar Set 726567 083007 F08 Handlebar Set No Model Compatibility List $289.87 / Each

11
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
