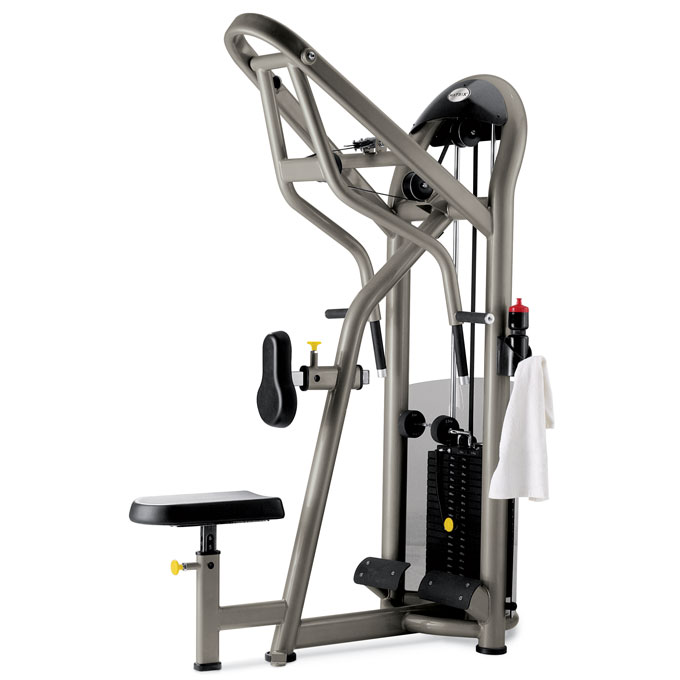

Matrix Commercial - G2-S31P - 2005

Repair Parts for Matrix Commercial G2-S31P G2GM20

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S31P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700139 000508-D B37 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B38 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700145 000514-C B46 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

9,3,12,13,14
B 700162 000542-C B36 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
D 700194 000614-D D25 Foam;Elastomer;24x5.0tx195L No Model Compatibility List $17.08 / Each

1
D 700195 000615-D D26 Foam;Elastomer;24x5.0tx185L No Model Compatibility List $15.81 / Each

1
B 700256 000791-B B47 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
K 700492 001508-E K08 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
B 700518 001522-B B35 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 700683 001785-AA B72 Stopper Piece;Fix Tube;Rubber;BL;GM20 RUBBER(BLACK) No Model Compatibility List $3.35 / Each

3,4,5,6
D 701159 004077-A2 D33 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
D 701183 004118-00 D22 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
F 701470 004519-AE F04 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F03 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
K 701496 004535-AC K20 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
D 701520 004553-AB D28 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
B 701568 004601-AC B66 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701668 004702-00 B63 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L13 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
J 701760 004780-AC J08 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
K 701761 004781-00 K17 Screw;Hex Socket;BH;M8x1.25Px25L;Adhere; No Model Compatibility List $9.10 / Each

2
D 701836 004855-AC D31 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
L 701841 004859-00 L09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
F 701914 004943-00 F05 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B62 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701968 005007-00 D29 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
L 701980 005016-00 L12 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
L 702057 005084-AB L14 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D30 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K12 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V04 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702376 006580-A V01 Decal;Operation Instruction No Model Compatibility List $15.00 / Each

7,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702401 006629-A V06 Decal;Back Pad Adjustable;MX-S71;GM08 No Model Compatibility List $4.97 / Each

7,3,4,5,6,12,13,14
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702437 006865-A not shown Assembly Manual No Model Compatibility List $14.61 / Each

3
J 702505 008234-C J16 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F06 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B68 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702530 008522-C D23 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
B 702546 008589-F B67 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
D 702676 009297-A D21 Axle;Swivel Arm;SCM21;20x371L;Zn Plate; No Model Compatibility List $31.54 / Each

8,3
D 702716 009360-AA D24 Washer;Grip;Chromed No Model Compatibility List $2.83 / Each

7,2,12,13,14,11
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
D 702721 009371-E D27 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
B 702965 013422-Z1G2 B39 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
J 704039 020126-DB J14 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
J 704041 020127-A J17 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
B 704171 020410-A B61 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
V 704232 020699-A V12 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
F 704576 024136-ZG2 F07 Belt Attachment Plate (Polarized Titanium), GM20G2 No Model Compatibility List $55.17 / Each

15,3,4,5,6
n 704642 024603-A not shown Hardware Pack No Model Compatibility List $116.82 / Each

4,5,6
B 704808 025510-A B71 Pedal Set;Painting;GM19 No Model Compatibility List $57.38 / Each

8,9
B 705047 033217-A B43 Seat Frame Set No Model Compatibility List $404.43 / Each

3,12,13,14
A 705051 033300-A AJ1 Chest Adjustment Frame;Chrome;GM20 No Model Compatibility List $417.90 / Each

7,3,12,13,14
F 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
B 706954 067544-A B70 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
J 706986 067941-C J15 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
A 707051 069003-AA AK1 Top Weight Plate Set No Model Compatibility List $303.58 / Each

3
J 707066 1000090006 J13 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

9,3,12,13,14
J 707971 1000097262 J11 Sleeve;Seat Tube No Model Compatibility List $17.29 / Each

3,12,13,14
J 707972 1000097263 J12 Sleeve;Chest Tube No Model Compatibility List $10.74 / Each

3
D 708811 1000106122 D20 Handlebar Set No Model Compatibility List $54.11 / Each

11
K 710563 1000210971 K09 Guide Rail;19X1760L No Model Compatibility List $239.72 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
725314 069813 AB1 Main Frame Set No Model Compatibility List $2.60 / Each

3
726583 083074 AD1 Swivel Arm Set No Model Compatibility List $888.47 / Each

3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
