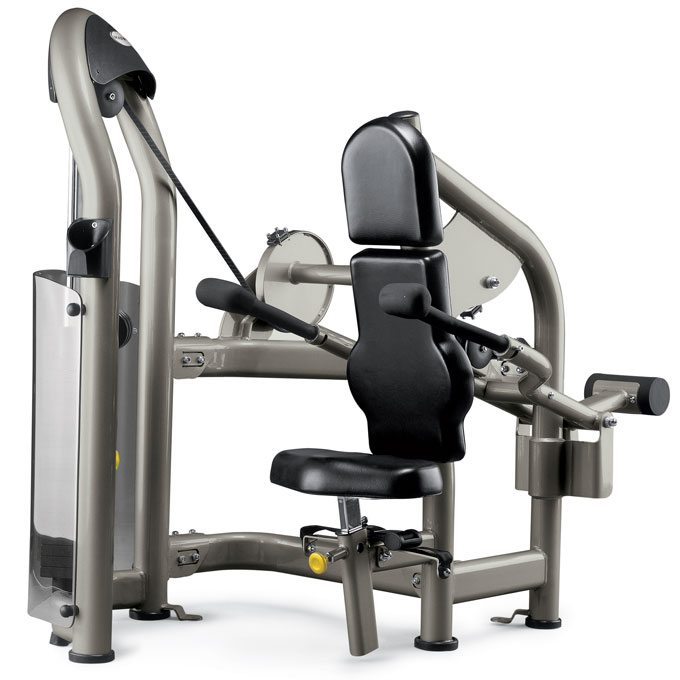

Matrix Commercial - G2-S42P - 2005

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000431-EB 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $256.18 / Each

9,4,5,6
000509-E 700140 000509-E C16 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D C17 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000542-C 700162 000542-C B13 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000791-B 700256 000791-B B18 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001508-E 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B D47 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001526-D 700521 001526-D Q10 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
001556-A 700536 001556-A D14 Sleeve;Swivel Axle;POM;BL;GM13 No Model Compatibility List $2.58 / Each

8,3
001564-AA 700539 001564-AA J13 Sleeve;Seat Post Tube No Model Compatibility List $1.72 / Each

3,12,13,14
004077-A2 701159 004077-A2 F12 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004118-00 701183 004118-00 D59 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004283-D 701247 004283-D C33 Safety Belt;2080L No Model Compatibility List $190.38 / Each

9,15
004519-AE 701470 004519-AE F13 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $3.80 / Each

2
701487 004530-AC D45 Round Hex Socket Screw, M10 x 1.5P x 65L No Model Compatibility List $0.00 / Each
Out Of Stock
2
004534-AC 701493 004534-AC F14 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $1.68 / Each

2
004535-AC 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $2.80 / Each

2
004553-AB 701520 004553-AB H33 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $7.00 / Each

2
004555-AB 701522 004555-AB G15 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004601-AC 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $0.94 / Each

2
004702-00 701668 004702-00 C21 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004708-AD 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.38 / Each

2
004720-AC 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $3.08 / Each

2
004780-AC 701760 004780-AC G11 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $3.08 / Each

2
004943-00 701914 004943-00 G15 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004944-00 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
004975-00 701939 004975-00 B15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005003-00 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $1.54 / Each

2
005007-00 701968 005007-00 F21 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005015-00 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 F19 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 D49 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-AB 702057 005084-AB F18 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.26 / Each

2
005130-00 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 F20 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005145-AC 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005181-A 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.24 / Each

2
005220-00 702178 005220-00 H32 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005367-00 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005377-00 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006567-A 702371 006567-A V01 Decal;Operation Instruction No Model Compatibility List $11.54 / Each

7,3
006620-D 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $21.22 / Each

7,3
006621-B 702393 006621-B V02 Decal;Seat Adjustable;GM02 No Model Compatibility List $2.80 / Each

7,3,12,13,14
006650-B 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $2.42 / Each

7,3
006656-A 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.28 / Each

7,3
702434 006861-A not shown Assembly Manual, MX-S42 No Model Compatibility List $9.12 / Each

3
008234-C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F08 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008523-B 702531 008523-B G20 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009307-C 702683 009307-C D55 Connecting Axle;Belt;;SCM4;20x65L No Model Compatibility List $8.00 / Each

8,15
009310-A 702686 009310-A D10 Swivel Axle;SCM4;20X285L;GM13 No Model Compatibility List $13.34 / Each

8
009321-EB 702694 009321-EB D13 Balance Plate;Painting;GM13 No Model Compatibility List $107.88 / Each

3
009347-B 702706 009347-B F22 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $7.00 / Each

8,3
009365-00 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $2.80 / Each

2,12,13,14
009476-C 702744 009476-C D30 Bushing;Pedal Arm;;CU;;;;GM13 No Model Compatibility List $7.24 / Each

8,9,3
009641-F 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $35.46 / Each

3
013414-Z1 702950 013414-Z1 not shown BELT FIXER SET-1 No Model Compatibility List $69.50 / Each

15
013420-ZG2-2 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $56.86 / Each

9
013422-Z1G2 702965 013422-Z1G2 C40 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $28.06 / Each

12,13,14
703153 013484-ZG2 not shown Pad Kit (Black), GM10-G2 No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
013504-ZG2 703198 013504-ZG2 AD4 Belt Attachment Set (Polarized Titanium), GM13-G2 No Model Compatibility List $42.44 / Each

15,4,5,6
013505-Z 703199 013505-Z AJ2 Seat Post Set;GM13 No Model Compatibility List $189.54 / Each

12,13,14
014734-F 703450 014734-F AD3 Grip Set;Dipping;Extrawork;GM13 No Model Compatibility List $92.74 / Each

12,13,14,11
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015805-AA 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $19.46 / Each

3,4,5,6
015942-AA 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3
018864-AA 703867 018864-AA D24 Cover;Axle No Model Compatibility List $2.62 / Each

8,9
020126-DB 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2,12,13,14
020127-A 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.38 / Each

2
020410-A 704171 020410-A B22 Insert Nut;NLS7-580-5.7 No Model Compatibility List $7.02 / Each

2
020465-AB 704193 020465-AB D48 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A V14 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022364-A 704300 022364-A F05 Cam Axle, 20 x 756L No Model Compatibility List $37.60 / Each

8
022395-B 704316 022395-B D50 Sleeve;Axle;20X40MM No Model Compatibility List $2.80 / Each

8,3
022400-A 704319 022400-A H31 Spring Pin;5x30L No Model Compatibility List $2.80 / Each

2,12,13,14
704516 024119-ZG2 AD1 Arm Frame Set (Polarized Titanium), GM13-G2 No Model Compatibility List $789.20 / Each

3
704521 024120-ZG2 AC1 Base Frame (Polarized Titanium), GM13-G2 No Model Compatibility List $1.00 / Each

3
704526 024121-ZG2 AF1 Cam Frame (Polarized Titanium), GM13-G2 No Model Compatibility List $631.56 / Each

3
704531 024122-ZG2 AB1 Main Frame (Polarized Titanium), GM13-G2 No Model Compatibility List $1.00 / Each

3
024598-A 704638 024598-A not shown Hardware Pack No Model Compatibility List $208.72 / Each

4,5,6
704791 025471-B AG1 Painting:CON Tube Set U:PGM13-G2:AG1 No Model Compatibility List $429.78 / Each

3
025517-AA 704815 025517-AA AC2 Safety Belt Fixing Bracket - GM13 No Model Compatibility List $16.52 / Each

2,9,15,3,4,5,6
035711-A 705079 035711-A F06 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
062626-AA 706480 062626-AA J24 Cap;Hole Plug;FW158 No Model Compatibility List $1.28 / Each

9
067544-A 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $1.54 / Each

2
069000-AA 707048 069000-AA AK1 Top Weight Plate Set No Model Compatibility List $176.82 / Each

3
1000090006 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $2.80 / Each

9,3,12,13,14
1000097256 707965 1000097256 C18 Sleeve;Seat Tube No Model Compatibility List $10.96 / Each

3,12,13,14
708856 1000106272 AG2 Painting:Con Tube Set:D:PGM13-G2, AG2 No Model Compatibility List $428.92 / Each

3
1000210967 710559 1000210967 K09 GUIDE ROD;-;GR;WP;GM03KM-G3; No Model Compatibility List $163.02 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
087683 727197 087683 AD2 Swivel Arm Set No Model Compatibility List $186.60 / Each

3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
View Drawing
