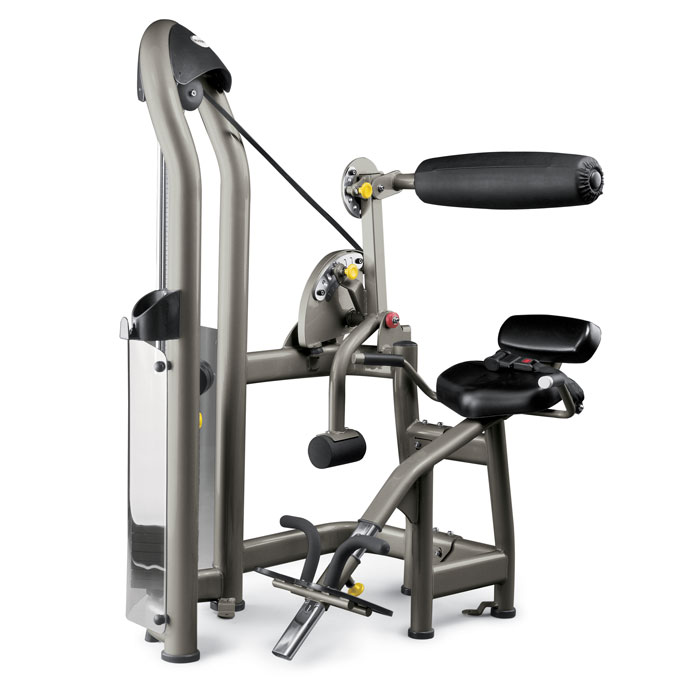

Matrix Commercial - G2-S52P - 2005

Repair Parts for Matrix Commercial G2-S52P G2GM03

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S52P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - F02 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
C 700139 000508-D C30 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B21 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700141 000510-D B22 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
H 700144 000513-E H14 Foot pad;Rubber;GM03 No Model Compatibility List $60.03 / Each

9,3,12,13,14
C 700151 000521-A C51 Foot pad;;;Rubber;120;;;GM07 No Model Compatibility List $8.42 / Each

9,3,12,13,14
B 700162 000542-C B25 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
C 700174 000585-F C22 Foam Grip;38.1X3.0TX253L No Model Compatibility List $16.20 / Each

11
C 700177 000586-F C31 Foam Grip;25.4x5.0x75L No Model Compatibility List $3.35 / Each

11
H 700229 000739-D H15 Foam;Oppressing Tube;25.4x5.0tx245L No Model Compatibility List $12.69 / Each

3
B 700256 000791-B B26 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
H 700336 000996-D H12 Sleeve;Seat Tube;PVC+Rubber;GM02 No Model Compatibility List $6.89 / Each

3,12,13,14
H 700337 001001-B H20 Sleeve;Seat Tube;PVC+Rubber;GM03 No Model Compatibility List $6.89 / Each

3,12,13,14
Q 700398 001240-F Q08 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q05 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700450 001405-A Q06 End Cover;60 No Model Compatibility List $1.66 / Each

9
Q 700454 001410-A Q06 End Cover;Elliptical;40x80 No Model Compatibility List $3.64 / Each

9
C 700468 001443-B C70 Cap;Bolt Pin;Rubber;GM01 No Model Compatibility List $0.31 / Each

2,9,12,13,14
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q10 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
B 700518 001522-B B23 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
F 700519 001523-E F23 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
D 700520 001525-B D34 Rubber Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
F 701159 004077-A2 F15 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
F 701162 004079-A3 F26 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
D 701183 004118-00 D31 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
C 701247 004283-D C44 Safety Belt;2080L No Model Compatibility List $247.49 / Each

9,15
F 701394 004449-00 F31 Screw;Round;Hex Socket;M5X0.8PX30L No Model Compatibility List $1.79 / Each

2
F 701437 004482-AC F22 Screw;Hex Socket;Round;M8x1.25Px20L;BED; No Model Compatibility List $2.00 / Each

2
701464 004517-00 F11 Screw;Hex Socket;Round;M5X0.8PX30L No Model Compatibility List $2.03 / Each

2
F 701470 004519-AE F34 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
B 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
D 701498 004536-00 D30 Screw;Hex Socket;Round;M8X1.25PX15L No Model Compatibility List $4.00 / Each

2
D 701520 004553-AB D25 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
Z 701522 004555-AB Z10 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
D 701546 004574-AC D29 Screw;Hex Socket;Sink;M8x1.25Px15L No Model Compatibility List $1.22 / Each

2
F 701548 004575-AC F39 Screw;Hex Socket;Sink;M8X1.25PX10L No Model Compatibility List $1.66 / Each

2
F 701549 004575-AD F13 Screw;Hex Socket;Sink;M8x1.25Px10L No Model Compatibility List $1.66 / Each

2
B 701568 004601-AC B31 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
C 701668 004702-00 C50 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
C 701670 004703-AF C35 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
H 701677 004711-AE H19 Screw;Hex Socket;BH;;M5x0.8Px15L No Model Compatibility List $1.79 / Each

2
B 701683 004714-AD B57 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
H 701731 004757-00 H13 Screw;Oval;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
C 701760 004780-AC C33 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
H 701836 004855-AC H22 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
K 701841 004859-00 K17 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
F 701914 004943-00 F36 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B22 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
D 701968 005007-00 D33 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
H 701970 005009-AB H17 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F33 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Z 701981 005017-00 Z16 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
B 702057 005084-AB B30 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
H 702098 005130-00 H16 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D32 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
L 702119 005145-AC L10 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
H 702178 005220-00 H32 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
D 702229 005354-00 D21 C-Clip;Internal;R-42 No Model Compatibility List $1.79 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V04 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702384 006612-C V02 Decal;Angle Adjustic;MX-S52;GM03 No Model Compatibility List $3.64 / Each

7,3
V 702390 006618-B V05 Decal;Back Pad Adjustable;MX-S52;GM03 No Model Compatibility List $3.15 / Each

7,3,4,5,6,12,13,14
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702403 006631-A V13 Decal;Foot Pad Adjustable;MX-S52;GM03 No Model Compatibility List $3.25 / Each

7,9,3,12,13,14
V 702406 006650-B V14 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $3.15 / Each

7,3
V 702407 006651-B V14 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702427 006853-B not shown Assembly Manual, MX-S52 No Model Compatibility List $16.64 / Each

3
F 702520 008448-D F24 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702530 008522-C D16 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
B 702531 008523-B B55 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
F 702532 008542-H F08 Cam Cover, SUS304 No Model Compatibility List $314.76 / Each

9
D 702533 008543-F D26 Cover;Adjustable Foot Pad;;SUS304;;electroplate No Model Compatibility List $169.23 / Each

9,3,12,13,14
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
D 702671 009289-F D17 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
B 702682 009306-E B56 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $3.74 / Each

8,15
D 702685 009309-A D15 Swivel Axle, 20 x 232L SCM4 No Model Compatibility List $65.39 / Each

8
D 702690 009317-CB D14 Balance Plate;SS41;GM03 No Model Compatibility List $123.92 / Each

3
D 702702 009339-C D42 Fix Ring;Round Pad;GM03 No Model Compatibility List $14.12 / Each

12,13,14
D 702706 009347-B D35 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $9.10 / Each

8,3
C 702711 009356-B C46 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
H 702721 009371-E H21 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
n 702950 013414-Z1 not shown BELT FIXER SET-1 No Model Compatibility List $90.35 / Each

15
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
D 702966 013422-ZG2 D23 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
A 702983 013431-ZG2 AD1 ARM FRAME(POLARIZED TITANIUM) No Model Compatibility List $442.55 / Each

3
702988 013433-ZG2 AB1 MAIN FRAME(POLARIZED TITANIUM) No Model Compatibility List $2.60 / Each

3
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
K 703465 014793-D K10 Pin;Weight Plate Selector;Red Knob No Model Compatibility List $26.05 / Each

3,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
A 703658 015788-A AC5 Foot Adjustable Tube Set;Painting;;GM03 ELECTROPLATE No Model Compatibility List $166.09 / Each

9,3
L 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $25.30 / Each

3,4,5,6
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

8,3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
D 703867 018864-AA D40 Cover;Axle No Model Compatibility List $3.41 / Each

8,9
D 703897 019118-AA D44 Cover;Round Pad;Left;GM03 No Model Compatibility List $3.35 / Each

9,12,13,14
D 703898 019119-AA D45 Cover;Round Pad;Right;GM03 No Model Compatibility List $3.64 / Each

9,12,13,14
D 703899 019121-C D08 End Cap;Adjustable Tube No Model Compatibility List $3.64 / Each

9,3
F 704008 020098-AE F35 Screw;Hex Socket;Round;M10x1.5Px70L ;Adh No Model Compatibility List $9.10 / Each

2
Z 704015 020104-AD Z17 Screw;Hex Socket;Round;M10x1.5Px30L;Adhe No Model Compatibility List $2.00 / Each

2
B 704171 020410-A B23 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
Z 704193 020465-AB Z15 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
704194 020465-abB C39 Flat Washer, 6.2 x 12 x 1.0T No Model Compatibility List $0.00 / Each
Out Of Stock 		2
D 704223 020643-A D47 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.79 / Each

4,5,6
Q 704232 020699-A Q12 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704246 021583-A V01 Operation Instruction Sticker No Model Compatibility List $14.90 / Each

1
V 704247 021588-A V02 Decal;Angle Adjusting;GM24 No Model Compatibility List $10.84 / Each

7,3
704275 022204-A B45 Rear Upper Cover Snug Piece No Model Compatibility List $1.01 / Each

9
F 704283 022223-A F21 Cam Cover;SUS304;GM24 No Model Compatibility List $662.04 / Each

9
D 704296 022316-A D46 Sleeve;Round Pad;60X4.0TX560L;GM03 No Model Compatibility List $16.64 / Each

3,12,13,14
K 704312 022390-B K09 Guide Rail;19X1170L;GM24 No Model Compatibility List $164.27 / Each

9
D 704317 022398-E D25 Washer;Swivel Axle;SS41; No Model Compatibility List $4.06 / Each

2,8
H 704319 022400-A H33 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
A 704465 024104-ZG2 AC1 Base Frame No Model Compatibility List $673.71 / Each

3
704470 024105-ZG2 AF1 Cam Frame No Model Compatibility List $305.53 / Each

3
A 704475 024106-ZG2-L AC8 Handlebar Set;Left No Model Compatibility List $106.68 / Each

11
704592 024150-ZG2 AD1 ARM FRAME(Painting) GM24-G2 No Model Compatibility List $802.59 / Each

3
704593 024151-ZG2 AC1 BASE FRAME SET(Painting) GM24-G2 No Model Compatibility List $893.33 / Each

3
A 704594 024152-ZG2 AF2 Belt Attachment Set No Model Compatibility List $165.88 / Each

15,4,5,6
704595 024154-ZG2 AB1 MAIN FRAME, ROTARY TORSO, polarized titanium No Model Compatibility List $1.30 / Each

3
704596 024155-Z AC2 SEAT FRAME KITS(Painting) GM24 No Model Compatibility List $1119.56 / Each

3,12,13,14
n 704633 024591-A not shown Hardware Pack No Model Compatibility List $247.42 / Each

4,5,6
F 704728 025418-AA F25 Adjustable Swivel Axle Washer;Painting;GM24 No Model Compatibility List $11.67 / Each

2,8
F 705079 035711-A F24 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
705090 035784-A not shown Assembly Manual No Model Compatibility List $11.86 / Each

3
J 706480 062626-AA J24 Cap;Hole Plug;FW158 No Model Compatibility List $1.66 / Each

9
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707051 069003-AA AK1 Top Weight Plate Set No Model Compatibility List $303.58 / Each

3
A 707054 069018-AA AK1 Top Weight Plate Set No Model Compatibility List $248.12 / Each

3
H 707989 1000097453 H18 Oppressing Tube;25.4x3.0Tx262.4L No Model Compatibility List $85.98 / Each

3
B 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
A 709022 1000108330 AD2 BACK PAD FIXING TUBE No Model Compatibility List $256.88 / Each

3,4,5,6,12,13,14
C 709877 1000204213 C41 SCREW;RND;M10X1.5PX115L-20L;-;HS;G12.9;C No Model Compatibility List $3.35 / Each

2
K 710559 1000210967 K09 GUIDE ROD;-;GR;WP;GM03KM-G3; No Model Compatibility List $211.93 / Each

3
711283 1000219506 AF1 Belt Adjustable Mast Set No Model Compatibility List $206.28 / Each

15
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Swivel Axle; GM24 30x406.5L ZINC PLATING (25mm top of shaft) 725315 069820 F27 Swivel Axle; GM24 30x406.5L ZINC PLATING (25mm top of shaft) No Model Compatibility List $84.42 / Each

8,3
Arm Rest set;;right:GM03;; 725496 071936 AC7 Arm Rest set;;right:GM03;; No Model Compatibility List $106.68 / Each

3
Bearing;Ball;61905_2RZ;;TPI; 725567 073140 D20 Bearing;Ball;61905_2RZ;;TPI; No Model Compatibility List $23.71 / Each

8
FOOT ADJUSTABLE SET 727229 087974 AH1 FOOT ADJUSTABLE SET No Model Compatibility List $1102.82 / Each

9,3
Cam Set;Painting;GM24 727233 088008 AF3 Cam Set;Painting;GM24 No Model Compatibility List $1.30 / Each

1
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
