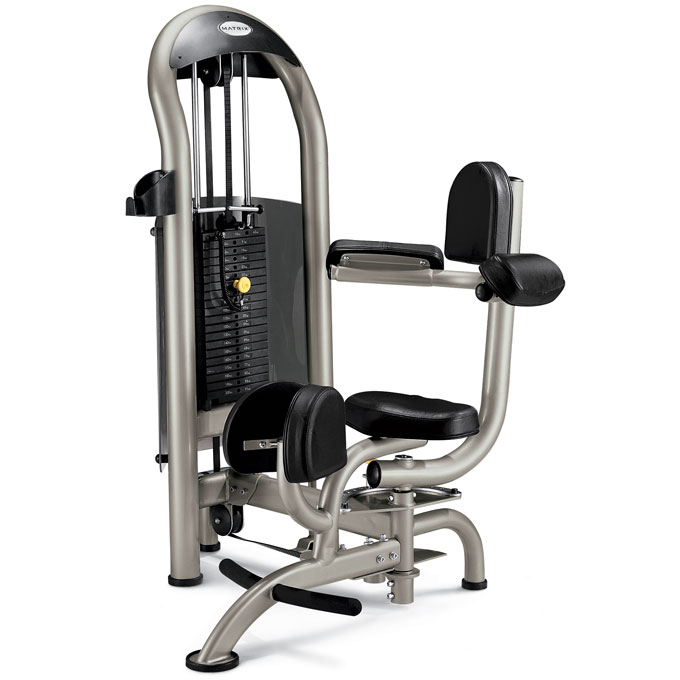

Repair Parts for Matrix Commercial G2-S52P G2GM24
| Brand | Matrix Commercial |
|---|---|
| Type | Strength Systems |
| Category | Single Station |
| Model Number | G2GM24 |
| Model Name | G2-S52P |
| Version | 2005 |
Model Numbers: G2GM24
| Image | Catalog # | MPN | List Key | Qty | Part Description | Used | Compat. | New Price |
|---|---|---|---|---|---|---|---|---|
|
704595 | 024154-ZG2 | AB1 | MAIN FRAME, ROTARY TORSO, polarized titanium | No |
Compatibility List |
$1.30 / Each
|
|
|
704593 | 024151-ZG2 | AC1 | BASE FRAME SET(Painting) GM24 G2 | No |
Compatibility List |
$893.33 / Each
|
|
|
704592 | 024150-ZG2 | AD1 | ARM FRAME(Painting) GM24 G2 | No |
Compatibility List |
$802.59 / Each
|
|
|
711283 | 1000219506 | AF1 | Belt Adjustable Mast Set | No |
Compatibility List |
$206.28 / Each
|
|
|
703459 | 014780-H | AF3 | Pulley Set, GM01 | No |
Compatibility List |
$91.23 / Each
|
|
|
727233 | 088008 | AF3 | Cam Set, Painting, GM24 | No |
Compatibility List |
$1.30 / Each
|
|
|
714794 | 1000318302 | AK1 | Up Weight Plate Set Exreawork, GM01 | No |
Compatibility List |
$229.81 / Each
|
|
|
703640 | 015771-A | AL1 | Weight Storage Horn Set | No |
Compatibility List |
$37.62 / Each
|
|
|
703641 | 015772-A | AL2 | Incremental Weight Adjustment Rod, GM01 | No |
Compatibility List |
$34.40 / Each
|
|
|
704317 | 022398-E | AN3 | Washer, Swivel Axle, SS41 | No |
Compatibility List |
$4.06 / Each
|
|
|

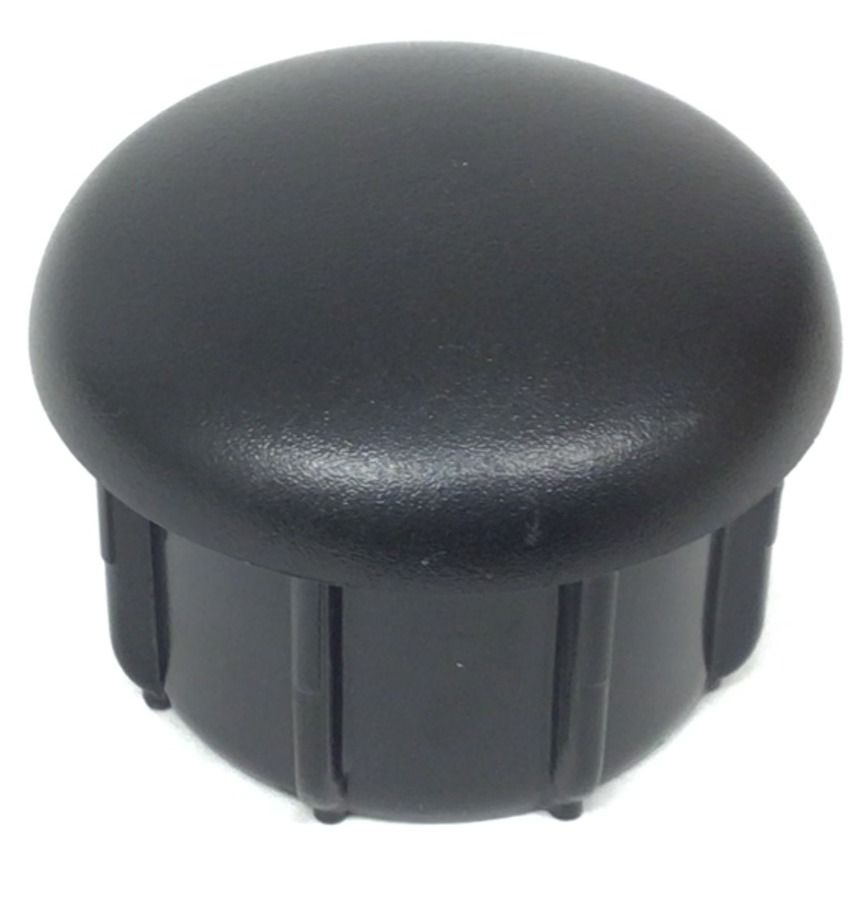

700447 | 001401-A | B09 | End Cap, 76.2 | No |
Compatibility List |
$1.68 / Each
|
|
|
700140 | 000509-E | B10 | Foot Pad, Rubber, 89mm | No |
Compatibility List |
$9.10 / Each
|
|
|
700496 | 001512-C | B22 | Cover, Pulley, ABS, GM01 ABS | No |
Compatibility List |
$1.79 / Each
|
|
|
700139 | 000508-D | B23 | Foot Pad, Rubber, 60mm | No |
Compatibility List |
$3.88 / Each
|
|
|
701568 | 004601-AC | B27 | Screw, Hex, M5x0.8Px15L | No |
Compatibility List |
$1.22 / Each
|
|
|
704171 | 020410-A | B29 | Insert Nut, NLS7 580 5.7 | No |
Compatibility List |
$9.13 / Each
|
|
|
734267 | 1000444959 | B39 | RVN, A2 M8 BF | No |
Compatibility List |
$1.09 / Each
|
|
|
701981 | 005017-00 | B41 | Washer, Spring, SW10 10.2X18.4X2.5T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
702546 | 008589-F | B42 | Fixing Horn Plate, Cover, D, SPC, Zn Plate | No |
Compatibility List |
$1.68 / Each
|
|
|
706954 | 067544-A | B43 | Screw, Phillip, M4X0.7PX12L | No |
Compatibility List |
$2.00 / Each
|
|
|
702523 | 008450-G | B44 | Upper Cover Snug Plate, L Shaped Bracket, SPC Thickness: 1.5mm | No |
Compatibility List |
$1.68 / Each
|
|
|
704275 | 022204-A | B45 | Rear Upper Cover Snug Piece | No |
Compatibility List |
$1.01 / Each
|
|
|
702147 | 005181-A | B50 | Washer, 5.3x10x0.6T | No |
Compatibility List |
$0.31 / Each
|
|
|
702146 | 005180-A | B51 | Washer, Sawtooth, INT, 4.3X8X0.5T, BAN | No |
Compatibility List |
$1.02 / Each
|
|
|
700151 | 000521-A | C04 | Foot pad, Rubber, 120, GM07 | No |
Compatibility List |
$8.42 / Each
|
|
|
702682 | 009306-E | C51 | Axle, Belt, Fall Proof, SS41, 10X43L, Cr Pla | No |
Compatibility List |
$3.74 / Each
|
|
|
706480 | 062626-AA | D08 | Cap, Hole Plug, FW158 | No |
Compatibility List |
$1.66 / Each
|
|
|
725567 | 073140 | D20 | Bearing, Ball, 61905_2RZ, TPI | No |
Compatibility List |
$23.71 / Each
|
|
|
701394 | 004449-00 | D87 | Screw, Round, Hex Socket, M5X0.8PX30L | No |
Compatibility List |
$1.02 / Each
|
|
|
702250 | 005377-00 | E33 | Clamp, E Shaped Ring, E 15 | No |
Compatibility List |
$1.02 / Each
|
|
|
705079 | 035711-A | F02 | Belt, Flat, Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** | No |
Compatibility List |
$13.68 / Each
|
|
|
702520 | 008448-D | F03 | Fix Plate, Pulley, SPC, BED, GM01 | No |
Compatibility List |
$3.15 / Each
|
|
|
701914 | 004943-00 | F18 | Nut, Nylon, M10x1.5P, Cr Plate | No |
Compatibility List |
$1.02 / Each
|
|
|
701980 | 005016-00 | F19 | Washer, Spring, 5.1x9.3x1.3t, Chromed | No |
Compatibility List |
$2.00 / Each
|
|
|
701496 | 004535-AC | F20 | Screw, Hex Socket, Round, M8x1.25Px30L | No |
Compatibility List |
$3.64 / Each
|
|
|
704283 | 022223-A | F21 | Cam Cover, SUS304, GM24 | No |
Compatibility List |
$662.04 / Each
|
|
|
704728 | 025418-AA | F25 | Adjustable Swivel Axle Washer, Painting, GM24 | No |
Compatibility List |
$11.67 / Each
|
|
|
725315 | 069820 | F27 | Swivel Axle, GM24 30x406.5L ZINC PLATING (25mm top of shaft) | No |
Compatibility List |
$84.42 / Each
|
|
|
701182 | 004116-00 | F28 | Bearing, Dry, Weight Stack | No |
Compatibility List |
$3.64 / Each
|
|
|
700174 | 000585-F | G16 | Foam Grip, 38.1X3.0TX253L | No |
Compatibility List |
$16.20 / Each
|
|
|
702966 | 013422-ZG2 | G24 | Adjust Pin Assembly, ROM, Yellow | No |
Compatibility List |
$29.99 / Each
|
|
|
700256 | 000791-B | G36 | Water Bottle Holder | No |
Compatibility List |
$15.58 / Each
|
|
|
700519 | 001523-E | G39 | Rubber Stop, CAM | No |
Compatibility List |
$2.32 / Each
|
|
|
701548 | 004575-AC | J09 | Screw, Hex Socket, Sink, M8X1.25PX10L | No |
Compatibility List |
$1.66 / Each
|
|
|
702646 | 009219-D | K05 | Connecting Axle, Belt, SS41, Zn Plate(BL), GM01 | No |
Compatibility List |
$6.79 / Each
|
|
|
703737 | 015942-AA | K06 | Weight Plate Set, 10 Lbs, Dry Bearing | No |
Compatibility List |
$59.78 / Each
|
|
|
700494 | 001510-B | K08 | Grommet, Guide Rod | No |
Compatibility List |
$2.32 / Each
|
|
|
702308 | 005847-A | K08 | Lanyard, Weight Selection Pin | No |
Compatibility List |
$11.20 / Each
|
|
|
704312 | 022390-B | K09 | Guide Rail, 19X1170L, GM24 | No |
Compatibility List |
$164.27 / Each
|
|
|
720426 | 1000372591 | K10 | Adjustable Pin, Weight Plate, 42CrMo, Chro | No |
Compatibility List |
$39.00 / Each
|
|
|
702719 | 009365-00 | K14 | Pin, Spring, 10x70L | No |
Compatibility List |
$3.64 / Each
|
|
|
700492 | 001508-E | K24 | Long Guide Rubber Plate, POM | No |
Compatibility List |
$12.98 / Each
|
|
|
700468 | 001443-B | K26 | Cap, Bolt Pin, Rubber, GM01 | No |
Compatibility List |
$0.31 / Each
|
|
|
701841 | 004859-00 | L05 | Screw, Umbrella Hex Scoket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
703685 | 015805-AA | L07 | Incremental Weight Plate, 2.5LBS, Painting, Black, GM06 | No |
Compatibility List |
$12.98 / Each
|
|
|
700517 | 001521-E | L08 | Stopper Block, Incremental Rubber | No |
Compatibility List |
$2.32 / Each
|
|
|
701674 | 004708-AD | L14 | Screw, Umbrella Hex Scoket, M5x0.8Px16L | No |
Compatibility List |
$1.79 / Each
|
|
|
701960 | 005003-00 | L23 | Washer, Spring, SW5 5.1X9.3X1.3T | No |
Compatibility List |
$2.00 / Each
|
|
|
700109 | 000431-EB | Q01 | Cover, Arcylic, Light Brown, ACRYLIC(LOGO) | No |
Compatibility List |
$333.03 / Each
|
|
|
700450 | 001405-A | Q04 | End Cover, 60 | No |
Compatibility List |
$1.66 / Each
|
|
|
700493 | 001509-D | Q05 | Fix Rubber Block, Cover, Rubber, GM01 | No |
Compatibility List |
$1.68 / Each
|
|
|
700448 | 001402-A | Q06 | End Cap, Round | No |
Compatibility List |
$2.32 / Each
|
|
|
700521 | 001526-D | Q06 | Bolt, Cover, M8x1.25Px40L | No |
Compatibility List |
$2.32 / Each
|
|
|
702242 | 005367-00 | R11 | C Clip, External, S 30 | No |
Compatibility List |
$4.00 / Each
|
|
|
704015 | 020104-AD | R30 | Screw, Hex Socket, Round, M10x1.5Px30L, Adhe | No |
Compatibility List |
$3.88 / Each
|
|
|
701162 | 004079-A3 | U05 | Ball Bearing, 6006ZZ, 30X55X13T, TPI | No |
Compatibility List |
$27.04 / Each
|
|
|
702229 | 005354-00 | U09 | C Clip, Internal, R 42 | No |
Compatibility List |
$1.02 / Each
|
|
|
704246 | 021583-A | V01 | Operation Instruction Sticker | No |
Compatibility List |
$14.90 / Each
|
|
|
704247 | 021588-A | V02 | Decal, Angle Adjusting, GM24 | No |
Compatibility List |
$10.84 / Each
|
|
|
702392 | 006620-D | V03 | Decal, Weight Plate, 10LBS | No |
Compatibility List |
$14.28 / Each
|
|
|
702411 | 006656-A | V04 | Decal, Serial Number, Aluminum | No |
Compatibility List |
$1.66 / Each
|
|
|
702316 | 005984-G | V05 | Decal, Upper Cover | No |
Compatibility List |
$25.51 / Each
|
|
|
704232 | 020699-A | V06 | Rivet, 1/8X12.5L | No |
Compatibility List |
$1.02 / Each
|
|
|
702406 | 006650-B | V15 | Decal, Weight Plate, 2.5P, GM06 | No |
Compatibility List |
$2.32 / Each
|
|
|
701668 | 004702-00 | Z01 | Screw, Flat Hex Socket, M8x1.25Px20L | No |
Compatibility List |
$2.00 / Each
|
|
|
701693 | 004720-AC | Z01 | Screw, Hex Socket, Umbrella, M8x1.25Px20L | No |
Compatibility List |
$4.00 / Each
|
|
|
704193 | 020465-AB | Z03 | Washer, Flat, M10.2X25PX2.0T, Chromed | No |
Compatibility List |
$1.02 / Each
|
|
|
701760 | 004780-AC | Z04 | Screw, Umbrella Hex Scoket, M10x1.5Px25L | No |
Compatibility List |
$4.00 / Each
|
|
|
701978 | 005015-00 | Z05 | Washer, Spring, SW8 8.2X13.5X2.0T | Yes |
Compatibility List |
$2.00 / Each
|
|
|
704008 | 020098-AE | Z07 | Screw, Hex Socket, Round, M10x1.5Px70L, Adh | No |
Compatibility List |
$9.10 / Each
|
|
|
701683 | 004714-AD | Z09 | Screw, Hex Socket, BH, M6x1.0Px15L, Adhere | No |
Compatibility List |
$2.00 / Each
|
|
|
700497 | 001513-A | Z13 | Rubber Block, Shock Absorb | No |
Compatibility List |
$7.78 / Each
|
|
|
702531 | 008523-B | Z13 | Washer, Arc, M10x28x10.5T, SS41 | No |
Compatibility List |
$5.18 / Each
|
|
|
701470 | 004519-AE | Z14 | Screw, Round, Hex Socket, M10x1.5Px80L | No |
Compatibility List |
$3.88 / Each
|
|
|
705696 | 055200-AB | Z19 | Screw, Hex, M10X1.5PX25L, HE, CHM | No |
Compatibility List |
$3.88 / Each
|
|
|
701437 | 004482-AC | Z21 | Screw, Hex Socket, Round, M8x1.25Px20L, BED | No |
Compatibility List |
$1.70 / Each
|
|
|
702119 | 005145-AC | Z22 | Washer, Flat, 8.2x19.0x2.0T, Chromed | No |
Compatibility List |
$0.48 / Each
|
|
|
702056 | 005084-00 | Z35 | Washer, Flat, 5.3X10.0X1.0T, Chromed | No |
Compatibility List |
$0.24 / Each
|
|
|
702427 | 006853-B | not shown | Assembly Manual, MX S52 | No |
Compatibility List |
$16.64 / Each
|
Catalog #: 702523
MPN: 008450-G
Upper Cover Snug Plate, L Shaped Bracket, SPC Thickness: 1.5mm
$1.68 / each
Catalog #: 705079
MPN: 035711-A
Belt, Flat, Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8**
$13.68 / each
Catalog #: 725315
MPN: 069820
Swivel Axle, GM24 30x406.5L ZINC PLATING (25mm top of shaft)
$84.42 / each
Catalog #: 703685
MPN: 015805-AA
Incremental Weight Plate, 2.5LBS, Painting, Black, GM06
$12.98 / each
