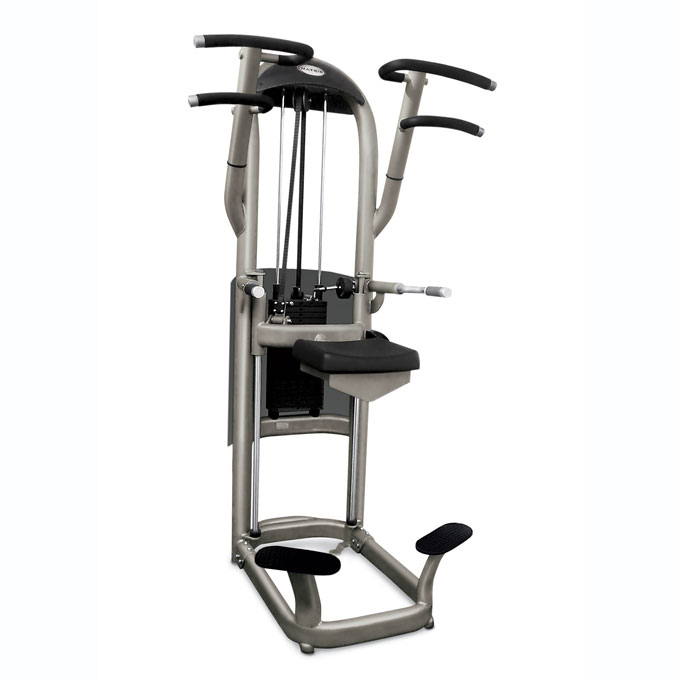

Matrix Commercial - G2-S60P - 2005

Repair Parts for Matrix Commercial G2-S60P G2GM21

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S60P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700139 000508-D B21 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B20 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700157 000533-AA C06 Foot pad;Rubber;GM21 No Model Compatibility List $15.78 / Each

9,3,12,13,14
B 700162 000542-C B23 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
E 700187 000601-B E08 Foam Grip;Upper;31.8x5.0Tx673L No Model Compatibility List $6.34 / Each

11
E 700188 000602-B E09 Foam Grip;Lower;31.8x5.0T No Model Compatibility List $6.34 / Each

11
E 700198 000621-CA E29 Foam Grip;Low;31.8 x 5T x 112L No Model Compatibility List $8.32 / Each

11
M 700233 000752-A M23 Elastomer;Rubber;GM22 No Model Compatibility List $3.61 / Each

1
B 700256 000791-B B22 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700447 001401-A Q05 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
E 700536 001556-A E31 Sleeve;Swivel Axle;POM;BL;GM13 No Model Compatibility List $3.35 / Each

8,3
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
F 701183 004118-00 F05 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
F 701470 004519-AE F25 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
B 701496 004535-AC B42 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
701497 004535-AD F21 Round Hex Socket Screw [M5 x 0.8P x 30L] No Model Compatibility List $0.00 / Each
Out Of Stock 		2
E 701504 004539-AC E26 Screw;Round;Hex Socket;M8X1.25PX25L Yes Model Compatibility List $3.64 / Each

2
M 701520 004553-AB M22 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
C 701522 004555-AB C22 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
B 701568 004601-AC B35 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701668 004702-00 B33 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L13 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
K 701693 004720-AC K17 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
M 701760 004780-AC M21 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
F 701763 004785-AC F28 Screw;Hex Socket;BH;M12x1.75Px30L;Adhere No Model Compatibility List $9.10 / Each

2
E 701836 004855-AC E24 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F24 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B31 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L12 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
F 701968 005007-00 F27 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L10 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F23 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C25 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
F 702057 005084-AB F22 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
F 702102 005132-00 F26 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
L 702119 005145-AC L09 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
M 702231 005356-00 M08 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K26 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702377 006581-B V01 Decal;Operation Instruction No Model Compatibility List $15.00 / Each

7,3
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
F 702520 008448-D F07 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B40 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702531 008523-B D32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B38 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K27 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
F 702683 009307-C F04 Connecting Axle;Belt;;SCM4;20x65L No Model Compatibility List $10.40 / Each

8,15
M 702700 009331-H M09 Guide Rail;Elevation;30X1182L SUJ-2;GM2 No Model Compatibility List $279.68 / Each

9,10
E 702710 009355-B E30 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
K 702720 009367-A K19 Pin;Spring;11X70L(65MN);GM21 No Model Compatibility List $2.73 / Each

2,12,13,14
E 702722 009372-E E07 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
E 702744 009476-C E25 Bushing;Pedal Arm;;CU;;;;GM13 No Model Compatibility List $9.41 / Each

8,9,3
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

8,3
M 703895 019108-BA M11 Donut;Rubber No Model Compatibility List $3.25 / Each

2
L 704001 020090-00 L11 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
E 704034 020123-AC E21 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
B 704171 020410-A B37 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
C 704206 020479-A C24 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704258 021781-A not shown Assembly Manual, MX-S60 No Model Compatibility List $14.61 / Each

3
E 704313 022391-E E06 Lower Grip, S45C 31.8 x 361.2L Chromed No Model Compatibility List $43.81 / Each

7,12,13,14,11
A 704577 024140-Z2 AD4 Belt Attachment Set (Polarized Titanium), GM10 No Model Compatibility List $55.17 / Each

15,4,5,6
n 704643 024604-A not shown Hardware Pack No Model Compatibility List $50.00 / Each

4,5,6
A 704731 025437-AA AL2 Adjustable Mast Set;Painting;GM21 No Model Compatibility List $36.19 / Each

1
A 704817 025535-AA AL1 Weight Storage Horn Welding Set No Model Compatibility List $27.48 / Each

3
705045 033101-B AC1 Work Station Frame, PGM21G2 (Polarized Titanium) No Model Compatibility List $707.36 / Each

3
F 705079 035711-A F06 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
B 706954 067544-A B39 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
706991 068036-Z AB1 Weight Stack Frame, PGM21G2 (Polarized Titanium) No Model Compatibility List $2.60 / Each

3,4,5,6
A 707056 069021-AA AK1 Top Weight Plate Set No Model Compatibility List $248.12 / Each

3
M 708651 1000104676 M10 E-Shaped Ring;E-24 No Model Compatibility List $0.36 / Each

1
K 710564 1000210972 K09 Guide Rail;19x1540L No Model Compatibility List $231.61 / Each

9
M 716149 1000333566 M07 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $250.04 / Each

8
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
A 722367 1000391546 AE2 Handle set;;right up;Polarized Titanium; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
A 722368 1000391547 AE1 Handle set;;left up;Polarized Titanium;; No Model Compatibility List $152.07 / Each

11
723851 1000412689 AM1 Incline Frame Set;;;Polarized Titanium;G No Model Compatibility List $1223.53 / Each

3,10
