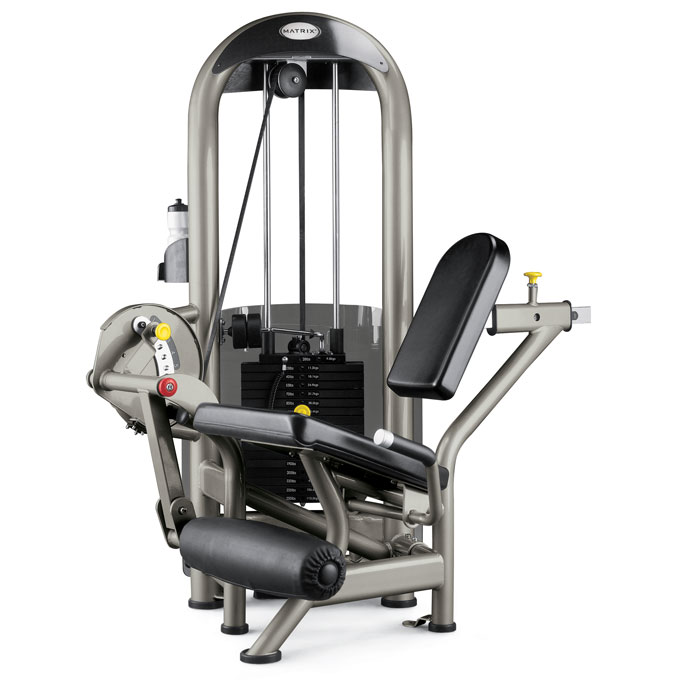

Matrix Commercial - G2-S71P - 2005

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000431-EB 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $256.18 / Each

9,4,5,6
000508-D 700139 000508-D C18 Foot Pad;Rubber;60mm No Model Compatibility List $3.96 / Each

9,3,12,13,14
000509-E 700140 000509-E C30 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000542-C 700162 000542-C B23 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000593-B 700183 000593-B E08 Foam Grip;31.8x5.0x95L No Model Compatibility List $1.88 / Each

11
000791-B 700256 000791-B B29 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001240-F 700398 001240-F D19 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.38 / Each

8,12,13,14
001402-A 700448 001402-A Q04 End Cap;Round No Model Compatibility List $1.38 / Each

9
001405-A 700450 001405-A Q10 End Cover;60 No Model Compatibility List $1.28 / Each

9
001508-E 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B F11 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001523-E 700519 001523-E F10 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001525-B 700520 001525-B D43 Rubber Pad;Stopper No Model Compatibility List $1.38 / Each

12,13,14
001526-D 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
001531-AA 700528 001531-AA B26 Stopper Bolt;Back Pad No Model Compatibility List $2.80 / Each

2,4,5,6,12,13,14
004077-A2 701159 004077-A2 F13 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004118-00 701183 004118-00 D22 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
701438 004482-AD F15 Round Hex Socket Screw, M8 x 1.25P x 20L No Model Compatibility List $0.00 / Each
Out Of Stock
2
004519-AE 701470 004519-AE F14 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $3.80 / Each

2
004534-AC 701493 004534-AC F21 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $1.68 / Each

2
004535-AC 701496 004535-AC B30 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $2.80 / Each

2
004555-AB 701522 004555-AB C47 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004573-AE 701545 004573-AE F22 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
004601-AC 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $0.94 / Each

2
004702-00 701668 004702-00 C42 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004708-AD 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.38 / Each

2
004720-AC 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $3.08 / Each

2
004780-AC 701760 004780-AC C25 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $3.08 / Each

2
004855-AC 701836 004855-AC E25 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004918-00 701888 004918-00 F12 Nut;Cap;M8x1.25P;BP No Model Compatibility List $0.26 / Each

2,9
004926-AC 701898 004926-AC E27 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $1.54 / Each

2
004943-00 701914 004943-00 F19 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004944-00 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
004975-00 701939 004975-00 B27 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005003-00 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $1.54 / Each

2
005007-00 701968 005007-00 D24 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005015-00 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 F18 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 C27 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-AB 702057 005084-AB F17 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.26 / Each

2
005130-00 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D23 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005145-AC 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005181-A 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.24 / Each

2
005220-00 702178 005220-00 F31 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005367-00 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005377-00 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006611-E 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $21.22 / Each

7,3
006617-A 702389 006617-A V04 Decal;cam adjustable;GM08 No Model Compatibility List $2.88 / Each

7,3
006629-A 702401 006629-A V02 Decal;Back Pad Adjustable;MX-S71;GM08 No Model Compatibility List $3.82 / Each

7,3,4,5,6,12,13,14
006651-B 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
006656-A 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.28 / Each

7,3
702430 006856-A not shown Assembly Manual, MX-S71 No Model Compatibility List $9.12 / Each

3
008234-C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F08 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008522-C 702530 008522-C F24 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008523-B 702531 008523-B D32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008544-G 702534 008544-G F16 Cam Cover No Model Compatibility List $115.60 / Each

9
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009289-F 702671 009289-F D14 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $2.80 / Each

8,4,5,6,12,13,14
009319-C 702692 009319-C F06 Weight;Increase Plate;H200;GM08 No Model Compatibility List $32.76 / Each

3
009339-C 702702 009339-C D42 Fix Ring;Round Pad;GM03 No Model Compatibility List $10.86 / Each

12,13,14
009355-B 702710 009355-B E30 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $2.80 / Each

1
009365-00 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $2.80 / Each

2,12,13,14
009372-E 702722 009372-E E22 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
009642-F 702773 009642-F K03 Bayonet;Weight Plate;17 Aperture No Model Compatibility List $40.18 / Each

3
012161-D 702844 012161-D AE5 GM08 Grip Set, No Model Compatibility List $205.84 / Each

11
013414-Z1 702950 013414-Z1 not shown BELT FIXER SET-1 No Model Compatibility List $69.50 / Each

15
013420-ZG2-2 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $56.86 / Each

9
013422-Z1G2 702965 013422-Z1G2 C19 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $28.06 / Each

12,13,14
013422-ZG2 702966 013422-ZG2 D21 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
703068 013458-ZG2 AC1 Console Base Set;Painting;PGM08-G2 No Model Compatibility List $913.30 / Each

7,3
703073 013459-ZG2 AF1 Cam Frame (Polarized Titanium), GM08-G2 No Model Compatibility List $186.96 / Each

3
703078 013463-ZG2 AB1 Main Frame (Polarized Titanium), GM08-G2 No Model Compatibility List $2.00 / Each

3
013464-ZG2 703083 013464-ZG2 AD1 Input Arm Kits (Polarized Titanium), GM08-G2 No Model Compatibility List $245.00 / Each

3
013467-Z 703095 013467-Z AH1 Seat Pad Kit No Model Compatibility List $106.58 / Each

12,13,14
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015943-AA 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
018864-AA 703867 018864-AA D28 Cover;Axle No Model Compatibility List $2.62 / Each

8,9
019118-AA 703897 019118-AA D44 Cover;Round Pad;Left;GM03 No Model Compatibility List $2.58 / Each

9,12,13,14
019119-AA 703898 019119-AA D45 Cover;Round Pad;Right;GM03 No Model Compatibility List $2.80 / Each

9,12,13,14
020090-00 704001 020090-00 L12 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $3.08 / Each

7,2,12,13,14
020119-A 704030 020119-A F32 Screw;Hex Socket;Round;M12x1.75Px25L;Adh No Model Compatibility List $1.38 / Each

2
020126-DB 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2,12,13,14
020127-A 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.38 / Each

2
020410-A 704171 020410-A B34 Insert Nut;NLS7-580-5.7 No Model Compatibility List $7.02 / Each

2
020465-AB 704193 020465-AB C26 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020643-A 704223 020643-A D47 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.38 / Each

4,5,6
020699-A 704232 020699-A V14 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022316-A 704296 022316-A D46 Sleeve;Round Pad;60X4.0TX560L;GM03 No Model Compatibility List $12.80 / Each

3,12,13,14
022380-A 704306 022380-A D16 Swivel Axle, SCM4 No Model Compatibility List $72.22 / Each

8
022394-B 704315 022394-B D25 Sleeve;SS41;Chrome Plate No Model Compatibility List $12.98 / Each

7,3,12,13,14
022400-A 704319 022400-A F30 Spring Pin;5x30L No Model Compatibility List $2.80 / Each

2,12,13,14
024593-A 704635 024593-A not shown Hardware Pack No Model Compatibility List $177.84 / Each

4,5,6
035711-A 705079 035711-A F09 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
067544-A 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $1.54 / Each

2
067941-C 706986 067941-C J14 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.38 / Each

9
069019-AA 707055 069019-AA AK1 Top Weight Plate Set No Model Compatibility List $184.94 / Each

3
1000090006 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $2.80 / Each

9,3,12,13,14
1000097258 707967 1000097258 C17 Sleeve;Seat Tube No Model Compatibility List $10.44 / Each

3,12,13,14
1000097840 708021 1000097840 AD2 Adjustment Set;Foot Pad;Painting;GM08-G2 No Model Compatibility List $205.30 / Each

9,3,12,13,14
1000210968 710560 1000210968 K09 GUIDE ROD;-;GR;WP;GM08KM-G3; No Model Compatibility List $148.74 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
085975 726911 085975 V01 Illustration Decal;ENG;GM08 No Model Compatibility List $25.74 / Each

7,3
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
