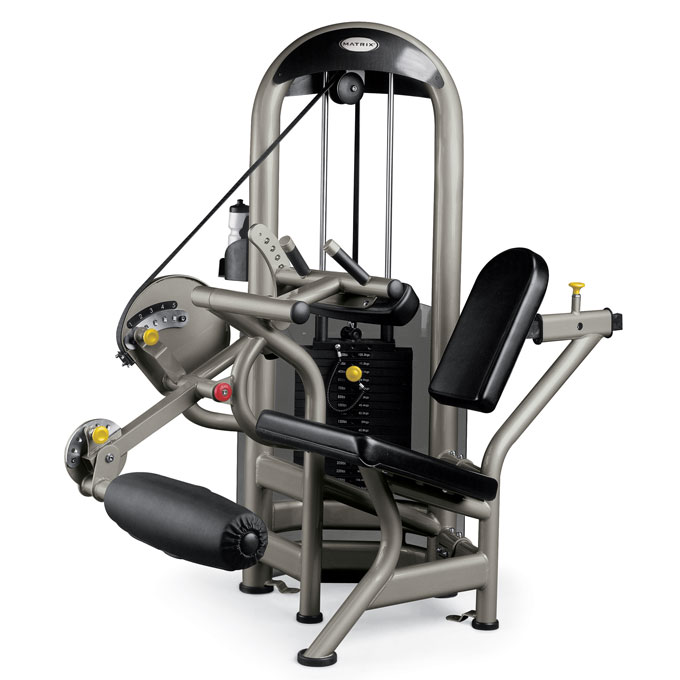

Matrix Commercial - G2-S72P - 2005

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000431-EB 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $256.18 / Each

9,4,5,6
000508-D 700139 000508-D C21 Foot Pad;Rubber;60mm No Model Compatibility List $3.96 / Each

9,3,12,13,14
000509-E 700140 000509-E C22 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000542-C 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000583-C 700172 000583-C H10 Foam Grip;Handlebar;25.4x5x87L No Model Compatibility List $1.88 / Each

11
000791-B 700256 000791-B B26 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001240-F 700398 001240-F D26 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.38 / Each

8,12,13,14
001402-A 700448 001402-A Q04 End Cap;Round No Model Compatibility List $1.38 / Each

9
001405-A 700450 001405-A Q10 End Cover;60 No Model Compatibility List $1.28 / Each

9
001508-E 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B F14 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001523-E 700519 001523-E H21 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001525-B 700520 001525-B D43 Rubber Pad;Stopper No Model Compatibility List $1.38 / Each

12,13,14
001526-D 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004077-A2 701159 004077-A2 F11 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004118-00 701183 004118-00 D27 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004482-AC 701437 004482-AC F15 Screw;Hex Socket;Round;M8x1.25Px20L;BED; No Model Compatibility List $1.54 / Each

2
004519-AE 701470 004519-AE F13 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $3.80 / Each

2
004534-AC 701493 004534-AC F12 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $1.68 / Each

2
004535-AC 701496 004535-AC B27 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $2.80 / Each

2
004536-00 701498 004536-00 H15 Screw;Hex Socket;Round;M8X1.25PX15L No Model Compatibility List $3.08 / Each

2
004553-AB 701520 004553-AB D32 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $7.00 / Each

2
004554-A 701521 004554-A F33 Screw;Round;Hex Socket;M12x1.75Px25L;Chromed No Model Compatibility List $2.84 / Each

7,2,12,13,14
004555-AB 701522 004555-AB C47 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004574-AC 701546 004574-AC D24 Screw;Hex Socket;Sink;M8x1.25Px15L No Model Compatibility List $0.94 / Each

2
004601-AC 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $0.94 / Each

2
004702-00 701668 004702-00 C23 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004708-AD 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.38 / Each

2
004720-AC 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $3.08 / Each

2
004780-AC 701760 004780-AC D22 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $3.08 / Each

2
004855-AC 701836 004855-AC H60 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004918-00 701888 004918-00 F20 Nut;Cap;M8x1.25P;BP No Model Compatibility List $0.26 / Each

2,9
004943-00 701914 004943-00 F21 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004944-00 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
004975-00 701939 004975-00 B24 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005003-00 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $1.54 / Each

2
005007-00 701968 005007-00 D29 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005015-00 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 F18 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 C46 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-AB 702057 005084-AB F17 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.26 / Each

2
005130-00 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D28 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005145-AC 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005181-A 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.24 / Each

2
005220-00 702178 005220-00 F31 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $1.54 / Each

2,4,5,6
005367-00 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005377-00 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005478-C 702286 005478-C H17 Twist Spring;SWP;Chrome Plating No Model Compatibility List $6.32 / Each

7,2,12,13,14
702307 005846-A not shown Part Case, GM Series (Package) No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V06 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006611-E 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $21.22 / Each

7,3
006619-A 702391 006619-A V04 Decal;cam adjustable;GM09 No Model Compatibility List $2.88 / Each

7,3
006628-A 702400 006628-A V05 Decal;Foot Pad Adjustable;MX-S72;GM09 No Model Compatibility List $2.10 / Each

7,9,3,12,13,14
006629-A 702401 006629-A V02 Decal;Back Pad Adjustable;MX-S71;GM08 No Model Compatibility List $3.82 / Each

7,3,4,5,6,12,13,14
006651-B 702407 006651-B V08 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
702431 006857-A not shown Assembly Manual, MX-S72 No Model Compatibility List $9.12 / Each

3
008234-C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F09 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008522-C 702530 008522-C F24 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008523-B 702531 008523-B D30 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008544-G 702534 008544-G F16 Cam Cover No Model Compatibility List $115.60 / Each

9
008545-D 702535 008545-D H18 Cover;Adjustable Leg;;SUS304;;Chromed No Model Compatibility List $248.20 / Each

7,9,12,13,14
008549-C 702539 008549-C D18 Cover;Adjustable Foot Pad;;SUS304;;Plate;;GM09 No Model Compatibility List $159.38 / Each

9,3,12,13,14
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009289-F 702671 009289-F D17 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $2.80 / Each

8,4,5,6,12,13,14
009317-CB 702690 009317-CB D14 Balance Plate;SS41;GM03 No Model Compatibility List $95.32 / Each

3
009339-C 702702 009339-C D42 Fix Ring;Round Pad;GM03 No Model Compatibility List $10.86 / Each

12,13,14
009356-B 702711 009356-B H22 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009357-C 702712 009357-C H11 Washer;Swivel Axle;SS41; No Model Compatibility List $11.46 / Each

2,8
009365-00 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $2.80 / Each

2,12,13,14
009371-E 702721 009371-E H19 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
009642-F 702773 009642-F K03 Bayonet;Weight Plate;17 Aperture No Model Compatibility List $40.18 / Each

3
013411-Z1G2 702944 013411-Z1G2 B29 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $24.34 / Each

3,12,13,14
013414-Z1 702950 013414-Z1 not shown BELT FIXER SET-1 No Model Compatibility List $69.50 / Each

15
013420-ZG2-2 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $56.86 / Each

9
013422-Z1G2 702965 013422-Z1G2 C19 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $28.06 / Each

12,13,14
013422-ZG2 702966 013422-ZG2 D25 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
013467-Z 703095 013467-Z AH1 Seat Pad Kit No Model Compatibility List $106.58 / Each

12,13,14
703109 013473-ZG2 AB1 Main Frame (Polarized Titanium), GM09-G2 No Model Compatibility List $2.00 / Each

3
013474-ZG2 703114 013474-ZG2 AD2 Kicker Shaft Kits (Polarized Titanium), GM09-G2 No Model Compatibility List $226.60 / Each

3
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015943-AA 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
018864-AA 703867 018864-AA D50 Cover;Axle No Model Compatibility List $2.62 / Each

8,9
019118-AA 703897 019118-AA D44 Cover;Round Pad;Left;GM03 No Model Compatibility List $2.58 / Each

9,12,13,14
019119-AA 703898 019119-AA D45 Cover;Round Pad;Right;GM03 No Model Compatibility List $2.80 / Each

9,12,13,14
019961-A 703951 019961-A B52 Bearing;Dry;LLF-3550;Tai Gi No Model Compatibility List $7.00 / Each

8
020126-DB 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2,12,13,14
020127-A 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.38 / Each

2
020410-A 704171 020410-A B45 Insert Nut;NLS7-580-5.7 No Model Compatibility List $7.02 / Each

2
020465-AB 704193 020465-AB C45 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020643-A 704223 020643-A D47 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.38 / Each

4,5,6
020699-A 704232 020699-A V14 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022316-A 704296 022316-A D46 Sleeve;Round Pad;60X4.0TX560L;GM03 No Model Compatibility List $12.80 / Each

3,12,13,14
022394-B 704315 022394-B D21 Sleeve;SS41;Chrome Plate No Model Compatibility List $12.98 / Each

7,3,12,13,14
022400-A 704319 022400-A F30 Spring Pin;5x30L No Model Compatibility List $2.80 / Each

2,12,13,14
022409-A 704324 022409-A H20 Round Pin;5x15L;S45C No Model Compatibility List $1.34 / Each

12,13,14
704486 024112-ZG2 AC1 Base Frame Set No Model Compatibility List $913.54 / Each

3
024594-A 704636 024594-A not shown Hardware Pack No Model Compatibility List $177.60 / Each

4,5,6
035711-A 705079 035711-A F08 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
067544-A 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $1.54 / Each

2
067941-C 706986 067941-C J14 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.38 / Each

9
069019-AA 707055 069019-AA AK1 Top Weight Plate Set No Model Compatibility List $184.94 / Each

3
1000090006 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $2.80 / Each

9,3,12,13,14
1000097258 707967 1000097258 C18 Sleeve;Seat Tube No Model Compatibility List $10.44 / Each

3,12,13,14
708099 1000099693 B29 Pull Pin Set;Orange Knob No Model Compatibility List $56.86 / Each

12,13,14
1000210968 710560 1000210968 K09 GUIDE ROD;-;GR;WP;GM08KM-G3; No Model Compatibility List $148.74 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
085747 726875 085747 AD1 Swivel Arm Set No Model Compatibility List $261.70 / Each

3
085748 726876 085748 AF1 Cam Set No Model Compatibility List $435.16 / Each

1
085749 726877 085749 AH2 Leg Adjustable Set No Model Compatibility List $963.20 / Each

1
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
View Drawing
