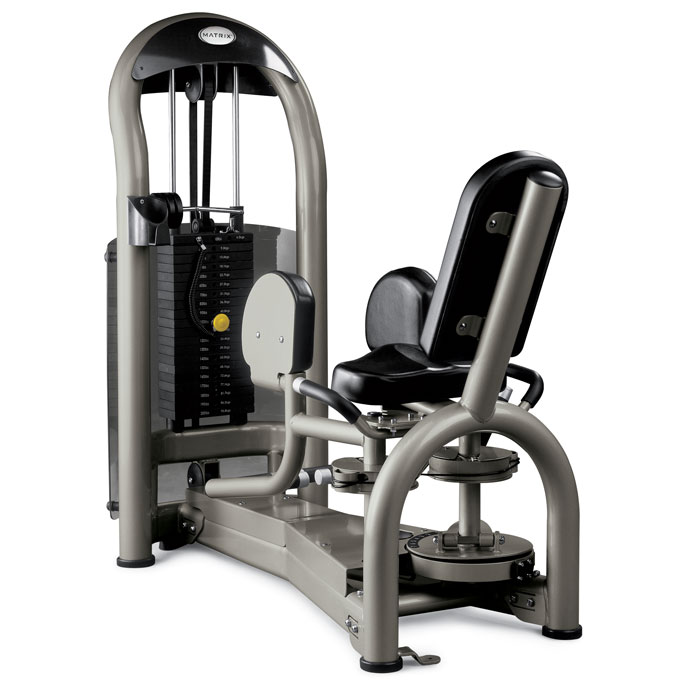

Matrix Commercial - G2-S75P - 2005-2007

Repair Parts for Matrix Commercial G2-S75P G2GM18

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S75P

Version: 2005-2007

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700140 000509-E B15 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C11 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
H 700153 000523-C H25 Rubber Pad;GM17 No Model Compatibility List $3.15 / Each

12,13,14
B 700162 000542-C B14 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
H 700177 000586-F H10 Foam Grip;25.4x5.0x75L No Model Compatibility List $3.35 / Each

11
D 700181 000591-C D22 Foam Grip;31.8x5.0x105L No Model Compatibility List $9.10 / Each

11
B 700256 000791-B B19 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
E 700300 000894-00 E07 End Cap;Handlebar;25.4x2.3t;Back No Model Compatibility List $1.90 / Each

9,4,5,6,11
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q07 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700454 001410-A Q08 End Cover;Elliptical;40x80 No Model Compatibility List $3.64 / Each

9
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
D 700495 001511-A D21 Fix Rubber Block;Swivel Axle;POM;GM17 No Model Compatibility List $6.29 / Each

8
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
D 700518 001522-B D25 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
D 700519 001523-E D26 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
F 700526 001529-B F09 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
F 701159 004077-A2 F05 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
F 701470 004519-AE F21 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
D 701488 004531-00 D44 Screw;Hex Socket;Round;M5X0.8PX25L;Chromed No Model Compatibility List $0.21 / Each

7,2,12,13,14
F 701493 004534-AC F22 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
B 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
D 701498 004536-00 D47 Screw;Hex Socket;Round;M8X1.25PX15L No Model Compatibility List $4.00 / Each

2
H 701520 004553-AB H22 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
G 701522 004555-AB G35 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
G 701546 004574-AC G31 Screw;Hex Socket;Sink;M8x1.25Px15L No Model Compatibility List $1.22 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
C 701668 004702-00 C12 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
J 701760 004780-AC J03 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701788 004802-00 D41 Screw;Hex Socket;BH;CrMo;M5x0.8Px10L No Model Compatibility List $3.35 / Each

2
H 701836 004855-AC H21 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
E 701901 004929-00 E10 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 701914 004943-00 F23 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B16 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
H 701968 005007-00 H24 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F25 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
G 701981 005017-00 G34 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
F 702057 005084-AB F24 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702102 005132-00 H23 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702399 006627-A V02 Decal;Angle Adjustable;GM18 No Model Compatibility List $3.64 / Each

7,3
V 702407 006651-B V15 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
F 702520 008448-D F07 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702530 008522-C D18 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
G 702531 008523-B G37 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
D 702541 008551-BB D16 Cover;Steel Cable No Model Compatibility List $8.71 / Each

9,4,5,6
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
D 702679 009303-I D19 Axle;Swivel Arm;SCM4;20x415L;GM17 No Model Compatibility List $58.92 / Each

8,3
H 702680 009304-E H06 Adjustable Axle;Center;20x119L SCM4 No Model Compatibility List $17.76 / Each

8
D 702710 009355-B D49 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
H 702711 009356-B H26 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
H 702721 009371-E H09 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
D 702722 009372-E D23 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
K 702774 009643-F K21 Bayonet;Weight Plate;15 Aperture No Model Compatibility List $49.09 / Each

3
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
A 703290 013530-ZG2 AE1 Handlebar Set (Polarized Titanium), GM17-G2 No Model Compatibility List $680.08 / Each

11
A 703306 013534-ZG2 AF1 Cam Frame (Polarized Titanium), GM18-G2 No Model Compatibility List $551.30 / Each

3
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
B 704171 020410-A B23 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
704194 020465-abB G33 Flat Washer, 6.2 x 12 x 1.0T No Model Compatibility List $0.00 / Each
Out Of Stock 		2
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
704249 021591-B V22 Decal;Instruction;Steel Cable No Model Compatibility List $9.93 / Each

7,3,4,5,6
704257 021780-A not shown Assembly Manual, MX-S75 No Model Compatibility List $11.86 / Each

3
D 704320 022401-B D24 Grip End Cap, 31mm, Ctr Hole, AL 6061 No Model Compatibility List $17.52 / Each

9,11
704559 024129-ZG2 AC1 Console Frame Set No Model Compatibility List $1.30 / Each

7,3
704564 024130-ZG2 AB1 Main Frame Set;Polarized Titanium;GM17-G2 No Model Compatibility List $1.30 / Each

3
n 704641 024602-A not shown Hardware Pack No Model Compatibility List $211.33 / Each

4,5,6
A 704724 025412-B AD4 Swivel Arm Set;Right;Painting;PGM17-G2 No Model Compatibility List $485.60 / Each

3
A 704725 025413-B AD5 Swivel Arm Set;Left;Painting;PGM17-G2 No Model Compatibility List $485.60 / Each

3
704801 025492-A not shown Belt Connecting Frame, GM18-G2 (Polarized Titanium) No Model Compatibility List $0.00 / Each
Out Of Stock 		15,3
D 705035 031800-A D46 CAM Sleeve Fix No Model Compatibility List $12.27 / Each

3
A 705046 033216-A AF7 Movable Pulley Set;Painting;GM17-AF5 No Model Compatibility List $45.94 / Each

8
F 705079 035711-A F47 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
F 705317 040826-AD F50 Screw;Hex Socket;BH;M10x1.5Px40L;Adhere; No Model Compatibility List $2.00 / Each

2
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707206 1000091185 AG2 Pedal Frame, GM18-G2 (Polarized Titanium) No Model Compatibility List $385.01 / Each

8,9,3
707601 1000093598 AG1 Connecting Tube Set;GM18-G2 No Model Compatibility List $1070.58 / Each

3
D 707889 1000096640 D17 Steel Rope;6x911.2L;GM17 No Model Compatibility List $74.02 / Each

1
F 708066 1000098835 F46 Steel Rope;GM17 No Model Compatibility List $30.39 / Each

1
K 710562 1000210970 K09 Guide Rail;19x1070L No Model Compatibility List $155.74 / Each

9
A 710686 1000212389 AH2 BELT PULLEY SET;SA;;GM17KM-G3;;; No Model Compatibility List $101.37 / Each

8,15
A 714800 1000318315 AK1 Up Weight Plate Set-Exreawork;;;;;GM17; No Model Compatibility List $185.87 / Each

3
A 718120 1000349296 AH1 Adjustment set;cam;;Iced Sliver;GM18KM-G No Model Compatibility List $67.57 / Each

1
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Left Swivel Arm Welding Set 725303 069591 AD2 Left Swivel Arm Welding Set No Model Compatibility List $1074.53 / Each

3
Right Swivel Arm Welding Set, GM18-G2 (Polarized Titanium) 725304 069592 AD1 Right Swivel Arm Welding Set, GM18-G2 (Polarized Titanium) No Model Compatibility List $1129.49 / Each

3
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
Instructional Placard 727287 088379 V01 Instructional Placard No Model Compatibility List $30.94 / Each

4,5,6
729253 See 013530-ZG2 AE2 HANDLE BAR-RIGHT (ORDER SET-SZGMHDB-G2) No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
