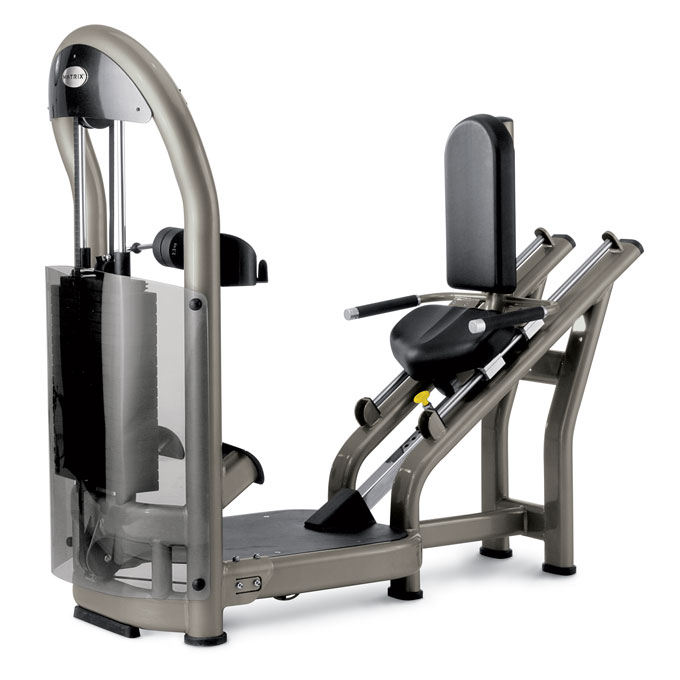

Matrix Commercial - G2-S77P - 2005

Repair Parts for Matrix Commercial G2-S77P G2GM19

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S77P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700140 000509-E B19 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700162 000542-C B21 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
C 700165 000553-A C19 Foot Pad;Rubber;%50x100;GM19 No Model Compatibility List $5.17 / Each

9,3,12,13,14
T 700192 000610-A T09 Foam Grip;25.4x5.0t x 215L No Model Compatibility List $11.36 / Each

11
B 700256 000791-B B20 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
T 700275 000845-F T08 Sleeve;60x60;Delrin;GM19 No Model Compatibility List $3.64 / Each

3
Q 700309 000926-AA Q07 Cap;Tube;BL;FW91 No Model Compatibility List $1.66 / Each

9,3
T 700440 001384-BA T33 Rubber Pad;Rubber;76x67x6;BL;GM19 76X67X6(RUBBER ANTHRACITE) No Model Compatibility List $3.35 / Each

7,4,5,6,12,13,14
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
H 700518 001522-B H05 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
H 700519 001523-E H06 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
F 701470 004519-AE F45 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F15 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
B 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
C 701520 004553-AB C51 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
C 701522 004555-AB C44 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
T 701546 004574-AC T31 Screw;Hex Socket;Sink;M8x1.25Px15L No Model Compatibility List $1.22 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
C 701668 004702-00 C42 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
C 701683 004714-AD C61 Screw;Hex Socket;BH;M6x1.0Px15L;Adhere No Model Compatibility List $2.00 / Each

2
L 701693 004720-AC L09 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
C 701760 004780-AC C47 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
T 701836 004855-AC T32 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F10 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F16 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701939 004975-00 B41 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
L 701960 005003-00 L13 Washer;Spring; SW5 5.1X9.3X1.3T No Model Compatibility List $2.00 / Each

2
C 701968 005007-00 C53 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F13 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C45 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
F 702057 005084-AB F14 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702124 005148-A C52 Washer;Flat;13x35x2.5T;Chromed D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $0.36 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K12 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
C 702270 005425-AB C21B SCREW;SET;M5X0.8PX8L;;;;ZN;; No Model Compatibility List $0.52 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V03 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702379 006583-A V01 Decal;Operation Instruction - D/C, NO REPL Part will show as orderable until stock is depleted No Model Compatibility List $15.00 / Each

7,3
V 702383 006611-E V02 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702407 006651-B V05 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V06 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702436 006864-A not shown Assembly Manual, MX-S77 No Model Compatibility List $11.86 / Each

3
F 702520 008448-D F03 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
C 702531 008523-B C60 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
B 702682 009306-E B18 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $3.74 / Each

8,15
T 702711 009356-B T34 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
T 702721 009371-E T10 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
T 702966 013422-ZG2 T11 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
A 703311 013536-ZG2 AH1 Adjusting Tube Set (Polarized Titanium), GM19-G2 No Model Compatibility List $163.15 / Each

3
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703463 014784-G AF5 Pulley Set;GM06 No Model Compatibility List $106.37 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
C 703912 019235-B C20 Stopper;Rubber No Model Compatibility List $3.95 / Each

1
C 703913 019239-B C49 Stopper Plate;Upper;Rubber;GM19 No Model Compatibility List $4.94 / Each

3
H 704004 020096-00 H07 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

7,2,12,13,14
C 704051 020137-AB C48 Screw;Hex Socket;Sink;M8x1.25Px20L;Adher No Model Compatibility List $1.53 / Each

2
B 704171 020410-A B48 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
C 704206 020479-A C46 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
V 704232 020699-A V08 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
C 704325 022411-B C60 Axle;Slip-Stopper;SS41;10X59L;GM06 No Model Compatibility List $3.74 / Each

8
704569 024133-ZG2 AB1 Main Frame Set, GM19-G2 (Polarized Titanium) No Model Compatibility List $1138.83 / Each

3
704574 024135-ZG2 AT1 Seat Frame Set (Polarized Titanium), GM19-G2 No Model Compatibility List $1039.95 / Each

3,12,13,14
B 704808 025510-A B17 Pedal Set;Painting;GM19 No Model Compatibility List $57.38 / Each

8,9
705044 033100-B AC1 Base Frame, Polarized Titanium (G2S77) No Model Compatibility List $1.30 / Each

3
A 705054 033308-B AC2 Pedal Set;Painting;GM19-G2 No Model Compatibility List $234.65 / Each

8,9
F 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
n 705326 047038-A not shown Hardware Kit No Model Compatibility List $81.72 / Each

1
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707051 069003-AA AK1 Top Weight Plate Set No Model Compatibility List $303.58 / Each

3
C 709515 1000200928 C21A BEARING;BAL;KS255 PP;KS255 PP;INA; No Model Compatibility List $270.37 / Each

8
C 709516 1000200929 C50 GUIDE RAIL;F;RCP;GR;GM19 LEG PRESS; No Model Compatibility List $489.19 / Each

9
C 709908 1000204314 C21C BEARING HOUSING;SLIPPING FRAME;SHLMA25UU No Model Compatibility List $168.97 / Each

8,3,12,13,14
K 710562 1000210970 K09 Guide Rail;19x1070L No Model Compatibility List $155.74 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
729260 See Notes C21 Linear Bearing, SH25UU (INA); REPLACE ALL 4 BEARINGS IF REPLACING 1. SEE SEAT BEARING REPLACEMENT INSTRUCTIONS! No Model Compatibility List $0.00 / Each
Out Of Stock 		8,4,5,6,12,13,14
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
