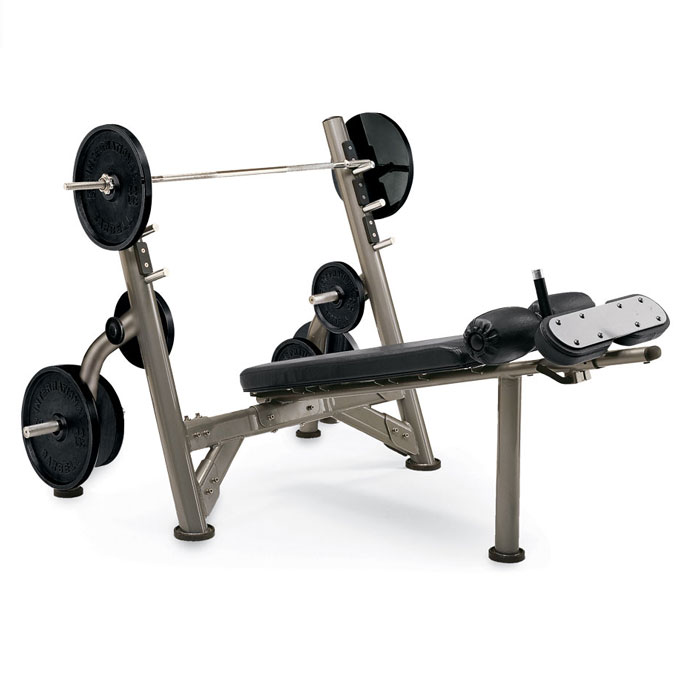

Matrix Commercial - G3-FW15P - 2008

Repair Parts for Matrix Commercial G3-FW15P G3FW15

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G3-FW15P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700146 000515-A B25 Foot pad;Rubber;100;FW10 No Model Compatibility List $9.10 / Each

9,3,12,13,14
D 700177 000586-F D24 Foam Grip;25.4x5.0x75L No Model Compatibility List $3.35 / Each

11
E 700232 000751-C E14 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
B 700252 000782-B B11 Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
D 700359 001129-B D30 End Cap;Front Stabilizer No Model Compatibility List $1.90 / Each

9
D 700448 001402-A D22 End Cap;Round No Model Compatibility List $1.79 / Each

9
E 700451 001406-A E10 End Cover;89 No Model Compatibility List $1.79 / Each

9
B 700461 001422-BA B15 End Cover;Ellipse;40x80x3.0t;MS20 No Model Compatibility List $3.64 / Each

9
D 700479 001465-C D21 Sleeve;Seat Sliding Tube No Model Compatibility List $9.57 / Each

3,12,13,14
B 701312 004370-00 B20 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

2
Screw;FH;M5X0.8PX10L;;PH;;BAN;;BP 701381 004435-00 H06 Screw;FH;M5X0.8PX10L;;PH;;BAN;;BP No Model Compatibility List $2.00 / Each

2
D 701382 004435-Z D31 Screw;Phillip;Sink;M5x0.8Px10L;BED;Adher No Model Compatibility List $1.66 / Each

2
E 701524 004556-AB E18 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

2
B 701660 004696-AB B14 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 701836 004855-AC D26 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
Z 701914 004943-00 Z07 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
E 701968 005007-00 E21 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
E 702102 005132-00 E19 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 702531 008523-B Z22 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
D 702711 009356-B D25 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
D 702721 009371-E D23 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
D 702747 009486-00 D12 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
D 702748 009491-E D18 Cam No Model Compatibility List $9.75 / Each

1
D 704137 020304-AC D35 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Z 704193 020465-AB Z08 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Rivet;1/8X12.5L 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704250 021595-A V02 INDICATION DECAL--EXTERNAL No Model Compatibility List $1.66 / Each

7,3
D 704280 022217-A D09 Pressing Slice No Model Compatibility List $9.10 / Each

1
D 704328 022479-C D11 Pressing Plate;Q235L;FW12-D11C No Model Compatibility List $3.64 / Each

3
704410 024068-Z AD1 FOOT ADJUSTMENT FRAME SET(Painting) No Model Compatibility List $754.75 / Each

9,3
A 704896 025759-AA AD2 Adjustable Shaft Set No Model Compatibility List $15.65 / Each

3
705063 034325-A E13 Storage Horn Set;-;-;welding;FW10B No Model Compatibility List $74.33 / Each

1
B 705367 048970-BA B26 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

9,3,12,13,14
Z 705461 049252-AB Z14 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
Sticker;Weight;A;FW13 706973 067755-B V05 Sticker;Weight;A;FW13 No Model Compatibility List $3.35 / Each

3
Sticker;Weight;Blank;FW13 706974 067756-B V03 Sticker;Weight;Blank;FW13 No Model Compatibility List $3.35 / Each

3
V 707078 1000090043 V13 Sticker ;Storage;PL02 No Model Compatibility List $1.66 / Each

1
708467 1000102884 E17 Screw;Hex Socket;Stopper;Cone;M8x1.25Px8 No Model Compatibility List $1.79 / Each

2
B 708474 1000102894 B08 Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; No Model Compatibility List $1.79 / Each

2
D 708484 1000102910 D33 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

2
E 708657 1000104684 E11 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
E 709137 1000110295 E13 Weight Storage Horn No Model Compatibility List $93.89 / Each

3
E 712128 1000226826 E20 Elastomer;Plastic;; No Model Compatibility List $70.77 / Each

9
E 712129 1000226827 E09 Elastomer;Plastic;; No Model Compatibility List $43.71 / Each

9
713615 1000305763 E23 Hanging Rod;;Up;45#;FW13-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
CON Tube Set;;;painting;FW13-KM 713616 1000305769 AG1 CON Tube Set;;;painting;FW13-KM No Model Compatibility List $231.50 / Each

3
713627 1000305887 AB1 Frame Set;;;painting;;;FW15-KM; No Model Compatibility List $361.63 / Each

3
V 715801 1000328438 V10 Decal;Weight;5lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
V 715802 1000328439 V11 Decal;Weight;10lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
V 715803 1000328440 V12 Decal;Weight;25lbs;;;;;FW13B-KM No Model Compatibility List $3.02 / Each

7,3
N 715872 1000328797 Not Shown Manual;;;English;;FW15BKM-G3 No Model Compatibility List $10.11 / Each

1
717983 1000349138 2 Support rods;;left;Iced Sliver;FW15B;;Se No Model Compatibility List $760.47 / Each

3
717984 1000349139 1 Support rods;;right;Iced Sliver;FW15B;;S No Model Compatibility List $760.47 / Each

3
3 717985 1000349140 3 Beginning Adjustable Set;;;Iced Sliver;F No Model Compatibility List $337.97 / Each

1
718148 1000349375 AB1 Frame Set;;;painting;;Iced Sliver;FW15B; No Model Compatibility List $491.76 / Each

3
A 718149 1000349378 AG1 CON Tube Set;;;painting;;Iced Sliver;FW1 No Model Compatibility List $118.27 / Each

3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
727480 089543 Not Shown Manual;Assembly;FW15 No Model Compatibility List $17.94 / Each

3
Hardware;Semi-Assy;FW15KM-G3 727482 089547 Not Shown Hardware;Semi-Assy;FW15KM-G3 No Model Compatibility List $121.37 / Each

1
728570 095355 2 LEFT SUPPORT FRAME No Model Compatibility List $1.30 / Each

3
728571 095356 1 RIGHT SUPPORT FRAME No Model Compatibility List $1.30 / Each

3
E 728949 991668-AC E16 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
729012 Order Kit 1 AE1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AE2 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AD1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729261 See Pad Matrix J31 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
View Drawing
