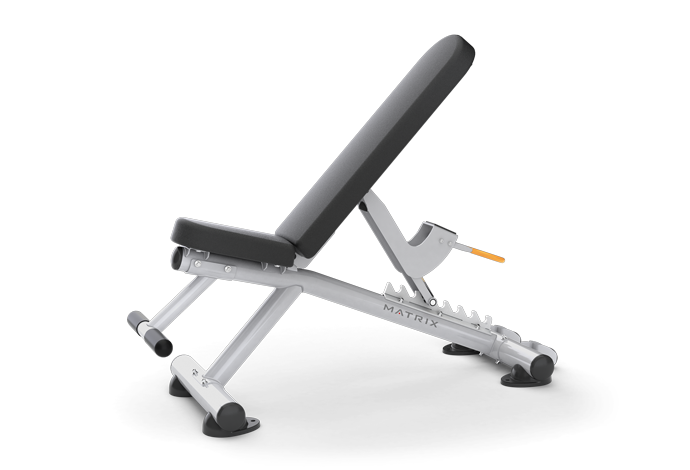

Matrix Commercial - G3-FW82P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000019-F 700012 000019-F C06 Wheel;Rubber No Model Compatibility List $13.18 / Each

8
000524-A 700154 000524-A C09 Foot pad;Screw Set Leveler;Rubber;FW11 No Model Compatibility List $29.48 / Each

2,9,3,12,13,14
001129-B 700359 001129-B J07 End Cap;Front Stabilizer No Model Compatibility List $1.46 / Each

9
001401-A 700447 001401-A B07 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001402-A 700448 001402-A G05 End Cap;Round No Model Compatibility List $1.38 / Each

9
001406-A 700451 001406-A C10 End Cover;89 No Model Compatibility List $1.38 / Each

9
004479-ABX 701431 004479-ABX Z05 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $1.54 / Each

2
004539-AB 701503 004539-AB K04 Screw;Hex Socket;Round;M8X1.25PX25L No Model Compatibility List $2.80 / Each

2
004693-AC 701653 004693-AC H15 Screw;Hex Socket;M8x1.25Px15L;Cr No Model Compatibility List $1.88 / Each

2
004859-AC 701842 004859-AC B08 Screw;BH;M8X1.25PX20L;;HS;;CHM;; No Model Compatibility List $1.54 / Each

2
004929-00 701901 004929-00 H20 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005046-AC 702010 005046-AC K05 Washer;Flat;8.4x15.5x2.0t;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005071-AB 702041 005071-AB H17 Washer,Flat;M6.5x13Px1.0T;Chromed No Model Compatibility List $1.28 / Each

7,2,12,13,14
005129-AB 702097 005129-AB B13 Washer;Flat;8.0X23.0X2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005130-00 702098 005130-00 B09 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 B14 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005139-AB 702112 005139-AB Z02 Washer;Flat;8.2x16.0x1.4T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
009012-C 702617 009012-C C15 Axle;Roller No Model Compatibility List $6.82 / Each

8
020304-AC 704137 020304-AC Z03 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
024089-Z 704423 024089-Z 6 Roller Set No Model Compatibility List $31.00 / Each

8
061989-A 706410 061989-A H14 SCREW;SET;M6X1.0PX8L;;;;CHM;; No Model Compatibility List $1.28 / Each

2
1000091950 707313 1000091950 H18 Sleeve;Swivel;FW98 No Model Compatibility List $7.00 / Each

3
1000096014 707822 1000096014 B10 Bushing;15x19x20T;GM40 No Model Compatibility List $3.58 / Each

8
1000102871 708455 1000102871 Z01 Screw;Hex Socket;BH;M8x1.25Px15L;Cr Plat No Model Compatibility List $1.28 / Each

2
1000102897 708477 1000102897 C12 Screw;Thin Head;M8x1.25Px30L;-;HS;-;CHM; No Model Compatibility List $1.82 / Each

2
1000102911 708485 1000102911 C18 Circlip;External C Type;S-15;BED No Model Compatibility List $1.28 / Each

2
1000104673 708650 1000104673 H16 Screw;BH;M6x1.0Px20L;HS;CHM;BP;G8.8 No Model Compatibility List $1.68 / Each

2
1000104684 708657 1000104684 C11 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $2.58 / Each

1
1000108805 709072 1000108805 B06 Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 No Model Compatibility List $1.38 / Each

2
1000210195 710423 1000210195 J31 BACK PAD;-;PU;BLACK;-; No Model Compatibility List $192.34 / Each

4,5,6,12,13,14
1000210196 710424 1000210196 J30 SEAT PAD;-;PU;BLACK;-; No Model Compatibility List $96.86 / Each

4,5,6,12,13,14
1000211080 710575 1000211080 K01 Upgrade kit for loose seat No Model Compatibility List $86.42 / Each

12,13,14
710576 1000211081 K02 AXLE, CENTRAL;45;CHM;-; No Model Compatibility List $0.00 / Each
Out Of Stock
8
710577 1000211082 K03 SLEEVE;45;CHM;-; No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000300780 713289 1000300780 H21 Screw;Button Head;M8x1.25Px30L(Tooth10L) No Model Compatibility List $1.68 / Each

2
717967 1000349122 5 Adjustment set;;;Iced Sliver;FW98KM-G3;; No Model Compatibility List $0.00 / Each
Out Of Stock
1
1000349123 717968 1000349123 2 Base Set;;;Iced Sliver;FW98KM-G3;;Servic No Model Compatibility List $183.28 / Each

3
1000349124 717969 1000349124 1 Support tube group;;front;Iced Sliver;FW No Model Compatibility List $32.48 / Each

3
717970 1000349125 3 Disassembly connect set;;;Iced Sliver;FW No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000349126 717971 1000349126 4 Seat/Back Pad Set;;;Iced Sliver;FW98KM-G No Model Compatibility List $77.98 / Each

4,5,6,12,13,14
718139 1000349348 AB1 Frame Set;;;painting;;Iced Sliver;FW98KM No Model Compatibility List $162.48 / Each

3
722905 1000400244 B12 Axle, central;;;45#;White Zinc;FW98-G3;D No Model Compatibility List $9.08 / Each

8
086732 727027 086732 G04 Foam;For50.8 Food Pad;PL01 No Model Compatibility List $13.66 / Each

12,13,14
091834 727879 091834 H05 Sleeve;Buffer;FW98 No Model Compatibility List $7.24 / Each

3
091835 727880 091835 H06 Axle;45#;FW98 No Model Compatibility List $7.58 / Each

8
091836 727881 091836 H07 Rubber Pad;PU;Black7.0T;FW98 No Model Compatibility List $6.48 / Each

4,5,6,12,13,14
727882 091837 AH2 Support Plate Set;ADJ;Exrta-WorkSanding No Model Compatibility List $440.78 / Each

3
091841 727884 091841 Not Shown HARDWARE ;Semi-Assy ;FW98 No Model Compatibility List $72.94 / Each

1
091842 727885 091842 B11 Screw;Hex Socket;Umbrella DT;12x102L;FW No Model Compatibility List $9.36 / Each

2
727886 091845 V50 Manual;Assembly Guide;FW98 No Model Compatibility List $12.40 / Each

3
727887 091847 X02 Carton;1440X830X265;FW98 No Model Compatibility List $90.98 / Each

1
091864 727889 091864 H08 Grip;ADJ;Back Pad;Exrta-Work;CrDipping No Model Compatibility List $26.52 / Each

4,5,6,12,13,14,11
095211 728536 095211 H04 Air Shock;Buffer;10KG;FW98 No Model Compatibility List $25.74 / Each

1
095490 728598 095490 B15 Bearing No Model Compatibility List $7.00 / Each

8
729012 Order Kit 1 C04 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AC1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AG1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 AJ1 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729029 Order Kit 5 AH1 Console Base Set;Semi-Assy;TM658-2KM No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729031 Order Kit 6 C16 No Model Compatibility List $0.00 / Each
Out Of Stock
1
View Drawing
