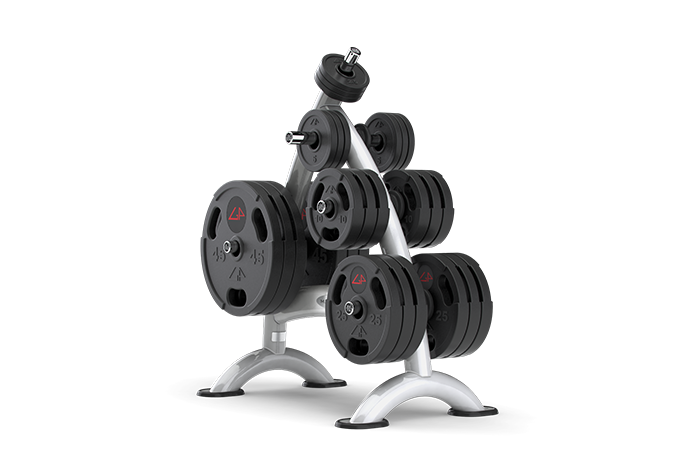

Replacement Parts for Matrix Commercial G3-FW94P Benches/Racks

Matrix Commercial - G3-FW94P - 2008

Repair Parts for Matrix Commercial G3-FW94P G3FW94

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3FW94

Model Name: G3-FW94P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Fastener Related
Frame Components
Circuit Boards
Plastic Parts
Seats
Posts
Pins
Other

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700166	000554-A	B12 /	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
700232	000751-C	B11 /	Elastomer;;;Rubber;;;;FW10	No	Model Compatibility List	$9.10 / Each	1
700234	000753-C	B09 /	Elastomer;Rubber;Upper	No	Model Compatibility List	$3.64 / Each	1
701654	004693-AD	B31 /	Screw;Flat Hex Socket;M8x1.25Px15L	No	Model Compatibility List	$1.66 / Each	2
701707	004727-AB	B34 /	Screw;Hex Socket;BH;M8x1.25Px30L;Adhere	No	Model Compatibility List	$2.00 / Each	2
701970	005009-AB	B36	Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating	No	Model Compatibility List	$2.00 / Each	2
702098	005130-00	B35	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
702318	005990-E	V02 /	Decal;Matrix Logo	No	Model Compatibility List	$18.77 / Each	7,3
702367	006554-C	V01 /	Decal;Weight	No	Model Compatibility List	$3.35 / Each	7,3
703740	015950-AA	B23	Top Weight Horn Housing	No	Model Compatibility List	$54.34 / Each	3
704243	021568-B	V03 /	Decal;Weight;FW94	No	Model Compatibility List	$1.66 / Each	7,3
704967	026822-F	AB2	Weight Storage Horn;Upper	No	Model Compatibility List	$40.66 / Each	3
705063	034325-A	AE3	Storage Horn Set;-;-;welding;FW10B	No	Model Compatibility List	$74.33 / Each	1
708466	1000102883	B33 /	Screw;Hex Socket;Stopper;Cone;M6x1.0Px6L	No	Model Compatibility List	$1.66 / Each	2
708467	1000102884	B32 /	Screw;Hex Socket;Stopper;Cone;M8x1.25Px8	No	Model Compatibility List	$1.79 / Each	2
718142	1000349361	AB1	Frame Set;;;painting;;Iced Sliver;FW94KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each	2
727386	088951	Not Shown	Manual;Assembly;FW94	No	Model Compatibility List	$16.22 / Each	3
