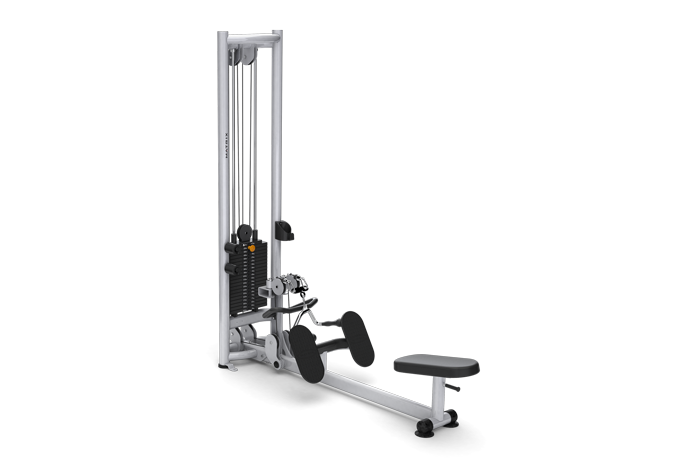

Matrix Commercial - G3-MS53 - 2014

Repair Parts for Matrix Commercial G3-MS53 G3MS53E

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: G3-MS53

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B20 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700141 000510-D B19 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
T 700155 000528-BA T51 Foot pad;Rubber;BL;MS53 No Model Compatibility List $39.42 / Each

9,3,12,13,14
T 700159 000538-CB T25 Foot Pad;Rear No Model Compatibility List $9.07 / Each

9,3,12,13,14
L 700236 000755-CA L04 Elastomer;Incremental Weight Plate No Model Compatibility List $3.95 / Each

3
B 700256 000791-B B18 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
T 700308 000926-A T52 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
T 700448 001402-A T26 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Z 700497 001513-A Z14 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
F 701159 004077-A2 F09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
Z 701470 004519-AE Z13 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
Z 701496 004535-AC Z01 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
Z 701522 004555-AB Z10 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
T 701524 004556-AB T46 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

2
Z 701525 004557-A Z05 SCREW;SH;M6X1.0PX45L;;HS;;CHM;; No Model Compatibility List $1.66 / Each

2
K 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
Z 701739 004762-AE Z07 Screw;Umbrella Hex Scoket;M8x1.25Px70L No Model Compatibility List $1.98 / Each

2
Z 701898 004926-AC Z08 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
Z 701911 004938-00 Z06 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 701914 004943-00 F23 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701939 004975-00 B31 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
K 702000 005040-00 K20 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
N 702102 005132-00 N38 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702318 005990-E V04 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702409 006652-C V05 Decal;Incremental Weight Plate No Model Compatibility List $4.06 / Each

7,3
V 702410 006653-C V06 Decal;Weight Plate No Model Compatibility List $1.33 / Each

7,3
V 702411 006656-A V12 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
Z 702531 008523-B Z16 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
F 702654 009247-A F06 Axle;Swivel;;S45C;10x25L No Model Compatibility List $2.86 / Each

8
T 702657 009251-A T23 Grip;Both Hands No Model Compatibility List $100.41 / Each

11
T 702658 009256-A T27 Washer;Swivel Axle;;SS41;;;;;MS53 SS41 No Model Compatibility List $2.83 / Each

2,8
K 702772 009641-F K04 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
A 703707 015831-B AF1 Steel Cable Wheel, Polarized Titanium (MS40, 51-53,80) No Model Compatibility List $171.47 / Each

8,4,5,6
A 703709 015840-A AT2 Grip Fix Set;R;Painting;MS53 No Model Compatibility List $104.13 / Each

11
T 703710 015844-AA T31 Painting;Fix Plate;;BL;;;MS53 ?SPC 4.0T(CHAMPAGNE) No Model Compatibility List $29.30 / Each

3,4,5,6
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
T 703741 015951-AA T20 Grip Hanging Hook;;Dipping;;MS MS51-N11 No Model Compatibility List $17.34 / Each

12,13,14,11
A 703743 015962-AA AT3 MS53STEEL CABLE SUPPORT TUBE WELDING SET MS53-1-Pol. Titan. No Model Compatibility List $106.34 / Each

3,4,5,6
Z 704137 020304-AC Z02 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
Z 704193 020465-AB Z11 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
N 704631 024585-A Not Shown HARDWARE KIT No Model Compatibility List $108.42 / Each

1
707855 1000096432 J01 Leg pad;L;light Brown;MS52KM-G3 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
A 707865 1000096532 AT1 MS53SEAT WELDING SET MS53-1-Pol. Titan. No Model Compatibility List $2.60 / Each

12,13,14
L 708045 1000098481 L02 Weight Plate, Incremental No Model Compatibility List $95.71 / Each

3
L 708046 1000098483 L03 Extrawork;Incremental Weight Plate Hook; No Model Compatibility List $35.52 / Each

3
708061 1000098653 J01 BackPad;white;Cool Grey 1m;MS52KM-G3; No Model Compatibility List $202.77 / Each

4,5,6,12,13,14
B 708473 1000102893 B33 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
K 708486 1000102912 K13 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708675 1000104705 K19 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

2
F 708684 1000104720 F22 Screw;HH;M10x1.5Px45L;P-T15L;CHM;BP;G8.8 No Model Compatibility List $2.18 / Each

2
K 708711 1000105039 K15 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
V 709081 1000109127 V22 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

7,3,12,13,14
J 710431 1000210209 J01 BACK PAD;-;PU;BLACK;-; No Model Compatibility List $165.59 / Each

4,5,6,12,13,14
J 710439 1000210280 J01 BACK PAD;-;PU;RED;-; No Model Compatibility List $165.59 / Each

4,5,6,12,13,14
J 710446 1000210300 J01 BACK PAD;-;PU;MIST BLUE;-; No Model Compatibility List $344.73 / Each

4,5,6,12,13,14
J 710452 1000210320 J01 BACK PAD;-;PU;CLAY RED;-; No Model Compatibility List $344.73 / Each

4,5,6,12,13,14
710567 1000210975 K09 GUIDE ROD 19X1970L S45C No Model Compatibility List $246.92 / Each

3
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
A 711010 1000215795 AT2 Cable Connection Plate No Model Compatibility List $52.21 / Each

3,4,5,6
711271 1000219348 J01 Back Pad;;PU,Vesicant;Graphite Gray;MS52 No Model Compatibility List $209.53 / Each

4,5,6,12,13,14
V 713028 1000232600 V23 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
F 713340 1000301746 F07 Steel Rope-Extrawork;-;-;Press Rope Hand No Model Compatibility List $145.99 / Each
Out Of Stock 		1
A 714798 1000318313 AK1 Up Weight Plate Set-Exreawork;;;;;MS51; No Model Compatibility List $228.12 / Each

3
715363 1000324494 J01 Back Pad;;PU;Coffee brown;;MS52; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
717046 1000341257 Z19 Rubber Pad;;;NBR;;;MS53; No Model Compatibility List $48.98 / Each

12,13,14
717174 1000342766 J01 Back Pad;;PU,Vesicant;Hazelnut;;MS52; No Model Compatibility List $209.53 / Each

2,4,5,6,12,13,14
717220 1000343054 J01 Back Pad;;PU;Alloy Gray+Hazelnut;;MS52 No Model Compatibility List $209.53 / Each

2,4,5,6,12,13,14
K 717480 1000345425 K28 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

7,3,12,13,14
N 718155 1000349399 Not Shown Frame Connect Plate;;U;painting;;Iced Sl No Model Compatibility List $476.55 / Each

3
N 718156 1000349400 Not Shown Frame Connect Plate;;D;painting;;Iced Sl No Model Compatibility List $86.16 / Each

3
A 719669 1000363588 AB5 Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
N 719742 1000364887 Not Shown Cover set;Semi-Assy;back;;;MS23KM-G3;; No Model Compatibility List $715.47 / Each

9,4,5,6
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
T 720733 1000375596 T21 Pulley Set;Steel Cable;;painting;;Ti;MS5 No Model Compatibility List $223.05 / Each

8,4,5,6

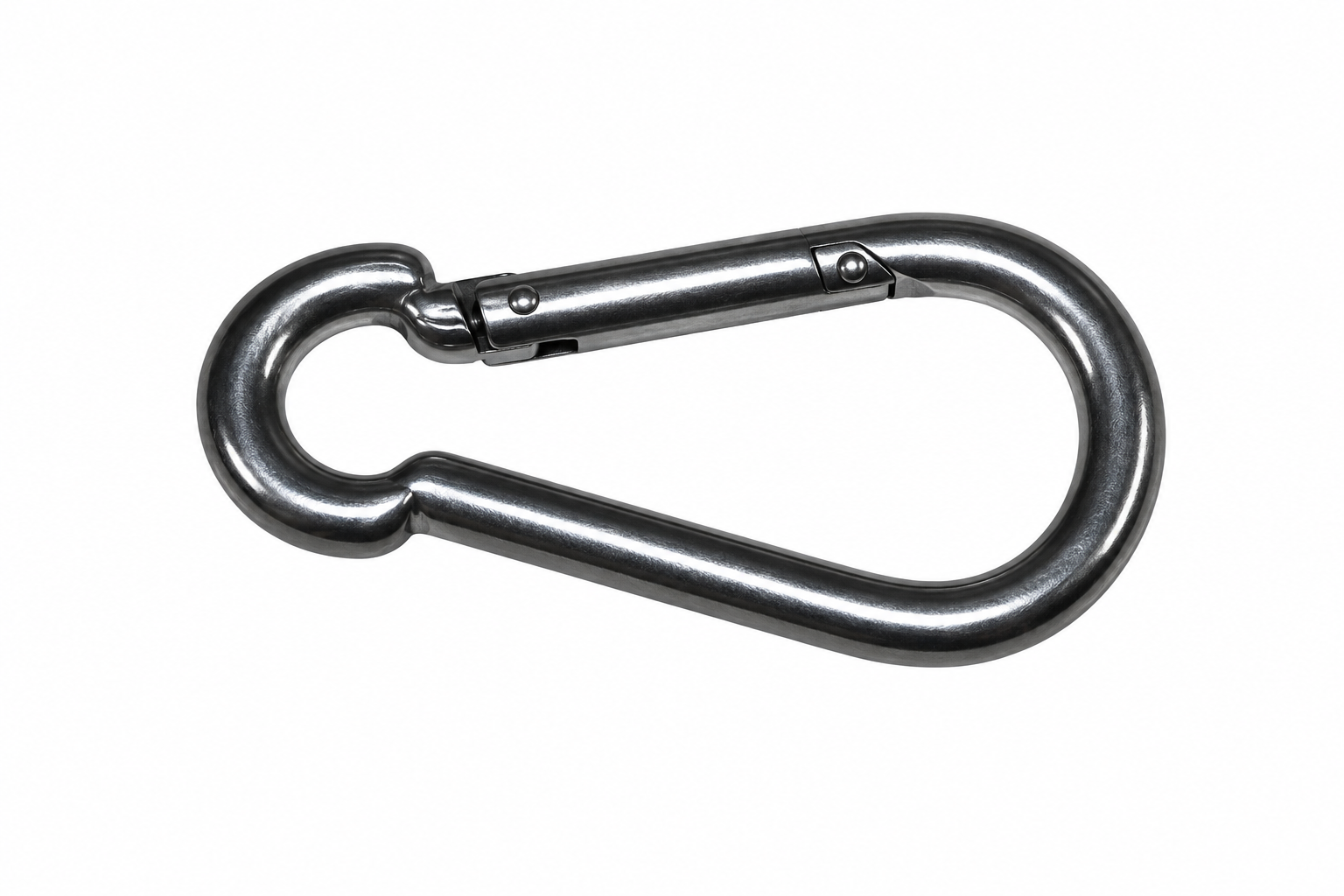

T 721052 1000380094 T24 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
721147 1000380990 Not Shown Instructional Labe;;;;PC;;English;MS53 No Model Compatibility List $15.18 / Each

1
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP 727227 087955 B41 Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP No Model Compatibility List $1.14 / Each

2
Grip;MS21KM-G3; 727568 089983 F04 Grip;MS21KM-G3; No Model Compatibility List $48.62 / Each

11
727874 091726 J01 Back Pad;;PU,Vesicant;Desert Brown;MS52K No Model Compatibility List $204.46 / Each

4,5,6,12,13,14
728034 092786 J01 BackPad;LA gray;MS52KM-G3 No Model Compatibility List $275.44 / Each

4,5,6,12,13,14
728799 097477 1 MS53 FRAME WELDING SET MS53-1-Pol. Titan. No Model Compatibility List $2.60 / Each

3
728805 097545 J01 Back Pad;;PU,Vesicant;Turquoise;MS52KM-G No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
