Matrix Commercial - G3-PL23P - 2010

Repair Parts for Matrix Commercial G3-PL23P G3PL23,G3PL06

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

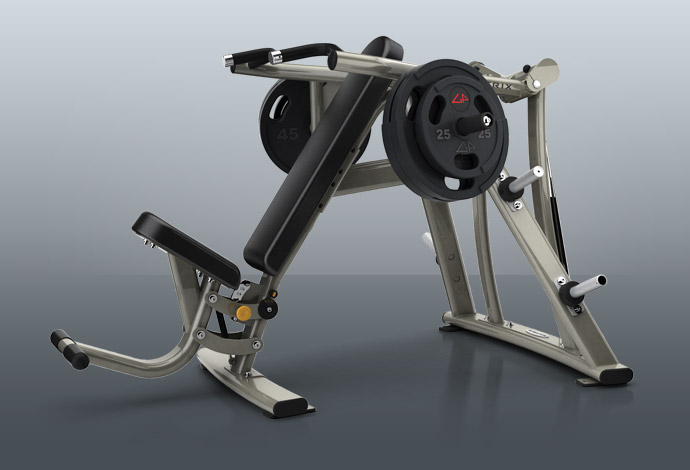

Model Name: G3-PL23P

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 700448 001402-A D20 End Cap;Round No Model Compatibility List $1.79 / Each

9
D 700450 001405-A D11 End Cover;60 No Model Compatibility List $1.66 / Each

9
C 700519 001523-E C33 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
D 701159 004077-A2 D18 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
Z 701470 004519-AE Z11 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
Z 701505 004539-AD Z03 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 701836 004855-AC D10 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
C 701943 004978-00 C35 Insert Nut;Hex;NHS-1015-4.0(M10x1.5P) No Model Compatibility List $1.66 / Each

2
Z 701981 005017-00 Z07 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
V 702318 005990-E V19 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702411 006656-A V04 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
D 702530 008522-C D12 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
Z 702531 008523-B Z06 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
D 702710 009355-B D16 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

1
D 702722 009372-E D19 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

9,11
B 702944 013411-Z1G2 B40 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
B 703902 019153-A B40 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
B 704001 020090-00 B20 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
Z 704004 020096-00 Z05 Screw;Hex Socket;Round;M8x1.25Px15L;Chromed Yes Model Compatibility List $9.99 / Each

7,2,12,13,14
Z 704137 020304-AC Z04 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
D 704189 020459-00 D27 Washer;Flat;10.2X28.5X3.0T No Model Compatibility List $1.85 / Each

2
Z 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V09 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
C 705562 050468-A C34 Bushing;Brass No Model Compatibility List $3.64 / Each

8
B 706373 061531-AA B19 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
C 707073 1000090024 C36 Screw;PH;M10X1.5PX30L;;;;;;SP No Model Compatibility List $8.42 / Each

2
V 707074 1000090028 V02 Sticker;Weight;PL06 No Model Compatibility List $3.35 / Each

3
B 707084 1000090177 B40 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
B 708099 1000099693 B40 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
M 708591 1000103978 M01 CON Tube;weight lifting;Outer No Model Compatibility List $120.02 / Each

3,10
M 708592 1000103979 M02 CON Tube;weight lifting;Inner No Model Compatibility List $212.71 / Each

3,10
Z 708654 1000104681 Z19 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

2
C 708658 1000104685 C05 RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $3.35 / Each

1
D 709078 1000108924 D26 Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8 No Model Compatibility List $9.10 / Each

2
V 709507 1000200848 V01 Logo Label;MATRIX;BLACK WORD/WHITE BASE; No Model Compatibility List $3.35 / Each

3,4,5,6
D 710215 1000207633 D24 Swivel Axle;20cm;PL01 No Model Compatibility List $76.96 / Each

8
714958 1000320479 B08 Support Plate;STOPPER PAD;;painting;;MAT No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
718000 1000349162 1 Frame set;;;Iced Sliver;PL06KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718001 1000349163 2 Base Set;;;Iced Sliver;PL06KM-G3;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718002 1000349164 3 Link Set;;front;Iced Sliver;PL06KM-G3;;S No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718003 1000349165 4 pedal arm set;;left;Iced Sliver;PL06KM-G No Model Compatibility List $253.47 / Each

8,9,3
718004 1000349166 5 pedal arm set;;right;Iced Sliver;PL06KM- No Model Compatibility List $253.47 / Each

8,9,3
718005 1000349167 6 seat set;;;Iced Sliver;PL06KM-G3;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
718006 1000349168 AC1 Stabilizer Tube Set;;;Iced Sliver;PL06KM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718176 1000349438 AC3 CON Tube Set;Swivel Arm;;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718177 1000349439 AC4 ConnectingTube;;Front-Rear;painting;;Ice No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718178 1000349440 AC5 Pull Pin Fixing Set;;;painting;;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

2
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Stopper;Pad;PL01 727015 086682 B09 Stopper;Pad;PL01 No Model Compatibility List $17.55 / Each

12,13,14
Cap;Tube;Elliptical;PL01 727016 086683 G01 Cap;Tube;Elliptical;PL01 No Model Compatibility List $3.35 / Each

9,3
Swivel Plate;Seat;PL01 727021 086712 T08 Swivel Plate;Seat;PL01 No Model Compatibility List $54.55 / Each

3,12,13,14
Cap;ADJ Base PL01 727022 086713 T12 Cap;ADJ Base PL01 No Model Compatibility List $3.35 / Each

9,3
Foam;For50.8 Food Pad;PL01 727027 086732 G04 Foam;For50.8 Food Pad;PL01 No Model Compatibility List $17.76 / Each

12,13,14
Swivel Mandrel;Seat ;PL01 727050 086902 T09 Swivel Mandrel;Seat ;PL01 No Model Compatibility List $27.79 / Each

12,13,14
Indication Decal;PL01 727051 086903 V03 Indication Decal;PL01 No Model Compatibility List $1.66 / Each

7,3
Air Shock;18kg;125L;PL01 727052 086904 R01 Air Shock;18kg;125L;PL01 No Model Compatibility List $31.88 / Each

1
728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $132.08 / Each

1
Buffer Pad;PU;Black;PL01 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $63.18 / Each

4,5,6,12,13,14
Fixing Plate;Seat ADJPL01 728182 093485 C22 Fixing Plate;Seat ADJPL01 No Model Compatibility List $15.42 / Each

3,12,13,14
Fixing Ring;Swivel Arm;PL01 728183 093488 D13 Fixing Ring;Swivel Arm;PL01 No Model Compatibility List $11.73 / Each

3
728501 095114 D08 Supt Tube;Storage Horn;R;50.8x3.0tx253L No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Foam;Grip;28x5.0tx348L;PL06 728503 095120 D17 Foam;Grip;28x5.0tx348L;PL06 No Model Compatibility List $26.96 / Each

11
Hardware Kit;Semi-Assy;PL06 728505 095123 Not Shown Hardware Kit;Semi-Assy;PL06 No Model Compatibility List $198.04 / Each

1
Console Rear Cover;ABS/PA746;DG/80435;EP603 728507 095126 N02 Console Rear Cover;ABS/PA746;DG/80435;EP603 No Model Compatibility List $75.14 / Each

7,9
729118 Part of Kit 1 AB1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC7 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AC2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AD1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AD2 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AT1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J30 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
