Matrix Commercial - G3-PL34P - 2010

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000926-A 700308 000926-A T06 Cap;Tube;PVC;FW91 No Model Compatibility List $1.38 / Each

9,3
001401-A 700447 001401-A B31 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001405-A 700450 001405-A B31 End Cover;60 No Model Compatibility List $1.28 / Each

9
001523-E 700519 001523-E B35 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001791-AA 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $2.80 / Each

3,10
004077-A2 701159 004077-A2 D19 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004479-ABX 701431 004479-ABX B37 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $1.54 / Each

2
004556-AB 701524 004556-AB Not Shown Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.38 / Each

2
004696-AB 701660 004696-AB B40 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004975-00 701939 004975-00 C16 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 D23 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005017-00 701981 005017-00 Z03 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005132-00 702102 005132-00 D22 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
008522-C 702530 008522-C Z10 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
009356-B 702711 009356-B B26 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009371-E 702721 009371-E B25 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11

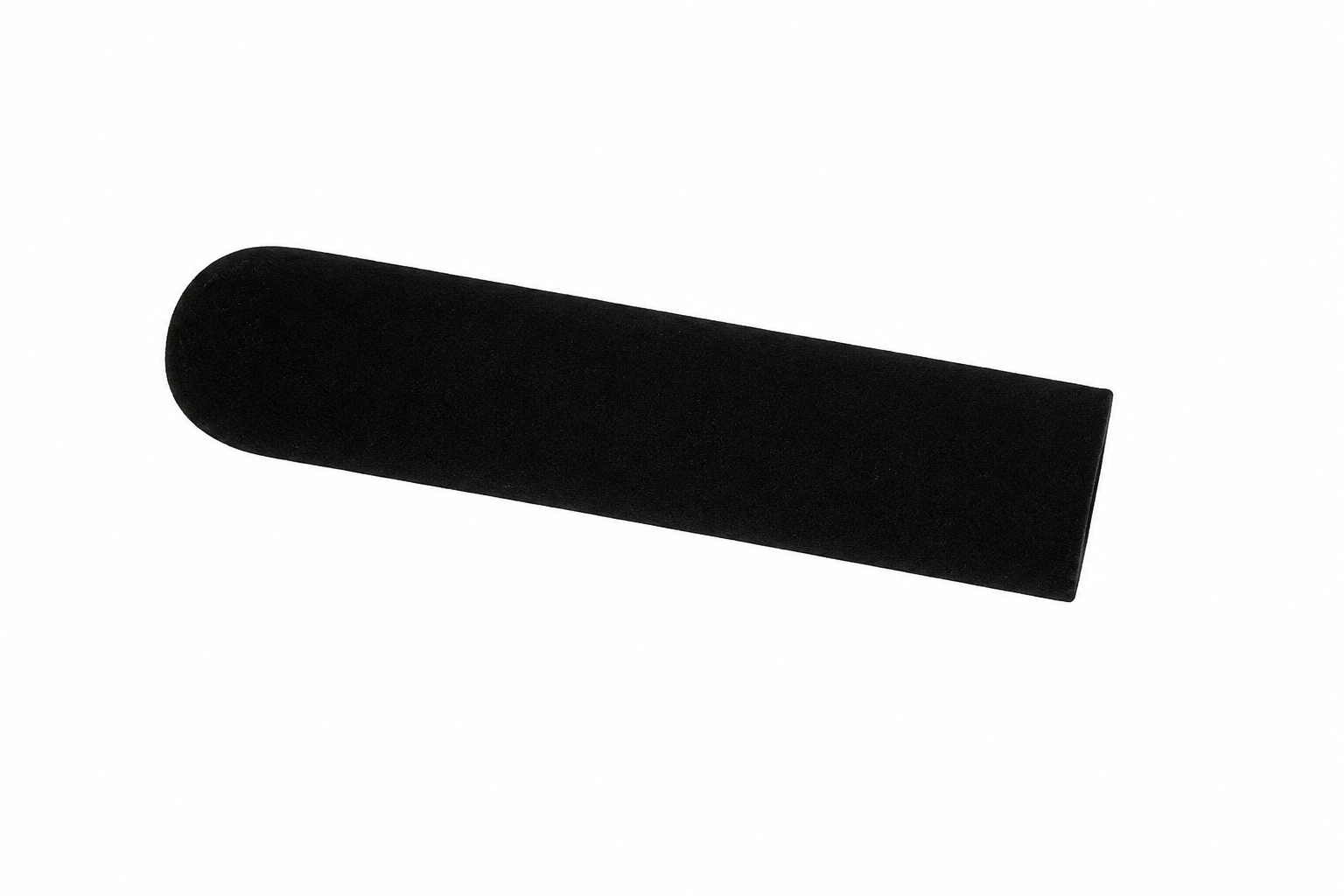

018940-A 703879 018940-A B28 Foam;Grip;24X5.0tx150L No Model Compatibility List $6.48 / Each

11
020123-AC 704034 020123-AC D24 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.28 / Each

7,2,12,13,14
020304-AC 704137 020304-AC Z04 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
061531-AA 706373 061531-AA C18 Leveler;Foot Pad;FW151 No Model Compatibility List $11.20 / Each

9,3,12,13,14
064015-A 706633 064015-A Not Shown Hardware; No Model Compatibility List $24.40 / Each

1
1000090024 707073 1000090024 C21 Screw;PH;M10X1.5PX30L;;;;;;SP No Model Compatibility List $6.48 / Each

2
1000090043 707078 1000090043 V07 Sticker ;Storage;PL02 No Model Compatibility List $1.28 / Each

1
1000097206 707946 1000097206 C23 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.54 / Each

2
1000098705 708063 1000098705 B29 Bushing;26x20x20L;GM41 No Model Compatibility List $7.94 / Each

8
708099 1000099693 B32 Pull Pin Set;Orange Knob No Model Compatibility List $56.86 / Each

12,13,14
1000102881 708465 1000102881 B27 Screw;Hex Socket;Stopper;Cone;M6x1.0Px4L No Model Compatibility List $1.28 / Each

2
1000103978 708591 1000103978 M01 CON Tube;weight lifting;Outer No Model Compatibility List $92.32 / Each

3,10
1000103979 708592 1000103979 M02 CON Tube;weight lifting;Inner No Model Compatibility List $163.62 / Each

3,10
1000104681 708654 1000104681 Z19 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.36 / Each

2
1000207633 710215 1000207633 Z17 Swivel Axle;20cm;PL01 No Model Compatibility List $59.20 / Each

8
710814 1000214017 C24 Fixing Plate;Pedal;L;SPHC;;BOX;PL07;SBOM No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
710815 1000214018 B39 Fixing Plate;Pedal;Middle;SPHC;;BOX;PL07 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
1000318784 714864 1000318784 Not Shown Hanging Rod;Pedal Arm;;40CRMO;Chrome;PL0 No Model Compatibility List $57.54 / Each

7,8,9,3,12,13,14
717225 1000343097 AT1 seat set;;;Iced Sliver;PL07B;;SERVICE No Model Compatibility List $161.18 / Each

12,13,14
717226 1000343118 1 Frame set;;;Iced Sliver;PL07B;;SERVICE No Model Compatibility List $519.98 / Each

3
1000343167 717228 1000343167 4 pedal arm set;;right;Iced Sliver;PL07B;; No Model Compatibility List $363.98 / Each

8,9,3
1000343188 717229 1000343188 3 pedal arm set;;left;Iced Sliver;PL07B;;S No Model Compatibility List $363.98 / Each

8,9,3
718007 1000349170 2 Base Set;;;Iced Sliver;PL07KM-G3;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
3
718174 1000349430 AC5 Pull Pin Fixing Set;;;Painting;;Iced Sli No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
719680 1000363753 B41 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
3
069801 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.38 / Each

2
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
086682 727015 086682 B09 Stopper;Pad;PL01 No Model Compatibility List $13.50 / Each

12,13,14
086683 727016 086683 G01 Cap;Tube;Elliptical;PL01 No Model Compatibility List $2.58 / Each

9,3
086712 727021 086712 T08 Swivel Plate;Seat;PL01 No Model Compatibility List $41.96 / Each

3,12,13,14
086713 727022 086713 T12 Cap;ADJ Base PL01 No Model Compatibility List $2.58 / Each

9,3
086902 727050 086902 T09 Swivel Mandrel;Seat ;PL01 No Model Compatibility List $21.38 / Each

12,13,14
086903 727051 086903 V03 Indication Decal;PL01 No Model Compatibility List $1.28 / Each

7,3
086904 727052 086904 R01 Air Shock;18kg;125L;PL01 No Model Compatibility List $24.52 / Each

1
728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $101.60 / Each

1
093473 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $48.60 / Each

4,5,6,12,13,14
093485 728182 093485 C22 Fixing Plate;Seat ADJPL01 No Model Compatibility List $11.86 / Each

3,12,13,14
093488 728183 093488 D13 Fixing Ring;Swivel Arm;PL01 No Model Compatibility List $9.02 / Each

3
093501 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.28 / Each

1
097172 728772 097172 Not Shown Hardware Kit;PL07KM-G3 No Model Compatibility List $136.52 / Each

1
097335 728779 097335 C17 Rubber PadBlack;PL07KM-G3 No Model Compatibility List $6.48 / Each

4,5,6,12,13,14
097345 728780 097345 D14 Foam;Grip;Two;PL07KM-G3 No Model Compatibility List $24.42 / Each

11
729027 Order Kit 3 AD2 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 AD1 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729258 See Kit 1 AB1 Frame Set;;;painting;;Iced Sliver;PL07B; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729259 See Kit 2 AC1 base set;;;painting;;Iced Sliver;PL07KM- No Model Compatibility List $0.00 / Each
Out Of Stock
3
729261 See Pad Matrix J30 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
