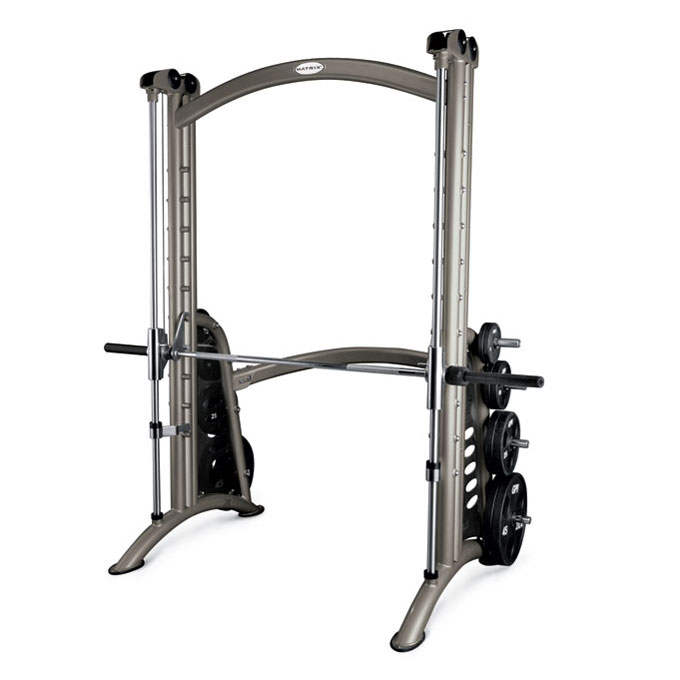

Matrix Commercial - G3-PL62P - 2010

Repair Parts for Matrix Commercial G3-PL62P G3PL62

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: G3-PL62P

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700147 000516-B B21 Foot pad;Tube;;Rubber;;;;FW62 No Model Compatibility List $14.79 / Each

9,3,12,13,14
B 700232 000751-C B17 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
N 700235 000754-CA N10 Elastomer;Rubber;BL;FW62 No Model Compatibility List $9.10 / Each

1
N 700253 000783-AA N11 Stopper Pad;Rubber;FW62 No Model Compatibility List $1.66 / Each

12,13,14
B 700277 000847-CA B42 Bushing;Nylon No Model Compatibility List $8.81 / Each

8
B 700496 001512-C B22 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
B 700518 001522-B B48 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
M 700548 001585-F M20 Rubber Stop No Model Compatibility List $1.79 / Each

1
B 700680 001783-DA B18 Accent Board;Right No Model Compatibility List $140.24 / Each

4,5,6
B 700682 001784-CA B45 Accent Board;Left No Model Compatibility List $140.24 / Each

4,5,6
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
M 701162 004079-A3 M11 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $27.04 / Each

8
N 701188 004127-A N07 Bearing;Dry;LFF-3020;;;;;; No Model Compatibility List $9.10 / Each

8
Z 701694 004720-AH Z32 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
Z 701901 004929-00 Z30 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701914 004943-00 B68 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
B 701968 005007-00 B27 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z22 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
B 702098 005130-00 B65 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702102 005132-00 B28 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
M 702199 005253-A M15 Washer;Swivel No Model Compatibility List $3.35 / Each

2
V 702318 005990-E V02 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
Z 702531 008523-B Z33 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702548 008593-D B23 Cover;Aluminum;Cover Board;Anodzing;;FW62 No Model Compatibility List $118.27 / Each

9
B 702728 009381-A B16 Weight Plate Hanging Rod;Storage Horn;38.1x250 No Model Compatibility List $34.68 / Each

3
B 702730 009383-D B26 Support Rod;Hook;;S45C;;Cr Plate;;;FW62 No Model Compatibility List $16.12 / Each

3
M 702734 009387-G M34 Guide Rail No Model Compatibility List $566.02 / Each

9
B 702738 009391-C B32 Belt Fixing Ring No Model Compatibility List $8.42 / Each

15
1 702937 013396-Z 1 Left Weight Rod Stopper No Model Compatibility List $197.94 / Each

3
2 702939 013399-Z 2 Right Weight Rod Stopper No Model Compatibility List $197.94 / Each

3
703696 015815-A AN3 Smith Bar [FW62] MX / G2 No Model Compatibility List $817.88 / Each
Out Of Stock 		1
B 703704 015824-AA B24 Balance Block;FW62 No Model Compatibility List $231.89 / Each

1
B 703742 015954-AA B60 Aluminum Cover Board Connecting Plate, MS50-Q07 No Model Compatibility List $27.38 / Each

9,3
A 703801 016997-B AM5 Weight Rod Connecting Sleeve;FW62 No Model Compatibility List $363.61 / Each

3
Z 704193 020465-AB Z21 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V12 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704244 021569-B V03 Decal;Weight;FW62 No Model Compatibility List $3.35 / Each

7,3
N 704302 022373-C N12 Stopper Sleeve, STK41 [FW62] No Model Compatibility List $40.14 / Each

3
B 705029 031484-B B33 Stopper Plate No Model Compatibility List $14.20 / Each

3
B 705030 031487-A B35 Stopper, Frame No Model Compatibility List $9.10 / Each

3
N 706636 064026-A Not Shown Hardware;FW62 No Model Compatibility List $33.77 / Each

1
B 707895 1000096718 B25 Steel Cable;2330L No Model Compatibility List $91.10 / Each

4,5,6
B 708082 1000099212 B44 Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; No Model Compatibility List $0.86 / Each

2
Z 708451 1000102867 Z20 Screw;Hex Socket;Round;M10x1.5Px100L;Cr No Model Compatibility List $12.95 / Each

2
B 708452 1000102868 B69 Screw;RND;M10x120L-32L;-;HS;-;CHM;BP;G12 No Model Compatibility List $6.73 / Each

2
B 708453 1000102869 B29 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
B 708455 1000102871 B66 Screw;Hex Socket;BH;M8x1.25Px15L;Cr Plat No Model Compatibility List $1.66 / Each

2
B 708472 1000102890 B53 Screw;Thin Head;M8x1.25Px10L;-;HS;-;CHM; No Model Compatibility List $1.66 / Each

2
B 708475 1000102895 B43 Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; No Model Compatibility List $1.66 / Each

2
B 708479 1000102902 B30 Screw;RND;M4x10L;-;PH;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
M 708486 1000102912 M14 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
M 708487 1000102913 M13 Circlip;Internal C Type;R-47;BED No Model Compatibility List $1.79 / Each

2
M 708488 1000102914 M09 Circlip;Internal C Type;R-55;BED No Model Compatibility List $1.79 / Each

2

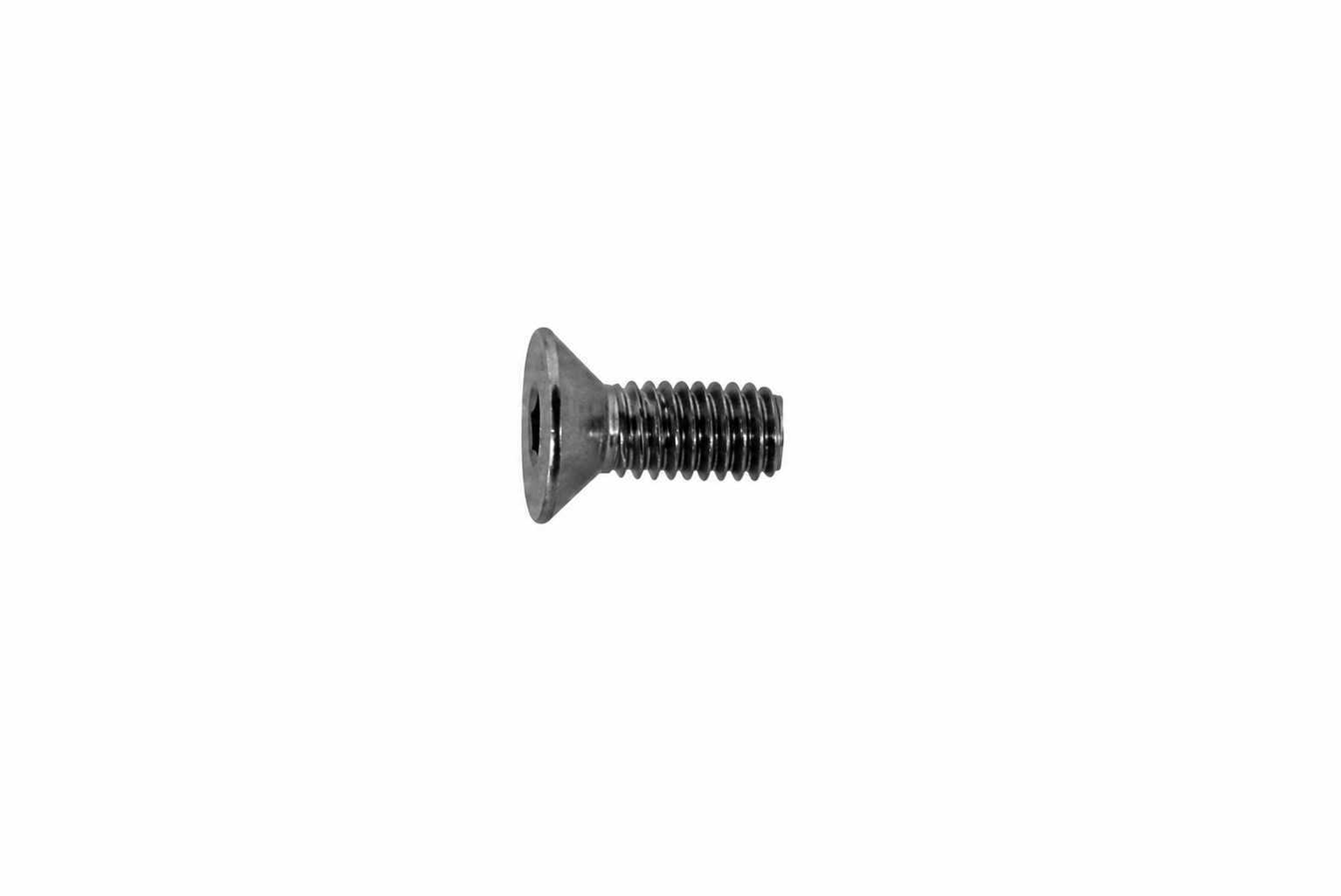

712127 1000226824 B62 Screw;FH;M6x15L;-;HS;-;CHM;BP;-; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
M 716149 1000333566 M10 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $250.04 / Each

8
718181 1000349457 AB1 Frame Set;;R;painting;;Iced Sliver;PL62K No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718182 1000349458 AB2 Frame Set;;L;painting;;Iced Sliver;PL62K No Model Compatibility List $0.00 / Each
Out Of Stock 		3

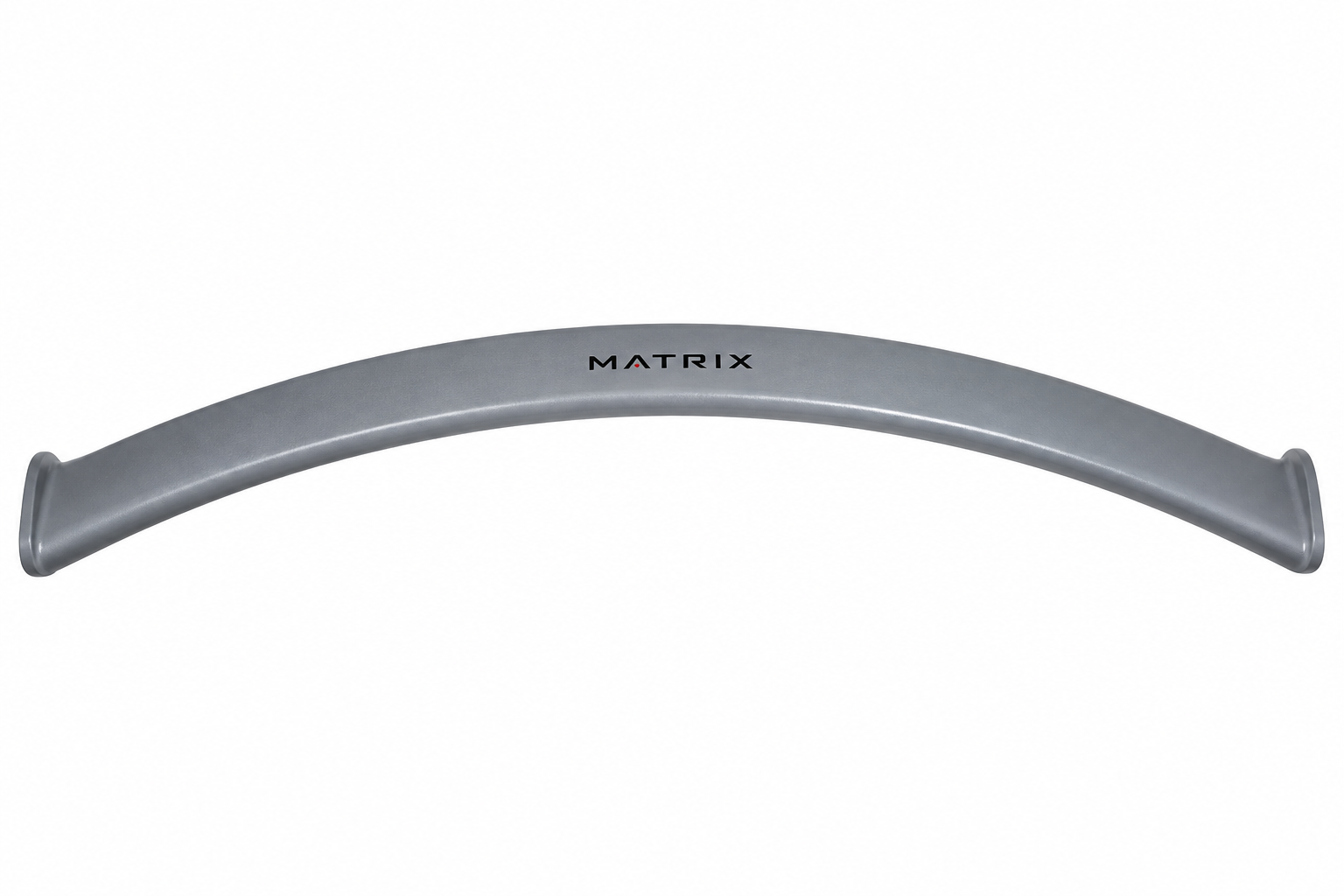

718183 1000349459 AG1 CON Tube Set;;U;painting;;Iced Sliver;PL No Model Compatibility List $0.00 / Each
Out Of Stock 		3

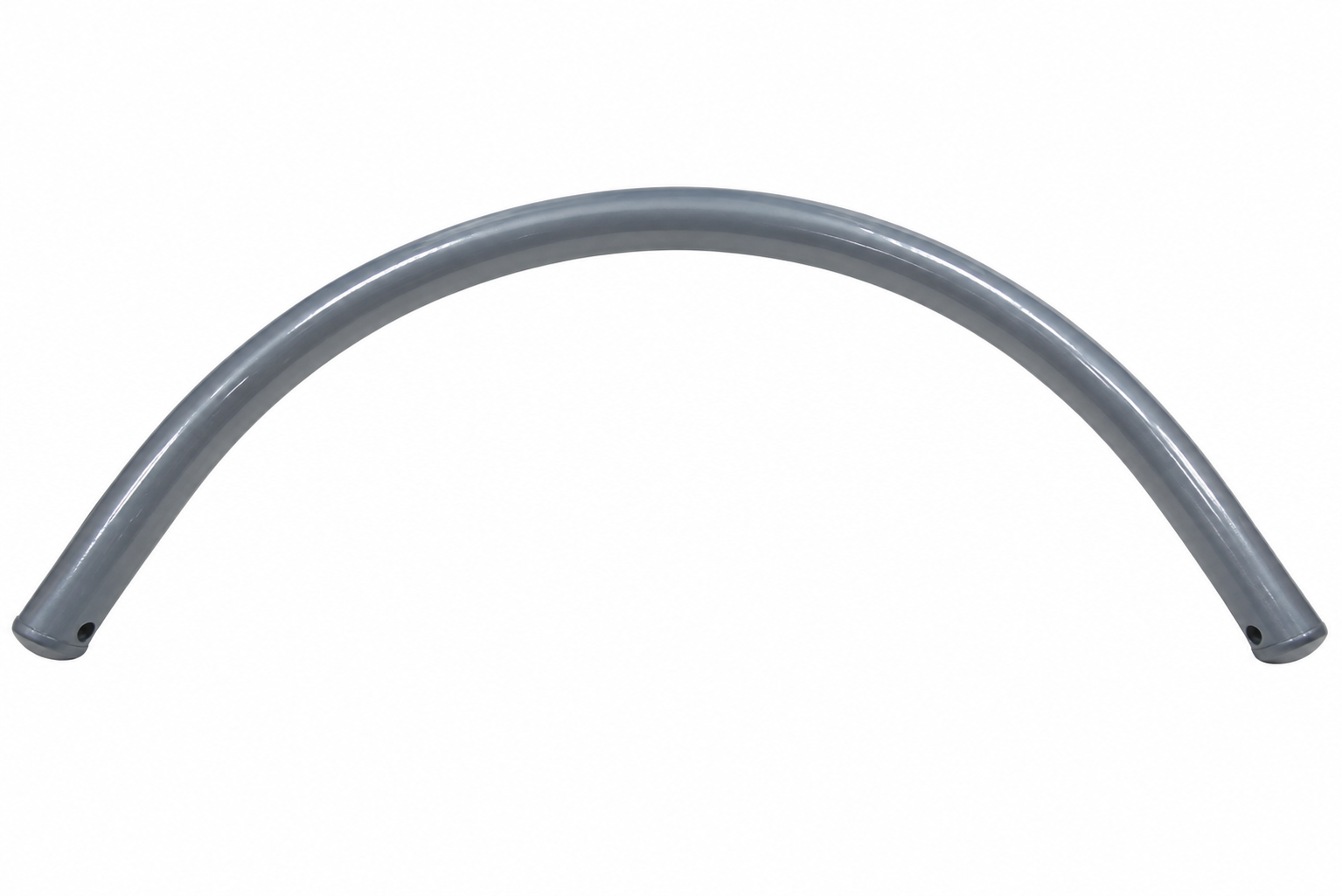

718184 1000349460 AG2 CON Tube Set;;D;painting;;Iced Sliver;PL No Model Compatibility List $0.00 / Each
Out Of Stock 		3

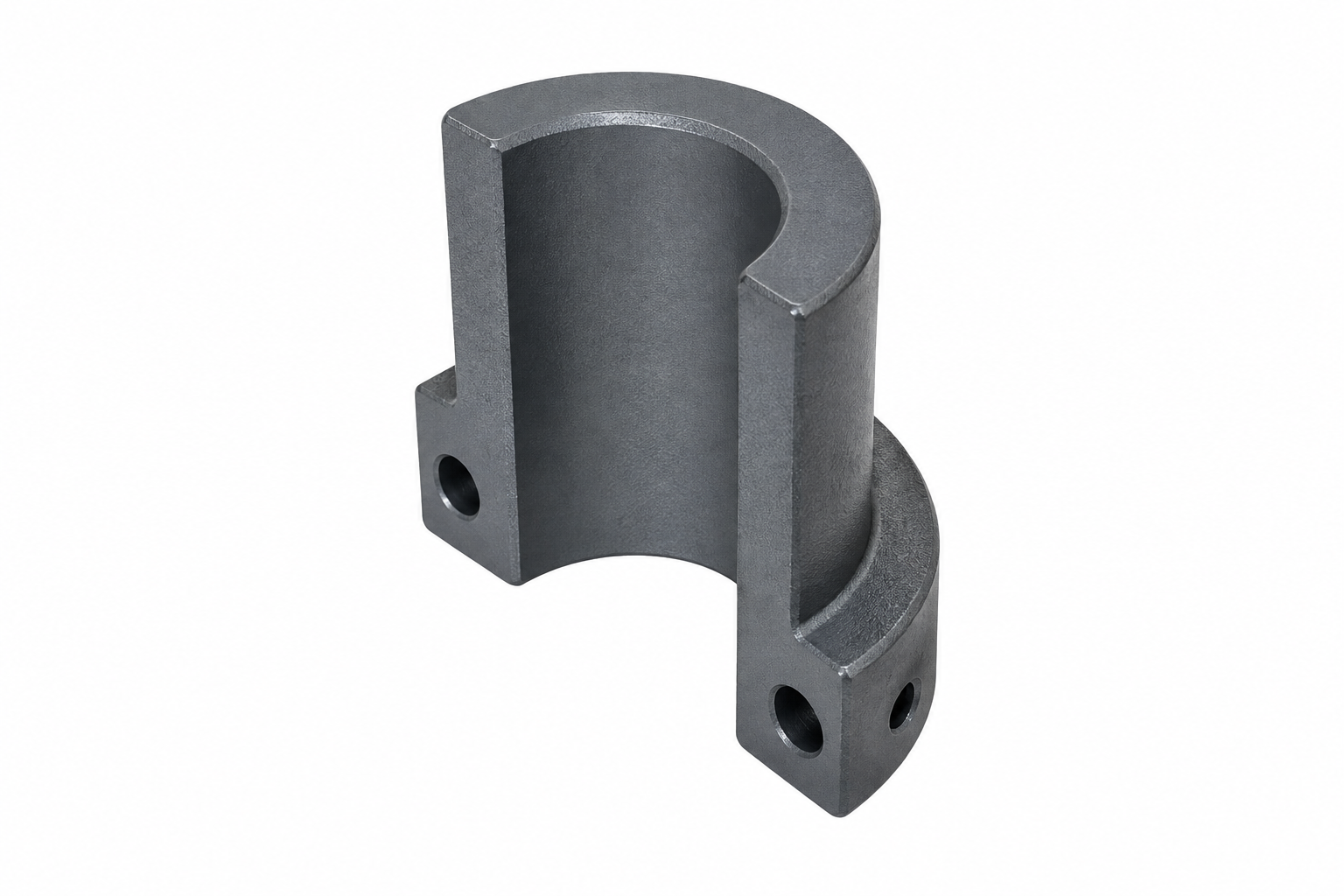

718185 1000349461 B31 Sung Base;Guide Rod;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

8
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Hardware;Semi-Assy;PL62KM-G3 727443 089262 Not Shown Hardware;Semi-Assy;PL62KM-G3 No Model Compatibility List $138.92 / Each

1
LEFT SLIDING SLEEVE SET 728760 096869 3 LEFT SLIDING SLEEVE SET No Model Compatibility List $1.30 / Each

3
RIGHT SLIDING SLEEVE SET 728761 096870 4 RIGHT SLIDING SLEEVE SET No Model Compatibility List $1.30 / Each

3
729012 Order Kit 1 AN2 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AN1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AM4 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
