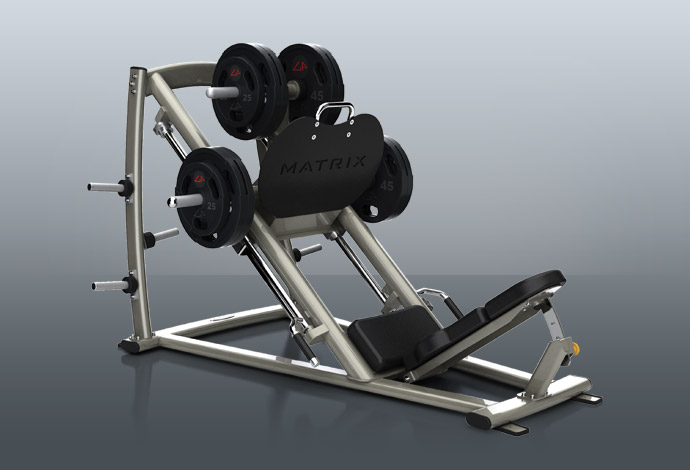

Matrix Commercial - G3-PL70P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000454-H 700122 000454-H B40 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $7.00 / Each

9,3
000588-D 700178 000588-D E07 Foam Grip;24x5.0tx130L No Model Compatibility List $2.02 / Each

11
000926-AA 700309 000926-AA G09 Cap;Tube;BL;FW91 No Model Compatibility List $1.28 / Each

9,3
700436 001381-B P20 Foot Pad;Rubber No Model Compatibility List $98.20 / Each

9,3,12,13,14
001523-E 700519 001523-E J04 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001531-AA 700528 001531-AA J13 Stopper Bolt;Back Pad No Model Compatibility List $2.80 / Each

2,4,5,6,12,13,14
004518-00 701465 004518-00 Z18 Screw;SH;M10X1.5PX75L;;HS;;CHM;; No Model Compatibility List $2.80 / Each

2
004529-AD 701484 004529-AD Z20 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $2.84 / Each

2
004720-AC 701693 004720-AC P26 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $3.08 / Each

2
701764 004786-00 J18 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
004855-AC 701836 004855-AC E08 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004926-AC 701898 004926-AC P37 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $1.54 / Each

2
004943-00 701914 004943-00 Z11 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
005007-00 701968 005007-00 Z15 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005017-00 701981 005017-00 Z03 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005132-00 702102 005132-00 Z14 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005145-AC 702119 005145-AC P34 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005990-E 702318 005990-E V04 Decal;Matrix Logo No Model Compatibility List $14.44 / Each

7,3
008523-B 702531 008523-B Z12 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
009288-K 702670 009288-K B38 Axle;Pin;Market;GM01 No Model Compatibility List $7.96 / Each

8,12,13,14
009356-B 702711 009356-B E06 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009371-E 702721 009371-E E05 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
014788-E 703464 014788-E C21 Metal Pin; Pull Pin No Model Compatibility List $28.06 / Each

3,12,13,14
017469-G 703806 017469-G P35 Grip;Pedal;Rod;25X538.9L;GM10 No Model Compatibility List $43.52 / Each

8,9,3,11
019153-A 703902 019153-A C22 Pull pin knob; Yellow No Model Compatibility List $5.22 / Each

12,13,14
020092-AB 704002 020092-AB P33 Screw;Hex Socket;Round;M8x1.25Px35L;Adhe No Model Compatibility List $2.58 / Each

2
020098-AD 704007 020098-AD Z10 Screw;Hex Socket;Round;M10x1.5Px70L;Cr; No Model Compatibility List $7.00 / Each

2
020123-AC 704034 020123-AC Z19 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.28 / Each

7,2,12,13,14
020127-AC 704043 020127-AC J14 Screw;SH;M8X1.25PX12L;;HS;;CHM;; No Model Compatibility List $1.38 / Each

2
020304-AC 704137 020304-AC Z04 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A V12 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
021569-B 704244 021569-B V101 Decal;Weight;FW62 No Model Compatibility List $2.58 / Each

7,3
049256-AB 705465 049256-AB Z16 Screw;Hex Socket;Round;M10x1.5Px20L;Cr; No Model Compatibility List $1.38 / Each

2
050468-A 705562 050468-A C20 Bushing;Brass No Model Compatibility List $2.80 / Each

8
061531-AA 706373 061531-AA C16 Leveler;Foot Pad;FW151 No Model Compatibility List $11.20 / Each

9,3,12,13,14
1000090177 707084 1000090177 C22 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $7.00 / Each

12,13,14,11
1000092152 707338 1000092152 E12 Copper Sleeve, Grip Upper No Model Compatibility List $32.60 / Each

3,11
1000092154 707339 1000092154 C12 Mandrel;Back Pad;PL04KM-G3 No Model Compatibility List $10.76 / Each

4,5,6,12,13,14
1000092545 707403 1000092545 V100 Sticker;Weight ;PL04KM-G3 No Model Compatibility List $2.58 / Each

3
1000099214 708084 1000099214 C21 Pull Pin Set;Orange Knob No Model Compatibility List $28.06 / Each

12,13,14
1000102912 708486 1000102912 E20 Circlip;External C Type;S-30;BED No Model Compatibility List $1.54 / Each

2
1000104667 708646 1000104667 P36 Screw;FH;M10x1.5Px30L;HS;CST;CHM;BP;8.8C No Model Compatibility List $3.68 / Each

2
708648 1000104670 B28 Screw;FH;M8x15L;-;HS;-;CHM;-;G8.8; No Model Compatibility List $1.28 / Each

2
1000104701 708671 1000104701 Z13 Screw;RND;M12x1.75Px35L;-;HS;-;CHM;BP;G1 No Model Compatibility List $1.68 / Each

2
1000202350 709717 1000202350 P38 SNAP RING;EXTERNAL; No Model Compatibility List $1.68 / Each

2
1000306193 713663 1000306193 E19 Screw;Socket Head;M10x30L-20L;;Hex Socke No Model Compatibility List $1.38 / Each

2
718015 1000349182 3 Base Set;;;Iced Sliver;PL04KM-G3;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
3
718186 1000349462 AB1 Frame Set;;;painting;;Iced Sliver;PL04KM No Model Compatibility List $1.00 / Each

3
718187 1000349464 AC2 ADJ Base;Back Pad;;painting;;Iced Sliver No Model Compatibility List $170.28 / Each

3,4,5,6,12,13,14

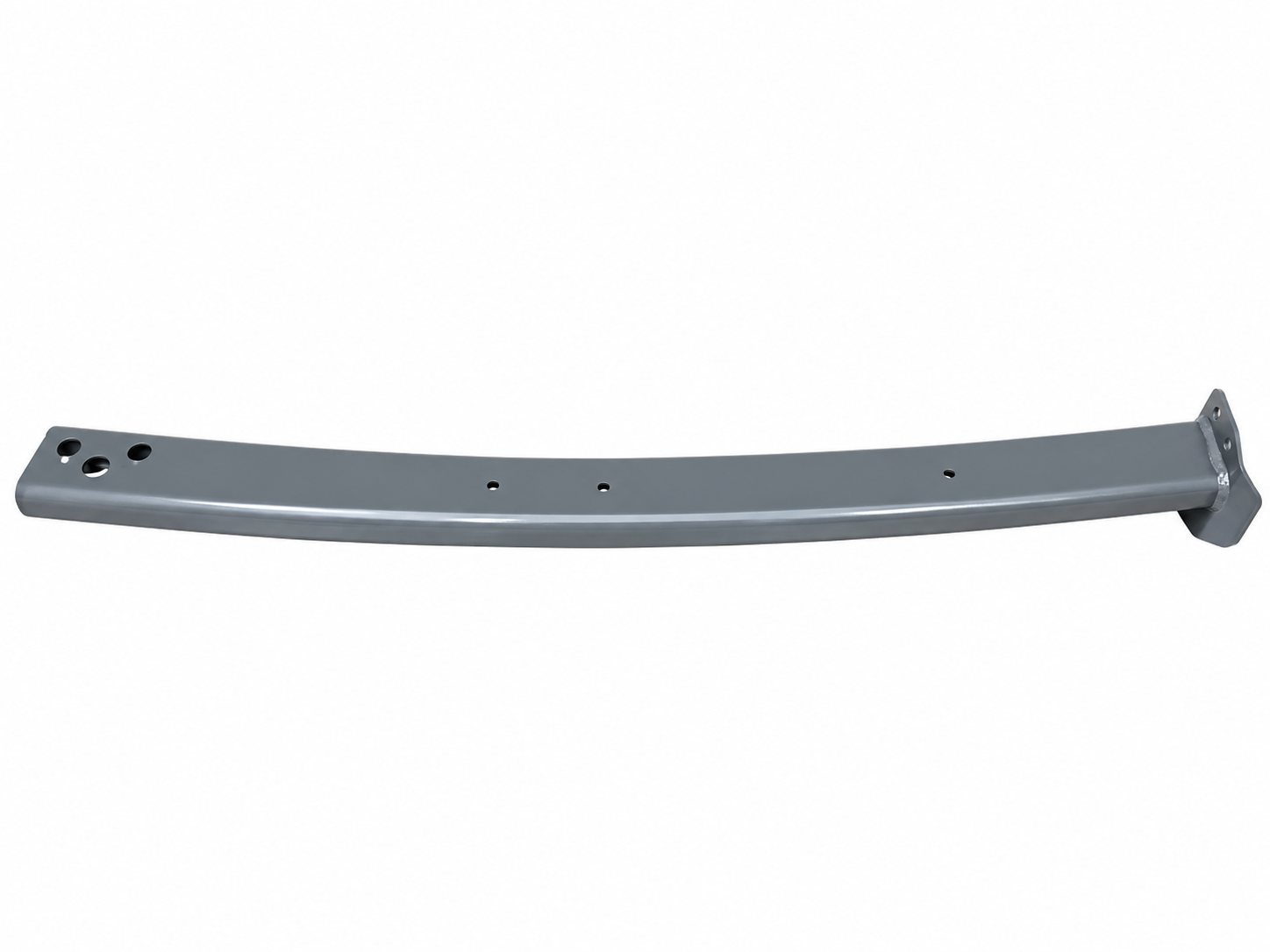

1000349465 718188 1000349465 AG1 Side Frame;;L;painting;;Iced Sliver;PL04 No Model Compatibility List $428.98 / Each

3
1000349466 718189 1000349466 AG2 Side Frame;;R;painting;;Iced Sliver;PL04 No Model Compatibility List $428.98 / Each

3
718190 1000349467 AJ1 Back Pad Frame;;;painting;;Iced Sliver;P No Model Compatibility List $148.18 / Each

3,4,5,6,12,13,14
718191 1000349468 AP1 Peadl Frame;;;painting;;Iced Sliver;PL04 No Model Compatibility List $0.00 / Each
Out Of Stock
3
718192 1000349469 AP2 PEDAL;;;painting;;Iced Sliver;PL04KM-G3; No Model Compatibility List $0.00 / Each
Out Of Stock
8,9
1000360630 719362 1000360630 1 Handle set;Semi-Assy;left;;;PL04;;Servic No Model Compatibility List $391.70 / Each

11
1000360631 719363 1000360631 2 Handle set;Semi-Assy;right;;;PL04;;Servi No Model Compatibility List $353.58 / Each

11
1000390624 722286 1000390624 P29 Bearing;Linear;LUCD 40 D-2LS;Diam.40;SKF No Model Compatibility List $470.58 / Each

8
1000393222 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.28 / Each

2
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
086683 727016 086683 G01 Cap;Tube;Elliptical;PL01 No Model Compatibility List $2.58 / Each

9,3
090781 727749 090781 B27 StopperRubberPL03 No Model Compatibility List $1.28 / Each

1
728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $101.60 / Each

1
093473 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $48.60 / Each

4,5,6,12,13,14
093707 728233 093707 B22 Axle;40x1283;SKF;GCR15;Market;PL04 No Model Compatibility List $948.32 / Each

8
093708 728234 093708 B23 Rubber Pad;PU;Black;PL04 No Model Compatibility List $11.78 / Each

4,5,6,12,13,14
093709 728235 093709 B24 Bearing Base;LSCS40-SKF;Market;PL04 No Model Compatibility List $202.72 / Each

8,3
093743 728237 093743 AG3 Storage SetExrta-Work;Cr;PL04 No Model Compatibility List $93.14 / Each

1
093751 728238 093751 AJ2 ADJ Frame;Back Pad;Exrta-Work;Elect ro p No Model Compatibility List $227.60 / Each

3,4,5,6,12,13,14
093775 728245 093775 AG3 Handlebar Set;FC16B;P8000; No Model Compatibility List $254.22 / Each

11
093776 728246 093776 P22 AxleStorage ;Middle45#,49x1500;PL04 No Model Compatibility List $273.16 / Each

8
093777 728247 093777 P19 Rubber Ring;Peadl;Black;PL04 No Model Compatibility List $23.34 / Each

4,5,6
093778 728248 093778 P21 Stopper Bock;Peadl;PL04 No Model Compatibility List $59.44 / Each

1
093789 728252 093789 - Warning decal for frame No Model Compatibility List $16.06 / Each

7,3
093792 728253 093792 Not Shown Hardware KIT;Semi-Assy;PL04 No Model Compatibility List $197.34 / Each

1
094567 728403 094567 G10 Rubber Ring;PU;Black;PL04 No Model Compatibility List $16.22 / Each

4,5,6
094731 728422 094731 E13 Gasker;36x3t;SPHC;PL04 No Model Compatibility List $1.28 / Each

1
094732 728423 094732 E14 Bushing, CU MS,PL04 No Model Compatibility List $6.48 / Each

8
729012 Order Kit 1 AE1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AE2 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AC1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729261 See Pad Matrix J06 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
View Drawing
