Matrix Commercial - G3-PL79P - 2008

Repair Parts for Matrix Commercial G3-PL79P G3PL77

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: G3-PL79P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
C 700308 000926-A C18 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
D 700450 001405-A D21 End Cover;60 No Model Compatibility List $1.66 / Each

9
M 700685 001791-AA M16 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
D 701159 004077-A2 D15 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
Z 701505 004539-AD Z08 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 701836 004855-AC D20 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
D 701968 005007-00 D23 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
Z 701981 005017-00 Z05 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
D 702102 005132-00 D22 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 702318 005990-E V02 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
D 702530 008522-C D14 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
Z 702531 008523-B Z06 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
D 702711 009356-B D19 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
D 702721 009371-E D18 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
D 704034 020123-AC D24 Screw;Hex Socket;Round;M12x1.75Px20L;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 704193 020465-AB Z02 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 704232 020699-A V05 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
C 706373 061531-AA C14 Leveler;Foot Pad;FW151 No Model Compatibility List $14.56 / Each

9,3,12,13,14
C 707073 1000090024 C28 Screw;PH;M10X1.5PX30L;;;;;;SP No Model Compatibility List $8.42 / Each

2
Z 708449 1000102865 Z03 Screw;Hex Socket;Round;M10x1.5Px70L;Cr P No Model Compatibility List $8.42 / Each

2
M 708591 1000103978 M01 CON Tube;weight lifting;Outer No Model Compatibility List $120.02 / Each

3,10
M 708592 1000103979 M02 CON Tube;weight lifting;Inner No Model Compatibility List $212.71 / Each

3,10
Z 708654 1000104681 Z19 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

2
C 708658 1000104685 C20 RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Z 708662 1000104691 Z04 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $3.64 / Each

2
Z 709008 1000108191 Z09 Screw;RND;M10x1.5Px75L;MT;HS;CST;CHM;BP No Model Compatibility List $9.10 / Each

2
V 709507 1000200848 V18 Logo Label;MATRIX;BLACK WORD/WHITE BASE; No Model Compatibility List $3.35 / Each

3,4,5,6
D 710215 1000207633 D12 Swivel Axle;20cm;PL01 No Model Compatibility List $76.96 / Each

8
718019 1000349186 1 Base Set;;left;Iced Sliver;PL09KM-G3;;Se No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718020 1000349187 2 Base Set;;right;Iced Sliver;PL09KM-G3;;S No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718021 1000349188 3 pedal arm set;;left;Iced Sliver;PL09KM-G No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
718022 1000349189 4 pedal arm set;;right;Iced Sliver;PL09KM- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
718193 1000349477 AG1 Stabilizer Welding Set;;;painting;;Iced No Model Compatibility List $0.00 / Each
Out Of Stock 		1
718194 1000349478 AG2 Connecting Set;;D;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock 		1

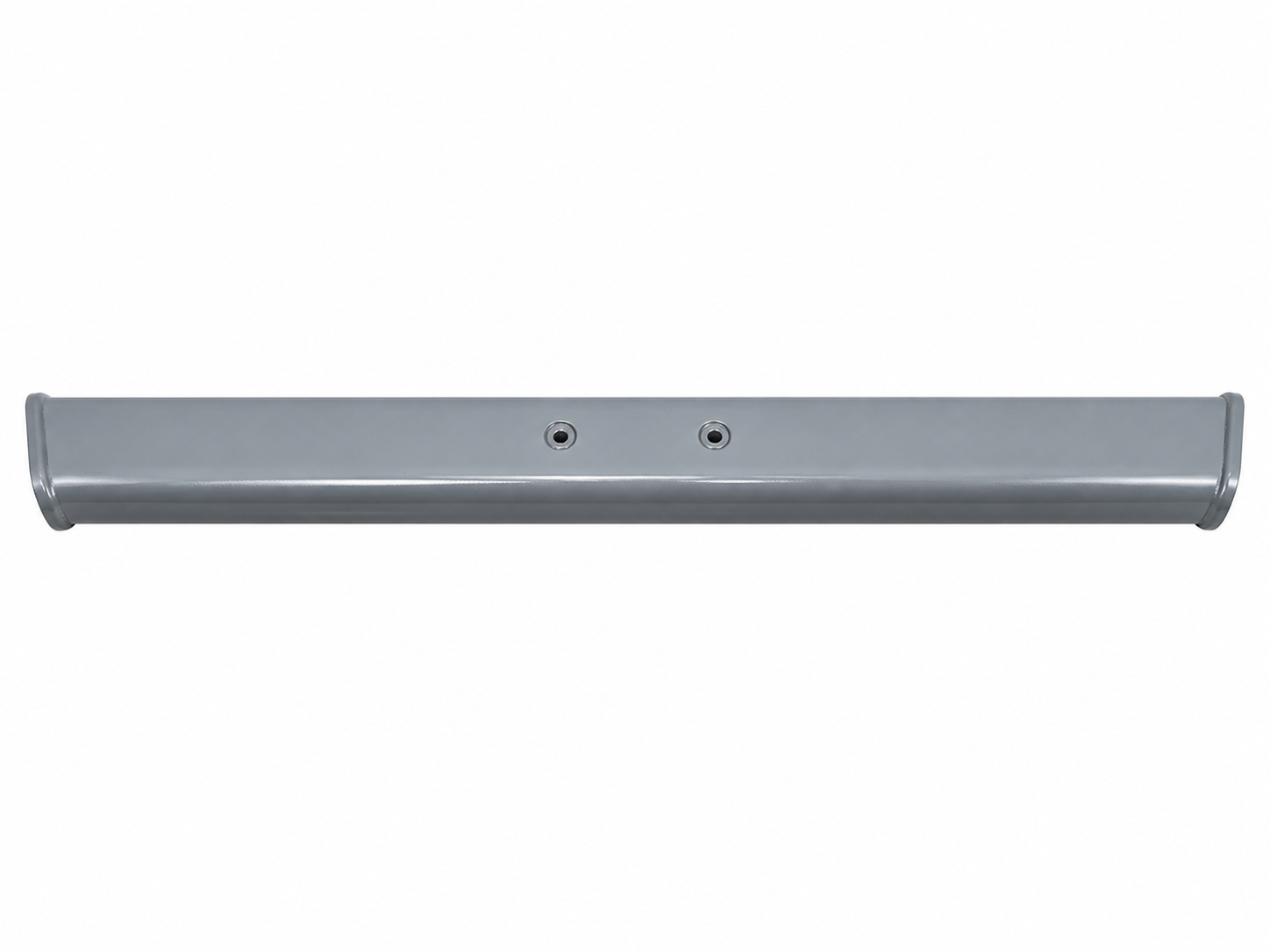

718195 1000349479 AG3 Connecting Set;;U;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

2
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Stopper;Pad;PL01 727015 086682 B09 Stopper;Pad;PL01 No Model Compatibility List $17.55 / Each

12,13,14
Cap;Tube;Elliptical;PL01 727016 086683 G01 Cap;Tube;Elliptical;PL01 No Model Compatibility List $3.35 / Each

9,3
728180 093469 AB2 Storage Horn;Extrawork;Cr;PL01 No Model Compatibility List $132.08 / Each

1
Buffer Pad;PU;Black;PL01 728181 093473 B16 Buffer Pad;PU;Black;PL01 No Model Compatibility List $63.18 / Each

4,5,6,12,13,14
Fixing Ring;Swivel Arm;PL01 728183 093488 D13 Fixing Ring;Swivel Arm;PL01 No Model Compatibility List $11.73 / Each

3
Foam;Grip;Up;PL09 728741 096434 D16 Foam;Grip;Up;PL09 No Model Compatibility List $18.77 / Each

11
Foam;Grip;Down;PL09 728742 096435 D17 Foam;Grip;Down;PL09 No Model Compatibility List $32.03 / Each

11
Label;Weight;PL09 728743 096452 V06 Label;Weight;PL09 No Model Compatibility List $3.15 / Each

3
Manual;Assembly Guide;PL09 728744 096459 Not Shown Manual;Assembly Guide;PL09 No Model Compatibility List $24.96 / Each

3
Hardware Kit;Semi-Assy;PL09 728745 096464 Not Shown Hardware Kit;Semi-Assy;PL09 No Model Compatibility List $139.36 / Each

1
729012 Order Kit 1 AC3 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AC4 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AD1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
