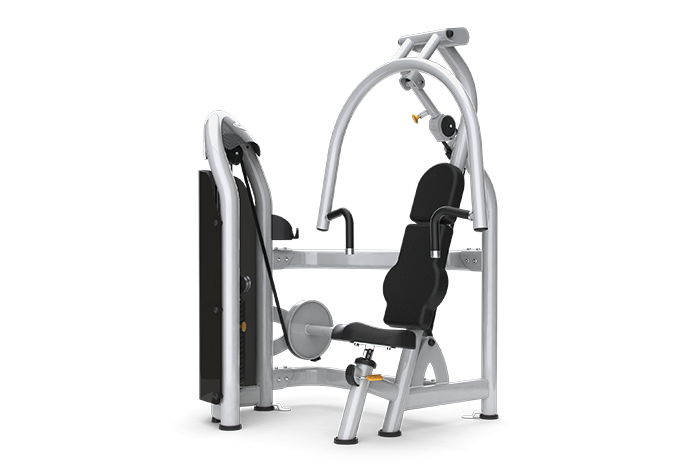

Matrix Commercial - G3-S10P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000509-E 700140 000509-E B22 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D C20 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000542-C 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000569-B 700168 000569-B D10 Foam Grip:30.4x5.0tx325L No Model Compatibility List $17.70 / Each

11
000791-B 700256 000791-B B24 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001405-A 700450 001405-A Q04 End Cover;60 No Model Compatibility List $1.28 / Each

9
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B H09 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001526-D 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004118-00 701183 004118-00 H12 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004356-00 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004720-AH 701694 004720-AH L09 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
004793-AD 701773 004793-AD H13 Screw;BH;M10X1.5PX15L;;HS;;CHM;;BP No Model Compatibility List $0.68 / Each

2
004943-00 701914 004943-00 F14 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004944-00 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
004945-00 701916 004945-00 D31 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005004-AE 701963 005004-AE C56 Washer;Spring;SW6 6.1x12.2x1.5t;Chromed No Model Compatibility List $1.42 / Each

7,2,12,13,14
005007-00 701968 005007-00 D17 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005017-00 701981 005017-00 G13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005040-00 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.42 / Each

2
005084-00 702056 005084-00 F18 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005130-00 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D16 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005330-00 702217 005330-00 C92 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006611-E 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $21.22 / Each

7,3
006651-B 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
008234-C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F03 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008523-B 702531 008523-B D32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009306-E 702682 009306-E C51 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $2.88 / Each

8,15
009308-B 702684 009308-B H16 Swivel Axle;Adjustment Sleeve;;SCM4;;Zn Plate;; No Model Compatibility List $11.80 / Each

8,3
009355-B 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $2.80 / Each

1
009372-E 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
009642-F 702773 009642-F K03 Bayonet;Weight Plate;17 Aperture No Model Compatibility List $40.18 / Each

3
013422-ZG2 702966 013422-ZG2 H15 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
014788-E 703464 014788-E H15 Metal Pin; Pull Pin No Model Compatibility List $28.06 / Each

3,12,13,14
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015943-AA 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
019153-A 703902 019153-A H17 Pull pin knob; Yellow No Model Compatibility List $5.22 / Each

12,13,14
020186-00 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.38 / Each

2
020304-AC 704137 020304-AC G11 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB G12 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020478-AC 704204 020478-AC H14 Washer;Flat;10.2X20.0X2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022363-A 704299 022363-A F07 Axle;Cam; SCM4;20X962L;GM02 No Model Compatibility List $43.30 / Each

8
022381-A 704307 022381-A D08 Axle;Swivel Arm;GM02 No Model Compatibility List $44.92 / Each

8,3
022394-B 704315 022394-B D18 Sleeve;SS41;Chrome Plate No Model Compatibility List $12.98 / Each

7,3,12,13,14
035711-A 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
055205-AB 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
064015-A 706633 064015-A Not Shown Hardware; No Model Compatibility List $24.40 / Each

1
1000090177 707084 1000090177 H17 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $7.00 / Each

12,13,14,11
1000098076 708035 1000098076 H11 Bearing;Ball;6200ZZ;30X10X9; No Model Compatibility List $6.38 / Each

8
1000099499 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.28 / Each

2
1000102860 708444 1000102860 F12 Screw;Hex Socket;Round;M5x0.8Px30L;Cr Pl No Model Compatibility List $0.54 / Each

2
1000102862 708446 1000102862 B26 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102866 708450 1000102866 F17 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102867 708451 1000102867 F20 Screw;Hex Socket;Round;M10x1.5Px100L;Cr No Model Compatibility List $9.96 / Each

2
1000102869 708453 1000102869 D22 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102893 708473 1000102893 B25 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102898 708478 1000102898 B27 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.16 / Each

2
1000102909 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102910 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102915 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000104683 708656 1000104683 B29 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000104684 708657 1000104684 B21 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $2.58 / Each

1
1000104704 708674 1000104704 F13 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $0.80 / Each

2
1000104708 708677 1000104708 C52 Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 No Model Compatibility List $0.46 / Each

2
1000104716 708682 1000104716 D30 Screw;BH;M12x1.75Px110L;HS;CHM;BP;G8.8 No Model Compatibility List $10.32 / Each

2
1000104723 708686 1000104723 C55 Washer;FLT;6.2x13.0x1.0t;CHM No Model Compatibility List $0.10 / Each

2
1000104726 708689 1000104726 D20 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $1.54 / Each

2
1000105038 708710 1000105038 D19 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $2.80 / Each

2,12,13,14
1000202479 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $7.94 / Each

9
1000202480 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $68.30 / Each

3
1000202481 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $6.00 / Each

9
1000202487 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $27.32 / Each

11
1000202489 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $5.24 / Each

9
1000202490 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $35.46 / Each

1
1000202491 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202492 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
709738 1000202498 Not Shown DOCUMENTATION;MANUAL;ASSEMBLY;-;-;GM02C; No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000202502 709739 1000202502 V02 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $3.78 / Each

12,13,14
1000204043 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.54 / Each

2
1000204414 709911 1000204414 V05 Direction Label;Seat Adjustment No Model Compatibility List $1.98 / Each

12,13,14
710418 1000210177 AJ2 SEAT SET;SA;-;GM02C;-;-; No Model Compatibility List $0.00 / Each
Out Of Stock
12,13,14
1000210966 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $127.60 / Each

9
1000211078 710573 1000211078 H08 Stopper Piece;Pedal Arm;-;SPHC;CHM;GM02K No Model Compatibility List $34.72 / Each

8,9,3
1000211079 710574 1000211079 H10 Ring;-;-;SPHC;CHM;GM02KM-G3; No Model Compatibility List $4.48 / Each

1
1000211112 710586 1000211112 H18 Stopper Piece;Pulley-;SPHC;CHM;GM02KM-G No Model Compatibility List $13.82 / Each

8
1000211403 710630 1000211403 AF4 Belt Pulley Set;SA;-;GM20C-KM;-;-; No Model Compatibility List $84.22 / Each

8,15
1000212618 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
1000222320 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.28 / Each

2
1000318300 714792 1000318300 AK1 Up Weight Plate Set-Exreawork;;;;;GM02C; No Model Compatibility List $148.18 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 7 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
718023 1000349190 1 Frame set;;;Iced Sliver;GM02C;;Service No Model Compatibility List $0.00 / Each
Out Of Stock
3
718024 1000349191 2 Base Set;;;Iced Sliver;GM02C;;Service No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000349192 718025 1000349192 3 Swivel arm set;;;Iced Sliver;GM02C;;Ser No Model Compatibility List $389.98 / Each

3
718026 1000349193 4 Cam Weldment;;;Iced Sliver;GM02C;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
3
718027 1000349194 5 Swivel Housing Set;;;Iced Sliver;GM02C;; No Model Compatibility List $0.00 / Each
Out Of Stock
1
718196 1000349485 C75 Cove support frame;;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock
3
718197 1000349486 AG1 CON Tube Set;;U;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
3
718198 1000349487 AG2 CON Tube Set;;D;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000362618 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $388.68 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
075604 725746 075604 Q12 Cover;Cam;GM02 No Model Compatibility List $2.26 / Each

9
078457 725938 078457 AH2 Adjustment Tube Set;SA;-;GM02C-KM;-;-; No Model Compatibility List $251.70 / Each

3
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
084241 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.30 / Each

2
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
085971 726909 085971 V01 Illustration Decal;GM02 No Model Compatibility List $27.80 / Each

7,3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
093501 728185 093501 V08 Warning sticker;small;GM40-KM No Model Compatibility List $1.28 / Each

1
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AC1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AD1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 D12 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729029 Order Kit 5 AH1 Console Base Set;Semi-Assy;TM658-2KM No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729032 Order Kit 7 Q02 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock
9,10
729261 See Pad Matrix J33 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
729647 ZMS4003259 Not Shown Decal, QR, G3-S10 Chest Press No Model Compatibility List $4.54 / Each

7,3
ZMS4005412 729798 ZMS4005412 F17 M10-1.50, 80mm, 10.9, Z BHSCS No Model Compatibility List $25.98 / Each

1
729799 ZMS4005413 H10 M10-1.5 Class 8 Hex Nut No Model Compatibility List $1.68 / Each

2
View Drawing
