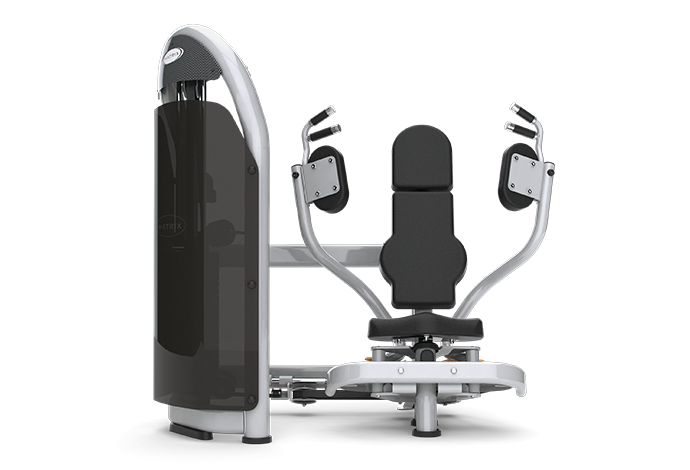

Matrix Commercial - G3-S12P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000509-E 700140 000509-E C27 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D C28 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000542-C 700162 000542-C B13 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000580-C 700169 000580-C D21 Foam Grip;25.4 x 5.0T x 84L Yes Model Compatibility List $3.44 / Each

11
000582-C 700171 000582-C D19 Foam Grip;25.4x5.0tx100L No Model Compatibility List $4.06 / Each

11
000791-B 700256 000791-B B18 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001402-A 700448 001402-A Q06 End Cap;Round No Model Compatibility List $1.38 / Each

9
001410-A 700454 001410-A Q09 End Cover;Elliptical;40x80 No Model Compatibility List $2.80 / Each

9
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001523-E 700519 001523-E F46 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001526-D 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
001528-B 700525 001528-B D31 Stopper Bolt;Pedal Arm;Rubber No Model Compatibility List $1.38 / Each

2,8,9,3
004077-A2 701159 004077-A2 D20 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004139-A 701192 004139-A F48 Bearing;Linear;SME20WW(THOMSON);;;DING X No Model Compatibility List $167.14 / Each

8
004356-00 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004479-00 701430 004479-00 F32 Screw;Round;Hex Socket;M8X1.25PX15L No Model Compatibility List $1.54 / Each

2
004482-AB 701436 004482-AB F22 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
004720-AH 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
004943-00 701914 004943-00 F26 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004975-00 701939 004975-00 B15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 D27 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 F30 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 C43 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005040-00 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.42 / Each

2
005084-00 702056 005084-00 F29 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005130-00 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D26 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005330-00 702217 005330-00 C92 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005351-00 702226 005351-00 F47 Clamp;Internal C-Shaped;R-32; No Model Compatibility List $1.38 / Each

4,5,6
005476-F 702284 005476-F D17 Twist Spring;Left;SWP;4.5x58.0x80.0Lx3 No Model Compatibility List $6.40 / Each

2
005477-F 702285 005477-F D18 Twist Spring;Right;SWP;4.5mm; No Model Compatibility List $6.40 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
006614-B 702386 006614-B V09 Decal;Angle Adjustic;Left;GM06 No Model Compatibility List $2.88 / Each

7,3
006615-B 702387 006615-B V10 Decal;Angle Adjustic;Right;MX-S12;GM06 No Model Compatibility List $2.88 / Each

7,3
006620-D 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $21.22 / Each

7,3
006650-B 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $2.42 / Each

7,3
008234-C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F20 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008522-C 702530 008522-C F21 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008523-B 702531 008523-B D36 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008548-C 702538 008548-C F18 Cam Cover;SUS304(electroplate);GM06-F18C No Model Compatibility List $105.92 / Each

9,3
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009279-G 702664 009279-G D16 Axle;Swivel Arm;SCM4;20X184L;GM06 No Model Compatibility List $12.46 / Each

8,3
009306-E 702682 009306-E C34 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $2.88 / Each

8,15
009324-H 702696 009324-H F19 Guide Rail;Slipping Sleeve;20X472L SUJ- No Model Compatibility List $52.02 / Each

9,3,12,13,14
009356-B 702711 009356-B D35 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009371-E 702721 009371-E D24 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
013422-ZG2 702966 013422-ZG2 D23 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
014784-G 703463 014784-G AF5 Pulley Set;GM06 No Model Compatibility List $81.82 / Each

8
014788-E 703464 014788-E D23 Metal Pin; Pull Pin No Model Compatibility List $28.06 / Each

3,12,13,14
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
703684 015804-A C40 Security Tube;Painting;GM06 No Model Compatibility List $84.78 / Each

3
015805-AA 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $19.46 / Each

3,4,5,6
015942-AA 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3
019151-AA 703901 019151-AA G09 Rubber Bumper;Weight Stack No Model Compatibility List $2.80 / Each

3,4,5,6
019153-A 703902 019153-A D22 Pull pin knob; Yellow No Model Compatibility List $5.22 / Each

12,13,14
020186-00 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.38 / Each

2
020304-AC 704137 020304-AC G11 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB C42 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
031189-C 705028 031189-C L06 ADJ plate;;;;;;SPC;;;;GM01 No Model Compatibility List $2.78 / Each

3
705037 032128-D L05 ADJ Rod;Incremental;SS41;GM01 No Model Compatibility List $5.66 / Each

3
035711-A 705079 035711-A F17 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
055205-AB 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
1000090177 707084 1000090177 D22 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $7.00 / Each

12,13,14,11
1000099499 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.28 / Each

2
1000102860 708444 1000102860 F25 Screw;Hex Socket;Round;M5x0.8Px30L;Cr Pl No Model Compatibility List $0.54 / Each

2
1000102862 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102866 708450 1000102866 F24 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102869 708453 1000102869 D30 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102893 708473 1000102893 B17 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102898 708478 1000102898 B31 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.16 / Each

2
1000102909 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102910 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102915 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000104681 708654 1000104681 D33 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.36 / Each

2
1000104683 708656 1000104683 B22 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000104698 708669 1000104698 F45 Screw;RND;M10x1.5Px95L;HS;G8.8;CHM;BP No Model Compatibility List $6.18 / Each

2
1000104708 708677 1000104708 C35 Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 No Model Compatibility List $0.46 / Each

2
1000104712 708679 1000104712 C44 Screw;BH;M10x1.5Px60L;HS;CHM;BP;G8.8 No Model Compatibility List $5.10 / Each

2
1000202479 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $7.94 / Each

9
1000202480 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $68.30 / Each

3
1000202481 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $6.00 / Each

9
1000202487 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $27.32 / Each

11
1000202489 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $5.24 / Each

9
1000202490 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $35.46 / Each

1
1000202491 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202492 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202502 709739 1000202502 V02 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $3.78 / Each

12,13,14
709760 1000202651 Not Shown Manual;Assembly;;;;GM06C-KM No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000202705 709762 1000202705 Not Shown Hardware Set;;;GM06C-KM;SMG; No Model Compatibility List $141.82 / Each

1
1000204043 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.54 / Each

2
1000204414 709911 1000204414 V05 Direction Label;Seat Adjustment No Model Compatibility List $1.98 / Each

12,13,14
1000206588 710065 1000206588 F27 Plastic Block;STOPPER;;;;;;; No Model Compatibility List $2.50 / Each

9
1000210178 710419 1000210178 AJ2 SEAT SET;SA;-;GM11C;-;-; No Model Compatibility List $185.88 / Each

12,13,14
1000210966 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $127.60 / Each

9
1000211403 710630 1000211403 AF4 Belt Pulley Set;SA;-;GM20C-KM;-;-; No Model Compatibility List $84.22 / Each

8,15
1000212618 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
1000222320 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.28 / Each

2
1000318301 714793 1000318301 AK1 Up Weight Plate Set-Exreawork;;;;;GM03; No Model Compatibility List $174.18 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 9 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
718028 1000349195 1 Frame set;;;Iced Sliver;GM06C-KM;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
3
718029 1000349196 3 pedal arm set;;left;Iced Sliver;GM06C-KM No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
718030 1000349197 2 pedal arm set;;right;Iced Sliver;GM06C-K No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
718031 1000349198 4 CAM SET;;left;Iced Sliver;GM06C-KM;;Serv No Model Compatibility List $0.00 / Each
Out Of Stock
1
718032 1000349199 5 CAM SET;;right;Iced Sliver;GM06C-KM;;Ser No Model Compatibility List $0.00 / Each
Out Of Stock
1
718033 1000349200 6 Sliding Pulley Frame;;;Iced Sliver;GM06C No Model Compatibility List $0.00 / Each
Out Of Stock
8,3
1000349494 718199 1000349494 AC1 base set;;;painting;;Iced Sliver;GM06C;S No Model Compatibility List $513.48 / Each

3
718200 1000349495 AG1 CON Tube Set;;U;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
3
718201 1000349496 AG2 CON Tube Set;;D;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock
3
1000362618 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $388.68 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
070970 725411 070970 Z01 Screw;SH;M10X1.5PX80L;;HS;;CHM;; No Model Compatibility List $86.38 / Each

2
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
084241 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.30 / Each

2
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
085973 726910 085973 V01 Illustration Decal;ENG;GM06 No Model Compatibility List $25.74 / Each

7,3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AD1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AD2 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 AF1 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729029 Order Kit 5 AF2 Console Base Set;Semi-Assy;TM658-2KM No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729031 Order Kit 6 AF3 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729034 Order Kit 9 Q02 Arm Rest set;;LU;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock
3
729261 See Pad Matrix J07 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
729655 ZMS4003267 Not Shown Decal, QR, G3-S12 Pec Fly No Model Compatibility List $4.54 / Each

7,3
View Drawing
