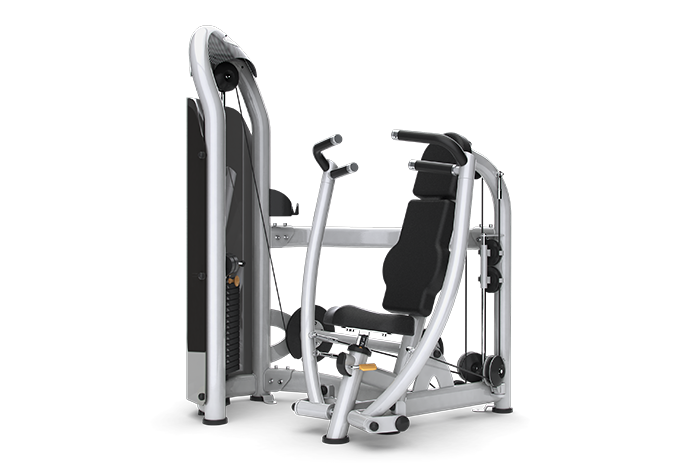

Matrix Commercial - G3-S13P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000509-E 700140 000509-E B22 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D C20 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000542-C 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000791-B 700256 000791-B B47 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001405-A 700450 001405-A Q07 End Cover;60 No Model Compatibility List $1.28 / Each

9
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001526-D 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004077-A2 701159 004077-A2 D42 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004356-00 701288 004356-00 Z02 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004529-AD 701484 004529-AD Z28 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $2.84 / Each

2
004720-AH 701694 004720-AH Z21 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
004855-AC 701836 004855-AC D20 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004943-00 701914 004943-00 Z18 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004975-00 701939 004975-00 B15 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 Z14 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 Z26 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 Z08 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005040-00 702000 005040-00 Z22 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.42 / Each

2
005084-00 702056 005084-00 Z12 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
702077 005109-A Z33 WASHER;FLT;Diam.6.2XDiam.25.0X1.5T;;; No Model Compatibility List $1.28 / Each

2
005130-00 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 Z13 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005138-AB 702110 005138-AB Z29 Washer;Flat;10.2x25x1.5T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A Z20 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005330-00 702217 005330-00 C92 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006611-E 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $21.22 / Each

7,3
006651-B 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
008234-C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008523-B 702531 008523-B Z23 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009355-B 702710 009355-B D21 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $2.80 / Each

1
009372-E 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015943-AA 703738 015943-AA K26 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
020186-00 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.38 / Each

2
020304-AC 704137 020304-AC Z15 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB Z07 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022363-A 704299 022363-A F23 Axle;Cam; SCM4;20X962L;GM02 No Model Compatibility List $43.30 / Each

8
022394-B 704315 022394-B D18 Sleeve;SS41;Chrome Plate No Model Compatibility List $12.98 / Each

7,3,12,13,14
049249-00 705459 049249-00 Z24 Screw;SH;M10X1.5PX65L;;HS;;CHM;; No Model Compatibility List $2.58 / Each

2
055205-AB 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
063841-00 706619 063841-00 Z34 Nut;HAC;M10X1.5P(Yrw8L);SS41;CHM;; No Model Compatibility List $1.38 / Each

2,4,5,6
1000099499 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.28 / Each

2
1000102862 708446 1000102862 Z01 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102869 708453 1000102869 Z09 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 Z05 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102893 708473 1000102893 C43 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102909 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102910 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102915 708489 1000102915 Z03 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000104683 708656 1000104683 B23 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
708667 1000104696 B33 Screw;HH;M5x0.8Px15L;CHM;BP;8.8Class No Model Compatibility List $0.46 / Each

2
1000104705 708675 1000104705 K27 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.40 / Each

2
1000104726 708689 1000104726 Z19 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $1.54 / Each

2
1000105038 708710 1000105038 H31 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $2.80 / Each

2,12,13,14
709702 1000202104 Not Shown MANUAL SET;;;GM29C-KM;;; No Model Compatibility List $11.68 / Each

1
1000202479 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $7.94 / Each

9
1000202480 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $68.30 / Each

3
1000202481 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $6.00 / Each

9
1000202487 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $27.32 / Each

11
1000202489 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $5.24 / Each

9
1000202490 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $35.46 / Each

1
1000202491 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202492 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202502 709739 1000202502 V02 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $3.78 / Each

12,13,14
1000202648 709759 1000202648 AJ2 Seat Tube Set;SA;-;GM11C;-;-; No Model Compatibility List $231.96 / Each

3,12,13,14
1000204043 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.54 / Each

2
1000204414 709911 1000204414 V05 Direction Label;Seat Adjustment No Model Compatibility List $1.98 / Each

12,13,14
1000210213 710432 1000210213 J33 BACK PAD;-;PU;BLACK;-; No Model Compatibility List $87.04 / Each

4,5,6,12,13,14
1000210967 710559 1000210967 K09 GUIDE ROD;-;GR;WP;GM03KM-G3; No Model Compatibility List $163.02 / Each

3
1000212388 710685 1000212388 F08 Fixing Plate;Cable Head-;45#;BED;GM40; No Model Compatibility List $16.56 / Each

3,4,5,6
1000212618 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
1000222320 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.28 / Each

2
1000229173 712494 1000229173 Z31 Screw;SH;M10x x35L;-;HS;-;CHM;-;G12.9; No Model Compatibility List $2.32 / Each

2
712986 1000232051 Z30 Nut;High Acorn Cap;M12x1.5P;Carbon Steel No Model Compatibility List $1.68 / Each

2,9,4,5,6
1000233232 713136 1000233232 F18 Steel Rope-Extrawork;;;Press Rope Hand;2 No Model Compatibility List $97.48 / Each

1
1000233233 713137 1000233233 F19 Steel Rope-Extrawork;;;Press Rope Hand;2 No Model Compatibility List $113.08 / Each

1
1000233234 713138 1000233234 F22 Steel Rope-Extrawork;;;Press Rope Hand;2 No Model Compatibility List $103.98 / Each

1
1000233235 713139 1000233235 Z10 Bearing;Rod End;PHS;M12X1.75PX60L;Siao Y No Model Compatibility List $20.78 / Each

8,9,3
1000233300 713156 1000233300 F01 Cam;;;POM;;;GM27C; No Model Compatibility List $233.98 / Each

1
1000233302 713158 1000233302 F02 Cam;;mid;POM;;;GM29C; No Model Compatibility List $105.28 / Each

1
1000318296 714788 1000318296 AK1 Up Weight Plate Set-Exreawork;;;;;GM29C; No Model Compatibility List $155.98 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 5 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
1000345425 717480 1000345425 K12 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $14.02 / Each

7,3,12,13,14
718034 1000349201 1 Frame set;;;Iced Sliver;GM29C;;Service No Model Compatibility List $1.00 / Each

3
718035 1000349202 2 Swivel arm set;;left;Iced Sliver;GM29C; No Model Compatibility List $363.98 / Each

3
718036 1000349203 3 Swivel arm set;;right;Iced Sliver;GM29C No Model Compatibility List $272.98 / Each

3
718037 1000349204 4 CAM SET;;;Iced Sliver;GM29C;;Service No Model Compatibility List $714.98 / Each

1
1000349501 718202 1000349501 AC1 base set;;;painting;;Iced Sliver;GM29C;S No Model Compatibility List $649.98 / Each

3
718203 1000349502 AG1 CON Tube Set;;U;painting;;Iced Sliver;GM No Model Compatibility List $129.98 / Each

3
718204 1000349503 AG2 CON Tube Set;;D;painting;;Iced Sliver;GM No Model Compatibility List $71.48 / Each

3
718205 1000349504 AF2 Pulley Fixing Set;;;painting;;Iced Slive No Model Compatibility List $27.28 / Each

8
718206 1000349505 F07 Pulley Fixing Plate;;;painting;;Iced Sli No Model Compatibility List $38.98 / Each

8,3
718207 1000349506 F16 Fixing Flange;;;painting;;Iced Sliver;GM No Model Compatibility List $44.18 / Each

1
1000352544 718649 1000352544 F25 Pulley;;;;;No sleeve;GM29C; No Model Compatibility List $14.28 / Each

8,3
1000352705 718654 1000352705 Z35 Stopper Sleeve;Pulley;;45#;White Zinc;GM No Model Compatibility List $4.54 / Each

8,3
1000362619 719573 1000362619 Q01 Cover set;Semi-Assy;;Arcylic;;GM03;;incl No Model Compatibility List $484.88 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
100043 724942 100043 Z17 Screw;Hex;M12X1.75PX25L;Cr No Model Compatibility List $2.88 / Each

2
073573 725584 073573 F21 Pulley; 115mm No Model Compatibility List $32.44 / Each

8
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
089339 727450 089339 V22 Illustration Decal;English;;GM29 No Model Compatibility List $24.10 / Each

7,3
089340 727451 089340 D10 Foam;Grip;Up;GM29 No Model Compatibility List $13.10 / Each

11
089341 727452 089341 D45 Label;Fixing Bock;GM29 No Model Compatibility List $17.86 / Each

1
089356 727453 089356 D11 Foam;Grip;Down;GM29 No Model Compatibility List $8.50 / Each

11
089358 727454 089358 Q03 Cover;Pulley;GM27 No Model Compatibility List $3.28 / Each

8,9
727513 089689 Z25 Screw;Hex; Hex Socket;Round DT;10XM6X36 No Model Compatibility List $3.82 / Each

2
089848 727542 089848 P12 Power Switch Set;400L(KST FLDNY2-250); No Model Compatibility List $19.48 / Each

4,5,6
090986 727791 090986 22 E-PORT Fix Plate Set;R5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
3
090996 727792 090996 F04 Guide Rod;Pulley ;GM29 No Model Compatibility List $44.46 / Each

8,3
091000 727794 091000 H01 Stopper Bock;Rubber;GM29 No Model Compatibility List $2.88 / Each

1
096205 728724 096205 Z32 Sleeve;20#;GM29 No Model Compatibility List $3.06 / Each

3
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AD2 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AD1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 AF1 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729034 Order Kit 9 Q02 Arm Rest set;;LU;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock
3
729261 See Pad Matrix J32 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
ZMS4003257 729645 ZMS4003257 Not Shown Decal, QR, G3-S13 Conv Chest Press No Model Compatibility List $4.90 / Each

7,3
View Drawing
