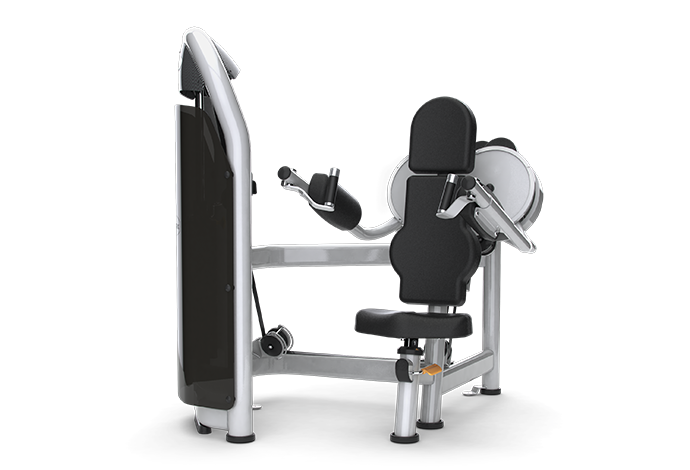

Matrix Commercial - G3-S21P - 2008

Repair Parts for Matrix Commercial G3-S21P G3GM12,GM12C_1,GM12C_2,GM12C_3

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S21P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 700128 000477-B D50 Cover;Axle;Rubber;GM02 No Model Compatibility List $1.66 / Each

8,9
B 700140 000509-E B15 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C30 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B14 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
D 700173 000584-B D24 Foam Grip;24x5.0tx98L; No Model Compatibility List $2.44 / Each

11
B 700256 000791-B B19 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q07 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
C 700518 001522-B C39 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
D 700549 001586-C D35 Sleeve;Stopper;PVC;BL;GM12 No Model Compatibility List $1.33 / Each

3
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
D 701183 004118-00 D25 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
F 701192 004139-A F51 Bearing;Linear;SME20WW(THOMSON);;;DING X No Model Compatibility List $217.28 / Each

8
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
L 701694 004720-AH L09 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
701764 004786-00 D30 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
F 701914 004943-00 F09 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 701939 004975-00 B16 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701968 005007-00 D34 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
F 701980 005016-00 F18 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C38 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
F 702056 005084-00 F17 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
D 702102 005132-00 D33 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
C 702217 005330-00 C92 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $3.15 / Each

7,3
C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F07 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
G 702531 008523-B G14 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
D 702693 009320-BB D23 Weight-Increase Plate;Balance;;;;Paint;; PAINTING No Model Compatibility List $77.66 / Each

3
D 702706 009347-B D36 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $9.10 / Each

8,3
F 702707 009350-J F10 Guide Rail;SUJ-2;GM12 No Model Compatibility List $45.73 / Each

9
D 702711 009356-B D39 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
D 702715 009359-A D26 Washer;Grip;SS41 No Model Compatibility List $4.00 / Each

2,11
D 702721 009371-E D27 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
A 703461 014782-F AF5 Pulley Set;GM12 No Model Compatibility List $79.09 / Each

8
A 703463 014784-G AF6 Pulley Set;GM06 No Model Compatibility List $106.37 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $25.30 / Each

3,4,5,6
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

8,3
C 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

2
Z 704137 020304-AC Z01 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
C 704193 020465-AB C37 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
D 704308 022382-A D22 Axle;Swivel Arm;20X157L SCM-21;GM12 No Model Compatibility List $25.04 / Each

8,3
F 704325 022411-B F46 Axle;Slip-Stopper;SS41;10X59L;GM06 No Model Compatibility List $3.74 / Each

8
F 705079 035711-A F08 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
C 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
N 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
C 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
B 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
F 708450 1000102866 F11 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
D 708453 1000102869 D31 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
L 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
C 708473 1000102893 C33 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
B 708478 1000102898 B33 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
C 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

2
K 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
F 708652 1000104677 F52 Circlip;Internal C Type;R-32;BAN No Model Compatibility List $0.60 / Each

2
B 708656 1000104683 B23 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
F 708668 1000104697 F30 Screw;RND;M10x1.5Px90L;HS;G8.8;CHM;BP No Model Compatibility List $3.98 / Each

2
F 708669 1000104698 F45 Screw;RND;M10x1.5Px95L;HS;G8.8;CHM;BP No Model Compatibility List $8.03 / Each

2
F 708674 1000104704 F12 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
F 708677 1000104708 F47 Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 No Model Compatibility List $0.60 / Each

2
C 708686 1000104723 C40 Washer;FLT;6.2x13.0x1.0t;CHM No Model Compatibility List $0.13 / Each

2
C 708688 1000104725 C41 Washer;Spring;6.1x10.0x1.2t;CHM No Model Compatibility List $0.65 / Each

2
H 708689 1000104726 H22 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
D 708710 1000105038 D45 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
A 709719 1000202368 AJ2 Seat Tube Set;SA;-;GM12C;-;-; No Model Compatibility List $294.06 / Each

3,12,13,14
V 709720 1000202371 V02 Direction Label;Seat Adjustment;;;;GM12C No Model Compatibility List $7.70 / Each

12,13,14
C 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
C 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
C 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
C 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $35.52 / Each

11
C 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $6.81 / Each

9
C 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $46.10 / Each

1
C 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
C 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
709758 1000202636 Not Shown Manual set;SA;;GM12C-KM;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
709810 1000203432 Not Shown HARDWARE SET;;;GM12C-KM;SMG; No Model Compatibility List $168.97 / Each

1
C 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.70 / Each

2
V 709911 1000204414 V05 Direction Label;Seat Adjustment No Model Compatibility List $2.57 / Each

12,13,14
K 710561 1000210969 K09 GUIDE ROD;-;GR;WP;GM12KM-G3; No Model Compatibility List $159.72 / Each

3
A 710630 1000211403 AF4 Belt Pulley Set;SA;-;GM20C-KM;-;-; No Model Compatibility List $109.49 / Each

8,15
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
C 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
A 714793 1000318301 AK1 Up Weight Plate Set-Exreawork;;;;;GM03; No Model Compatibility List $226.43 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
9 716649 1000338414 9 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718041 1000349208 1 Frame set;;;Iced Sliver;GM12C;;Service No Model Compatibility List $1.30 / Each

3
718042 1000349209 2 pedal arm set;;left;Iced Sliver;GM12C;;S No Model Compatibility List $557.67 / Each

8,9,3
718043 1000349210 3 pedal arm set;;right;Iced Sliver;GM12C;; No Model Compatibility List $557.67 / Each

8,9,3
4 718044 1000349211 4 Handle Set;;;Iced Sliver;GM12C;;Service No Model Compatibility List $118.27 / Each

11
718211 1000349517 AC1 base set;;;painting;;Iced Sliver;GM12C;S No Model Compatibility List $1.30 / Each

3
718212 1000349518 AF1 Movable Pulley Set;;;painting;;Iced Sliv No Model Compatibility List $0.00 / Each
Out Of Stock 		8
718213 1000349519 AG1 CON Tube Set;;U;painting;;Iced Sliver;GM No Model Compatibility List $270.37 / Each

3
718214 1000349520 AG2 CON Tube Set;;D;painting;;Iced Sliver;GM No Model Compatibility List $304.17 / Each

3
Q 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $505.28 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
N 722491 1000392912 Not Shown Support set;Semi-Assy;;Black Matte;;;GM1 No Model Compatibility List $6.73 / Each

3,4,5,6
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $2.00 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
Illustration Decal;ENG;GM12 726915 085979 V01 Illustration Decal;ENG;GM12 No Model Compatibility List $33.46 / Each

7,3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Cover;Cam;L;GM12-G3 727205 087742 C01 Cover;Cam;L;GM12-G3 No Model Compatibility List $20.98 / Each

9
Cover;Cam;R;GM12-G3 727206 087743 C02 Cover;Cam;R;GM12-G3 No Model Compatibility List $20.98 / Each

9
Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP 727227 087955 B41 Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP No Model Compatibility List $1.14 / Each

2
Belt;Flat;;2920MM;GM12;MECTROL 727274 088248 F05 Belt;Flat;;2920MM;GM12;MECTROL No Model Compatibility List $168.97 / Each

15
Belt;Flat;;1680MM;GM12;MECTROL 727275 088249 F08 Belt;Flat;;1680MM;GM12;MECTROL No Model Compatibility List $101.37 / Each

15
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
729024 Order Kit 2 AD1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729025 Order Kit 2 or 3 D21 BEARING;BALL;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729027 Order Kit 3 AD2 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729034 Order Kit 9 Q02 Arm Rest set;;LU;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J33 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
N 729656 ZMS4003268 Not Shown Decal, QR, G3-S21 Lateral Raise No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
