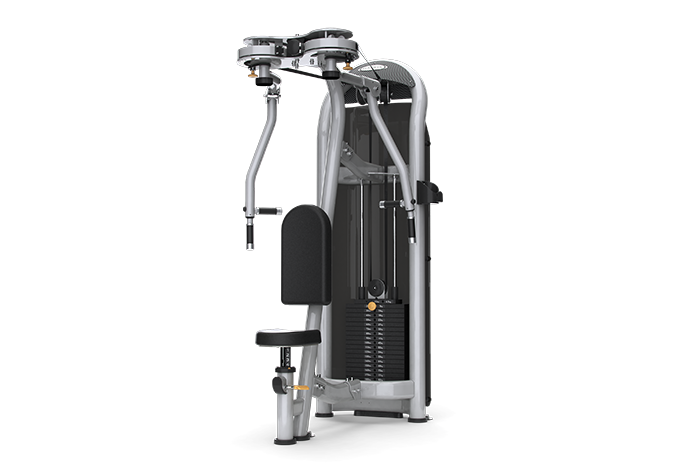

Matrix Commercial - G3-S22P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000509-E 700140 000509-E B19 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000542-C 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000589-C 700179 000589-C D19 Foam Grip;30.4x5.0tx105L; No Model Compatibility List $8.34 / Each

11
000590-C 700180 000590-C D20 Foam Grip;30.4x5.0x110L No Model Compatibility List $8.34 / Each

11
000791-B 700256 000791-B B17 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001508-E 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B F09 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001523-E 700519 001523-E F22 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1

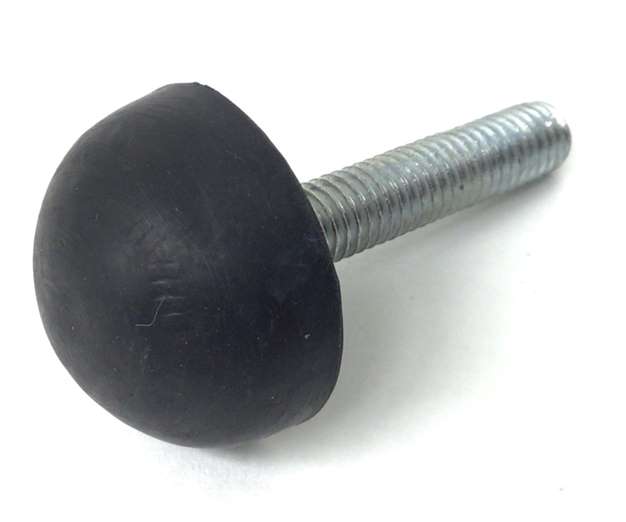

001526-D 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
001528-B 700525 001528-B D31 Stopper Bolt;Pedal Arm;Rubber No Model Compatibility List $1.38 / Each

2,8,9,3
004077-A2 701159 004077-A2 F15 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004356-00 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004482-AB 701436 004482-AB F14 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
004531-00 701488 004531-00 C96 Screw;Hex Socket;Round;M5X0.8PX25L;Chromed No Model Compatibility List $0.16 / Each

7,2,12,13,14
004555-AB 701522 004555-AB C33 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004750-00 701727 004750-00 K17 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
701764 004786-00 C29 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
004943-00 701914 004943-00 F19 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
005007-00 701968 005007-00 D27 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 F21 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 C31 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005084-00 702056 005084-00 F20 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005130-00 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D26 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005145-AC 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A B33 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005330-00 702217 005330-00 C92 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006611-E 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $21.22 / Each

7,3
006622-D 702394 006622-D V06 Decal;Angle Adjustic;Left;MX-S22;GM15 No Model Compatibility List $3.20 / Each

7,3
006623-D 702395 006623-D V07 Decal;Angle Adjustic;Right;MX-S22;GM15 No Model Compatibility List $2.96 / Each

7,3
006651-B 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
006656-A 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.28 / Each

7,3
008234-C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F13 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008522-C 702530 008522-C L12 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008523-B 702531 008523-B C32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008550-C 702540 008550-C F11 Cover;Cam;SUS304;;Plate;;GM15 No Model Compatibility List $178.16 / Each

9,3
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
008968-B 702606 008968-B D17 Sleeve;Inner Axle Sleeve No Model Compatibility List $6.32 / Each

8,3
009314-C 702689 009314-C D23 Swivel Axle;S45C;GM15B No Model Compatibility List $37.48 / Each

8
009355-B 702710 009355-B D35 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $2.80 / Each

1
009372-E 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
009641-F 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $35.46 / Each

3
013420-ZG2-2 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $56.86 / Each

9
013422-ZG2 702966 013422-ZG2 D21 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015943-AA 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
020186-00 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.38 / Each

2
020465-AB 704193 020465-AB C20 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
025755-AA 704895 025755-AA D24 Washer;Swivel Axle;Chromed No Model Compatibility List $15.52 / Each

7,2,8,12,13,14
035711-A 705079 035711-A F08 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
055205-AB 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
064015-A 706633 064015-A Not Shown Hardware; No Model Compatibility List $24.40 / Each

1
1000093615 707605 1000093615 AG2 Connecting Frame Set;Lower No Model Compatibility List $468.32 / Each

3
1000093670 707609 1000093670 AC2 Cam Frame Plate;Upper;Welding;GM15B No Model Compatibility List $407.70 / Each

3
1000099499 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.28 / Each

2
1000102862 708446 1000102862 B18 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102866 708450 1000102866 F17 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102869 708453 1000102869 D25 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102893 708473 1000102893 B21 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102898 708478 1000102898 B34 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.16 / Each

2
1000102909 708483 1000102909 B28 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102910 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102912 708486 1000102912 K15 Circlip;External C Type;S-30;BED No Model Compatibility List $1.54 / Each

2
1000102915 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000103315 708552 1000103315 C19 Cam Frame Plate;Lower;Painting;GM15B No Model Compatibility List $223.36 / Each

3
1000104683 708656 1000104683 B24 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000104684 708657 1000104684 B15 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $2.58 / Each

1
1000104695 708666 1000104695 F30 Screw;RND;M10x1.5Px85L;HS;G8.8;CHM;BP No Model Compatibility List $1.98 / Each

2
1000104704 708674 1000104704 F18 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $0.80 / Each

2
1000104727 708690 1000104727 Z20 Washer;WW;26.0x35.0x0.3t;65Mn;BAN No Model Compatibility List $0.50 / Each

2
1000105039 708711 1000105039 K16 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $2.72 / Each

2,12,13,14
1000202479 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $7.94 / Each

9
1000202480 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $68.30 / Each

3
1000202481 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $6.00 / Each

9
1000202487 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $27.32 / Each

11
1000202489 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $5.24 / Each

9
1000202490 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $35.46 / Each

1
1000202491 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202492 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202502 709739 1000202502 V02 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $3.78 / Each

12,13,14
1000204043 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.54 / Each

2
1000204514 709915 1000204514 AL1 Increment Weight Support Base Set-SA;; No Model Compatibility List $51.98 / Each

3
1000204515 709916 1000204515 AL2 Adjust set;SA;U;GM10KM-G3;;; No Model Compatibility List $51.98 / Each

1
1000210966 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $127.60 / Each

9
710600 1000211200 AC1 Seat Frame Set;SA;-;GM15C-KM;-;-; No Model Compatibility List $1.00 / Each

3,12,13,14
710601 1000211201 AJ1 SEAT SET;SA;-;GM15C;-;-; No Model Compatibility List $276.28 / Each

12,13,14
1000211403 710630 1000211403 AF3 Belt Pulley Set;SA;-;GM20C-KM;-;-; No Model Compatibility List $84.22 / Each

8,15
1000231571 712933 1000231571 AK4 Top Weight Plate Set;Painting;GM15B No Model Compatibility List $77.98 / Each

3
1000232600 713028 1000232600 V20 Warning Label;-;-;-;PC;-;- No Model Compatibility List $5.60 / Each

1
719574 1000362622 Q01 Cover set;Semi-Assy;back;Arcylic;;GM15;; No Model Compatibility List $319.98 / Each

9,4,5,6
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
1000372773 720433 1000372773 5 Pedal Arm set;Semi-Assy;right down;;;GM1 No Model Compatibility List $92.28 / Each

8,9,3
1000384824 721628 1000384824 D22 Axle, central;Swivel Arm;;45#;White Zinc No Model Compatibility List $14.02 / Each

8,3
1000389176 722219 1000389176 2 pedal arm set;;left up;Polarized Titaniu No Model Compatibility List $116.98 / Each

8,9,3
1000389358 722226 1000389358 3 pedal arm set;;right up;Polarized Titani No Model Compatibility List $116.98 / Each

8,9,3
1000402068 722985 1000402068 4 Pedal Arm set;Semi-Assy;left down;Polari No Model Compatibility List $92.28 / Each

8,9,3
071337 725444 071337 B18 Cap;Insert Nut;ABS;MS151-KM No Model Compatibility List $0.24 / Each

2,9
080209 726144 080209 V01 Illustration Decal;ENG;GM15B No Model Compatibility List $25.74 / Each

7,3
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
084241 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.30 / Each

2
727221 087865 6 Cam Set;Left No Model Compatibility List $465.90 / Each

1
087866 727222 087866 7 Cam Set;Right No Model Compatibility List $465.90 / Each

1
728764 096889 1 Main Frame Set No Model Compatibility List $0.00 / Each
Out Of Stock
3
729118 Part of Kit 1 AB1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729138 Part of Kit 2 AD1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
7
729152 Part of Kit 3 AD2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729165 Part of Kit 4 AD3 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
8,9,3
729172 Part of Kit 5 AD4 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729191 Part of Kit 6 AF1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3
729194 Part of Kit 7 AF2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
3,10
729261 See Pad Matrix J82 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
ZMS4003263 729651 ZMS4003263 Not Shown Decal, QR, G3-S22 Rear Delt/Fly No Model Compatibility List $4.54 / Each

7,3
View Drawing
