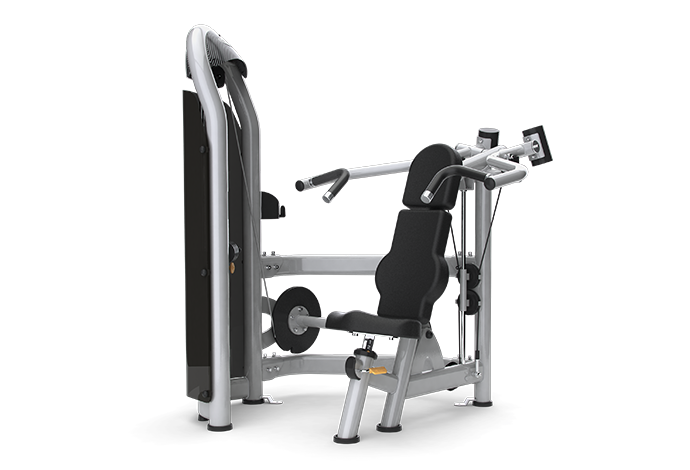

Matrix Commercial - G3-S23P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000509-E 700140 000509-E B22 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D C42 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000542-C 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000619-A 700197 000619-A D08 Foam Grip;31.8x5.0tx353L No Model Compatibility List $6.58 / Each

11
000791-B 700256 000791-B B47 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001402-A 700448 001402-A Q03 End Cap;Round No Model Compatibility List $1.38 / Each

9
001509-D 700493 001509-D Z24 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q06 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A Z23 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001526-D 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004077-A2 701159 004077-A2 F15 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $15.42 / Each

8
004078-A2 701160 004078-A2 D09 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $14.72 / Each

8
004116-00 701182 004116-00 K17 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004356-00 701288 004356-00 Z02 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004529-AD 701484 004529-AD Z32 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $2.84 / Each

2
004601-AB 701567 004601-AB B50 Screw;Hex;M5x0.8Px15L;Black Zinc; No Model Compatibility List $0.70 / Each

2,4,5,6
004720-AH 701694 004720-AH K12 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
701764 004786-00 Z10 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
004855-AC 701836 004855-AC D12 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004943-00 701914 004943-00 Z34 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004975-00 701939 004975-00 C46 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 Z06 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005009-AB 701970 005009-AB Z18 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 Z30 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005017-00 701981 005017-00 Z08 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005040-00 702000 005040-00 Z17 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.42 / Each

2
005084-00 702056 005084-00 Z29 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
702077 005109-A Z36 WASHER;FLT;Diam.6.2XDiam.25.0X1.5T;;; No Model Compatibility List $1.28 / Each

2
005117-AB 702085 005117-AB C37 Washer;Flat;8.2x16.0x2.0T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005130-00 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 Z05 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005138-A 702109 005138-A Z33 Washer;Flat;10.2x25x1.5T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A Z20 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005330-00 702217 005330-00 C92 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005377-00 702250 005377-00 Z03 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006620-D 702392 006620-D V02 Decal;Weight Plate;10LBS No Model Compatibility List $21.22 / Each

7,3
006650-B 702406 006650-B V09 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $2.42 / Each

7,3
006656-A 702411 006656-A V07 Decal;Serial Number;Aluminum No Model Compatibility List $1.28 / Each

7,3
008234-C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008523-B 702531 008523-B Z21 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009225-A 702650 009225-A F11 Axle;Cam;SCM4;20x878L;GM11 No Model Compatibility List $36.58 / Each

8
009317-CB 702690 009317-CB D10 Balance Plate;SS41;GM03 No Model Compatibility List $95.32 / Each

3
009355-B 702710 009355-B D13 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $2.80 / Each

1
009357-C 702712 009357-C C47 Washer;Swivel Axle;SS41; No Model Compatibility List $11.46 / Each

2,8
009358-D 702714 009358-D C48 Washer;Swivel Axle;SS41; No Model Compatibility List $15.52 / Each

2,8
009372-E 702722 009372-E D11 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015805-AA 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $19.46 / Each

3,4,5,6
015942-AA 703737 015942-AA K26 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3
020084-AC 703998 020084-AC C30 Screw;Hex Socket;Round;M8x1.25Px40L;Chromed No Model Compatibility List $0.40 / Each

7,2,12,13,14
020186-00 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.38 / Each

2
020304-AC 704137 020304-AC Z04 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB Z07 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022394-B 704315 022394-B D18 Sleeve;SS41;Chrome Plate No Model Compatibility List $12.98 / Each

7,3,12,13,14
055205-AB 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
064015-A 706633 064015-A Not Shown Hardware; No Model Compatibility List $24.40 / Each

1
1000099499 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.28 / Each

2
1000102862 708446 1000102862 B21 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102869 708453 1000102869 Z11 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 Z31 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102893 708473 1000102893 B23 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102909 708483 1000102909 B45 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102910 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000104682 708655 1000104682 D28 Circlip;External C Type;S-25;BAN No Model Compatibility List $0.62 / Each

2
1000104683 708656 1000104683 B24 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000104693 708664 1000104693 B52 Screw;RND;M10x1.5Px60L-15L;HS;G8.8;CHM;P No Model Compatibility List $3.86 / Each

2
708670 1000104699 Z12 Screw;RND;M12x1.75Px20L;HS;G8.8;CHM;BP No Model Compatibility List $2.58 / Each

2
1000104705 708675 1000104705 Z14 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.40 / Each

2
1000104726 708689 1000104726 D20 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $1.54 / Each

2
1000104912 708699 1000104912 D27 Washer;WW;26.0x34.0x0.3t;65Mn;BAN No Model Compatibility List $1.38 / Each

2
1000105038 708710 1000105038 F14 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $2.80 / Each

2,12,13,14
709713 1000202280 Not Shown MANUAL SET;;;GM27C-KM;;; No Model Compatibility List $11.68 / Each

1
1000202479 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $7.94 / Each

9
1000202480 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $68.30 / Each

3
1000202481 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $6.00 / Each

9
1000202487 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $27.32 / Each

11
1000202489 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $5.24 / Each

9
1000202490 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $35.46 / Each

1
1000202491 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202492 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202502 709739 1000202502 V03 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $3.78 / Each

12,13,14
1000204043 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.54 / Each

2
1000204083 709865 1000204083 C02 Axle;Peadal Arm;42CrMo;GM40 No Model Compatibility List $46.56 / Each

8,3
1000204414 709911 1000204414 V13 Direction Label;Seat Adjustment No Model Compatibility List $1.98 / Each

12,13,14
1000210967 710559 1000210967 K08 GUIDE ROD;-;GR;WP;GM03KM-G3; No Model Compatibility List $163.02 / Each

3
1000212388 710685 1000212388 F12 Fixing Plate;Cable Head-;45#;BED;GM40; No Model Compatibility List $16.56 / Each

3,4,5,6
1000212618 710720 1000212618 7 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
710877 1000214916 AJ2 SEAT SET;SA;;;GM27C-KM;SERVICE;;; No Model Compatibility List $157.28 / Each

12,13,14
1000222320 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.28 / Each

2
1000229173 712494 1000229173 Z35 Screw;SH;M10x x35L;-;HS;-;CHM;-;G12.9; No Model Compatibility List $2.32 / Each

2
1000233235 713139 1000233235 Z26 Bearing;Rod End;PHS;M12X1.75PX60L;Siao Y No Model Compatibility List $20.78 / Each

8,9,3
1000233295 713153 1000233295 F08 Steel Rope-Extrawork;;down;Press Rope Ha No Model Compatibility List $88.44 / Each

1
1000233296 713154 1000233296 F09 Steel Rope-Extrawork;;back;Press Rope Ha No Model Compatibility List $68.88 / Each

4,5,6
1000233297 713155 1000233297 F10 Steel Rope-Extrawork;;front;Press Rope H No Model Compatibility List $62.38 / Each

1
1000233300 713156 1000233300 F01 Cam;;;POM;;;GM27C; No Model Compatibility List $233.98 / Each

1
1000233301 713157 1000233301 F02 Cam;;down;POM;;;GM27C; No Model Compatibility List $90.98 / Each

1
714789 1000318297 AK1 Up Weight Plate Set-Exreawork;;;;;GM27C; No Model Compatibility List $167.68 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 9 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
1000345425 717480 1000345425 K09 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $14.02 / Each

7,3,12,13,14
718045 1000349219 1 Frame set;;;Iced Sliver;GM27C;;Service No Model Compatibility List $1.00 / Each

3
718046 1000349220 3 Swivel arm set;;left;Iced Sliver;GM27C; No Model Compatibility List $207.98 / Each

3
718047 1000349221 2 Base Set;;;Iced Sliver;GM27C;;Service No Model Compatibility List $948.98 / Each

3
718048 1000349222 4 Swivel arm set;;right;Iced Sliver;GM27C No Model Compatibility List $207.98 / Each

3
718049 1000349223 5 CAM SET;;;Iced Sliver;GM27C;;Service No Model Compatibility List $246.98 / Each

1
1000349511 718209 1000349511 AG3 CON Tube Set;;U;painting;;Iced Sliver;GM No Model Compatibility List $220.98 / Each

3
718215 1000349532 AB1 Frame Set;;;painting;;Iced Sliver;GM27C; No Model Compatibility List $0.00 / Each
Out Of Stock
3
718216 1000349533 AD1 Swivel Arm Set;;L;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
3
718217 1000349534 AC1 base set;;;painting;;Iced Sliver;GM27C;S No Model Compatibility List $0.00 / Each
Out Of Stock
3
718218 1000349535 AD2 Swivel Arm Set;;R;painting;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
3
718219 1000349536 AF3 Cam Set;;;painting;;Iced Sliver;GM27C;Se No Model Compatibility List $0.00 / Each
Out Of Stock
1
718220 1000349537 AF2 Pulley Fixing Set;;;painting;;Iced Slive No Model Compatibility List $29.88 / Each

8
1000349538 718221 1000349538 F07 Pulley Fixing Plate;;;painting;;Iced Sli No Model Compatibility List $38.98 / Each

8,3
718222 1000349539 F16 Fixing Flange;;;painting;;Iced Sliver;GM No Model Compatibility List $44.18 / Each

1
1000362619 719573 1000362619 Q05 Cover set;Semi-Assy;;Arcylic;;GM03;;incl No Model Compatibility List $484.88 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
073573 725584 073573 F21 Pulley; 115mm No Model Compatibility List $32.44 / Each

8
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
085920 726898 085920 F14 Pulley;90.2;Market;GM204 No Model Compatibility List $11.38 / Each

8
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
089312 727449 089312 C05 Stopper Block;Pedal Arm;GM27 No Model Compatibility List $50.46 / Each

8,9,3
089358 727454 089358 Q03 Cover;Pulley;GM27 No Model Compatibility List $3.28 / Each

8,9
089389 727455 089389 Not Shown HARDWARE KIT;Semi-Assy;GM27 No Model Compatibility List $109.28 / Each

1
727513 089689 Z25 Screw;Hex; Hex Socket;Round DT;10XM6X36 No Model Compatibility List $3.82 / Each

2
090996 727792 090996 F04 Guide Rod;Pulley ;GM29 No Model Compatibility List $44.46 / Each

8,3
096205 728724 096205 Z32 Sleeve;20#;GM29 No Model Compatibility List $3.06 / Each

3
729032 Order Kit 7 K25 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock
9,10
729034 Order Kit 9 Q02 Arm Rest set;;LU;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock
3
729261 See Pad Matrix J33 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
ZMS4003258 729646 ZMS4003258 Not Shown Decal, QR, G3-S23 Conv Shoulder Press No Model Compatibility List $4.90 / Each

7,3
View Drawing
