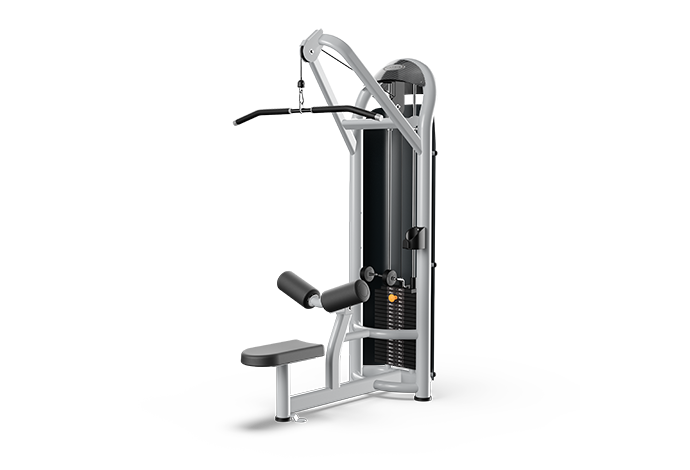

Matrix Commercial - G3-S30-02 - 2016

Repair Parts for Matrix Commercial G3-S30-02 G3GM01E

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S30-02

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B21 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B22 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C20 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
B 700256 000791-B B33 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700448 001402-A Q05 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
B 700519 001523-E B19 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
B 701288 004356-00 B45 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
B 701567 004601-AB B36 Screw;Hex;M5x0.8Px15L;Black Zinc; No Model Compatibility List $0.91 / Each

2,4,5,6
B 701660 004696-AB B23 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
K 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
F 701892 004924-AB F13 NUT;NLK;M5X0.8P;;CHM;; No Model Compatibility List $1.66 / Each

2
F 701914 004943-00 F11 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
H 701968 005007-00 H12 / Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
F 702056 005084-00 F48 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
H 702102 005132-00 H11 / Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702382 006610-B V02 Decal;Foot Pad Adjustable;GM01 No Model Compatibility List $3.35 / Each

7,9,3,12,13,14
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
B 702536 008546-F B49 Leveler Adjustable Cover No Model Compatibility List $93.08 / Each

9,3
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
H 702671 009289-F H07 / Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
F 702711 009356-B F54 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
F 702721 009371-E F53 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
B 704001 020090-00 B29 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

7,2,12,13,14
F 704023 020112-A F10 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.33 / Each

2
B 704137 020304-AC B26 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
F 704193 020465-AB F50 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
N 704646 024607-A Not Shown Hardware Pack No Model Compatibility List $149.86 / Each

4,5,6
F 705011 029145-AA F56 Foam;25.4x5.0tx476L No Model Compatibility List $25.30 / Each

1
V 708086 1000099234 V01 InstructionLabel;French;GM01KM-G3 No Model Compatibility List $37.31 / Each

1
B 708446 1000102862 B27 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
H 708453 1000102869 H10 / Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
L 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
K 708486 1000102912 K15 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
K 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
L 708675 1000104705 L42 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

2
K 708711 1000105039 K16 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
K 710557 1000210965 K09 Guide Rail;19x1890L No Model Compatibility List $262.03 / Each

9
2 710720 1000212618 2 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
F 711692 1000222320 F12 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
713428 1000302949 K26 Weight Plate Set;Weight Plate;-;painting No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714742 1000317753 K03 Weight Plate;;Up;SPHC;;GM26; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714790 1000318298 3 Up Weight Plate Set-Exreawork;;;;;GM26; No Model Compatibility List $217.98 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
716636 1000337956 Q02 Superstructure;;;ABS/Turn Print;Purple;; No Model Compatibility List $0.00 / Each
Out Of Stock 		1
4 716649 1000338414 4 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
L 717480 1000345425 L41 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

7,3,12,13,14
A 718051 1000349225 AH01 Foot Adjustable Set;;;Iced Sliver;GM01KM No Model Compatibility List $202.77 / Each

9,3
1 719071 1000355590 1 Handle set;Semi-Assy;;;;GM01B;; No Model Compatibility List $152.07 / Each

11
719571 1000362603 Q30 Cover set;;Big;;;GM01;; No Model Compatibility List $621.89 / Each

9
720185 1000369167 V20 Warning Label;Frame;;;PC;;English/French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
F 720548 1000373578 F03 Buffer Block;;;PA66+30%GF;;;GM102; No Model Compatibility List $3.02 / Each

1
F 720549 1000373579 F04 Buffer Block;;;PA66+GF30%;;;GM102; No Model Compatibility List $3.02 / Each

1
F 721052 1000380094 F07 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
722747 1000398334 AB01 Frame Set;Semi-Assy;;Iced Sliver;;;GM01E No Model Compatibility List $0.00 / Each
Out Of Stock 		3
722995 1000402188 V05 EN LABEL;;0.123mm;;;;;GM01E No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723816 1000412623 F32 Steel Rope Set;;;;;;Semi-finshed product No Model Compatibility List $62.50 / Each

3
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726228 080811 F52 Screw;Socket Head;M10X1.5PX55L-15L;;Hex No Model Compatibility List $0.00 / Each
Out Of Stock 		2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

2
726745 084555 AF7 Grip ?FSemi-Assy;GM01 No Model Compatibility List $108.13 / Each

11
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
Decal, Instructional; G3S30 726908 085970 V01 Decal, Instructional; G3S30 No Model Compatibility List $33.46 / Each

7,3
ADJ Rod;Weight Plate;Exrta-Work;CrPlate 727864 091696 K04 ADJ Rod;Weight Plate;Exrta-Work;CrPlate No Model Compatibility List $78.18 / Each

3
729261 See Pad Matrix H06 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
N 729649 ZMS4003261 Not Shown Decal, QR, G3-S30 Lat Pulldown No Model Compatibility List $5.90 / Each

7,3
View Drawing
