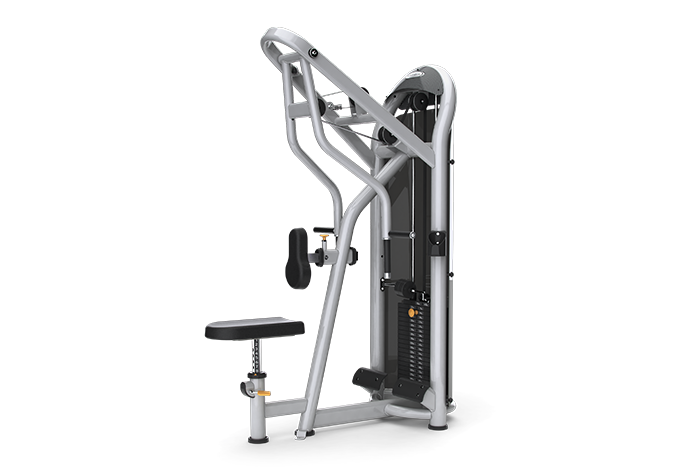

Matrix Commercial - G3-S31P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000508-D 700139 000508-D B37 Foot Pad;Rubber;60mm No Model Compatibility List $3.96 / Each

9,3,12,13,14
000509-E 700140 000509-E B38 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000542-C 700162 000542-C B36 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000614-D 700194 000614-D D25 Foam;Elastomer;24x5.0tx195L No Model Compatibility List $13.14 / Each

1
000615-D 700195 000615-D D26 Foam;Elastomer;24x5.0tx185L No Model Compatibility List $12.16 / Each

1
000791-B 700256 000791-B B47 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001509-D 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B B35 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001526-D 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004116-00 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $2.80 / Each

8,3,4,5,6
004118-00 701183 004118-00 D22 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004356-00 701288 004356-00 B70 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004601-AB 701567 004601-AB B66 Screw;Hex;M5x0.8Px15L;Black Zinc; No Model Compatibility List $0.70 / Each

2,4,5,6
004696-AB 701660 004696-AB B63 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004720-AH 701694 004720-AH L09 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
004750-00 701727 004750-00 D32 Screw;Oval;Hex Socket;M8x1.25Px20L No Model Compatibility List $1.54 / Each

2
004855-AC 701836 004855-AC D31 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004943-00 701914 004943-00 F05 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004975-00 701939 004975-00 B62 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 D29 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005016-00 701980 005016-00 L12 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005040-00 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.42 / Each

2
005084-00 702056 005084-00 L14 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005130-00 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D30 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005330-00 702217 005330-00 C92 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006611-E 702383 006611-E V02 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $21.22 / Each

7,3
006629-A 702401 006629-A V06 Decal;Back Pad Adjustable;MX-S71;GM08 No Model Compatibility List $3.82 / Each

7,3,4,5,6,12,13,14
006651-B 702407 006651-B V10 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
008234-C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008448-D 702520 008448-D F06 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008522-C 702530 008522-C D23 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008589-F 702546 008589-F B67 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009297-A 702676 009297-A D21 Axle;Swivel Arm;SCM21;20x371L;Zn Plate; No Model Compatibility List $24.26 / Each

8,3
009360-AA 702716 009360-AA D24 Washer;Grip;Chromed No Model Compatibility List $2.18 / Each

7,2,12,13,14,11
009371-E 702721 009371-E D27 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
013422-Z1G2 702965 013422-Z1G2 B39 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $28.06 / Each

12,13,14
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015943-AA 703738 015943-AA K26 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
019153-A 703902 019153-A B39 Pull pin knob; Yellow No Model Compatibility List $5.22 / Each

12,13,14
020186-00 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.38 / Each

2
020304-AC 704137 020304-AC J08 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
031757-A 705034 031757-A F07 Axle;Belt ADJ;SCM4;GM20 No Model Compatibility List $4.12 / Each

8,15
035711-A 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
055205-AB 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
064015-A 706633 064015-A Not Shown Hardware; No Model Compatibility List $24.40 / Each

1
067941-C 706986 067941-C J15 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.38 / Each

9
1000090006 707066 1000090006 J13 End Cover;Seat Tube Sleeve No Model Compatibility List $2.80 / Each

9,3,12,13,14
1000090177 707084 1000090177 B39 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $7.00 / Each

12,13,14,11
1000097263 707972 1000097263 J12 Sleeve;Chest Tube No Model Compatibility List $8.26 / Each

3
708071 1000098871 B39 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $31.26 / Each

12,13,14
1000099499 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.28 / Each

2
1000102862 708446 1000102862 K20 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102866 708450 1000102866 F04 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102869 708453 1000102869 D28 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 L13 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102909 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102910 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102915 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000104683 708656 1000104683 B61 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000104704 708674 1000104704 F03 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $0.80 / Each

2
1000104705 708675 1000104705 B77 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.40 / Each

2
1000202479 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $7.94 / Each

9
1000202480 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $68.30 / Each

3
1000202481 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $6.00 / Each

9
1000202487 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $27.32 / Each

11
1000202489 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $5.24 / Each

9
1000202490 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $35.46 / Each

1
1000202491 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202492 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202502 709739 1000202502 V07 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $3.78 / Each

12,13,14
1000202533 709749 1000202533 AJ2 SEAT CHAIR;-;CP;-;GM20C; No Model Compatibility List $246.98 / Each

12,13,14
709750 1000202536 Not Shown Manual set;SA;-;GM20C;-;-; No Model Compatibility List $7.78 / Each

1
1000204043 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.54 / Each

2
1000204414 709911 1000204414 V09 Direction Label;Seat Adjustment No Model Compatibility List $1.98 / Each

12,13,14
1000210971 710563 1000210971 K09 Guide Rail;19X1760L No Model Compatibility List $184.40 / Each

9
710629 1000211401 AJ1 ADJUST SET;SA;-;GM20C-KM;-;-; No Model Compatibility List $71.48 / Each

1
1000211403 710630 1000211403 AF4 Belt Pulley Set;SA;-;GM20C-KM;-;-; No Model Compatibility List $84.22 / Each

8,15
1000212618 710720 1000212618 7 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
1000222320 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.28 / Each

2
1000318302 714794 1000318302 AK1 Up Weight Plate Set-Exreawork;;;;;GM01; No Model Compatibility List $176.78 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 9 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
1000345425 717480 1000345425 B76 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $14.02 / Each

7,3,12,13,14
718052 1000349226 1 Frame set;;;Iced Sliver;GM20CKM-G3;;Serv No Model Compatibility List $1.00 / Each

3
1000349227 718053 1000349227 2 Swivel arm set;;;Iced Sliver;GM20CKM-G3 No Model Compatibility List $454.98 / Each

3
718054 1000349228 3 Fixed chipset;;;Iced Sliver;GM20CKM-G3;; No Model Compatibility List $0.00 / Each
Out Of Stock
1
718223 1000349545 B43 Swivel Axle Washer Plate;;;painting;;Ice No Model Compatibility List $12.98 / Each

2,8,3
718224 1000349546 B71 Pedal Set;;;painting;;Iced Sliver;GM20CK No Model Compatibility List $38.98 / Each

8,9
718225 1000349547 D43 Handle set;;;painting;;Iced Sliver;GM20C No Model Compatibility List $0.00 / Each
Out Of Stock
11
719570 1000362601 Q01 Cover set;;Big;;;GM20;; No Model Compatibility List $452.38 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
081649 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $1.54 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
085987 726917 085987 V01 Illustration Decal;ENG;GM20 No Model Compatibility List $25.74 / Each

7,3
089060 727419 089060 Not Shown Hardware;Semi-Assy;GM20KM-G3 No Model Compatibility List $28.08 / Each

1
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 D33 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AD3 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729034 Order Kit 9 Q02 Arm Rest set;;LU;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock
3
729261 See Pad Matrix J10 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
729650 ZMS4003262 Not Shown Decal, QR, G3-S31 Seated Row No Model Compatibility List $4.54 / Each

7,3,12,13,14
View Drawing
