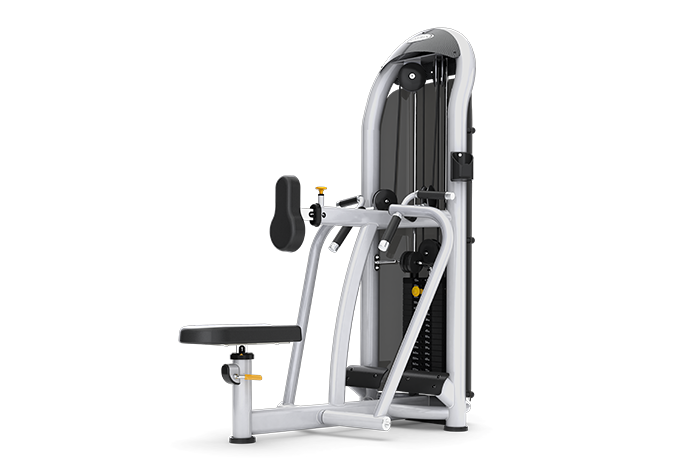

Matrix Commercial - G3-S34P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000508-D 700139 000508-D B32 Foot Pad;Rubber;60mm No Model Compatibility List $3.96 / Each

9,3,12,13,14
000509-E 700140 000509-E B29 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000542-C 700162 000542-C B31 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000791-B 700256 000791-B B52 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001508-E 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001513-A 700497 001513-A K35 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001526-D 700521 001526-D Q03 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004078-A2 701160 004078-A2 D06 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $14.72 / Each

8
004133-00 701190 004133-00 F02 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $14.24 / Each

8,9,3
004720-AH 701694 004720-AH B68 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
004855-AC 701836 004855-AC D09 Set Screw;M6X1.0PX4L No Model Compatibility List $1.38 / Each

2
004909-00 701881 004909-00 K12 Nut;Hex;M12x1.75P;Chrome Plated No Model Compatibility List $1.64 / Each

7,2,3,12,13,14
004945-00 701916 004945-00 F04 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004975-00 701939 004975-00 B38 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 F05 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005130-00 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005145-AC 702119 005145-AC B69 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005180-A 702146 005180-A B72 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005330-00 702217 005330-00 C92 Tinnamen Nut No Model Compatibility List $1.22 / Each

2
005377-00 702250 005377-00 B53 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.50 / Each

4,5,6
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006629-A 702401 006629-A V05 Decal;Back Pad Adjustable;MX-S71;GM08 No Model Compatibility List $3.82 / Each

7,3,4,5,6,12,13,14
006651-B 702407 006651-B V14 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
008234-C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $7.00 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008589-F 702546 008589-F B88 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009356-B 702711 009356-B D07 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009358-D 702714 009358-D D05 Washer;Swivel Axle;SS41; No Model Compatibility List $15.52 / Each

2,8
009371-E 702721 009371-E D08 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
013422-Z1G2 702965 013422-Z1G2 B30 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $28.06 / Each

12,13,14
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015942-AA 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3
015943-AA 703738 015943-AA K26 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
019153-A 703902 019153-A B30 Pull pin knob; Yellow No Model Compatibility List $5.22 / Each

12,13,14
020126-DB 704039 020126-DB B50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.38 / Each

2,12,13,14
020186-00 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.38 / Each

2
020304-AC 704137 020304-AC J08 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
033300-A 705051 033300-A AJ1 Chest Adjustment Frame;Chrome;GM20 No Model Compatibility List $321.46 / Each

7,3,12,13,14
055205-AB 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
067941-C 706986 067941-C J20 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.38 / Each

9
1000090006 707066 1000090006 B37 End Cover;Seat Tube Sleeve No Model Compatibility List $2.80 / Each

9,3,12,13,14
1000090177 707084 1000090177 B30 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $7.00 / Each

12,13,14,11
707804 1000095691 F03 Screw;SH;M12X1.75PX40L;;HS;;CHM;; No Model Compatibility List $5.02 / Each

2
707913 1000096866 F01 Steel Rope-Extrawork;;;Press Rope Hand;4 No Model Compatibility List $90.98 / Each

1
1000097263 707972 1000097263 B34 Sleeve;Chest Tube No Model Compatibility List $8.26 / Each

3
708071 1000098871 B30 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $31.26 / Each

12,13,14
1000099499 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.28 / Each

2
1000102862 708446 1000102862 B40 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102869 708453 1000102869 D12 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 B65 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102893 708473 1000102893 B39 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102909 708483 1000102909 B47 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102910 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.02 / Each

2
1000102912 708486 1000102912 K15 Circlip;External C Type;S-30;BED No Model Compatibility List $1.54 / Each

2
1000104683 708656 1000104683 B41 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
708667 1000104696 B46 Screw;HH;M5x0.8Px15L;CHM;BP;8.8Class No Model Compatibility List $0.46 / Each

2
1000105039 708711 1000105039 K16 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $2.72 / Each

2,12,13,14
709701 1000202083 Not Shown HARDWARE SET;;;GM28C-KM;SMG; No Model Compatibility List $4.54 / Each

1
1000202479 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $7.94 / Each

9
1000202480 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $68.30 / Each

3
1000202481 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $6.00 / Each

9
1000202487 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $27.32 / Each

11
1000202489 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $5.24 / Each

9
1000202490 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $35.46 / Each

1
1000202491 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202492 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.04 / Each

2
1000202502 709739 1000202502 V06 Spec Label;Seat Adjustment;GM02C No Model Compatibility List $3.78 / Each

12,13,14
1000202533 709749 1000202533 AJ2 SEAT CHAIR;-;CP;-;GM20C; No Model Compatibility List $246.98 / Each

12,13,14
1000204043 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.54 / Each

2
1000204414 709911 1000204414 V16 Direction Label;Seat Adjustment No Model Compatibility List $1.98 / Each

12,13,14
710491 1000210610 B33 Pedal Plate;Spray-On PU;GM28KM-G3 No Model Compatibility List $108.90 / Each

8,9,3
1000210971 710563 1000210971 K09 Guide Rail;19X1760L No Model Compatibility List $184.40 / Each

9
1000212618 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
1000222320 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.28 / Each

2
714742 1000317753 Not Shown Weight Plate;;Up;SPHC;;GM26; No Model Compatibility List $0.00 / Each
Out Of Stock
3
714790 1000318298 AK2 Up Weight Plate Set-Exreawork;;;;;GM26; No Model Compatibility List $167.68 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 4 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
1000345425 717480 1000345425 K05 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $14.02 / Each

7,3,12,13,14
718059 1000349233 1 Frame set;;;Iced Sliver;GM28C;;Service No Model Compatibility List $1.00 / Each

3
718060 1000349234 2 Swivel arm set;;right;Iced Sliver;GM28C No Model Compatibility List $233.98 / Each

3
718061 1000349235 3 Swivel arm set;;left;Iced Sliver;GM28C; No Model Compatibility List $233.98 / Each

3
718226 1000349552 AK1 Pulley Fixing Set;;;painting;;Iced Slive No Model Compatibility List $29.88 / Each

8
719570 1000362601 Q01 Cover set;;Big;;;GM20;; No Model Compatibility List $452.38 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
725195 102612 D22 Foam;Grip;32x5.0t;GM28 No Model Compatibility List $4.64 / Each

11
073572 725583 073572 F17 Pulley; 90mm No Model Compatibility List $34.06 / Each

8
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
726610 083463 C38 Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $1.28 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
726887 085791 4 Cover Set;Upper;Snap Badged No Model Compatibility List $74.10 / Each

9
727020 086711 D21 Foam;Grip;25.4x3.0x517;GM28-D21 No Model Compatibility List $7.24 / Each

11
727862 091687 D06 Washer;TAPER;25.5X39.6X0.5X1.3;SPHC ;; No Model Compatibility List $0.78 / Each

2
091696 727864 091696 K04 ADJ Rod;Weight Plate;Exrta-Work;CrPlate No Model Compatibility List $60.14 / Each

3
727865 091697 V03 Decal;Weight Plate;GM26 No Model Compatibility List $38.38 / Each

7,3
727939 092114 B36 Fixing Bock;Pedal Arm;Rubber;60x30;S20C;GM28 No Model Compatibility List $34.24 / Each

8,9,3
728416 094676 V03 Illustration Decal;GM28 No Model Compatibility List $22.30 / Each

7,3
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AD1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AD2 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 Q02 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729261 See Pad Matrix J10 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
729644 ZMS4003256 Not Shown Decal, QR, G3-S34 Div Seated Row No Model Compatibility List $4.90 / Each

7,3,12,13,14
