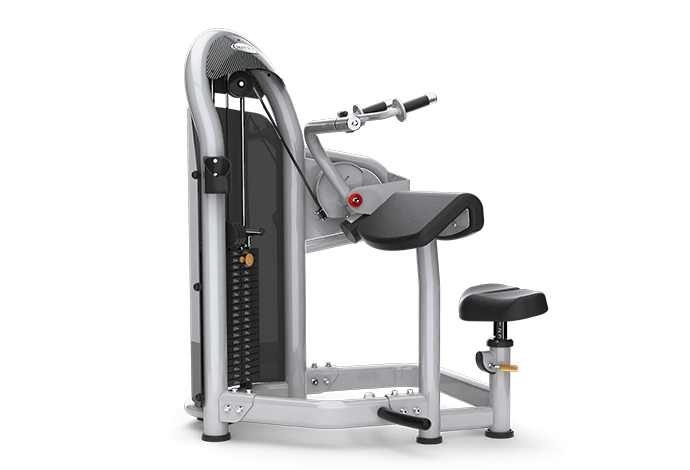

Matrix Commercial - G3-S45P - 2008

Repair Parts for Matrix Commercial G3-S45P G3GM23,GM23C_1,GM23C_2,GM23C_3

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S45P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B18 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B21 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C13 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
E 700171 000582-C E11 Foam Grip;25.4x5.0tx100L No Model Compatibility List $5.28 / Each

11
G 700174 000585-F G16 Foam Grip;38.1X3.0TX253L No Model Compatibility List $16.20 / Each

11
B 700256 000791-B B26 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
G 700307 000925-B G17 End Cap;M38.1x3.0T No Model Compatibility List $1.79 / Each

9
Q 700398 001240-F Q07 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 700526 001529-B B27 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
F 700548 001585-F F28 Rubber Stop No Model Compatibility List $1.79 / Each

1
E 701181 004112-00 E10 Dry Bearing;Flange;LEF-3030 LFF-3030 No Model Compatibility List $6.99 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
B 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
G 701522 004555-AB G15 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
L 701694 004720-AH L09 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
701764 004786-00 G12 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
E 701836 004855-AC E21 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
F 701914 004943-00 F16 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
E 701968 005007-00 E07 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
L 701980 005016-00 L13 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
G 701981 005017-00 G13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
K 702000 005040-00 K19 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
F 702056 005084-00 F23 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 702098 005130-00 C87 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
E 702102 005132-00 E08 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
C 702217 005330-00 C92 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

2
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $3.15 / Each

7,3
C 702505 008234-C C84 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

8,3
F 702520 008448-D F11 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702531 008523-B D32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
F 702688 009313-B F25 Swivel Axle;SCM4;19X269L;GM14 No Model Compatibility List $39.13 / Each

8
F 702690 009317-CB F22 Balance Plate;SS41;GM03 No Model Compatibility List $123.92 / Each

3
F 702706 009347-B F18 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $9.10 / Each

8,3
K 702720 009367-A K12 Pin;Spring;11X70L(65MN);GM21 No Model Compatibility List $2.73 / Each

2,12,13,14
E 702721 009371-E E12 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $25.30 / Each

3,4,5,6
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

8,3
C 704074 020186-00 C97 Screw;Phillip;BH;Tapped;4x30L; No Model Compatibility List $1.79 / Each

2
Z 704137 020304-AC Z01 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
B 704168 020393-AB B28 Nut;AC;M8X1.25P;SS41;Chromed No Model Compatibility List $2.00 / Each

7,2,4,5,6,12,13,14
G 704193 020465-AB G14 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
E 704281 022221-A E06 Ring;Exercise Arm;Rubber No Model Compatibility List $24.65 / Each

3
F 705079 035711-A F19 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
C 705701 055205-AB C100 Washer;Flat;12.5X20.0X1.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
N 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
C 708091 1000099499 C85 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
B 708446 1000102862 B29 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
F 708450 1000102866 F14 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.86 / Each

2
H 708453 1000102869 H33 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
L 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
C 708473 1000102893 C15 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
B 708478 1000102898 B33 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
C 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

2
K 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
G 708644 1000104660 G08 Screw;HS;CST;M10x1.5Px12L;HS;CST;CST;CHM No Model Compatibility List $0.70 / Each

2
B 708656 1000104683 B32 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
B 708657 1000104684 B23 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
F 708674 1000104704 F15 Screw;RND;M5x0.8Px35L;HS;CHM;BP;G8.8 No Model Compatibility List $1.04 / Each

2
H 708689 1000104726 H32 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
H 708710 1000105038 H31 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
V 709720 1000202371 V02 Direction Label;Seat Adjustment;;;;GM12C No Model Compatibility List $7.70 / Each

12,13,14
709721 1000202416 AJ1 Seat Tube Set;Chrome;SA;-;GM14C-KM;-;-; No Model Compatibility List $293.36 / Each

7,3,12,13,14
709723 1000202446 Not Shown Manual;;;;;GM23C-KM No Model Compatibility List $10.11 / Each

1
C 709730 1000202479 C80 Plastic Cover;-;POM;-;;;GM02C; No Model Compatibility List $10.32 / Each

9
C 709731 1000202480 C81 Sleeve;65.0X124; No Model Compatibility List $88.79 / Each

3
C 709732 1000202481 C82 Plastic Cover;Rubber No Model Compatibility List $7.80 / Each

9
C 709733 1000202487 C88 Grip;-;ABS;-;;;GM02C; No Model Compatibility List $35.52 / Each

11
C 709734 1000202489 C91 Plastic Cover;ABS;BL;GM02C No Model Compatibility List $6.81 / Each

9
C 709735 1000202490 C93 Stopper Piece;Chair;-;45;CHM;GM02C; No Model Compatibility List $46.10 / Each

1
C 709736 1000202491 C98 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
C 709737 1000202492 C99 Spring;RCL;2.0X13;40MN;CHM; No Model Compatibility List $2.65 / Each

2
C 709860 1000204043 C83 Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM; No Model Compatibility List $0.70 / Each

2
V 709911 1000204414 V05 Direction Label;Seat Adjustment No Model Compatibility List $2.57 / Each

12,13,14
K 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
710642 1000211500 AF4 Belt Pulley Set;SA;-;GM23C-KM;-;-; No Model Compatibility List $155.90 / Each

8,15
7 710720 1000212618 7 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
C 711692 1000222320 C96 Screw;SH;M5x25L;-;HS;-;CHM;BP;-; No Model Compatibility List $1.66 / Each

2
714796 1000318308 AK1 Up Weight Plate Set-Exreawork;;;;;GM13C; No Model Compatibility List $229.81 / Each

3
714954 1000320120 J05 Fixing Plate;SEAT PAD;;painting;;MAT BLA No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
9 716649 1000338414 9 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
718070 1000349244 1 Frame set;;;Iced Sliver;GM23CKM-G3;;Serv No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718071 1000349245 2 Handle Set;;;Iced Sliver;GM23CKM-G3;;Ser No Model Compatibility List $0.00 / Each
Out Of Stock 		11
718072 1000349246 3 CAM SET;;;Iced Sliver;GM23CKM-G3;;Servic No Model Compatibility List $168.97 / Each

1
718073 1000349247 4 Link Tube Set;;;Iced Sliver;GM23CKM-G3;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718237 1000349579 AC1 base set;;;painting;;Iced Sliver;GM23CKM No Model Compatibility List $388.67 / Each

3
718238 1000349581 E05 Swivel Axle Washer Plate;;;painting;;Ice No Model Compatibility List $0.00 / Each
Out Of Stock 		2,8,3
Q 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $505.28 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; 726404 081649 C24 Washer;SPL;SW8 8.2X13.5X2.0T;;CHM; No Model Compatibility List $2.00 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
726918 085990 V40 Illustration Decal;ENG;GM23 No Model Compatibility List $33.46 / Each

7,3
727947 092141 Not Shown Hardware;Semi-Assy;GM23KM-G3 No Model Compatibility List $145.21 / Each

1
729027 Order Kit 3 F09 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729032 Order Kit 7 Q01 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock 		9,10
729034 Order Kit 9 Q02 Arm Rest set;;LU;painting;DM515 matte;;E No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729118 Part of Kit 1 AB1 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AE1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AF1 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AG1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729261 See Pad Matrix J50 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729653 ZMS4003265 Not Shown Decal, QR, G3-S45 Triceps Ext No Model Compatibility List $5.90 / Each

7,3
