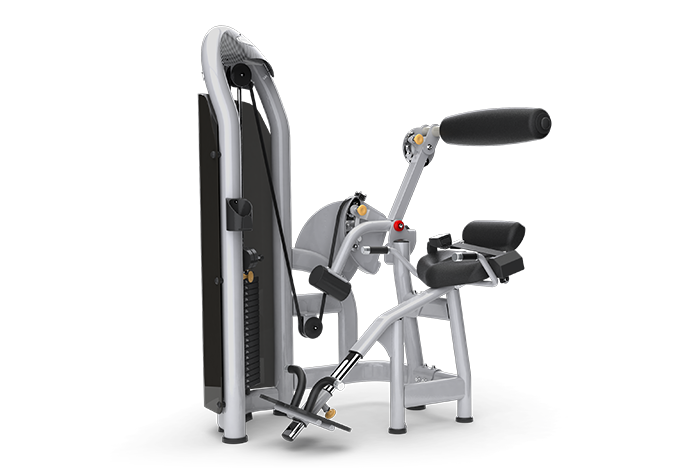

Matrix Commercial - G3-S52P Back Extension - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000454-H 700122 000454-H B40 Cover;Snug;S45C;Cr Plate;GM01 No Model Compatibility List $7.00 / Each

9,3
000508-D 700139 000508-D C32 Foot Pad;Rubber;60mm No Model Compatibility List $3.96 / Each

9,3,12,13,14
000509-E 700140 000509-E B26 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000510-D 700141 000510-D B22 Foot Pad;Rubber;76.2mm No Model Compatibility List $4.38 / Each

9,3,12,13,14
000513-E 700144 000513-E H14 Foot pad;Rubber;GM03 No Model Compatibility List $46.18 / Each

9,3,12,13,14
000542-C 700162 000542-C B25 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000586-F 700177 000586-F C31 Foam Grip;25.4x5.0x75L No Model Compatibility List $2.58 / Each

11
000739-D 700229 000739-D H15 Foam;Oppressing Tube;25.4x5.0tx245L No Model Compatibility List $9.76 / Each

3
000791-B 700256 000791-B B27 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
000926-A 700308 000926-A B45 Cap;Tube;PVC;FW91 No Model Compatibility List $1.38 / Each

9,3
000996-D 700336 000996-D C38 Sleeve;Seat Tube;PVC+Rubber;GM02 No Model Compatibility List $5.30 / Each

3,12,13,14
001001-B 700337 001001-B H20 Sleeve;Seat Tube;PVC+Rubber;GM03 No Model Compatibility List $5.30 / Each

3,12,13,14
001240-F 700398 001240-F Q08 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.38 / Each

8,12,13,14
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001402-A 700448 001402-A Q13 End Cap;Round No Model Compatibility List $1.38 / Each

9
001407-A 700452 001407-A Q11 End-Cover;Square Tube;GM03 No Model Compatibility List $1.28 / Each

9,3
001410-A 700454 001410-A Q06 End Cover;Elliptical;40x80 No Model Compatibility List $2.80 / Each

9
001508-E 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001522-B 700518 001522-B B23 Stopper Block;Rubber No Model Compatibility List $2.80 / Each

1
001523-E 700519 001523-E D27 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001525-B 700520 001525-B D34 Rubber Pad;Stopper No Model Compatibility List $1.38 / Each

12,13,14
001526-D 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004118-00 701183 004118-00 D31 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004283-D 701247 004283-D C44 Safety Belt;2080L No Model Compatibility List $190.38 / Each

9,15
004356-00 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004479-ABX 701431 004479-ABX D30 Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A No Model Compatibility List $1.54 / Each

2
004482-AB 701436 004482-AB F14 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
004711-AE 701677 004711-AE H19 Screw;Hex Socket;BH;;M5x0.8Px15L No Model Compatibility List $1.38 / Each

2
004720-AH 701694 004720-AH L09 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
701764 004786-00 C33 Screw;Hex Socket;BH;CrMo;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
004943-00 701914 004943-00 F12 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004953-00 701921 004953-00 C05 Nut;Nylon;M10X1.5P No Model Compatibility List $2.84 / Each

2
004975-00 701939 004975-00 B30 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 D33 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005017-00 701981 005017-00 C40 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005040-00 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.42 / Each

2
005084-00 702056 005084-00 F16 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 D32 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006611-E 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $21.22 / Each

7,3
006612-C 702384 006612-C V02 Decal;Angle Adjustic;MX-S52;GM03 No Model Compatibility List $2.80 / Each

7,3
006618-B 702390 006618-B V05 Decal;Back Pad Adjustable;MX-S52;GM03 No Model Compatibility List $2.42 / Each

7,3,4,5,6,12,13,14
006631-A 702403 006631-A V13 Decal;Foot Pad Adjustable;MX-S52;GM03 No Model Compatibility List $2.50 / Each

7,9,3,12,13,14
006651-B 702407 006651-B V14 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
008448-D 702520 008448-D F09 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008522-C 702530 008522-C D16 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $2.80 / Each

2,8
008523-B 702531 008523-B C60 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008542-H 702532 008542-H F08 Cam Cover, SUS304 No Model Compatibility List $242.12 / Each

9
008543-F 702533 008543-F D26 Cover;Adjustable Foot Pad;;SUS304;;electroplate No Model Compatibility List $130.18 / Each

9,3,12,13,14
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009288-K 702670 009288-K B38 Axle;Pin;Market;GM01 No Model Compatibility List $7.96 / Each

8,12,13,14
009289-F 702671 009289-F D17 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $2.80 / Each

8,4,5,6,12,13,14
009339-C 702702 009339-C D42 Fix Ring;Round Pad;GM03 No Model Compatibility List $10.86 / Each

12,13,14
009347-B 702706 009347-B D35 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $7.00 / Each

8,3
009356-B 702711 009356-B C46 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $2.80 / Each

1
009371-E 702721 009371-E H21 Cap;Grip;GM03 No Model Compatibility List $11.80 / Each

9,11
013422-ZG2 702966 013422-ZG2 D24 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
014788-E 703464 014788-E D24 Metal Pin; Pull Pin No Model Compatibility List $28.06 / Each

3,12,13,14
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015788-A 703658 015788-A AC5 Foot Adjustable Tube Set;Painting;;GM03 ELECTROPLATE No Model Compatibility List $127.76 / Each

9,3
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015943-AA 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $51.98 / Each

8,3
019118-AA 703897 019118-AA D44 Cover;Round Pad;Left;GM03 No Model Compatibility List $2.58 / Each

9,12,13,14
019119-AA 703898 019119-AA D45 Cover;Round Pad;Right;GM03 No Model Compatibility List $2.80 / Each

9,12,13,14
019153-A 703902 019153-A D55 Pull pin knob; Yellow No Model Compatibility List $5.22 / Each

12,13,14
020304-AC 704137 020304-AC Z01 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020479-A 704206 020479-A C39 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
020643-A 704223 020643-A D47 Clamp;External C-Shaped;S-50;BED; No Model Compatibility List $1.38 / Each

4,5,6
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022316-A 704296 022316-A D46 Sleeve;Round Pad;60X4.0TX560L;GM03 No Model Compatibility List $12.80 / Each

3,12,13,14
024104-ZG2 704465 024104-ZG2 2 Base Frame No Model Compatibility List $518.24 / Each

3
705060 033409-AA F44 Pulley set-Exreawork;-;-;-;FW63 No Model Compatibility List $12.98 / Each

8
035711-A 705079 035711-A F07 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
064015-A 706633 064015-A Not Shown Hardware; No Model Compatibility List $24.40 / Each

1
1000090177 707084 1000090177 D55 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $7.00 / Each

12,13,14,11
1000099214 708084 1000099214 D24 Pull Pin Set;Orange Knob No Model Compatibility List $28.06 / Each

12,13,14
1000102862 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102866 708450 1000102866 F10 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102869 708453 1000102869 D25 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102883 708466 1000102883 D41 Screw;Hex Socket;Stopper;Cone;M6x1.0Px6L No Model Compatibility List $1.28 / Each

2
1000102887 708469 1000102887 F13 Screw;Hex Socket;Countersunk;M8x1.25Px16 No Model Compatibility List $1.68 / Each

2
1000102893 708473 1000102893 C35 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102898 708478 1000102898 B31 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.16 / Each

2
1000102909 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102915 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000104683 708656 1000104683 B33 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000104726 708689 1000104726 H32 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $1.54 / Each

2
708708 1000105036 F11 Screw;RND;M5x0.8Px30L;HS;G8.8CHM;BP No Model Compatibility List $1.26 / Each

2
1000204213 709877 1000204213 C41 SCREW;RND;M10X1.5PX115L-20L;-;HS;G12.9;C No Model Compatibility List $2.58 / Each

2
1000210967 710559 1000210967 K09 GUIDE ROD;-;GR;WP;GM03KM-G3; No Model Compatibility List $163.02 / Each

3
1000212618 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
1000318301 714793 1000318301 AK1 Up Weight Plate Set-Exreawork;;;;;GM03; No Model Compatibility List $174.18 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
718078 1000349252 1 Frame set;;;Iced Sliver;GM03KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock
3
718079 1000349254 4 Handle Set;;left;Iced Sliver;GM03KM-G3;; No Model Compatibility List $33.78 / Each

11
718080 1000349255 3 Handle Set;;right;Iced Sliver;GM03KM-G3; No Model Compatibility List $51.98 / Each

11
718081 1000349256 5 Swivel arm set;;;Iced Sliver;GM03KM-G3; No Model Compatibility List $218.38 / Each

3
718082 1000349257 AD2 Back Pad Fixing Teube Set;;;Iced Sliver; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
718083 1000349258 6 CAM SET;;;Iced Sliver;GM03KM-G3;;Service No Model Compatibility List $0.00 / Each
Out Of Stock
1
718084 1000349259 7 Foot Adjustable Set;;;Iced Sliver;GM03KM No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
1000362619 719573 1000362619 Q01 Cover set;Semi-Assy;;Arcylic;;GM03;;incl No Model Compatibility List $484.88 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
1000393222 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.28 / Each

2
725744 075581 D15 Swivel Axle;SCM4;GM03 No Model Compatibility List $25.74 / Each

8
725748 075735 AZ1 Hardware Pack No Model Compatibility List $89.24 / Each

4,5,6
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
084241 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.30 / Each

2
726887 085791 4 Cover Set;Upper;Snap Badged No Model Compatibility List $74.10 / Each

9
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $2.80 / Each

2
727228 087968 V40 Illustration Decal;EN;GM03-G3 No Model Compatibility List $25.70 / Each

7,3
727283 088321 Not Shown Manual;Assembly;GM03 No Model Compatibility List $13.58 / Each

3
728057 092924 D36 Screw;Hex Scoket;Round;M8x1.25Px10L;Cr;A No Model Compatibility List $0.40 / Each

2
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AC1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AC7 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 AC8 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729029 Order Kit 5 AD1 Console Base Set;Semi-Assy;TM658-2KM No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729031 Order Kit 6 F17 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729032 Order Kit 7 H18 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock
9,10
729261 See Pad Matrix J32 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
