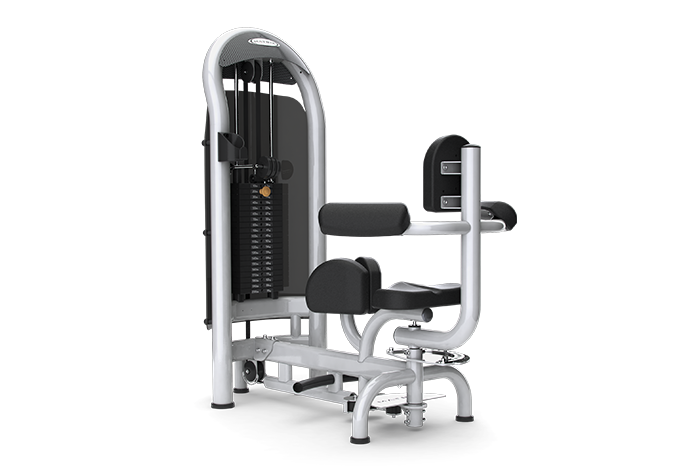

Matrix Commercial - G3-S55P Rotary Torso - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000509-E 700140 000509-E B21 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000585-F 700174 000585-F C22 Foam Grip;38.1X3.0TX253L No Model Compatibility List $12.46 / Each

11
000791-B 700256 000791-B B24 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
000925-B 700307 000925-B C36 End Cap;M38.1x3.0T No Model Compatibility List $1.38 / Each

9
001401-A 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001402-A 700448 001402-A Q05 End Cap;Round No Model Compatibility List $1.38 / Each

9
001405-A 700450 001405-A Q06 End Cover;60 No Model Compatibility List $1.28 / Each

9
001443-B 700468 001443-B C70 Cap;Bolt Pin;Rubber;GM01 No Model Compatibility List $0.24 / Each

2,9,12,13,14
001509-D 700493 001509-D Q11 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001523-E 700519 001523-E F23 Rubber Stop;CAM No Model Compatibility List $2.80 / Each

1
001526-D 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
004079-A3 701162 004079-A3 F26 Ball Bearing;6006ZZ;30X55X13T;;TPI;;; No Model Compatibility List $20.80 / Each

8
004356-00 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004482-AB 701436 004482-AB F22 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $1.54 / Each

2
004555-AB 701522 004555-AB Z10 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004601-AB 701567 004601-AB B31 Screw;Hex;M5x0.8Px15L;Black Zinc; No Model Compatibility List $0.70 / Each

2,4,5,6
004943-00 701914 004943-00 F36 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004975-00 701939 004975-00 B22 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005017-00 701981 005017-00 Z16 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.02 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005354-00 702229 005354-00 D21 C-Clip;Internal;R-42 No Model Compatibility List $1.38 / Each

2
005367-00 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $3.08 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006620-D 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $21.22 / Each

7,3
006650-B 702406 006650-B V14 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $2.42 / Each

7,3
008448-D 702520 008448-D F24 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008523-B 702531 008523-B B55 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008589-F 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009306-E 702682 009306-E B56 Axle;Belt;Fall-Proof;SS41;10X43L;Cr Pla No Model Compatibility List $2.88 / Each

8,15
013422-ZG2 702966 013422-ZG2 D22 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $28.06 / Each

3,12,13,14
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
014788-E 703464 014788-E D22 Metal Pin; Pull Pin No Model Compatibility List $28.06 / Each

3,12,13,14
015771-A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $28.94 / Each

3
015772-A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $26.46 / Each

3
015805-AA 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $19.46 / Each

3,4,5,6
015942-AA 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3
019153-A 703902 019153-A D23 Pull pin knob; Yellow No Model Compatibility List $5.22 / Each

12,13,14
020304-AC 704137 020304-AC C33 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB Z15 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
021588-A 704247 021588-A V02 Decal;Angle Adjusting;GM24 No Model Compatibility List $8.34 / Each

7,3
704275 022204-A B45 Rear Upper Cover Snug Piece No Model Compatibility List $0.78 / Each

9
022223-A 704283 022223-A F21 Cam Cover;SUS304;GM24 No Model Compatibility List $509.26 / Each

9
022398-E 704317 022398-E D25 Washer;Swivel Axle;SS41; No Model Compatibility List $3.12 / Each

2,8
025418-AA 704728 025418-AA F25 Adjustable Swivel Axle Washer;Painting;GM24 No Model Compatibility List $8.98 / Each

2,8
035711-A 705079 035711-A F20 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
062626-AA 706480 062626-AA J24 Cap;Hole Plug;FW158 No Model Compatibility List $1.28 / Each

9
1000090177 707084 1000090177 D23 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $7.00 / Each

12,13,14,11
1000102860 708444 1000102860 F31 Screw;Hex Socket;Round;M5x0.8Px30L;Cr Pl No Model Compatibility List $0.54 / Each

2
1000102862 708446 1000102862 B28 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102866 708450 1000102866 F34 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102870 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102885 708468 1000102885 F35 Screw;Set;M8x1.25Px10L;-;HS;-;CHM;BP;-;P No Model Compatibility List $1.42 / Each

2
1000102887 708469 1000102887 F39 Screw;Hex Socket;Countersunk;M8x1.25Px16 No Model Compatibility List $1.68 / Each

2
1000102893 708473 1000102893 B27 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102909 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102915 708489 1000102915 K13 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000104683 708656 1000104683 B23 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000104691 708662 1000104691 Z17 Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP No Model Compatibility List $2.80 / Each

2
1000104708 708677 1000104708 B57 Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8 No Model Compatibility List $0.46 / Each

2
1000212618 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
711543 1000220998 K09 GUIDE ROD;;;GR;WP;GM24-KM; No Model Compatibility List $164.26 / Each

3
1000318302 714794 1000318302 AK1 Up Weight Plate Set-Exreawork;;;;;GM01; No Model Compatibility List $176.78 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 6 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
718085 1000349260 1 Base Set;;;Iced Sliver;GM24;;Service No Model Compatibility List $1.00 / Each

3
718086 1000349261 2 Fixing Set;Swivel Arm;;Iced Sliver;GM24; No Model Compatibility List $83.18 / Each

3
718087 1000349262 3 CAM SET;;;Iced Sliver;GM24;;Service No Model Compatibility List $584.98 / Each

1
718088 1000349263 4 Frame set;;;Iced Sliver;GM24;;Service No Model Compatibility List $1.00 / Each

3
718089 1000349264 5 Swivel arm set;;;Iced Sliver;GM24;;Serv No Model Compatibility List $467.98 / Each

3
718240 1000349601 AF1 Belt Adjustable Mast Set;;;painting;;Ice No Model Compatibility List $90.98 / Each

15
1000362618 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $388.68 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
725302 069543 Not Shown Hardware;GM24 No Model Compatibility List $108.58 / Each

1
069820 725315 069820 F27 Swivel Axle; GM24 30x406.5L ZINC PLATING (25mm top of shaft) No Model Compatibility List $64.94 / Each

8,3
073140 725567 073140 D20 Bearing;Ball;61905_2RZ;;TPI; No Model Compatibility List $18.24 / Each

8
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
727286 088343 V01 Illustration Decal;ENG;GM24 No Model Compatibility List $23.80 / Each

7,3
729012 Order Kit 1 AC1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 AF2 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AF3 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 AB1 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729029 Order Kit 5 AD1 Console Base Set;Semi-Assy;TM658-2KM No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729031 Order Kit 6 Q02 No Model Compatibility List $0.00 / Each
Out Of Stock
1
729261 See Pad Matrix J71 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
729667 ZMS4003279 Not Shown Decal, QR, G3-S55 Rotary Torso No Model Compatibility List $4.54 / Each

7,3
