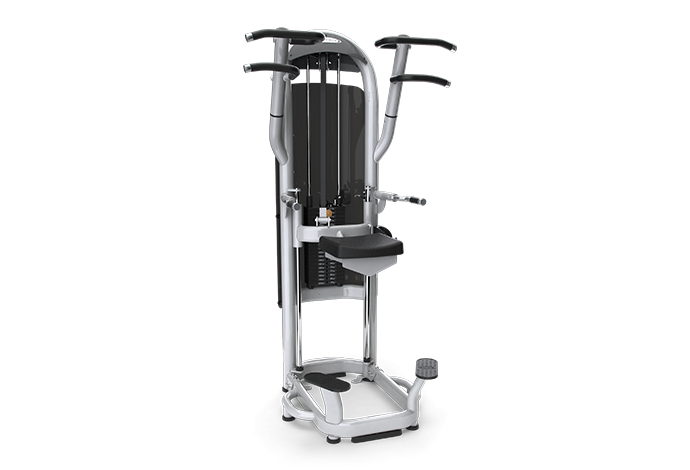

Matrix Commercial - G3-S60P - 2008

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry used@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
000508-D 700139 000508-D B21 Foot Pad;Rubber;60mm No Model Compatibility List $3.96 / Each

9,3,12,13,14
000509-E 700140 000509-E B20 Foot Pad;Rubber;89mm No Model Compatibility List $7.00 / Each

9,3,12,13,14
000533-AA 700157 000533-AA C06 Foot pad;Rubber;GM21 No Model Compatibility List $12.14 / Each

9,3,12,13,14
000542-C 700162 000542-C B23 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $19.62 / Each

9,3,12,13,14
000601-B 700187 000601-B E08 Foam Grip;Upper;31.8x5.0Tx673L No Model Compatibility List $4.88 / Each

11
000602-B 700188 000602-B E09 Foam Grip;Lower;31.8x5.0T No Model Compatibility List $4.88 / Each

11
000621-CA 700198 000621-CA E29 Foam Grip;Low;31.8 x 5T x 112L No Model Compatibility List $6.40 / Each

11
000752-A 700233 000752-A M23 Elastomer;Rubber;GM22 No Model Compatibility List $2.78 / Each

1
000791-B 700256 000791-B B26 Water Bottle Holder No Model Compatibility List $10.36 / Each

1
001401-A 700447 001401-A Q05 End Cap;76.2 No Model Compatibility List $2.80 / Each

9
001508-E 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $21.14 / Each

3
001509-D 700493 001509-D Q06 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.38 / Each

9
001510-B 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.38 / Each

2,3
001512-C 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.38 / Each

8,9
001513-A 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $6.58 / Each

1
001521-E 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $1.88 / Each

1
001526-D 700521 001526-D Q07 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $1.94 / Each

2,9
001556-A 700536 001556-A E31 Sleeve;Swivel Axle;POM;BL;GM13 No Model Compatibility List $2.58 / Each

8,3
004118-00 701183 004118-00 D59 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $2.80 / Each

8
004356-00 701288 004356-00 B43 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $1.54 / Each

2
004539-AD 701505 004539-AD E26 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
004555-AB 701522 004555-AB C22 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $3.08 / Each

2
004720-AH 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $1.54 / Each

2
004943-00 701914 004943-00 F24 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $1.54 / Each

2,3
004975-00 701939 004975-00 B31 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.46 / Each

2
005007-00 701968 005007-00 F26 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $1.54 / Each

2
005040-00 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.42 / Each

2
005084-00 702056 005084-00 F22 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $1.54 / Each

7,2,12,13,14
005132-00 702102 005132-00 F27 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
005180-A 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.26 / Each

2
005847-A 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $15.42 / Each

3,12,13,14
005984-G 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $19.62 / Each

7,9,3
006620-D 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $21.22 / Each

7,3
006651-B 702407 006651-B V07 Decal;Weight Plate;5P No Model Compatibility List $2.62 / Each

7,3
008448-D 702520 008448-D F07 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $2.42 / Each

8,3
008450-G 702523 008450-G B40 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.18 / Each

2,9,3,4,5,6
008523-B 702531 008523-B D32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $7.00 / Each

2
008589-F 702546 008589-F B38 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $0.78 / Each

9,3
009219-D 702646 009219-D K27 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $5.22 / Each

8,15,3
009307-C 702683 009307-C F04 Connecting Axle;Belt;;SCM4;20x65L No Model Compatibility List $8.00 / Each

8,15
009331-H 702700 009331-H M09 Guide Rail;Elevation;30X1182L SUJ-2;GM2 No Model Compatibility List $215.14 / Each

9,10
009355-B 702710 009355-B E30 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $2.80 / Each

1
009367-A 702720 009367-A K19 Pin;Spring;11X70L(65MN);GM21 No Model Compatibility List $2.10 / Each

2,12,13,14
009372-E 702722 009372-E E07 Cap;Grip;GM02 No Model Compatibility List $10.28 / Each

9,11
009476-C 702744 009476-C E25 Bushing;Pedal Arm;;CU;;;;GM13 No Model Compatibility List $7.24 / Each

8,9,3
009641-F 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $35.46 / Each

3
014780-H 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $70.18 / Each

8
015806-AA 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $27.92 / Each

3
015942-AA 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $32.48 / Each

8,3

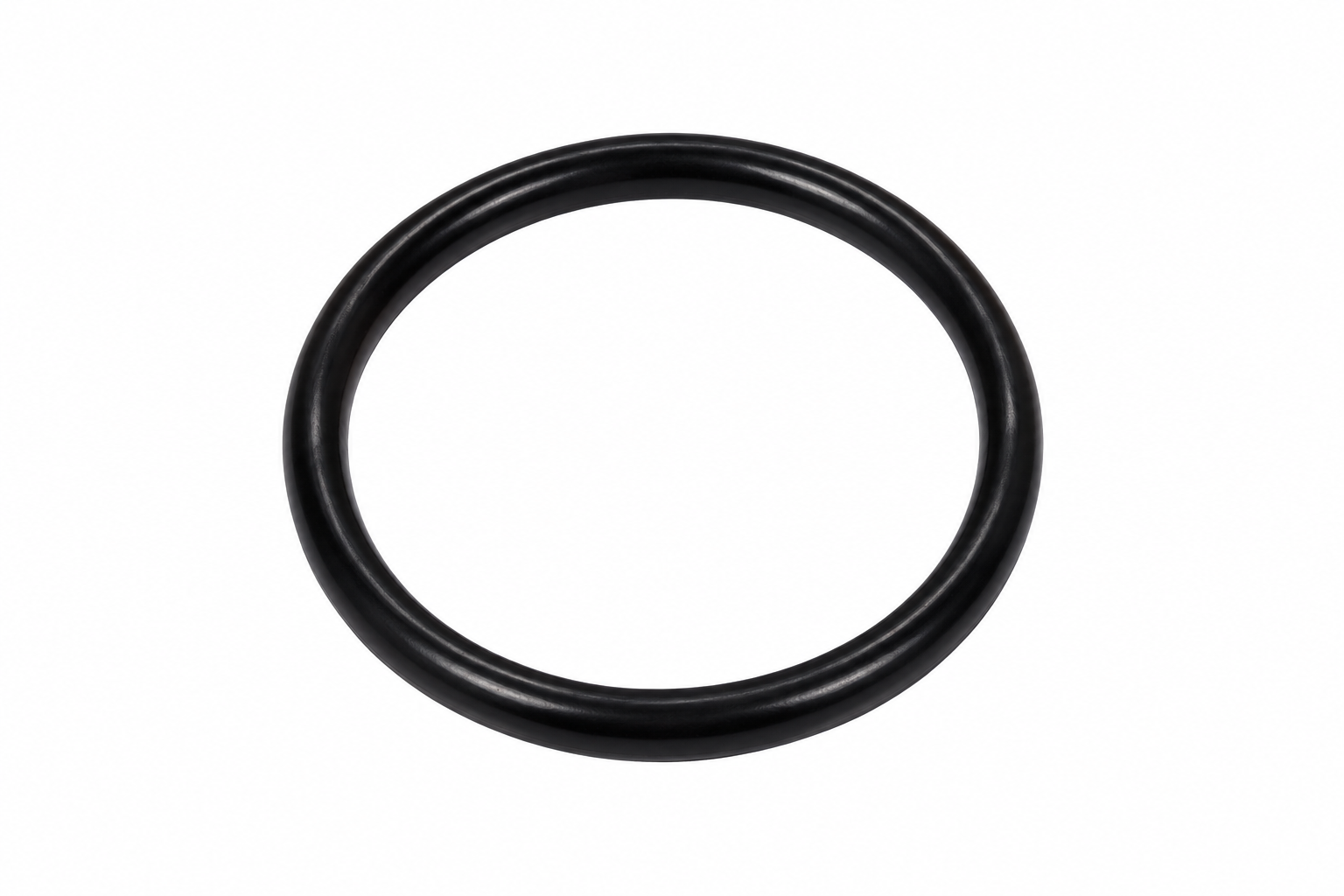

019108-BA 703895 019108-BA M11 Donut;Rubber No Model Compatibility List $2.50 / Each

2
704032 020120-A F28 Screw;Hex Socket;Round;M12 x 1.75P x 30L [MS40,51,80] No Model Compatibility List $0.94 / Each

2
020304-AC 704137 020304-AC M24 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $1.54 / Each

2,3
020465-AB 704193 020465-AB C24 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.38 / Each

7,2,12,13,14
020699-A 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.38 / Each

1
022391-E 704313 022391-E E06 Lower Grip, S45C 31.8 x 361.2L Chromed No Model Compatibility List $33.70 / Each

7,12,13,14,11
025437-AA 704731 025437-AA AL2 Adjustable Mast Set;Painting;GM21 No Model Compatibility List $27.84 / Each

1
025535-AA 704817 025535-AA AL1 Weight Storage Horn Welding Set No Model Compatibility List $21.14 / Each

3
035711-A 705079 035711-A F06 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $10.52 / Each

9,15,3
1000102860 708444 1000102860 F21 Screw;Hex Socket;Round;M5x0.8Px30L;Cr Pl No Model Compatibility List $0.54 / Each

2
1000102862 708446 1000102862 B42 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $1.54 / Each

2
1000102866 708450 1000102866 F25 Screw;Hex Socket;Round;M10x1.5Px80L;Cr P No Model Compatibility List $0.66 / Each

2
1000102869 708453 1000102869 M22 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $2.64 / Each

2
1000102870 708454 1000102870 L13 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.32 / Each

2,3
1000102893 708473 1000102893 B33 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.06 / Each

2
1000102898 708478 1000102898 B35 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.16 / Each

2
708482 1000102908 D28 Washer;Spring Lock;Diam.5.1xDiam.9.2x1.3 No Model Compatibility List $1.28 / Each

2
1000102909 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.08 / Each

2
1000102912 708486 1000102912 K15 Circlip;External C Type;S-30;BED No Model Compatibility List $1.54 / Each

2
1000102913 708487 1000102913 M08 Circlip;Internal C Type;R-47;BED No Model Compatibility List $1.38 / Each

2
1000102915 708489 1000102915 K28 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.66 / Each

2,3
1000104683 708656 1000104683 B37 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.74 / Each

1
1000105039 708711 1000105039 K16 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $2.72 / Each

2,12,13,14
1000210972 710564 1000210972 K09 Guide Rail;19x1540L No Model Compatibility List $178.16 / Each

9
1000212618 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $49.12 / Each

1
711341 1000220177 E21 Screw;RND;M12x1.75Px20L;-;HS;-;CHM;BP;G1 No Model Compatibility List $2.58 / Each

2
713752 1000307467 M25 Fix Rubber Block;Guide Rod;;;Black;;GM21 No Model Compatibility List $2.58 / Each

3,4,5,6
714743 1000317785 AK1 Top Weight Plate Set;;;painting;;;GM21; No Model Compatibility List $0.00 / Each
Out Of Stock
3
714797 1000318309 9 Up Weight Plate Set-Exreawork;;;;;GM21; No Model Compatibility List $172.88 / Each

3
1000333566 716149 1000333566 M07 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $192.34 / Each

8
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $10.38 / Each

9,4,5,6
1000338414 716649 1000338414 8 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $49.38 / Each

1
718068 1000349242 6 Swivel Arm Belt Set;;;Iced Sliver;GM13C; No Model Compatibility List $77.98 / Each

15,3
718090 1000349265 1 Frame set;;;Iced Sliver;GM21KM-G3;;Servi No Model Compatibility List $1.00 / Each

3
718091 1000349266 3 Handle Set;;left;Iced Sliver;GM21KM-G3;; No Model Compatibility List $155.98 / Each

11
718092 1000349267 4 Handle Set;;right;Iced Sliver;GM21KM-G3; No Model Compatibility List $155.98 / Each

11
718093 1000349268 7 Incline Frame Set;;;Iced Sliver;GM21KM-G No Model Compatibility List $1.00 / Each

3,10
719361 1000360601 2 User frame set;Semi-Assy;;;;GM21;Iced Sl No Model Compatibility List $0.00 / Each
Out Of Stock
3
719569 1000362560 Q01 Cover set;Semi-Assy;;;;GM22;Light brown; No Model Compatibility List $508.28 / Each

9
1000363588 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $27.28 / Each

3
1000372591 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $42.10 / Each

7,3,12,13,14
725281 069089 Not Shown Hardware;GM21 No Model Compatibility List $29.40 / Each

1
079123 725996 079123 B46 Placard Holder No Model Compatibility List $26.88 / Each

4,5,6
079527 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $1.68 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $1.54 / Each

2
083532 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $19.66 / Each

9
084241 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.30 / Each

2
726796 084869 5 LOWER GRIP SET No Model Compatibility List $88.28 / Each

11
085728 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $62.52 / Each

9
727290 088390 V02 Illustration Decal;ENG;GM21 No Model Compatibility List $23.80 / Each

7,3
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729024 Order Kit 2 Q02 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock
10
729027 Order Kit 3 AE1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock
3
729028 Order Kit 4 AE2 Motor set;Semi-Assy;;;;TM658F;; No Model Compatibility List $0.00 / Each
Out Of Stock
10
729029 Order Kit 5 AD4 Console Base Set;Semi-Assy;TM658-2KM No Model Compatibility List $0.00 / Each
Out Of Stock
7,3
729032 Order Kit 7 AM1 Cover;Motor;U;painting;;Bright silver;TM No Model Compatibility List $0.00 / Each
Out Of Stock
9,10
729261 See Pad Matrix M12 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6,12,13,14
729657 ZMS4003269 Not Shown Decal, QR, G3-S60 Dip/Chin Assist No Model Compatibility List $4.90 / Each

7,3
View Drawing
