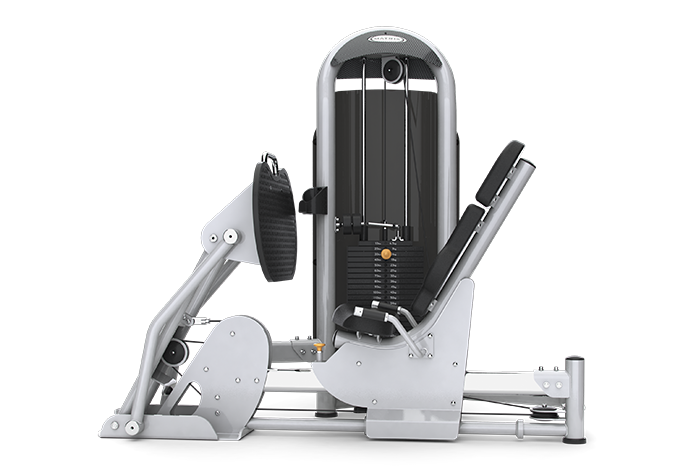

Matrix Commercial - G3-S70P - 2008

Repair Parts for Matrix Commercial G3-S70P G3GM10D,G3GM10

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: G3-S70P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

   Show All Selected Attributes
  • Fastener Related
  • Frame Components
  • Wires
  • Cables
  • Power
  • Circuit Boards
  • Rotating Parts
  • Plastic Parts
  • Motors
  • Grips & Handles
  • Seats
  • Posts
  • Pins
  • Belt Related
  • Other
    Views
Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700002 - K26 Screw Set;Two;CB133;US No Model Compatibility List $0.00 / Each
Out Of Stock 		2
B 700140 000509-E B15 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C17 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B14 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
T 700223 000727-B T25 Foam Grip;24x5.0tx90L No Model Compatibility List $4.06 / Each

11
B 700256 000791-B B47 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Pressing Wheel;POM;GM10 700380 001171-C T16 Pressing Wheel;POM;GM10 No Model Compatibility List $15.00 / Each

8
700436 001381-B Q09 Foot Pad;Rubber No Model Compatibility List $127.66 / Each

9,3,12,13,14
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q08 End Cap;Round No Model Compatibility List $1.79 / Each

9
C 700468 001443-B C70 Cap;Bolt Pin;Rubber;GM01 No Model Compatibility List $0.31 / Each

2,9,12,13,14
K 700492 001508-E K20 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
D 700518 001522-B D30 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
T 701159 004077-A2 T26 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

8
D 701165 004081-A2 D31 Ball Bearing;6204ZZ;20x47x14t;TPI Yes Model Compatibility List $15.89 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
D 701183 004118-00 D36 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
T 701184 004120-00 T27 Bearing;Dry;LFB-1512;;;SHUN DE;;; No Model Compatibility List $3.85 / Each

8
Screw;Phillip;BH;M4x0.7Px12L;Gap; 701288 004356-00 E33 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M8x1.25Px20L;Cr 701436 004482-AB B43 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

2
T 701437 004482-AC T22 Screw;Hex Socket;Round;M8x1.25Px20L;BED; No Model Compatibility List $2.00 / Each

2
F 701470 004519-AE F06 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

2
F 701493 004534-AC F07 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

2
B 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
D 701520 004553-AB D39 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

2
C 701522 004555-AB C61 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

2
D 701552 004580-AB D38 Screw;Hex Socket;Sink;M10x1.5Px30L;Adher No Model Compatibility List $4.97 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701668 004702-00 B20 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
K 701693 004720-AC K17 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Screw;Hex Socket;Oval;M8X1.25PX20L 701694 004720-AH Z08 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

2
C 701760 004780-AC C20 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
T 701780 004795-AC T40 Screw;Hex Socket;BH;M10x1.5Px20L;Adhere No Model Compatibility List $1.46 / Each

2
T 701784 004797-AD T31 Screw;Umbrella Hex Scoket;M10x1.5Px70L No Model Compatibility List $8.42 / Each

2
T 701836 004855-AC T34 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

2
D 701888 004918-00 D37 Nut;Cap;M8x1.25P;BP No Model Compatibility List $0.34 / Each

2,9
Nut;Self Locking;M8x1.25P;Cr;Nylon Insert 701898 004926-AC C26 Nut;Self Locking;M8x1.25P;Cr;Nylon Insert No Model Compatibility List $2.00 / Each

2
F 701914 004943-00 F09 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

2,3
F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
T 701916 004945-00 T43 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 701939 004975-00 B17 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701968 005007-00 D33 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

2
T 701970 005009-AB T36 Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating No Model Compatibility List $2.00 / Each

2
L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

2
L 701980 005016-00 L13 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
C 701981 005017-00 C21 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

7,2,12,13,14
Washer;Flat;5.3X10.0X1.0T;Chromed 702056 005084-00 Z35 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
F 702057 005084-AB F11 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
Washer;Flat;10.5x18x2.0T;Chromed 702100 005131-00 D22 Washer;Flat;10.5x18x2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 702102 005132-00 D34 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
F 702178 005220-00 F31 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

2,4,5,6
T 702236 005361-00 T24 C-Clip;External;S-15 No Model Compatibility List $2.00 / Each

2
C 702240 005365-00 C30 C-Clip;External;S-20 No Model Compatibility List $1.79 / Each

2
K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

2
K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

4,5,6
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702388 006616-A V02 Decal;Seat Adjustable;GM10 No Model Compatibility List $4.97 / Each

7,3,12,13,14
V 702407 006651-B V09 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
F 702520 008448-D F03 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
D 702530 008522-C D26 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
C 702531 008523-B C60 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

2
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
T 702651 009226-B T15 Cap;Seat Pad Roller;SS41;GM10 No Model Compatibility List $4.97 / Each

8,9,12,13,14
T 702666 009281-C T17 Fix Axle;Idler;SCM4;GM10 No Model Compatibility List $8.71 / Each

8
T 702667 009282-D T18 Adjustable Axle;Idler;SCM4;Zn Plate;GM10 No Model Compatibility List $9.02 / Each

8,3
F 702683 009307-C F04 Connecting Axle;Belt;;SCM4;20x65L No Model Compatibility List $10.40 / Each

8,15
T 702711 009356-B T44 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

1
D 702718 009363-C D32 Washer;Swivel Axle;;SS41;;Cr Plate No Model Compatibility List $16.20 / Each

2,8,3
K 702719 009365-00 K16 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
T 702721 009371-E T33 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

9,11
702724 009375-E F08 Cap;GM10 No Model Compatibility List $0.00 / Each
Out Of Stock 		9
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
T 703127 013479-ZG2 T39 Pull Pin Set;Yellow Knob No Model Compatibility List $31.64 / Each

12,13,14
T 703154 013485-Z T13 Seat Pulley Kits;GM10 No Model Compatibility List $162.76 / Each

8,12,13,14
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703460 014781-E AF2 Pulley Set;GM10 No Model Compatibility List $59.57 / Each

8
T 703464 014788-E T39 Metal Pin; Pull Pin No Model Compatibility List $36.48 / Each

3,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
T 703805 017467-D T14 Sleeve;Seat;SS41;20x58.5L;GM10 No Model Compatibility List $3.82 / Each

3,12,13,14
D 703806 017469-G D13 Grip;Pedal;Rod;25X538.9L;GM10 No Model Compatibility List $56.58 / Each

8,9,3,11
F 703845 018621-AB F13 Screw;Hex Socket;Round;M10x1.5Px100L(Too No Model Compatibility List $3.64 / Each

2
D 703867 018864-AA D42 Cover;Axle No Model Compatibility List $3.41 / Each

8,9
T 703902 019153-A T41 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
Screw;Hex Socket;Round;M4x0.7Px10L;BED; 703983 020059-00 F20 Screw;Hex Socket;Round;M4x0.7Px10L;BED; No Model Compatibility List $2.00 / Each

2
Z 704030 020119-A Z61 Screw;Hex Socket;Round;M12x1.75Px25L;Adh No Model Compatibility List $1.79 / Each

2
Screw;BH;M10x1.5Px20L;Chromed 704128 020294-ABX Z09 Screw;BH;M10x1.5Px20L;Chromed No Model Compatibility List $0.99 / Each

7,2,12,13,14
Screw;Hex Socket;M10X1.5PX35L;Cr Plate 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

2,3
704139 020305-AC F10 Screw;Hex Socket;BH;M10x1.5Px85L;Adhere; No Model Compatibility List $1.61 / Each

2
Nut;AC;M8X1.25P;SS41;Chromed 704168 020393-AB C05 Nut;AC;M8X1.25P;SS41;Chromed No Model Compatibility List $2.00 / Each

7,2,4,5,6,12,13,14
B 704171 020410-A B23 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
C 704193 020465-AB C22 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704251 021602-B V04 Decal;Weight Plate;GM10 (Contains decals for 310lbs - 385lbs) No Model Compatibility List $4.76 / Each

7,3
704314 022393-A C40 Sleeve;Center Axle No Model Compatibility List $4.97 / Each

8,3
D 704315 022394-B D40 Sleeve;SS41;Chrome Plate No Model Compatibility List $16.87 / Each

7,3,12,13,14
F 704319 022400-A F30 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

2,12,13,14
T 704322 022405-B T42 Support Rod;Seat;S45C;20X76.2L;GM10 No Model Compatibility List $4.86 / Each

3,12,13,14
705033 031754-A D12 Axle;Swivel Axle;SCM4;19x348.2 ;GM10 No Model Compatibility List $47.24 / Each

8
A 705050 033264-AA AC2 AdjustableTube Set;Seat;Exrta-Work;Cr;GM10 No Model Compatibility List $980.33 / Each

3,12,13,14
F 705079 035711-A F02 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
J 706480 062626-AA J24 Cap;Hole Plug;FW158 No Model Compatibility List $1.66 / Each

9
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
T 707084 1000090177 T41 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
A 707201 1000091169 AD3 Painting;PedalSet;PGM10-G2;GM10 No Model Compatibility List $1192.80 / Each

8,9
707595 1000093575 AG6 Frame Connecting Tube;L;Painting;GM10 No Model Compatibility List $305.76 / Each

3
707596 1000093576 AG5 Frame Connecting Tube;Right No Model Compatibility List $345.77 / Each

3
708034 1000098054 F15 Shaft Sleeve B;Pulley;GM10 No Model Compatibility List $2.89 / Each

8,3
708087 1000099241 V40 InstructionLabel;French;GM10KM-G3 No Model Compatibility List $37.31 / Each

1
708100 1000099694 T39 Pull Pin Set;;;;;;;;;;GM10-Has Orange Knob No Model Compatibility List $44.80 / Each

12,13,14
T 708184 1000100972 T28 ADJ Base;Seat;painting;GM10-G2 No Model Compatibility List $86.16 / Each

3,12,13,14
Screw;Hex Socket;Round;M8x1.25Px30L;Cr P 708446 1000102862 B24 Screw;Hex Socket;Round;M8x1.25Px30L;Cr P No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M10x1.5Px60L;Cr P 708448 1000102864 Z09 Screw;Hex Socket;Round;M10x1.5Px60L;Cr P No Model Compatibility List $8.14 / Each

2
Screw;Hex Socket;Round;M10x1.5Px70L;Cr P 708449 1000102865 Z03 Screw;Hex Socket;Round;M10x1.5Px70L;Cr P No Model Compatibility List $8.42 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr 708453 1000102869 B14 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate 708454 1000102870 L14 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
Screw;Hex Socket;BH;M10x1.5Px70L;Cr Plat 708460 1000102876 Z05 Screw;Hex Socket;BH;M10x1.5Px70L;Cr Plat No Model Compatibility List $5.80 / Each

2
Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl 708473 1000102893 C57 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

2
Screw;Hex Head;M5x0.8Px15L;Zn;Adhere 708478 1000102898 B27 Screw;Hex Head;M5x0.8Px15L;Zn;Adhere No Model Compatibility List $0.21 / Each

2
Washer;Internal Teeth;5.3x10.0x0.6t;BE 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
Circlip;External C Type;S-15;BED 708485 1000102911 C18 Circlip;External C Type;S-15;BED No Model Compatibility List $1.66 / Each

2
Circlip;External C Type;S-30;BED 708486 1000102912 M14 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

2
Circlip;E Type;;E-15;Cr Plate 708489 1000102915 K12 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

2,3
708643 1000104652 C23 Shaft1;Stopper;GM10KM-G3 No Model Compatibility List $8.29 / Each

3
Screw;FH;M10x1.5Px30L;HS;CST;CHM;BP;8.8C 708646 1000104667 P36 Screw;FH;M10x1.5Px30L;HS;CST;CHM;BP;8.8C No Model Compatibility List $4.78 / Each

2
Circlip;External C Type;S-20;BAN 708654 1000104681 Z15 Circlip;External C Type;S-20;BAN No Model Compatibility List $1.77 / Each

2
RVN;NLS7-580-5.7;Pattern;YZN 708656 1000104683 F12 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 708675 1000104705 K19 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

2
708680 1000104713 C31 Screw;BH;M10x1.5Px85L;HS;CHM;BP;G8.8 No Model Compatibility List $7.54 / Each

2
Washer;WW;20.7x29.1x0.3t;65Mn;BAN 708689 1000104726 Z69 Washer;WW;20.7x29.1x0.3t;65Mn;BAN No Model Compatibility List $2.00 / Each

2
708698 1000104911 T29 Screw;RND;M12x1.75Px105L;HS;G8.8;CHM;BP No Model Compatibility List $10.14 / Each

2
Pin;Spring;5x30L;OXIDIZE 708710 1000105038 H09 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
Pin;Spring;10X70;OXIDIZE 708711 1000105039 K06 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
709286 1000112543 D16 Adjust axes;cable;GM10 No Model Compatibility List $27.74 / Each

4,5,6
Bushing;;GM10 709287 1000112545 D15 Bushing;;GM10 No Model Compatibility List $5.59 / Each

8
709288 1000112546 D15 Sleeve;cable;GM10 No Model Compatibility List $4.32 / Each

3,4,5,6
709332 1000113177 F02 Steel Rope-Extrawork;;A;Press Rope Hand; No Model Compatibility List $209.87 / Each

1
709508 1000200871 Not Shown Assembly Manual;;;GM10KM-G No Model Compatibility List $17.37 / Each

3
709509 1000200873 Not Shown Hardware Set;-;GM10KM-G3;-; No Model Compatibility List $239.85 / Each

1
A 709914 1000204508 AD2 Link Arm Set;SA;F;GM10KM-G3;;; No Model Compatibility List $250.48 / Each

3
709917 1000204523 6 Wheel Set;Semi-Assy;down;;;GM10KM-G3;; No Model Compatibility List $135.17 / Each

8
709918 1000204524 7 Wheel Set;Semi-Assy;up;;;GM10KM-G3;; No Model Compatibility List $135.17 / Each

8
710427 1000210200 J01 HAND PAD;-;PU;BLACK;-; No Model Compatibility List $62.04 / Each

4,5,6,12,13,14
K 710568 1000210976 K09 Guide Rail;19X1620L No Model Compatibility List $230.39 / Each

9
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
711018 1000215903 AT1 SEAT SET;SA;;GM10B-KM;SERVICE;; No Model Compatibility List $591.47 / Each

12,13,14
V 713028 1000232600 V31 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
714791 1000318299 K02 Up Weight Plate Set-Exreawork;;;;;GM10B; No Model Compatibility List $224.74 / Each

3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
Superstructure group;Semi-Assy;;;;GM01;P 716649 1000338414 7 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
Stopper Ring;Guide Rod;;;Chrome;GM41;; 717480 1000345425 K28 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

7,3,12,13,14
718094 1000349269 1 Frame set;;;Iced Sliver;GM10B;;Service No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718095 1000349270 2 Swivel arm set;;;Iced Sliver;GM10B;;Ser No Model Compatibility List $376.84 / Each

3
718096 1000349271 3 Linkage Tube Set;;;Iced Sliver;GM10B;;Se No Model Compatibility List $33.77 / Each

3
718097 1000349272 4 Handle Set;;left;Iced Sliver;GM10B;;Serv No Model Compatibility List $50.67 / Each

11
718098 1000349273 5 Handle Set;;right;Iced Sliver;GM10B;;Ser No Model Compatibility List $50.67 / Each

11
718099 1000349274 8 seat set;;;Iced Sliver;GM10B;;Service No Model Compatibility List $963.27 / Each

12,13,14
718241 1000349613 AC1 base set;;;painting;;Iced Sliver;GM10B;S No Model Compatibility List $1.30 / Each

3
718242 1000349614 AD3 Pedal Set;;;painting;;Iced Sliver;GM10B; No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9
718243 1000349615 AG5 CON Tube Set;;R;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718244 1000349616 AG6 CON Tube Set;;L;painting;;Iced Sliver;GM No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718245 1000349617 T28 ADJ Base;;;painting;;Iced Sliver;GM10B;S No Model Compatibility List $42.22 / Each

3
719569 1000362560 Q01 Cover set;Semi-Assy;;;;GM22;Light brown; No Model Compatibility List $660.76 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
719682 1000363760 V51 Warning Label;Frame;;;PC;;English; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720185 1000369167 V60 Warning Label;Frame;;;PC;;English/French No Model Compatibility List $0.00 / Each
Out Of Stock 		3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
721143 1000380983 C01 Stopper Block;;;PU;Black;60x40x12mm;GM10 No Model Compatibility List $16.87 / Each

4,5,6
725288 069252 not shown Manual;Assembly;GM10 No Model Compatibility List $17.65 / Each

3
725289 069255 not shown Hardware;GM10 No Model Compatibility List $207.27 / Each

1
Pulley; 115mm 725584 073573 F21 Pulley; 115mm No Model Compatibility List $42.17 / Each

8
725877 077635 AC1 Base Set;Painting;GM10 No Model Compatibility List $1.30 / Each

3
Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

4,5,6
Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

2
Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

9
Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

9
726887 085791 4 Cover Set;Upper;Snap Badged No Model Compatibility List $96.33 / Each

9
726913 085977 V40 Illustration Decal;ENG;GM10 No Model Compatibility List $33.46 / Each

7,3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
727159 087502 AT2 LEFT HAND BAR SET No Model Compatibility List $202.80 / Each

1
727160 087503 AT3 RIGHT HAND BAR SET No Model Compatibility List $217.70 / Each

1
727161 087505 T13 SEAT ROLLER SET No Model Compatibility List $140.50 / Each

8,12,13,14
727162 087506 T16 TENSION ROLLER SET No Model Compatibility List $23.56 / Each

8
Arm Frame Set;Polarized Titanium 727165 087515 AD1 Arm Frame Set;Polarized Titanium No Model Compatibility List $802.49 / Each

3
727188 087582 T50 Wheel;Seat;PGM10-G2 No Model Compatibility List $107.09 / Each

8,12,13,14
727189 087583 T51 Sleeve;Seat Roller;GM10 No Model Compatibility List $2.73 / Each

8,3,12,13,14
727190 087584 T52 Ring;Seat Roller;GM10 No Model Compatibility List $2.34 / Each

8,12,13,14
727306 088468 T29 Screw;Hex Socket;Round;M12*1.75P(Adhere) No Model Compatibility List $1.01 / Each

2
728638 095808 AB3 MAIN FRAME SET No Model Compatibility List $1.30 / Each

3
Arm Belt Fix Welding Set;Polarized Titanium 728639 095809 AD4 Arm Belt Fix Welding Set;Polarized Titanium No Model Compatibility List $104.75 / Each

15,3
729090 Part of AK1 K05 Grip;U;ABS;BL;;;; No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729096 part of AT1 T04 Chair cover No Model Compatibility List $0.00 / Each
Out Of Stock 		9
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock 		7
729152 Part of Kit 3 AE2 Pedal Arm;Right;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729165 Part of Kit 4 AE1 Pedal Arm;Left;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
729172 Part of Kit 5 AD1 Swing Arm Set;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729191 Part of Kit 6 AF1 Vertical Stabilizer Arm;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729194 Part of Kit 7 AF2 Incline Arm;Left;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729197 Part of Kit 8 AF3 Incline Arm;Right;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		3,10
729201 Part of Kit 9 AG1 Upper Handlebar Set;Right;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock 		11
729232 Part of Kits 6 & 7 T26 Bearing;Ball;6004ZZ;F20xF42x12T;TPI; No Model Compatibility List $0.00 / Each
Out Of Stock 		8
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6,12,13,14
729658 ZMS4003270 Not Shown Decal, QR, G3-S70 Leg Press No Model Compatibility List $5.90 / Each

7,3
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2024. All Rights Reserved.

Payment options
